Description

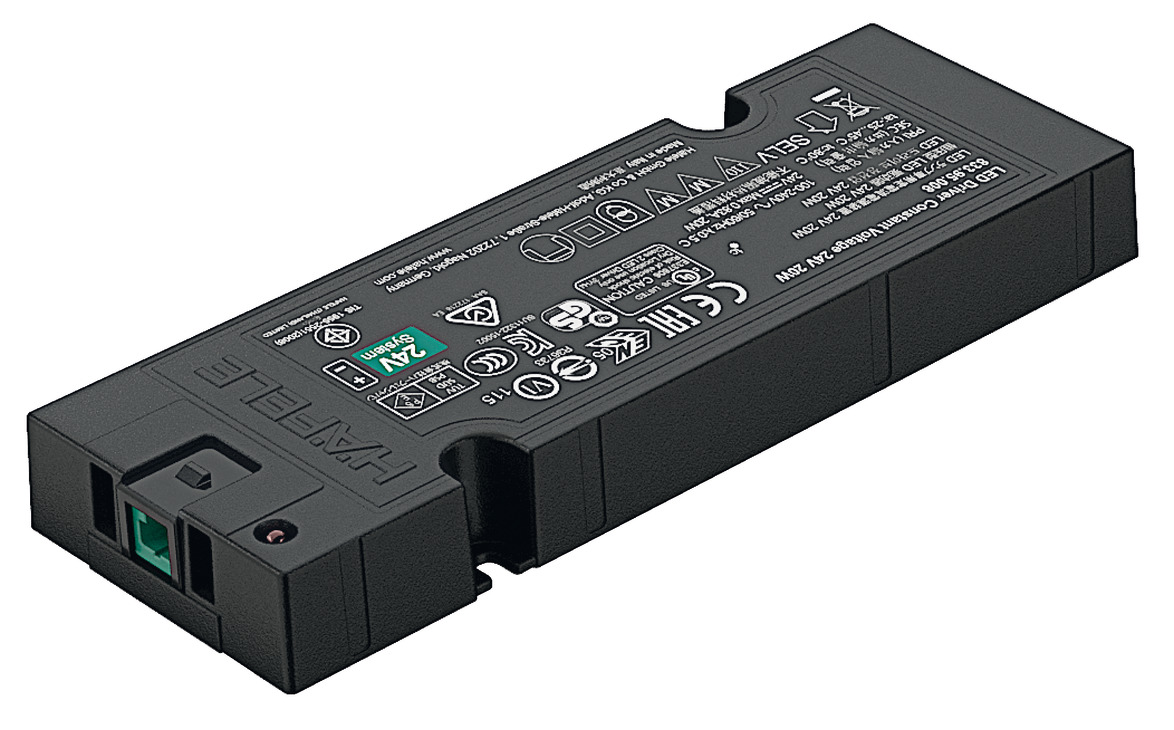

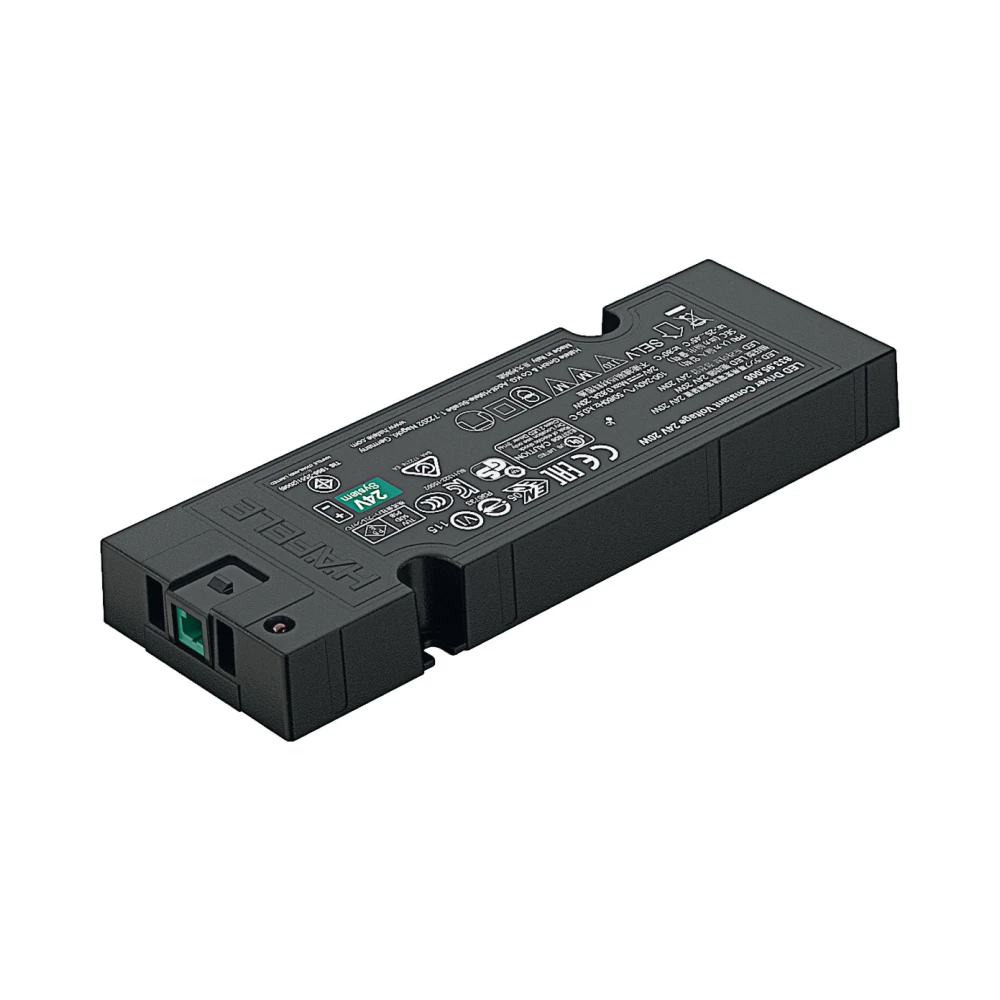

Hafele Loox5 Constant Voltage LED Driver without Mains Lead 24V 20W
- Efficiency factor correction
- Power factor correction
- Extremely flat – 16 mm
- With overload protection
- Number of connections: 1x socket Loox5 24V
- Lifetime: >50,000 hours
- Standby power consumption: ≤ 0.1W
- Degree of protection: IP20
- Supplied with:
- Driver
- Mounting accessories
- Black plastic
| Mains voltage | 220 – 240 V |
|---|---|
| Mains frequency | 50 – 60 Hz |
| Output current | 0.83 A |
| Output power | 20 W |
| Output voltage | 24 V DC |
| Dim. (L x W x H) | 140 x 50 x 16 mm |
| Ambient temperature | -25–45 °C |
| Efficiency at 230 V full load | 0.89 |
| Power consumption at 230 V no load | 0.1 W |
| Weight | 84 g |
| Area of application | LED |
| Version | With overload protection |
| Material | Plastic |
| Colour/finish | Black |
| Connections | 1 x socket Loox5 2-pin 24 V |
| Installation | Screw fixing |
| Installation reference | Provide for sufficient air supply and circulation at the mounting location. Provide inspection opening |
| Häfele Lifetime Guarantee | 7 years |
Maximum wattage per driver socket = 90 W
Provide for sufficient air supply and circulation at the mounting location of the driver; we recommend 10 mm clearance.
Maximum lead length for the Loox5 driver to the light is 10 m. Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights had been determined with the rated output voltage of the driver (12 V or 24 V).
