DC MAXI Jolly DALI 1 & 2 / 1-10V 60W Dimmable LED Driver 127413

SKU: 127413

Out of stock (0) This item cannot be back-ordered

DIRECT REPLACEMENT - 151413

Adjustable current 350mA-1000mA

DALI 1 & DALI 2 dimmable

1-10V Dimmable

Minimum cut-out hole diameter: 84mm

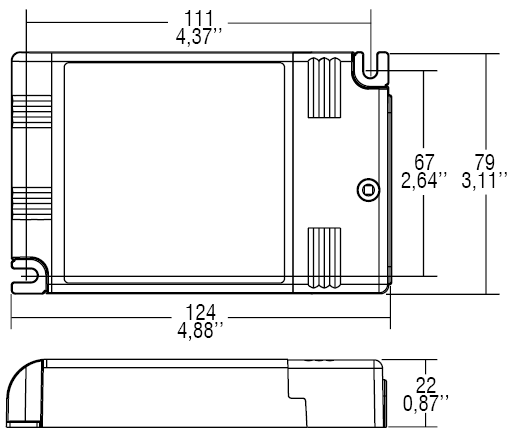

Size: 124 x 22 x 79 mm

Dispatch Info
This product will be ordered from one of ours suppliers. The usual dispatch time to you is displayed above. You will receive a notification if there are any delays once your order is placed.

£49.99 + VAT

(incl. VAT £59.99)





Description

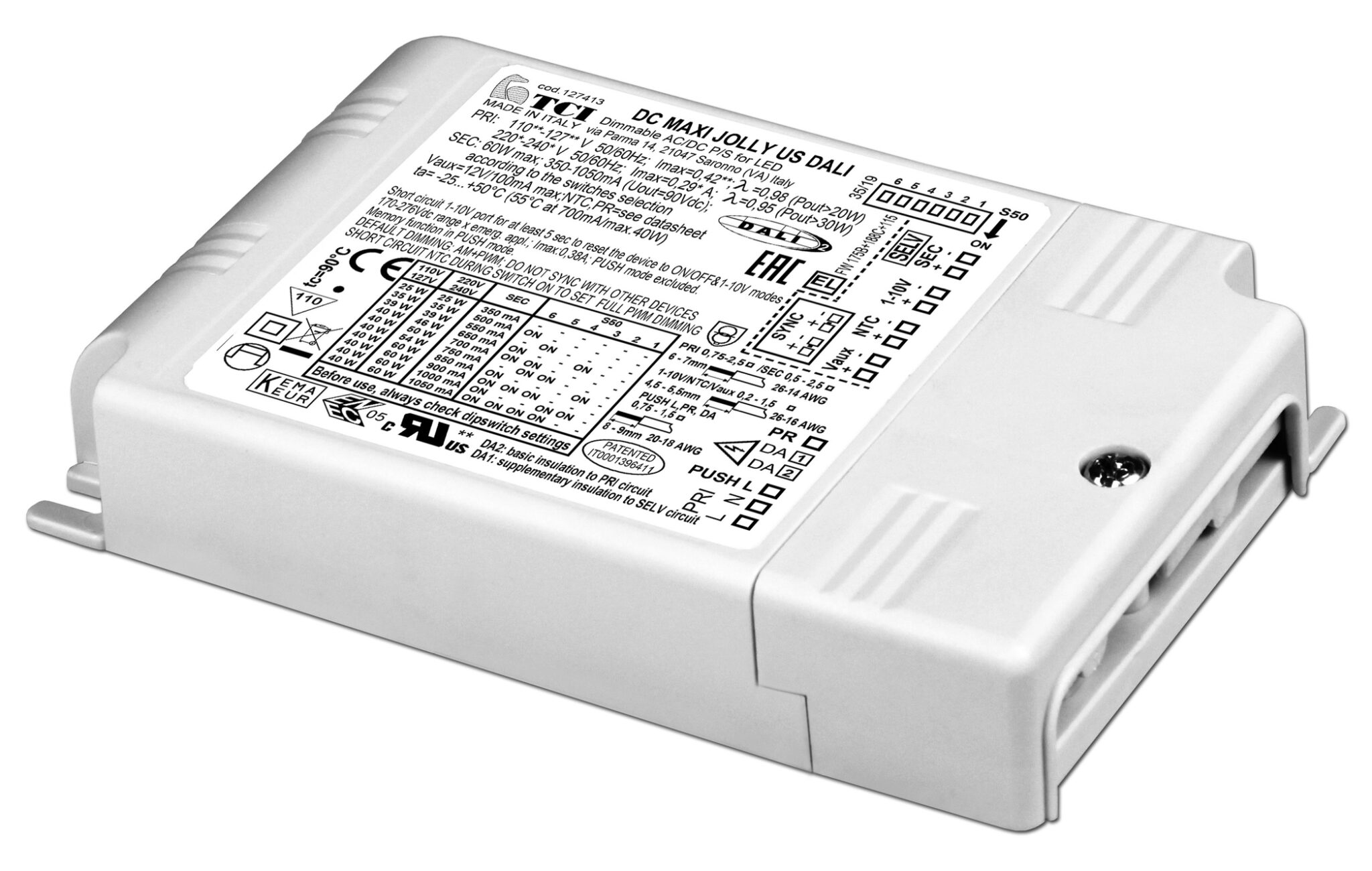

DC MAXI Jolly DALI 1 & 2 / 1-10V 60W Dimmable LED Driver 127413

DIRECT REPLACEMENT – DC MAXI Jolly US DALI 1 & 2 / 1-10V 60W Dimmable LED Driver 151413

Direct current dimmable electronic drivers with DIP-SWITCH

Features

Multi-power driver supplied with dip-switch for the selection of the output current.

P20 independent driver, for indoor use

Class II protection against electric shock for direct or indirect contact

Driver for built-in use

It can be used for lighting equipment in protection class I and II

Active Power Factor Corrector.

Analogical input (NTC) for thermal sensor connection.

Auxiliary output 12 V max. 100 mA.

Current regulation ±5 % including temperature variations.

Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2 / AWG13).

Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm – max. 8 mmI

Protections:
– against overheating and short circuits; – against mains voltage spikes;
– against overloads.
Thermal protection = C.5.a.

Additional information

Brand

TCI

IP Rating

IP20

Dimming Control

Dali, 0/1-10

Wattage

60W

Supply

350mA, 550mA, 650mA, 750mA, 850mA, 900mA, 500mA, 700mA, 1000mA, 1050mA

Device Type

Drivers
