Description

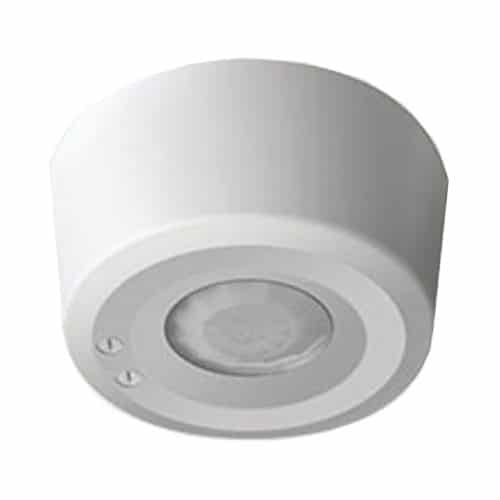

Ceiling surface-mounted PIR switch.
These surface-mounted models are ideal for solid ceilings.
The CESR PIR is a hard wired version and can be mounted directly onto solid ceilings or a range of different mounting boxes.
| Detection Zone: | 360° |
| Time lag range: | 10 seconds to 40 minutes in 9 steps |
| Photocell range: | 30 to 1000 lux, and inactive |
| Loading: | Up to 6 amps (1500W) of resistive loads. Up to 6 amps (1500W) of fluorescent loads. Up to 3 amps (750W) of electronic and wire wound transformer loads. Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings. Up to 1 amp (250W) of fans. |
| Dimensions: | 91 x 91 x 45 mm |
Wiring Diagrams

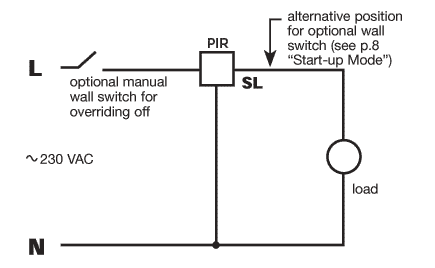

Single CESR PIR

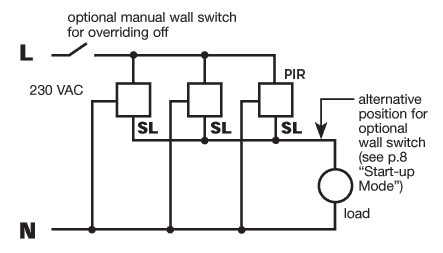

A few CESR PIR wired in parallel
