Ohme Home Pro 8m EV Charger | 7.4kW Type 2 Tethered | Black

SKU: OHME0002GB002-8M
4 In Stock
This item cannot be back-ordered

Ohme Home Pro 8m EV Charger – 7.4kW single-phase smart home charger with an extended 8m tethered Type 2 cable, LCD display, app control, 4G connectivity and dynamic load balancing. Supplied with a factory-fitted 1m input lead for straightforward external electrical connection without opening the sealed charger. IP55 rated, black finish. External junction box and circuit protection supplied separately. Installation not included.

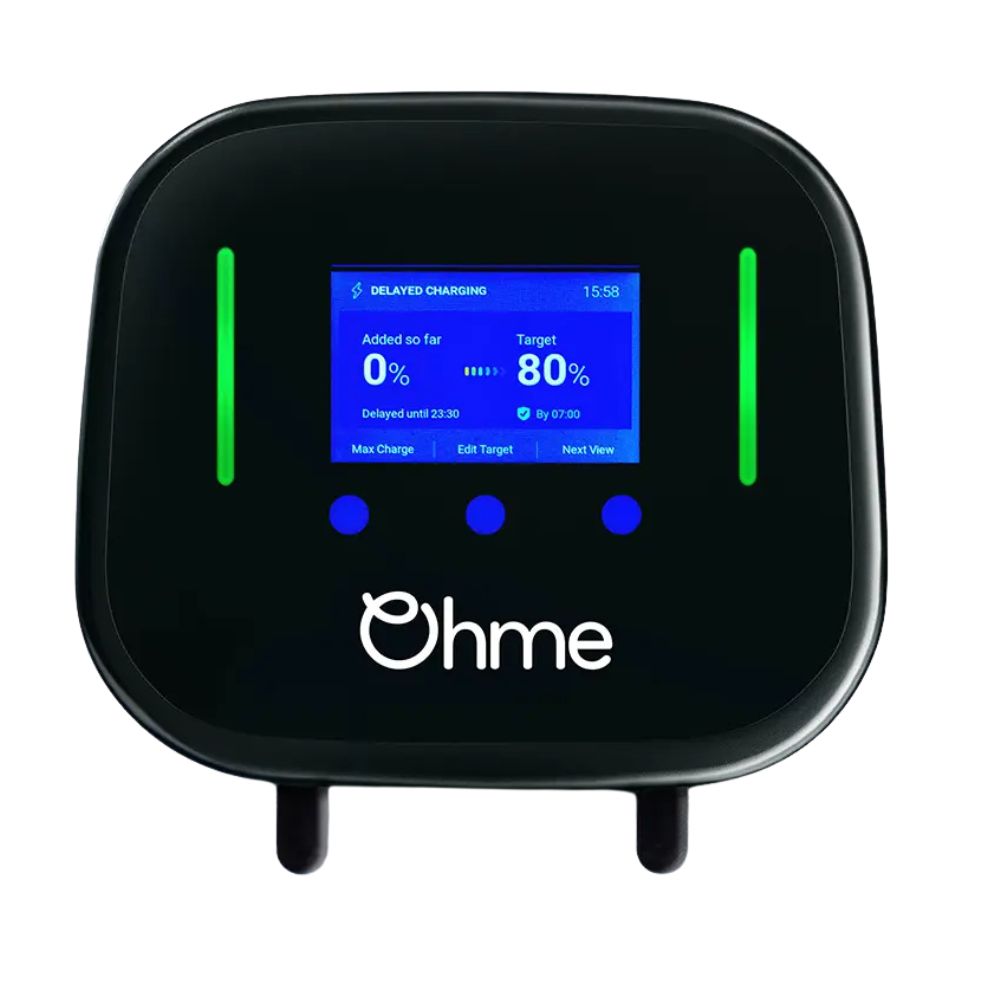

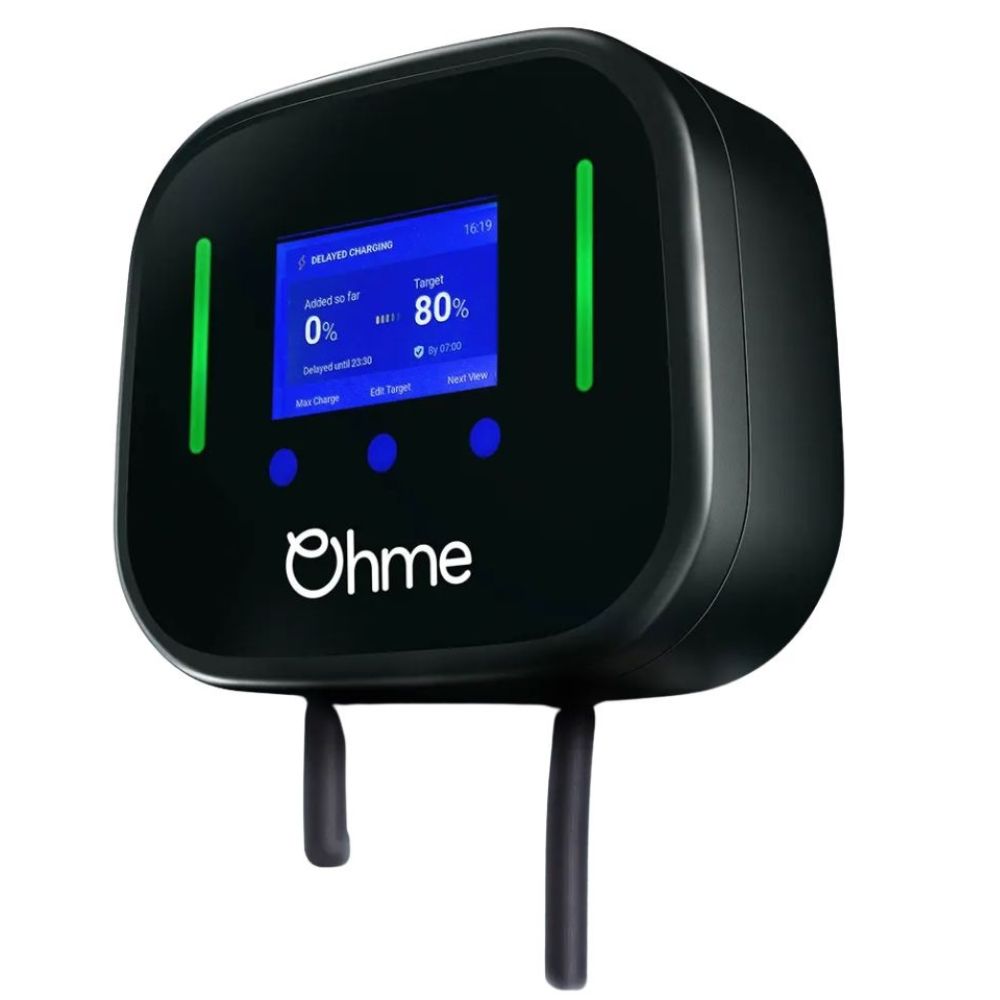

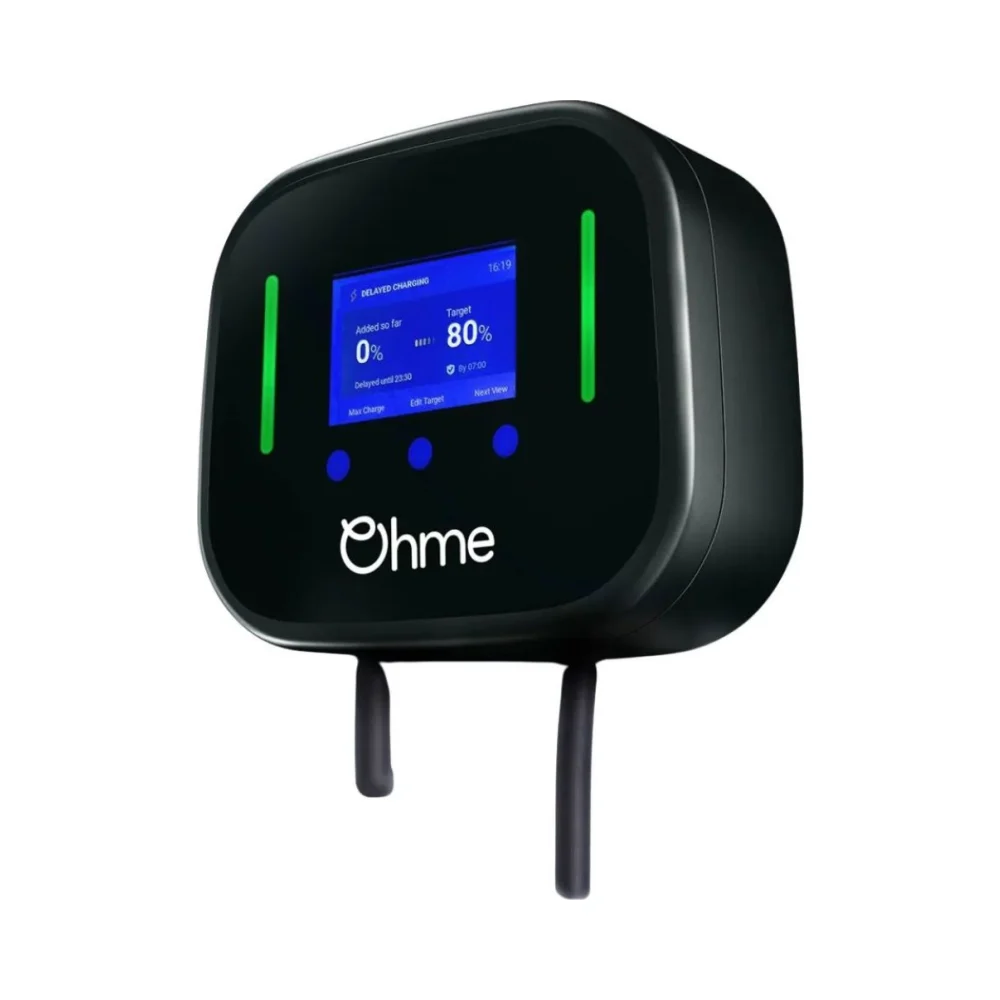

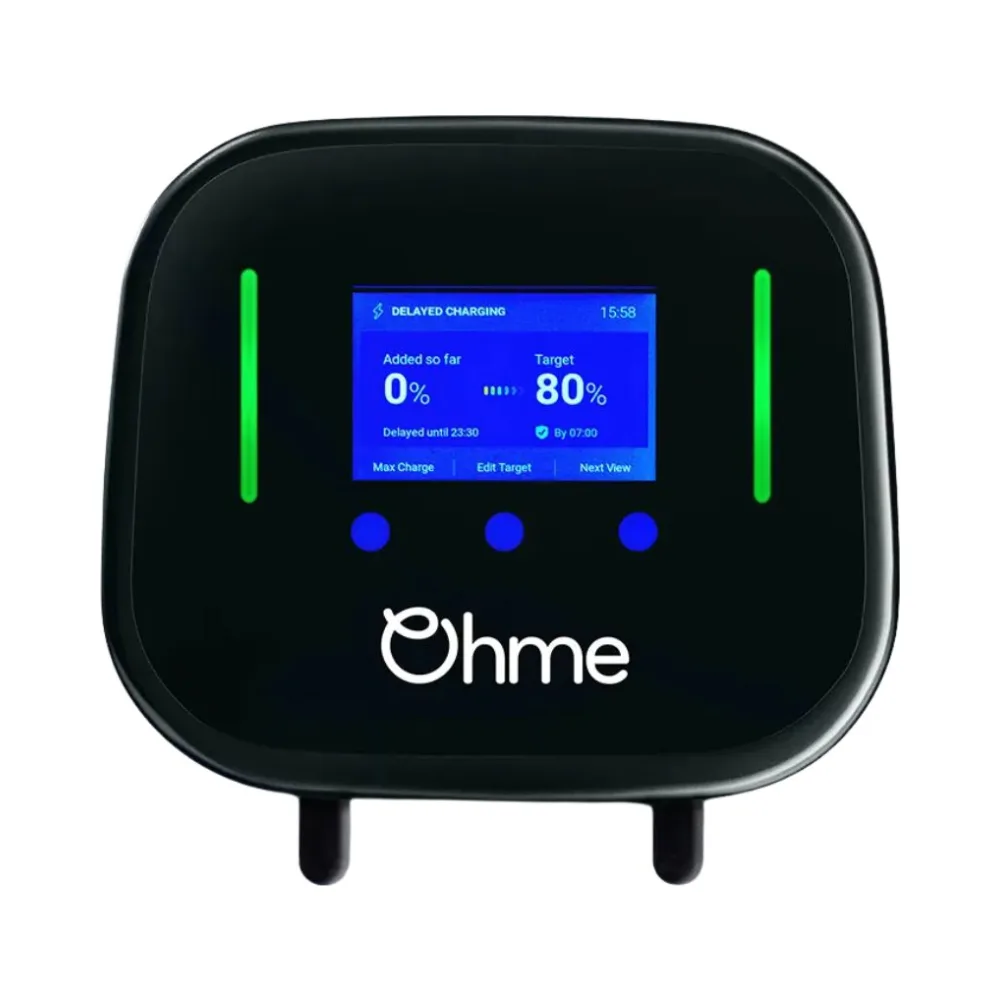

Ohme Home Pro 8m EV Charger – 7.4kW Tethered Type 2

The Ohme Home Pro 8m EV Charger is a 7.4kW smart home charging unit with an extended 8-metre tethered Type 2 cable. It is particularly useful where the charging point is positioned further from the vehicle, where parking arrangements vary or where additional cable reach makes everyday charging more convenient.

With its integrated LCD screen, 4G multi-network connectivity, Ohme app control and dynamic load balancing, the Home Pro provides convenient smart EV charging for suitable domestic installations.

Easy installation advantage: The charger comes with a factory-fitted, approximately 1-metre input cable (flying lead). Electricians can connect the mains supply externally without opening the sealed charger enclosure. A suitably rated external junction box, isolator or other appropriate connection enclosure must be provided separately.


Key Features of the Ohme Home Pro 8m EV Charger

  • 7.4kW / 32A single-phase charging for compatible electric vehicles.
  • 8m tethered Type 2 charging cable for additional reach and flexible parking arrangements.
  • Factory-fitted 1m input lead for convenient external electrical connection.
  • Integrated LCD display showing charging information and operating status.
  • Ohme app control for scheduling and monitoring charging sessions.
  • 4G multi-network SIM connectivity for supported smart charging services.
  • Smart electricity tariff integration where supported by the supplier and Ohme.
  • Dynamic load balancing using the supplied CT clamp.
  • Solar charging compatibility subject to the required installation and configuration.
  • IP55 weather protection for suitable outdoor installations.
  • Integrated PEN-fault detection and residual-current protection features.
  • Over-the-air updates and a three-year manufacturer warranty.

Why Choose the 8m Ohme Home Pro?

The main advantage of the 8m model is the extended tethered charging cable. Compared with the standard 5m Home Pro, it provides an additional 3 metres of reach without the need to handle a separate vehicle charging lead.

This can be especially useful where the vehicle charge port is positioned further from the wall-mounted unit, where the driveway is longer or where cars may park in different positions.

Before ordering, measure the intended route between the charger and vehicle inlet. Take account of the vehicle position, wall location, obstacles and the safe storage of the charging lead when not in use.

If an extended cable is unnecessary, consider the Ohme Home Pro 5m EV Charger.


Pre-Wired 1m Flying Lead – Straightforward Electrical Installation

One of the practical installation advantages of the Ohme Home Pro 8m EV Charger is its factory-fitted input lead.

The charger is supplied with an approximately 1-metre pre-wired flying lead, containing the electrical supply conductors and connections associated with the CT-clamp system.

Unlike EV chargers that require mains supply termination inside the unit, the Home Pro can be connected externally without opening the sealed charger enclosure.

Where Is the Electrical Supply Connected?

Ohme specifies that the flying lead is connected to a suitable external junction box, isolation switch or mini consumer unit, depending on the installation design.

The external connection arrangement must:

  • Be correctly rated for the circuit, with a junction box rated at least 32A as specified by Ohme.
  • Provide suitable environmental protection for the installed location.
  • Have sufficient space for the required mains and CT-clamp connections.
  • Use appropriately rated terminals and cable glands.
  • Be installed according to current Ohme instructions and BS 7671.

Important: The external junction box, mains supply connectors and protective devices are not included with the charger and must be selected separately by the electrician.

This pre-wired connection arrangement can simplify the physical installation, but it does not remove the requirement for correct circuit design, electrical inspection, testing and commissioning.

For further installation guidance, read our Ohme Charger Installation Guide.


Smart Charging and Electricity Tariffs

The Ohme Home Pro can schedule charging around supported electricity tariffs, charging preferences and the time the vehicle needs to be ready.

Through the Ohme app, users can configure charging schedules and monitor charging activity. Where supported, tariff integration can help schedule charging during lower-cost periods.

Actual tariff compatibility and available functions depend on the energy provider, vehicle and current Ohme integrations. Customers should confirm compatibility before relying on a particular tariff feature.


Dynamic Load Balancing and Solar Compatibility

The Ohme Home Pro supports dynamic load balancing using a CT clamp supplied with the charger.

When correctly installed and configured, the CT clamp monitors electrical demand and allows the charger to adjust its charging current to help prevent the configured supply limit from being exceeded.

The charger also supports solar charging features with suitable equipment and configuration. Solar compatibility should be checked against current Ohme requirements and the proposed installation.


Technical Specifications

  • Product: Ohme Home Pro 8m EV Charger
  • Manufacturer part number: OHME0002GB002-8M
  • Charging output: Up to 7.4kW
  • Rated current: 32A maximum
  • Supply: 230V AC, single-phase, 50Hz
  • Vehicle connection: Tethered Type 2
  • Charging cable length: 8 metres
  • Supply connection: Factory-fitted approximately 1m input flying lead
  • Display: Integrated LCD screen
  • Connectivity: 4G multi-network SIM
  • Controls: Ohme app and on-unit controls
  • Load balancing: Dynamic, using the supplied CT clamp
  • Residual-current protection: Integrated Type A 30mA and 6mA DC detection features
  • PEN-fault protection: Integrated detection
  • Ingress protection: IP55
  • Impact resistance: IK08
  • Dimensions: 170mm (H) x 200mm (W) x 100mm (D)
  • Unit weight: Approximately 4kg
  • Colour: Black
  • Manufacturer warranty: 3 years

Technical details should be confirmed against the documentation for the exact product supplied. The 8m cable variant may have different overall packaged dimensions and weight from the standard 5m model.


Electrical Protection and Installation Requirements

The Ohme Home Pro must be installed by a suitably qualified electrician with the necessary EV charging installation knowledge and experience.

Although the charger incorporates residual-current protection and PEN-fault detection features, separate external overcurrent protection is required. The complete protection arrangement must comply with current Ohme instructions and the applicable requirements of BS 7671.

The electrician must assess the incoming supply, existing demand, earthing arrangement, cable sizing, protective devices and suitability of the proposed charger location.

Electrical4Less supplies EV charger consumer units, EV circuit protection and EV installation cables.

The installer should confirm which materials are required before ordering.


Compare Other Ohme Chargers

Not sure which Ohme model is best suited to your installation?

  • Ohme Home Pro 5m – tethered charger with a shorter charging cable.
  • Ohme ePod 7.4kW – compact socketed charger requiring a separate compatible vehicle charging lead.

Read our Ohme Home Pro vs ePod comparison or explore the complete Ohme charger range.


Buying the Ohme Home Pro 8m Without Installation

Electrical4Less supplies the Ohme Home Pro 8m as a standalone product for homeowners, electricians and EV installers.

Installation is not included. Customers can arrange the work separately with their preferred suitably qualified installer.

Check the current product price and stock status above before ordering.


Ohme Manufacturer Support

For setup instructions, product documentation and commissioning guidance, visit the Ohme Installer Resources or the official Home Pro installation guide.






Brand

Ohme

Product Type

EV Charger

Cut off time for Dispatch Delivery: Mon-Thu 3 PM *
All orders placed on Sat/Sun will be dispatched on Monday.

Tel: 020 3375 1586

What is the difference between the 5m and 8m Ohme Home Pro?

Both models offer the same 7.4kW charging capability and smart features. The difference is the length of the permanently attached Type 2 charging cable. The 8m version provides an extra 3 metres of reach, making it useful for larger driveways or different parking positions.

Is this a tethered or untethered EV charger?

The Ohme Home Pro 8m is a tethered EV charger with a permanently attached 8-metre Type 2 cable. You do not need to purchase a separate vehicle charging cable.

What charging speed does the Ohme Home Pro 8m provide?

The Ohme Home Pro provides up to 7.4kW (32A) single-phase charging. Actual charging speed depends on the vehicle’s onboard charger, available electrical supply and charger settings.

Is the Ohme Home Pro 8m compatible with my EV?

The Home Pro 8m has a Type 2 charging connector, suitable for vehicles with a compatible Type 2 AC charging inlet. Check your vehicle’s charging specifications before purchasing.

Does the Ohme Home Pro work with smart electricity tariffs?

Yes. The Ohme Home Pro supports scheduled charging and integrations with selected smart electricity tariffs. Available features depend on the electricity supplier, tariff, vehicle and current Ohme compatibility.

Can I charge my EV using solar power?

The Ohme Home Pro supports solar charging features with a correctly installed and configured CT clamp and suitable solar generation setup. Check Ohme’s current solar compatibility requirements before installation.

Does this charger require Wi-Fi?

The Home Pro model described here uses built-in 3G/4G multi-network SIM connectivity, with automatic connection over the mobile network. Suitable mobile coverage is required. The manufacturer states that connectivity costs are covered for the first three years.

Does the Ohme Home Pro have on-unit controls?

Yes. The Ohme Home Pro features a built-in LCD screen and three on-unit control buttons. Charging schedules, preferences and smart features can also be managed through the Ohme app.

Is load balancing included?

Yes. The Ohme Home Pro includes a CT clamp for dynamic load balancing. When correctly installed and configured, the charger can adjust its charging current in response to household electrical demand.

Is the Ohme Home Pro suitable for outdoor installation?

Yes. The Ohme Home Pro has an IP55 ingress protection rating and IK08 impact resistance rating. It is designed for suitable indoor or outdoor installation in accordance with the manufacturer’s instructions.

What electrical protection is built in?

The Home Pro incorporates Type A 30mA residual-current protection characteristics, 6mA DC fault detection and PEN-fault detection. External overcurrent protection is still required. The electrician must determine the complete protective arrangement under BS 7671 and the current Ohme installation instructions.

Is this model OZEV grant approved?

Ohme lists the Home Pro as an approved model for applicable OZEV schemes. However, product approval does not guarantee grant eligibility. Eligibility depends on the current scheme, property, applicant and installation requirements, including use of an approved installer where required.

Who should install the Ohme Home Pro 8m EV Charger?

The charger must be installed by a suitably qualified electrician experienced in EV charging installations. The installer must assess the electrical supply, cable route, earthing, protection and load-balancing requirements, then complete testing and commissioning.

What warranty is included?

The Ohme Home Pro is supplied with a three-year manufacturer’s warranty, subject to Ohme’s current warranty terms and conditions.

Does the Ohme Home Pro 8m need to be opened for the electrical connection?

No. The Home Pro has a factory-fitted, approximately 1-metre input flying lead. The electrician can terminate the supply externally in a suitable connection enclosure without opening the sealed charger body.

Is the junction box included with the Ohme Home Pro 8m?

No. The external junction box, isolator or other suitable connection enclosure must be supplied separately. Ohme specifies a junction box rated at least 32A, with suitable IP protection, sufficient space and appropriately rated electrical terminals.
