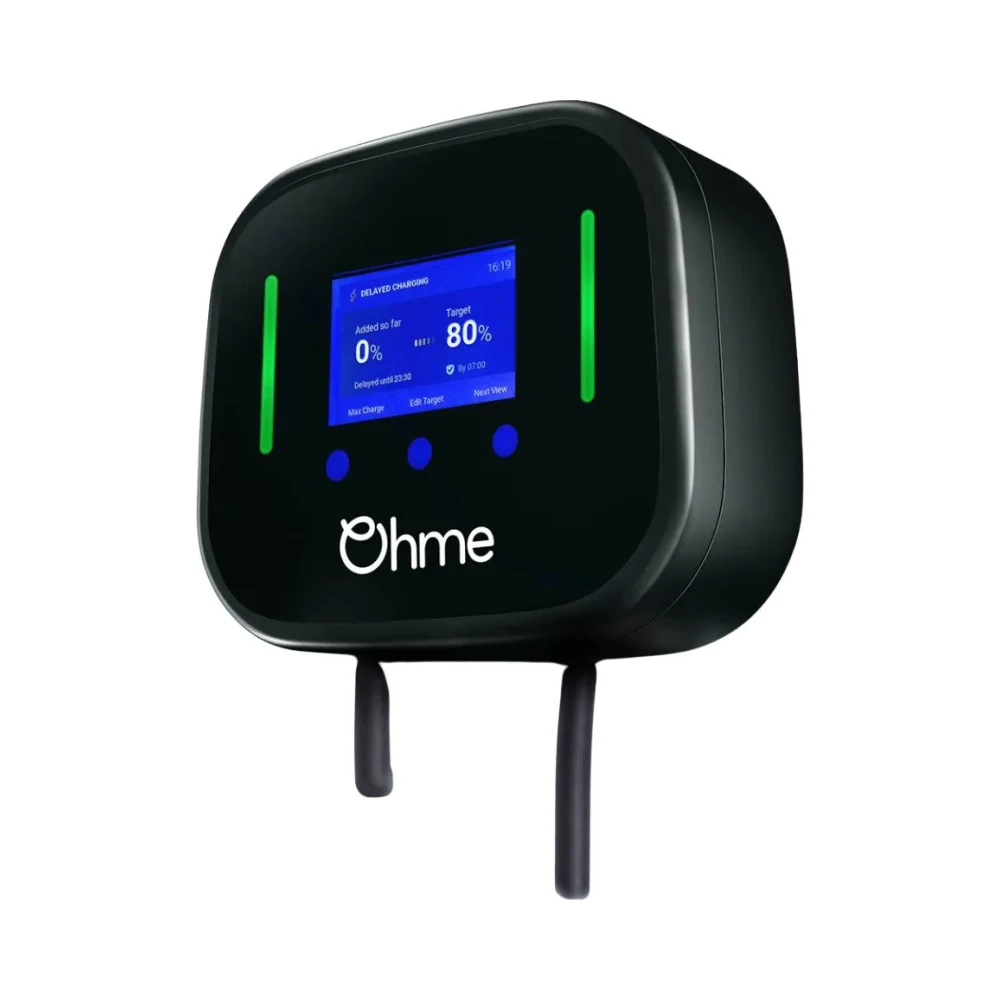

Ohme Home Pro 5m EV Charger – 7.4kW Tethered Type 2
The Ohme Home Pro 5m EV Charger is a 7.4kW single-phase smart home charger with a permanently attached 5-metre Type 2 charging cable. Designed for convenient everyday charging, it is particularly suited to driveways and parking spaces where the vehicle is normally parked close to the charging point.
The Ohme Home Pro combines an integrated LCD display, smart app control, 4G connectivity, dynamic load balancing and compatibility with supported smart electricity tariffs.
Easy installation advantage: The Home Pro includes a factory-fitted, approximately 1-metre input flying lead. Electricians can connect the supply externally without opening the sealed charger enclosure. A suitably rated external junction box, isolator or other appropriate connection enclosure must be supplied separately.
Key Features of the Ohme Home Pro 5m EV Charger
- 7.4kW / 32A single-phase charging for compatible electric vehicles.
- 5m tethered Type 2 cable for convenient everyday charging without a separate vehicle lead.
- Factory-fitted 1m flying lead allowing external mains supply termination.

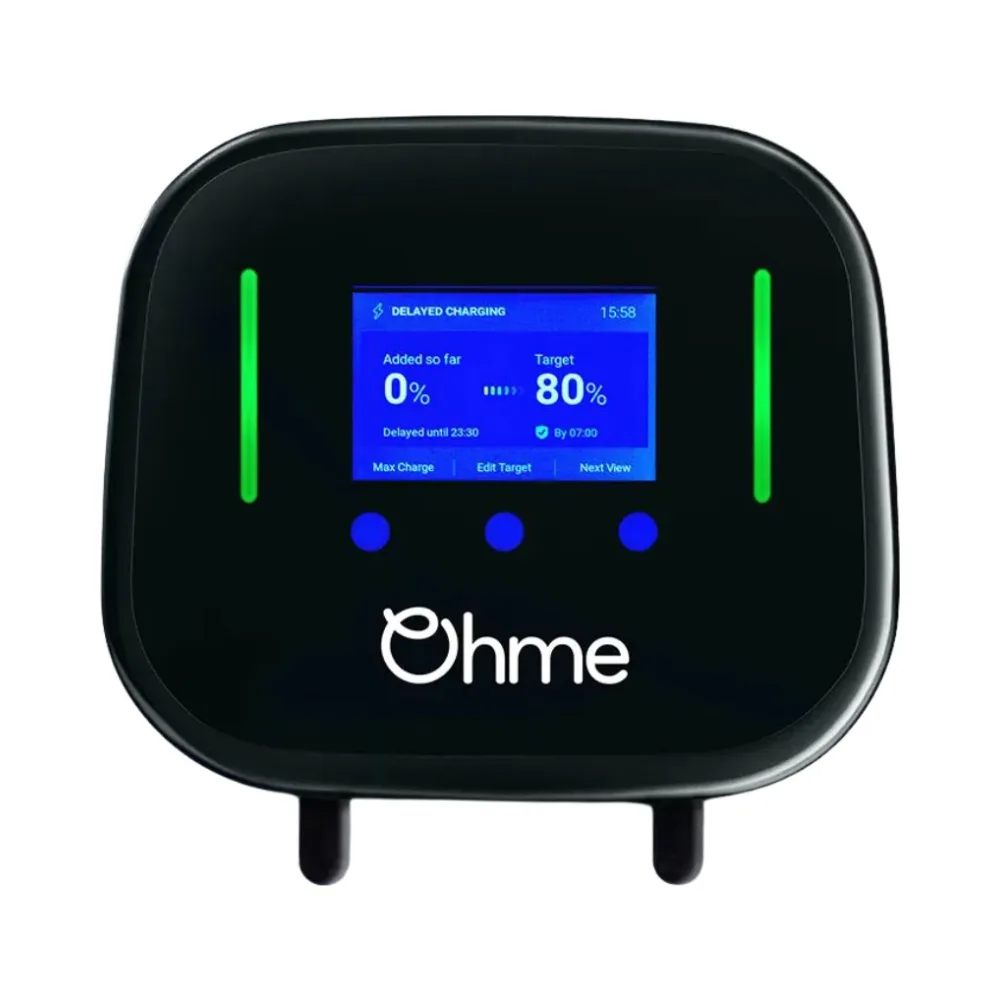

- Built-in LCD display showing charger information and operating status.
- Ohme app control for charging schedules, preferences and monitoring.
- 4G multi-network connectivity for supported smart charging services.
- Smart tariff integration with compatible electricity suppliers and tariffs.
- Dynamic load balancing using the included CT clamp.
- Solar charging compatibility with a suitable installation and configuration.
- IP55 weather protection for appropriate outdoor installations.
- Integrated PEN-fault detection and residual-current protection features.
- Over-the-air software updates and a three-year manufacturer warranty.
Why Choose the Ohme Home Pro with 5m Cable?
The main advantage of the 5m Ohme Home Pro is the convenience of its permanently attached Type 2 charging cable.
For homeowners who park close to the charger, the 5-metre cable can provide sufficient reach without leaving unnecessary excess cable around the driveway.
Because the lead remains attached to the unit, there is no need to unpack and reconnect a separate charging cable each time the vehicle needs charging.
The integrated LCD screen also allows users to check charger information directly on the unit, while the Ohme app offers additional charging controls and scheduling functions.
Before ordering, measure the distance between the proposed charger position and the vehicle charging inlet, allowing for the actual cable route and parking arrangement.
If a longer cable is required, consider the Ohme Home Pro 8m EV Charger.
Pre-Wired 1m Flying Lead – Straightforward Installation
One practical advantage of the Ohme Home Pro 5m EV Charger is its factory-fitted electrical input cable.
The charger is supplied with an approximately 1-metre pre-wired flying lead containing the mains supply conductors and connections associated with the CT-clamp load-balancing system.
Unlike EV chargers that require the electrician to open the unit and terminate the supply directly inside the charger, the Home Pro allows the supply connection to be made externally.
Where Is the Ohme Home Pro Connected?
Ohme specifies that the fixed flying lead can be terminated in a suitably rated junction box, isolation switch or mini consumer unit, depending on the electrical installation design.
For many domestic installations, a suitable weatherproof junction box provides a convenient external connection point.
The manufacturer specifies that the flying lead has 6mm² copper supply conductors and an overall cable diameter of approximately 15.2mm.
Where a junction box is used, Ohme requires:
- A junction box rated at least 32A.
- An appropriate IP rating for the installation location.
- Sufficient space for a three-way mains terminal arrangement or the required additional load-balancing connections.
- Suitable electrical terminals, cable glands and cable retention.
- Connection methods compliant with the manufacturer instructions and BS 7671.
Important: The external junction box, mains supply terminals and protective devices are not included with the Ohme Home Pro and must be selected and supplied separately by the electrician.
Ohme supplies accessories for the CT-clamp connections, but the supplied lever connectors must not be used for mains supply connections unless specifically approved and rated for that purpose.
The pre-wired lead can simplify the connection process while avoiding unnecessary access to the sealed charger enclosure. However, all electrical connections still require appropriate installation, inspection, testing and commissioning.
For more information, read our Ohme Charger Installation Guide.
Smart Charging and Electricity Tariff Compatibility
The Ohme Home Pro supports scheduled charging through the Ohme app, helping drivers manage charging times according to their vehicle requirements and electricity tariff.
Where a compatible smart electricity tariff is available, the charger can schedule charging during lower-cost periods according to the supported integration and configured charging preferences.
Customers can use the Ohme app to manage charging schedules, monitor activity and configure supported smart-charging functions.
Available features depend on the vehicle, electricity supplier, selected tariff and current Ohme integrations. Compatibility should be confirmed before relying on a particular tariff feature.
Dynamic Load Balancing and Solar Charging
The Ohme Home Pro includes a CT clamp for dynamic load balancing.
When correctly installed and configured, the CT clamp monitors electrical demand and allows the charger to adjust its charging current to help prevent the configured supply threshold from being exceeded.
This is particularly useful where the property’s incoming electrical supply has limited spare capacity or where other significant electrical loads are present.
The charger also supports solar charging features with suitable generation equipment, CT-clamp configuration and compatible Ohme settings.
Solar charging compatibility and the required installation arrangement should be confirmed against the current manufacturer instructions.
Technical Specifications – Ohme Home Pro 5m
- Product: Ohme Home Pro 5m EV Charger
- Manufacturer part number: OHME0002GB002
- Rated charging power: Up to 7.4kW
- Rated current: 32A maximum
- Electrical supply: 230V AC, single-phase, 50Hz
- Charging connector: Tethered Type 2
- Vehicle charging cable: 5 metres
- Supply connection: Factory-fitted approximately 1m input flying lead
- Display: Integrated LCD screen
- Connectivity: 3G/4G multi-network SIM, with automatic 4G mobile network connection
- Controls: Ohme app and on-unit controls
- Load balancing: Dynamic, using the included CT clamp
- Residual-current protection: Integrated Type A 30mA characteristics with 6mA DC fault detection
- PEN-fault protection: Integrated detection
- External overcurrent protection: Required and selected separately
- Ingress protection: IP55
- Impact resistance: IK08
- Dimensions: 170mm (H) x 200mm (W) x 100mm (D)
- Unit weight: Approximately 4kg
- Mounting: Wall or suitable post mounting
- Colour: Black
- Warranty: Three-year manufacturer warranty
Technical specifications are based on Ohme’s published UK information. The installer should consult the latest documentation supplied with the exact charger before installation.
Electrical Protection and Installation Requirements
The Ohme Home Pro 5m must be installed by a suitably qualified electrician with the appropriate EV charging installation knowledge and experience.
The electrician must assess the incoming supply, existing electrical demand, earthing arrangements, consumer unit suitability, cable sizing and circuit protection.
Although the charger incorporates residual-current protection and PEN-fault detection features, external overcurrent protection is still required.
Any additional upstream RCD requirements and the complete protective arrangement must be determined in accordance with current Ohme installation instructions and BS 7671.
The installer must also confirm the correct CT-clamp arrangement, charger mounting position, electrical connections and commissioning settings.
Electrical4Less supplies EV charger consumer units, EV circuit protection devices and EV installation cables.
The electrician should confirm the required materials before ordering.
Compare Other Ohme Chargers
If you require a longer permanently attached charging cable, the Ohme Home Pro 8m offers an additional 3 metres of reach.
For a compact socketed alternative without a permanently attached vehicle charging lead, consider the Ohme ePod 7.4kW EV Charger.
You can also read our Ohme Home Pro vs ePod comparison guide or browse the complete Ohme charger range.
Buy the Ohme Home Pro 5m Without Installation
Electrical4Less supplies the Ohme Home Pro 5m as a standalone charger for homeowners, electricians and EV installers.
Installation is not included. Customers can arrange the work separately with their preferred suitably qualified electrician.
Current pricing, availability and ordering options are displayed on this product page.
Ohme Manufacturer Support
For product documentation, installation instructions and setup information, visit the Ohme Installer Resources or the official Ohme Home Pro installation guide.
