Ohme ePod EV Charger | 7.4kW Socketed | Black

SKU: OHMEX1GB003-BL
4 In Stock
This item cannot be back-ordered

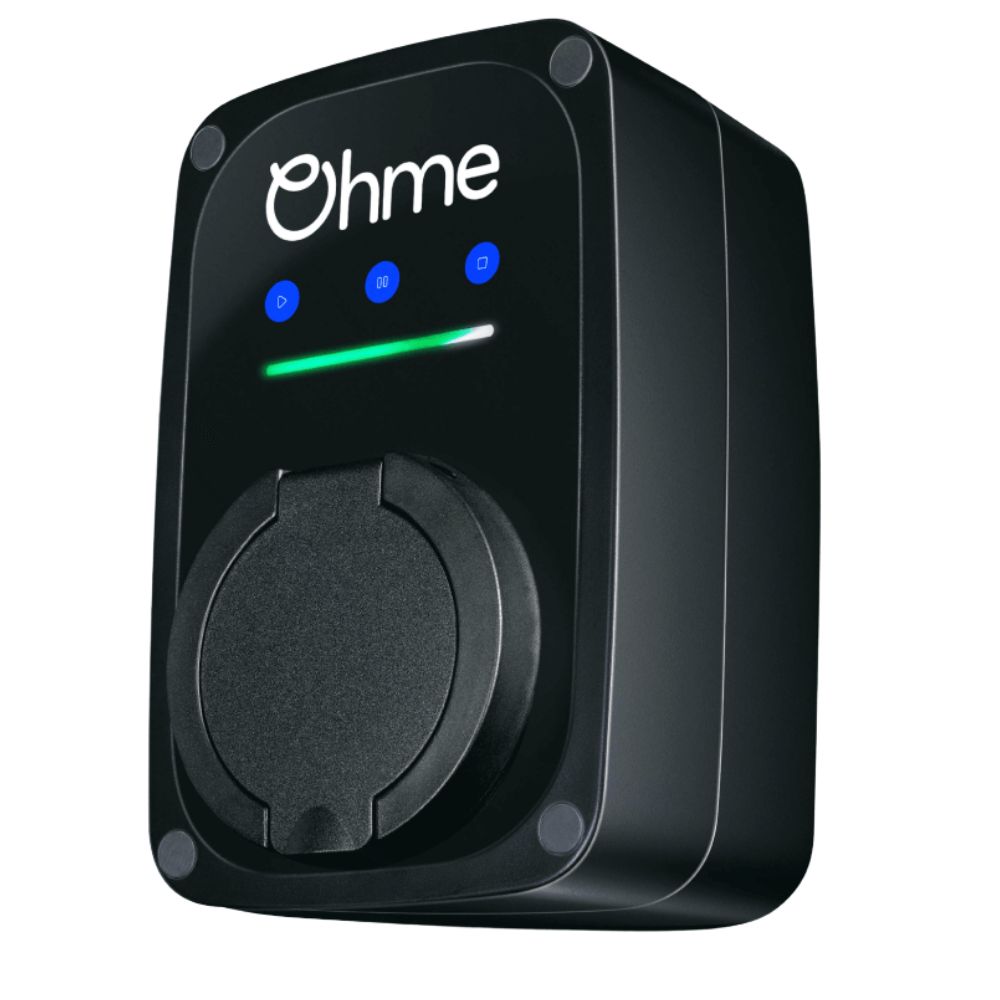

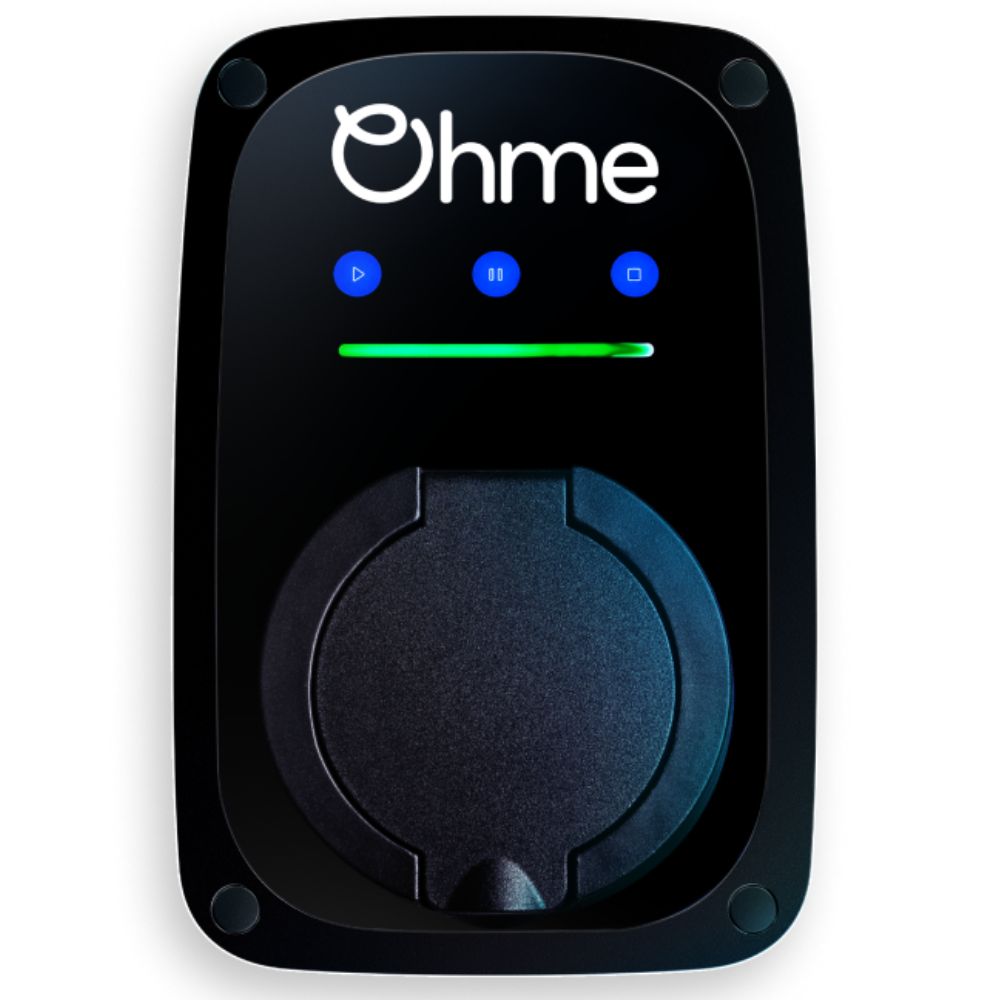

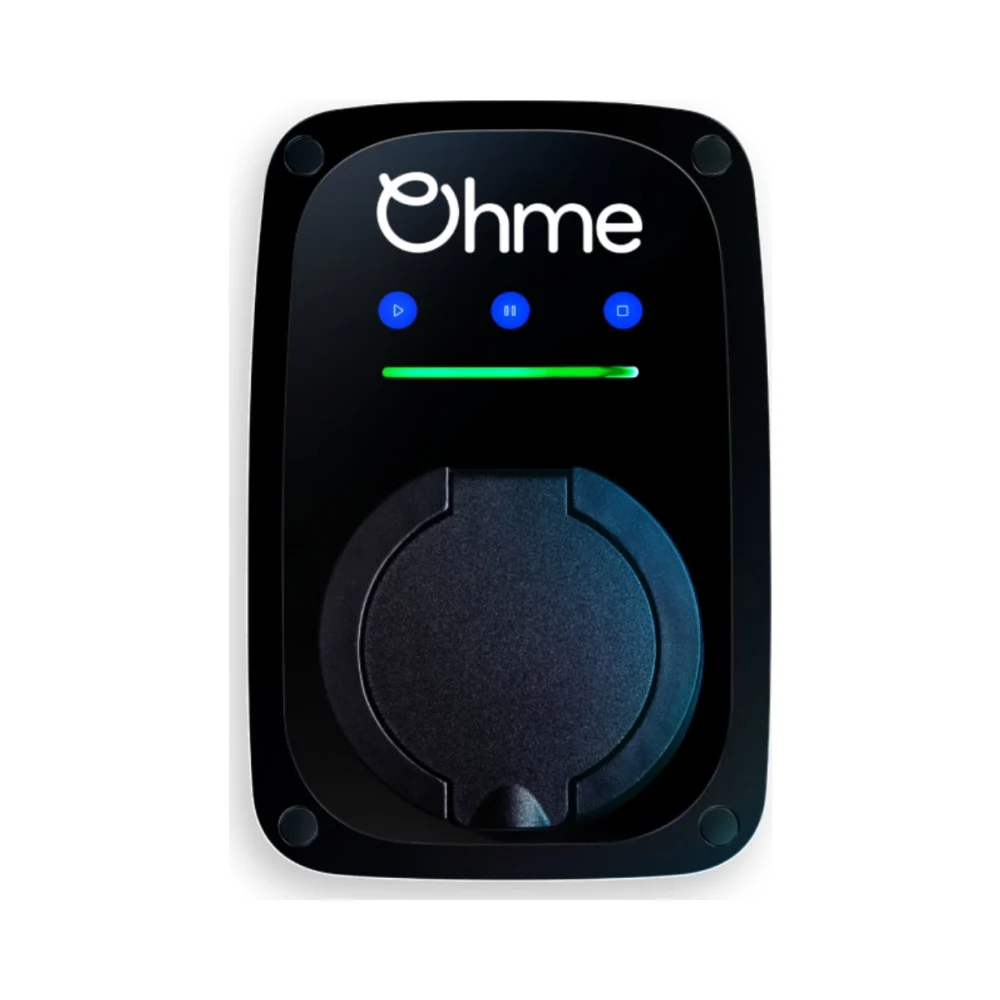

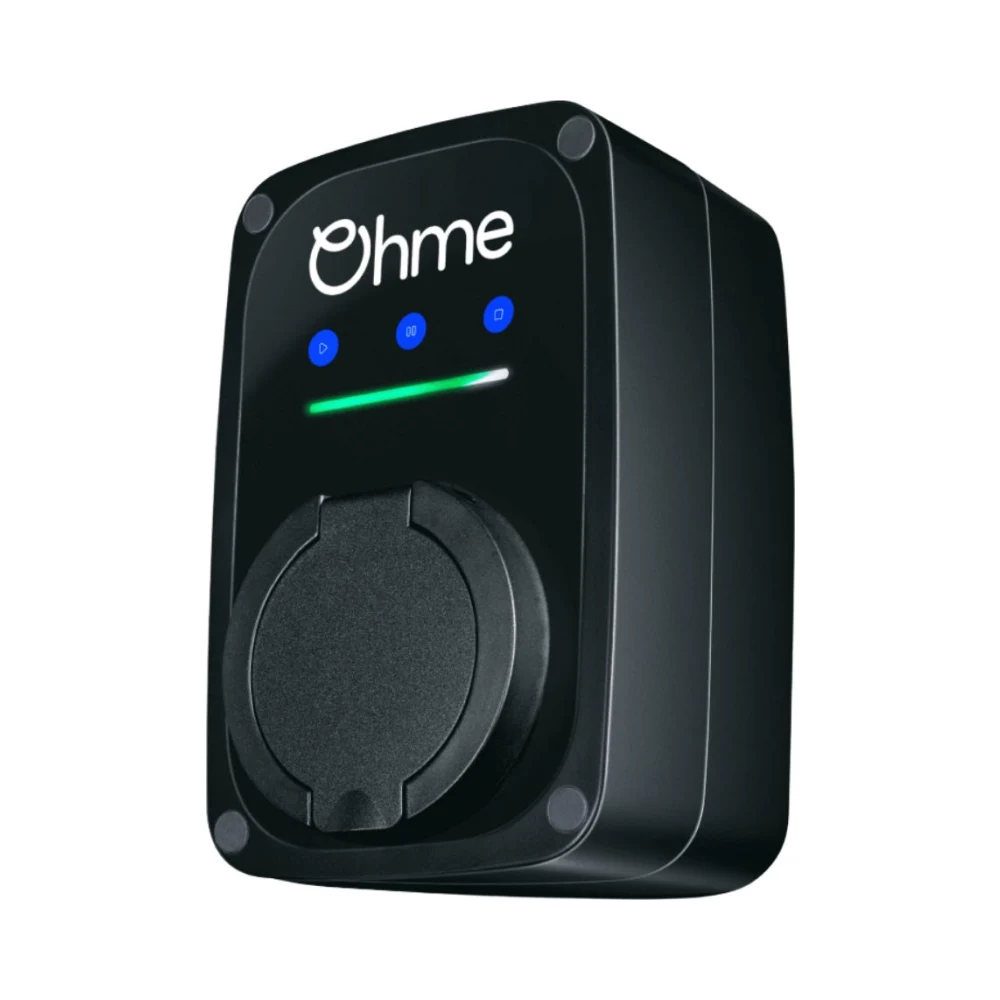

Ohme ePod EV Charger – compact 7.4kW single-phase smart home charger in black, with an untethered Type 2 socket, Ohme app control, 4G multi-network connectivity, LED status indicators and dynamic load balancing. IP54 rated for suitable outdoor installation. Includes a CT clamp and features internal electrical supply terminals. A separate compatible vehicle charging cable is required and is not included. Supplied without installation.

Ohme ePod EV Charger – 7.4kW Socketed Type 2

The Ohme ePod EV Charger is a compact 7.4kW single-phase smart home EV charger with an untethered Type 2 socket. Designed for homeowners who prefer a discreet wall-mounted charging point, the ePod combines smart app control, mobile connectivity, dynamic load balancing and a clean, cable-free appearance when not in use.

Unlike a tethered charger, the Ohme ePod does not have a permanently attached vehicle charging cable. You connect a separate compatible Type 2 charging lead when required, giving you flexibility over cable length and storage.

Important: A vehicle charging cable is not included with the Ohme ePod and must be purchased separately if required. Electrical installation is also not included.


Key Features of the Ohme ePod EV Charger

  • 7.4kW / 32A single-phase charging for compatible electric vehicles.
  • Untethered Type 2 socket for use with a separate compatible charging cable.
  • Compact black housing measuring approximately 230mm high, 140mm wide and 100mm deep.
  • Ohme app control for charging preferences, schedules and energy monitoring.
  • 4G multi-network connectivity for supported smart charging services.
  • Smart tariff integration with selected compatible electricity tariffs.
  • Three touch-sensitive controls for basic operation without the app.
  • Multi-colour LED status indicators showing charger and charging information.
  • Dynamic load balancing using the supplied CT clamp.
  • Solar charging compatibility with suitable installation and configuration.
  • Integrated PEN-fault detection and residual-current protection features.
  • IP54 weather protection for suitable outdoor installations.
  • Over-the-air software updates and a three-year manufacturer warranty.

Why Choose an Untethered Ohme ePod Charger?

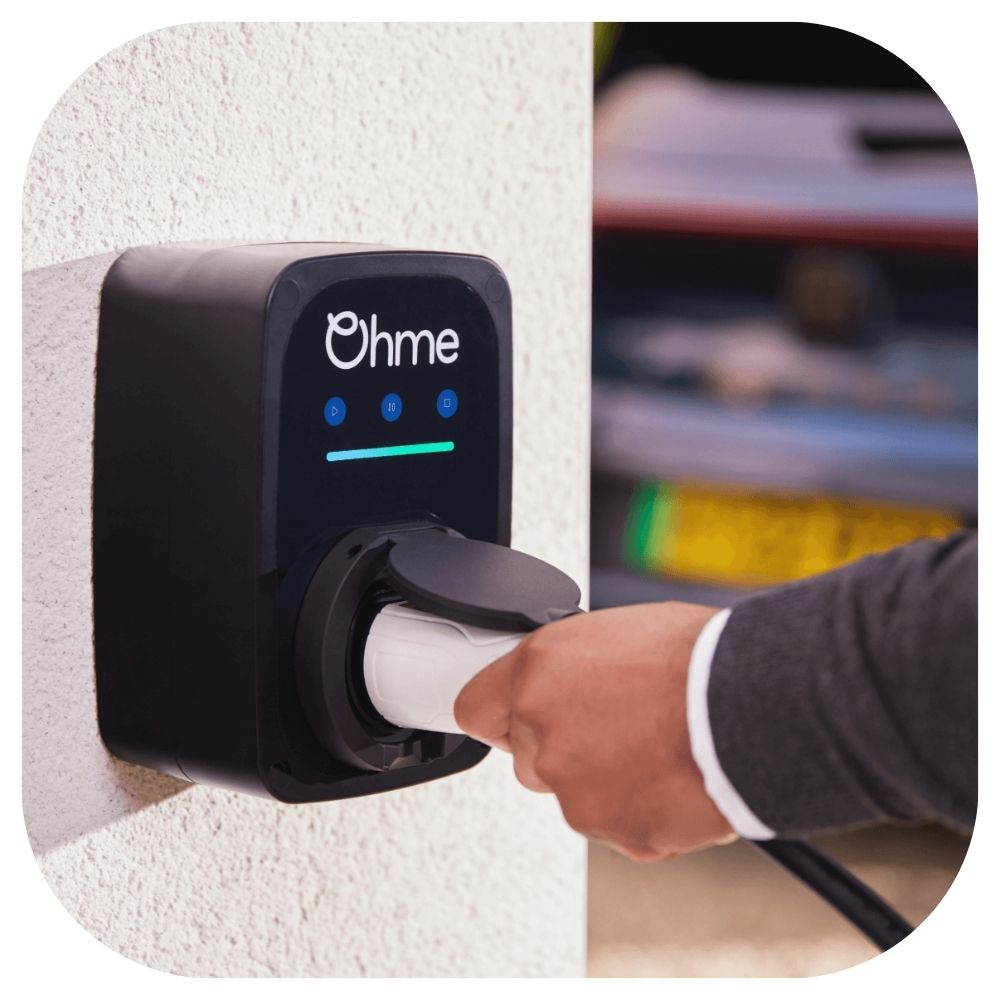

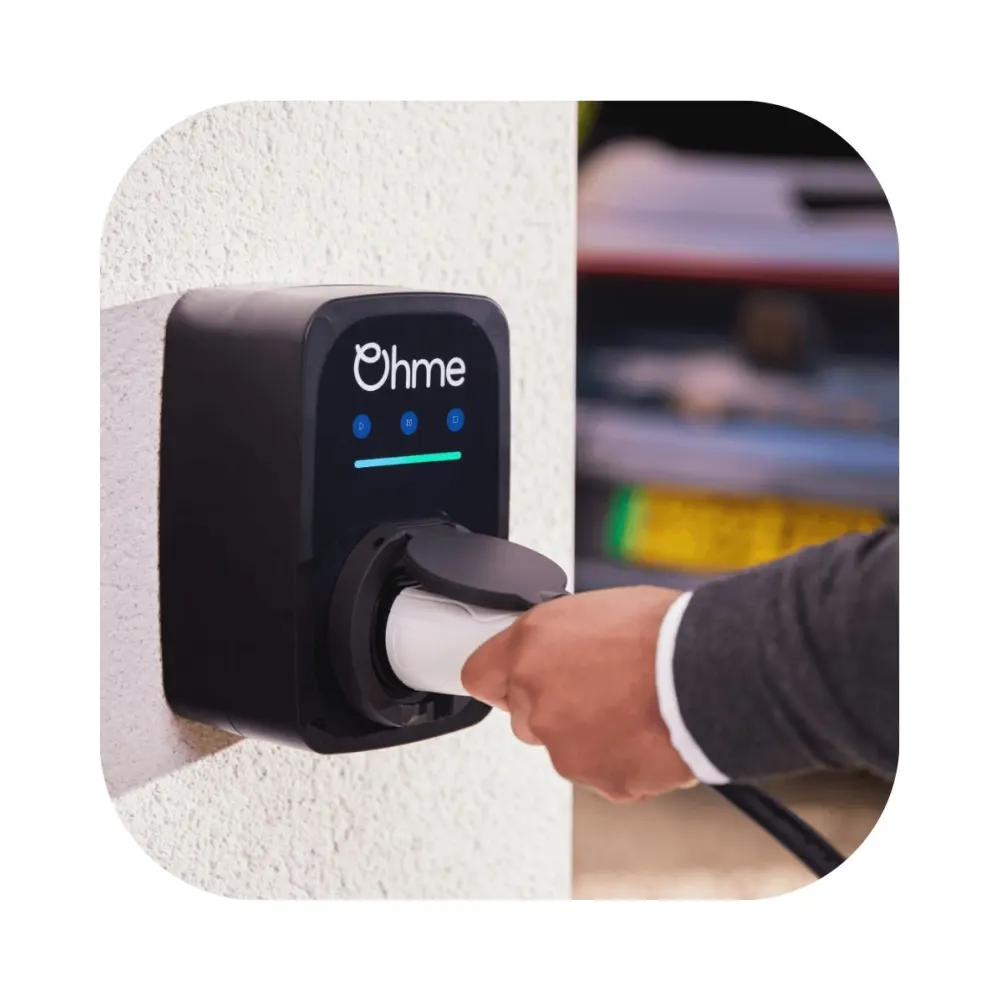

The Ohme ePod is designed for users who prefer a socketed charging point rather than a permanently attached vehicle charging cable.

When the charger is not being used, the separate cable can be removed and stored in the vehicle, garage or another suitable location.

This makes the ePod particularly appealing where:

  • A compact and discreet wall-mounted charger is preferred.
  • The homeowner does not want a permanently visible vehicle charging lead.
  • Different compatible charging cable lengths may be required.
  • The household already has a suitable Type 2 charging cable.
  • More than one compatible electric vehicle may use the charging point.

The ePod’s Type 2 socket is designed for compatible AC vehicle charging cables. The cable and vehicle connector must be appropriate for the particular vehicle.

Please note: The ePod is supplied without a permanently attached vehicle charging lead. A separate compatible charging cable must be available before the charger can be used.


Ohme Smart Charging and Electricity Tariffs

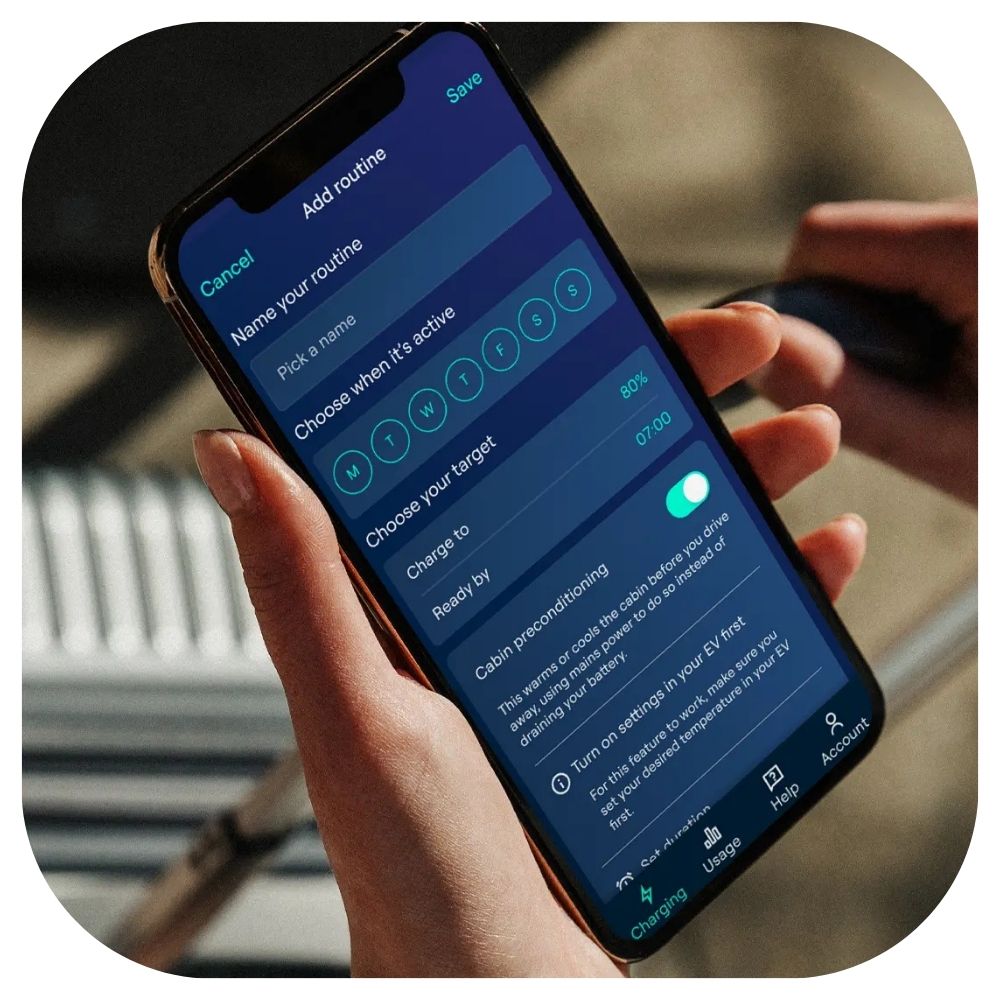

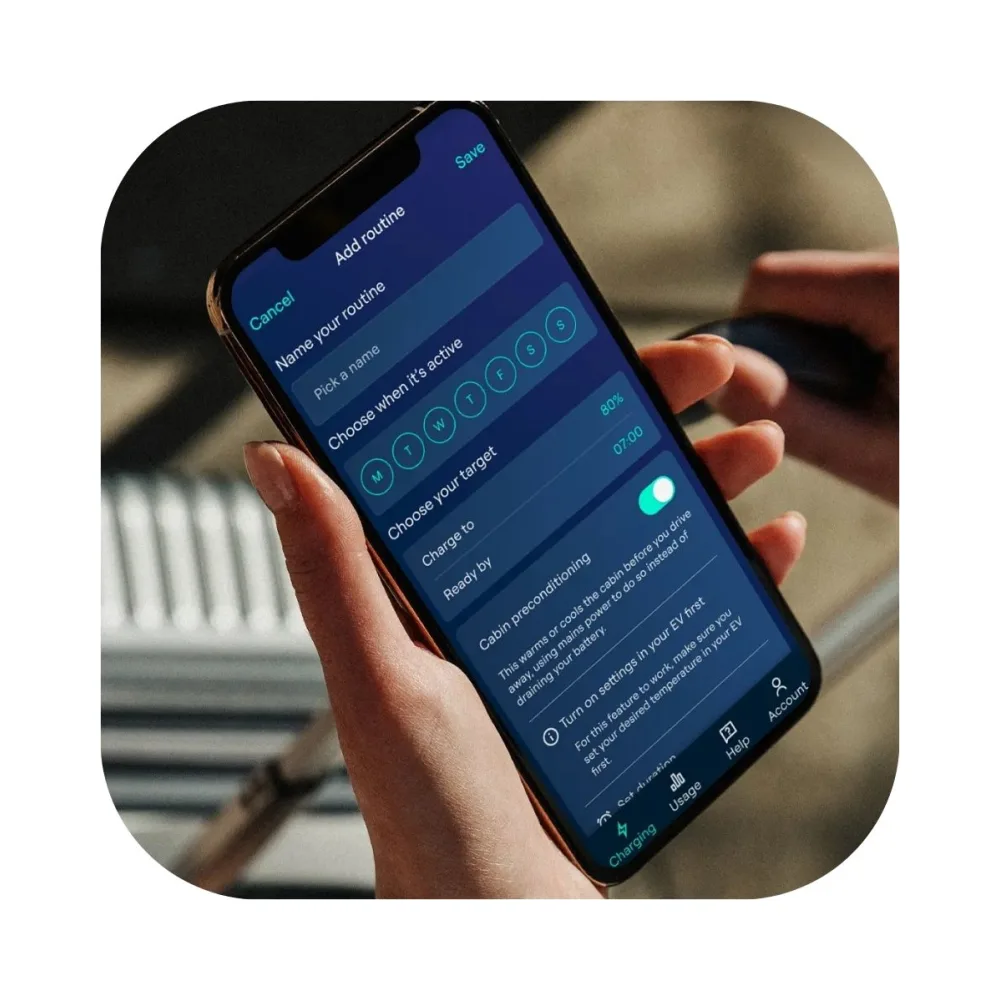

The Ohme ePod supports smart charging through the Ohme mobile app, allowing users to configure charging preferences and schedules.

With supported electricity tariffs, the ePod can schedule charging during lower-cost periods according to the selected tariff, vehicle requirements and charging settings.

Depending on the current Ohme integration, customers may be able to:

  • Set a time when the vehicle needs to be ready.
  • Schedule charging during lower-cost electricity periods.
  • Monitor charging activity through the Ohme app.
  • Configure supported vehicle and tariff integrations.
  • Manage charging preferences for everyday use.

Actual functions depend on the electricity supplier, vehicle, tariff and current Ohme compatibility. Customers should check the latest supported services before relying on a particular smart tariff integration.


4G Connectivity and On-Unit Controls

The Ohme ePod has built-in mobile network connectivity for its smart charging services, so a separate home Wi-Fi connection is not normally required for the UK model.

Suitable mobile coverage is important at the installation location.

Unlike the Ohme Home Pro, the ePod does not have an LCD display. Instead, it uses three touch-sensitive controls and a multi-colour LED indicator bar.

The indicator lights provide information about charging status, scheduling, connectivity and possible faults.

For a detailed explanation of the controls and light sequences, read our Ohme ePod Explained – Lights and Controls Guide.


Dynamic Load Balancing and Solar Compatibility

The Ohme ePod supports dynamic load balancing using the supplied CT clamp.

When correctly installed and configured, the CT clamp monitors the electrical demand at the property and allows the charger to adjust its charging current to help prevent the configured supply limit from being exceeded.

This can be particularly useful in properties where several electrical appliances may operate at the same time.

Ohme also supports solar charging features, subject to suitable generation equipment, CT-clamp arrangements and current manufacturer compatibility requirements.

The installer should confirm the correct configuration before commissioning the charging point.


Electrical Installation – Internal Supply Connection

The Ohme ePod EV Charger uses internal electrical supply terminals, which is an important difference from the Ohme Home Pro.

The Home Pro has a factory-fitted external flying lead. The ePod instead requires the electrician to access the designated connection area inside the charger and terminate the supply conductors directly.

According to Ohme’s installation instructions, the supply cable can enter through the appropriate rear or underside cable entry.

The qualified electrician connects the live, neutral and earth conductors to the designated terminals and ensures the cable entry and enclosure are correctly sealed.

The ePod also includes connections for the CT-clamp load-balancing system. Where separate data wiring is required, an additional suitable cable gland may be needed to maintain the enclosure’s environmental protection.

The installer must follow the current Ohme instructions for cable entries, wiring arrangements, gland selection and enclosure assembly.

For more information, see our Ohme EV Charger Installation Guide.


Electrical Protection Requirements

The Ohme ePod must be installed by a suitably qualified electrician experienced in EV charge point installations.

The charger includes residual-current protection features with Type A 30mA characteristics and 6mA DC fault detection, together with integrated PEN-fault detection.

External overcurrent protection is required. The complete circuit protection arrangement, including any necessary upstream RCD, must be designed in accordance with the applicable requirements of BS 7671 and Ohme’s current installation instructions.

The electrician must also assess:

  • Incoming supply capacity and existing demand.
  • Earthing and bonding arrangements.
  • Consumer unit suitability.
  • Protective device selection.
  • Supply cable sizing and installation method.
  • CT-clamp connection and load-balancing settings.
  • Charger mounting location and mobile connectivity.
  • Required electrical inspection, testing and commissioning.

A dedicated EV consumer unit may be appropriate for some installations but is not automatically necessary in every case.


Technical Specifications – Ohme ePod 7.4kW

  • Manufacturer: Ohme
  • Product: Ohme ePod EV Charger
  • Manufacturer part number: OHMEX1GB003-BL
  • Rated power: Up to 7.4kW
  • Rated current: 32A maximum
  • Electrical supply: 230V AC, single-phase, 50Hz
  • Vehicle connection: IEC 62196 Type 2 socket
  • Charging cable: Untethered; separate compatible cable required
  • Supply connection: Internal electrical terminals
  • Connectivity: Built-in 4G multi-network SIM
  • Controls: Ohme app and three touch-sensitive buttons
  • Status display: Multi-colour LED indicator bar
  • Load balancing: Dynamic, using the supplied CT clamp
  • Residual-current protection: Integrated Type A 30mA characteristics and 6mA DC fault detection
  • PEN-fault protection: Integrated detection
  • External overcurrent protection: Required
  • Ingress protection: IP54
  • Dimensions: 230mm (H) x 140mm (W) x 100mm (D)
  • Approximate unit weight: 1.48kg
  • Mounting: Wall or suitable post mounting
  • Colour: Black
  • Manufacturer warranty: 3 years

Specifications relate to the UK single-phase ePod model. Check the documentation supplied with the exact product for the latest technical and installation requirements.


Compare Ohme ePod with the Home Pro

The Ohme ePod and Home Pro share many smart charging functions, but their cable arrangements and on-unit controls are different.

The ePod is a socketed model with separate vehicle charging cable and LED indicators. The Home Pro is tethered, with a permanently attached Type 2 charging cable and integrated LCD display.

For more information on the differences, read our Ohme Home Pro vs ePod comparison guide.

You can also explore the complete Ohme charger range.


EV Charger Installation Materials

Electrical4Less also supplies electrical materials for EV charging installations, including EV installation cables, EV consumer units and EV circuit protection.

The electrician should confirm which materials are required for the specific installation before ordering.


Buy the Ohme ePod EV Charger Without Installation

Electrical4Less supplies the Ohme ePod as a standalone charger for homeowners, electricians and EV installers.

Installation and the separate vehicle charging cable are not included. Customers can arrange installation with their preferred suitably qualified electrician.

Current pricing and stock availability are displayed on this product page.


Ohme Manufacturer Support

For product documentation, setup instructions and installer information, visit the official Ohme ePod installation instructions or the Ohme charger specifications.






Brand

Ohme

Product Type

EV Charger

Cut off time for Dispatch Delivery: Mon-Thu 3 PM *
All orders placed on Sat/Sun will be dispatched on Monday.

Tel: 020 3375 1586

Is the Ohme ePod a tethered or untethered charger?

The Ohme ePod is an untethered (socketed) EV charger with a Type 2 socket. It does not have a permanently attached vehicle charging cable. A separate compatible charging cable is required and is not included.

What charging speed does the Ohme ePod provide?

The Ohme ePod provides up to 7.4kW (32A) AC charging on a suitable 230V single-phase electrical supply. Actual charging speed depends on the vehicle’s onboard charger, available supply capacity and charger settings.

Is the Ohme ePod compatible with my electric vehicle?

The ePod has a Type 2 socket and can charge compatible electric and plug-in hybrid vehicles using an appropriate charging cable. Vehicles with a Type 2 inlet normally require a Type 2-to-Type 2 cable. Check your vehicle’s connector and AC charging specifications before ordering.

Does the Ohme ePod support smart charging tariffs?

Yes. The Ohme ePod supports charging schedules and integration with selected smart electricity tariffs through the Ohme app. Compatibility depends on the electricity supplier, tariff, vehicle and current Ohme integrations.

Can the Ohme ePod be used with solar panels?

Yes. The Ohme ePod supports Solar Boost and Solar Only features on eligible installations. Suitable solar generation equipment, the required CT-clamp arrangement and correct charger configuration are necessary. Check the latest Ohme compatibility requirements before installation.

Does the Ohme ePod require Wi-Fi?

No separate home Wi-Fi connection is normally required. The UK Ohme ePod uses a built-in multi-network mobile SIM for smart charging communication. Suitable mobile network coverage is required at the installation location.

Can I control the charger without the app?

Yes. The Ohme ePod has three touch-sensitive buttons for basic charging controls, including Play, Pause and Stop. The Ohme app provides additional functions such as scheduling, tariff settings and charging information.

Is the Ohme ePod suitable for outdoor installation?

Yes. The ePod has an IP54 ingress protection rating and IK08 impact resistance. It is suitable for outdoor installation when mounted, wired and sealed in accordance with Ohme’s instructions.

Can multiple vehicles be managed with one charger?

The Ohme ePod can be used to charge different compatible vehicles, one at a time, using the appropriate charging cable. The Ohme app supports vehicle selection, subject to current compatibility and account settings. It cannot charge multiple vehicles simultaneously.

Who can install the Ohme ePod EV Charger?

The Ohme ePod must be installed by a suitably qualified electrician experienced in EV charging installations. The installer must assess the electrical supply, earthing, circuit protection, cable sizing and CT-clamp requirements, then complete the necessary testing and commissioning.

What warranty is included?

The Ohme ePod comes with a three-year manufacturer warranty, subject to Ohme’s current warranty terms and conditions.

Does the Ohme ePod include a Type 2 charging cable?

No. The Ohme ePod is a socketed EV charger and does not include a separate vehicle charging cable. A suitable charging cable must be purchased separately or supplied by the customer.

How is the Ohme ePod connected to the electrical supply?

Unlike the Ohme Home Pro, the ePod has internal mains supply terminals. The electrician feeds the supply cable through the designated rear or underside cable entry and connects the live, neutral and earth conductors inside the charger, following Ohme’s installation instructions.

What electrical protection does the Ohme ePod require?

The Ohme ePod incorporates residual-current protection features, 6mA DC fault detection and integrated PEN-fault detection. External overcurrent protection is still required. The electrician must design the complete protective arrangement in accordance with current Ohme instructions and BS 7671.
