Trident EV-Power 3 Core 6mm Cat6A FTP Cable | Cut Per Metre
Combined Power and Data Cable for EV Installations

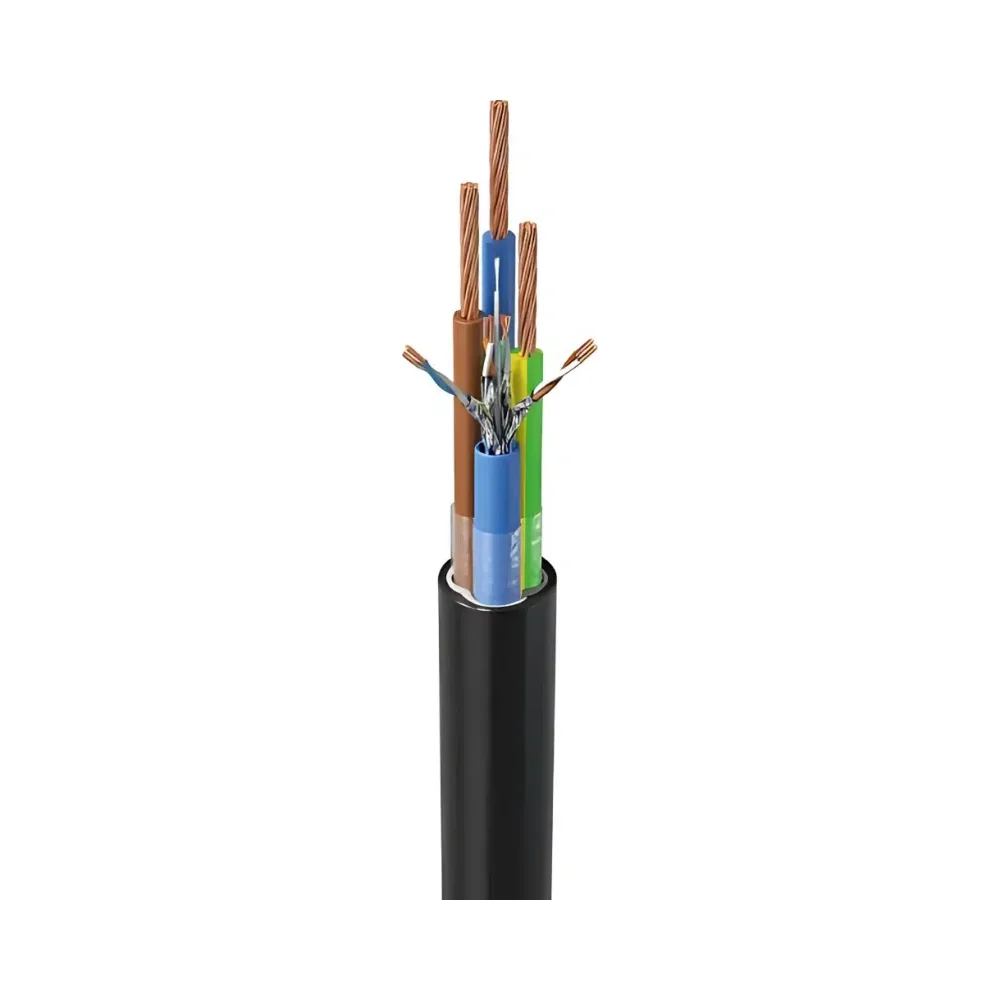

Trident EV-Power 3 Core 6mm Cat6A FTP Cable combines 600/1000V power conductors with a screened Cat6A FTP data cable, allowing power and communication to be installed within a single cable. This integrated design can simplify EV charging and smart system installations, reduce the need for multiple cable runs and help create a neater installation where both power and data are required.
This product is the non-armoured 3 Core 6mm version with a nominal outside diameter of 16.0mm.
Key Features
- 3 core 6mm² copper power conductors
- Integrated screened Cat6A FTP data cable
- Combined power and data cable for EV charger installations
- 600/1000V power cable construction
- XLPE insulation with durable black PVC outer sheath
- Non-armoured construction
- Nominal outside diameter: 16.0mm
- Helps reduce the need for separate power and data cable runs
- Suitable for EV charging, CCTV, access control and smart infrastructure installations
- Complies with IEC 60502-1, IEC 60228 and TIA/EIA 568-B standards
Technical Overview
- Power conductors: 3 Core 6mm²
- Data cable: Cat6A FTP
- Construction: Non-armoured
- Voltage rating: 600/1000V
- Test voltage: 3500V
- Temperature range: -15°C to +90°C
- Minimum installation temperature: 0°C
- Bending radius: 6 × O/D
- Flame tested to IEC 60332-1-2
- Conductor: Plain stranded copper, Class 2
- Insulation: XLPE
- Outer sheath: Black PVC
- Nominal outside diameter: 16.0mm
- Approximate weight: 446kg/km
Suitable Cable Gland and Cleat
For the Trident EV-Power 3 Core 6mm Cat6A FTP Cable, the following accessories are suitable for the 16.0mm nominal cable diameter:
- Suitable cable gland:
Wiska ShieldGLAND Pro M20L IP68 Cable Gland - Suitable cable cleat:
No.7 Cable Cleat
Always confirm the required gland arrangement, enclosure entry and installation method before installation.
Supplied Cut Per Metre
This Trident EV cable is supplied cut to the length ordered. A quantity of 1 equals 1 metre of cable. For example, ordering a quantity of 20 will supply a 20 metre continuous length where available.
Why Choose Trident Plus6 EV Cable?
The Trident EV-Power 3 Core 6mm Cat6A FTP Cable provides a practical single-run solution where both electrical power and data connectivity are required. This makes it particularly useful for EV charger installations where communication cabling forms part of the charger or monitoring system.
By combining 6mm² power conductors and Cat6A FTP data within one cable, the Trident Plus6 design can help simplify cable routing, reduce separate cable runs and support a cleaner, more organised installation.
Suitable Applications
- Domestic EV charger installations
- Commercial EV charging points
- Smart EV charging systems requiring data connectivity
- CCTV installations
- Access control systems
- Temporary buildings and site installations
- Smart infrastructure requiring combined power and data
Related EV Charging Products
Complete your EV charging installation with compatible products from our range:
- Ohme Chargers
– including Ohme Home Pro and Ohme ePod smart EV chargers - EV Cable Clips
– for neat and secure cable installation - EV Consumer Units
– dedicated distribution boards for EV charging circuits - EV Circuit Protection
– protective devices for EV charging installations
About UK Cables and Trident
Founded in 1987, UK Cables is a long-standing UK distributor of electrical cables. The Trident Plus6 range combines power and data within a single cable construction, providing a convenient solution for modern EV charging and smart electrical installations.
Compliance
The Trident EV-Power 3 Core 6mm Cat6A FTP Cable follows IEC 60502-1, IEC 60228 and TIA/EIA 568-B standards. It is also flame tested to IEC 60332-1-2.
Installation Notes
EV charging cable should be selected and installed by a qualified electrician in accordance with current UK wiring regulations, the EV charger manufacturer’s instructions and the requirements of the installation. The installer should confirm the required cable size, route, protection, gland, cleat and associated accessories before installation.
