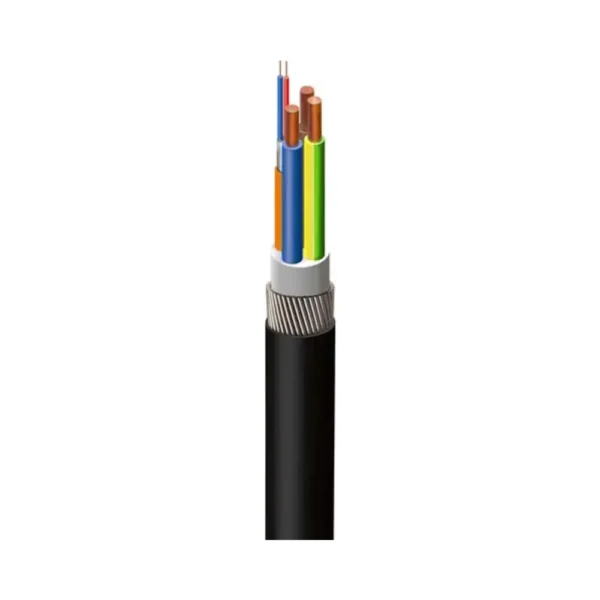

Trident Plus6 3C SWA + CAT6A FTP EV-Power Cable
Combined SWA Power and Cat6A Data Cable for EV Installations
The Trident Plus6 3C SWA + CAT6A FTP EV-Power Cable combines 600/1000V power conductors with an integrated screened Cat6A FTP data cable within one durable hybrid cable. Designed for EV charging and smart electrical installations, it allows power and communication cabling to be installed within a single cable run.
This 3 Core 6mm² version features Steel Wire Armoured (SWA) construction for additional mechanical protection, making it suitable for demanding domestic, commercial and outdoor EV charging installations where both power and data connectivity are required.
By combining power and Cat6A data within one cable, the Trident Plus6 design can help reduce separate cable runs, simplify routing and create a cleaner, more organised installation.
Minimum order quantity for this cable is 10 metres.
Key Features
- 3 Core 6mm² stranded copper power conductors
- Integrated screened Cat6A FTP data cable
- Steel Wire Armoured (SWA) construction for mechanical protection
- 600/1000V rated power cable
- XLPE insulated power conductors
- Durable black PVC outer sheath
- Nominal outside diameter: approximately 20.0mm
- Combined power and data cable for EV charger installations
- Helps reduce separate power and communication cable runs
- Suitable for outdoor, tray, clipped-direct and suitable underground installations
Technical Information
- Cable type: SWA hybrid power and data cable
- Power configuration: 3 Core
- Conductor size: 6mm²
- Data cable: Cat6A FTP
- Construction: Steel Wire Armoured (SWA)
- Nominal voltage: 600/1000V
- Overall diameter: approximately 20.0mm
- Approximate weight: 831kg/km
- Operating temperature range: -15°C to +90°C
- Minimum bending radius: 6 × overall diameter
- Power conductor insulation: XLPE
- Outer sheath: Black PVC
- Standards: IEC 60502-1, IEC 60228 and TIA/EIA 568-B
Recommended Cable Gland and Cleat
For the Trident Plus6 3C SWA + CAT6A FTP EV-Power Cable, the nominal outside diameter is approximately 20.0mm. The following accessories are suitable for completing the installation:
- Recommended cable gland: Wiska ShieldGLAND Pro M20L IP68 Cable Gland – Pack of 2 – a premium termination solution supplied with brass locknut, earth spring and earth fly lead.
- Suitable cable cleat: No.9 SWA Cable Cleat – suitable for securing this approximately 20.0mm diameter cable.
Always confirm cable diameter, enclosure entry, gland arrangement and termination requirements before installation.
Suitable Applications
- Domestic EV charger installations
- Commercial EV charging points
- Smart EV charging systems requiring data connectivity
- CCTV systems
- Access control installations
- Temporary buildings and site installations
- Smart infrastructure requiring combined power and data
- Outdoor installations requiring additional mechanical protection
Supplied Cut Per Metre
The Trident Plus6 3C SWA + CAT6A FTP EV-Power Cable is supplied cut to the length ordered, subject to a minimum order quantity of 10 metres. For example, ordering a quantity of 10 will supply a 10 metre continuous length where available.
Why Choose Trident Plus6?
This cable provides electrical power, high-speed data connectivity and mechanical protection within one cable construction. It is particularly useful for modern EV charging installations where Cat6A communication is required alongside the electrical supply.
Using one combined cable can help simplify cable routing, reduce the number of individual cable runs and provide a robust solution for domestic, commercial and infrastructure projects.
Related EV Charging Products
Complete your EV charging installation with compatible products from our range:
- Ohme Chargers – including Ohme Home Pro and Ohme ePod smart EV chargers
- EV Cable Clips – for neat and secure EV cable installation
- EV Consumer Units – dedicated distribution boards for EV charging circuits
- EV Circuit Protection – protective devices for EV charger installations
About UK Cables and Trident
UK Cables supplies specialist electrical cable solutions for domestic, commercial and infrastructure projects. The Trident Plus6 range combines electrical power and data connectivity within one cable construction to simplify modern EV charging and smart electrical installations.
Visit UK Cables for further manufacturer information.
Compliance
The Trident Plus6 3 Core 6mm SWA cable is manufactured in accordance with IEC 60502-1 and IEC 60228, with the integrated Cat6A data element designed in accordance with TIA/EIA 568-B requirements.
Installation Notes
EV charging cable should be selected and installed by a qualified electrician in accordance with current UK wiring regulations, the EV charger manufacturer’s instructions and the requirements of the installation. The installer should confirm the cable size, route, circuit protection, termination method, cable gland, cleat and associated accessories before installation.
