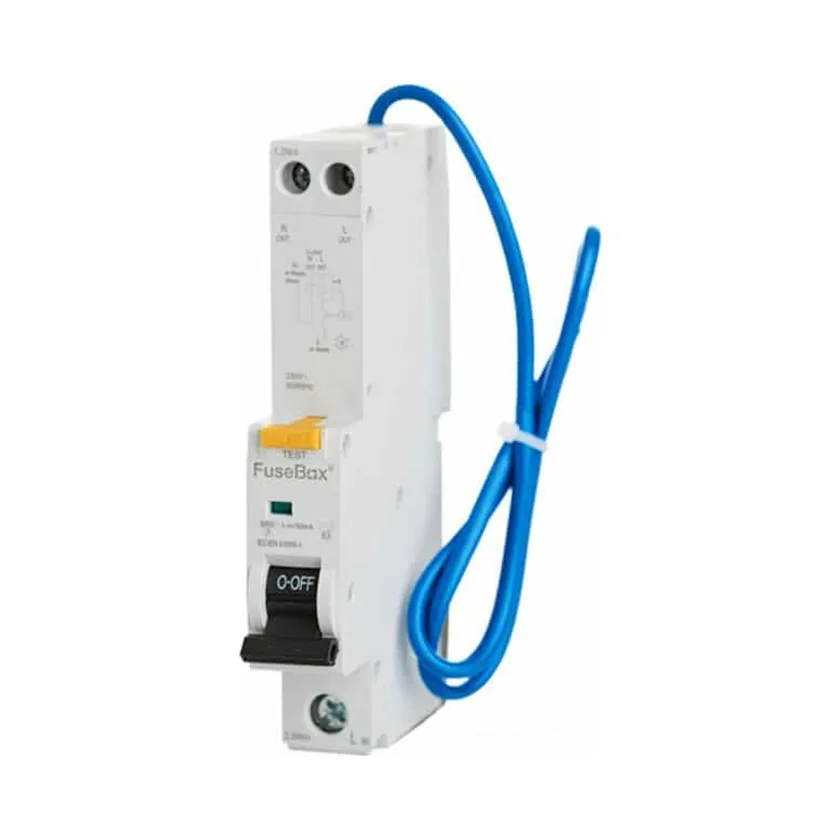

FuseBox RTA060630B 30mA Curve B 6A Type A RCBO
FuseBox RTA060630B 30mA Curve B 6A Type A RCBO is designed for low-current domestic circuits such as lighting, smoke alarms and alarm power feeds. It combines overload protection, short-circuit protection and 30mA residual current protection in one compact device for compatible FuseBox consumer units.
This 6 amp device is suitable where a lower-rated protective breaker is required, rather than higher-load options used for socket circuits, heaters or larger appliances. The Curve B tripping characteristic is commonly used for standard domestic loads, while Type A protection detects AC and pulsating DC residual fault currents.
Typical Uses
- Domestic lighting circuits
- Smoke alarm circuits
- Intruder alarm power supplies
- Other low-current final circuits requiring 6A protection
Key Features
- 6A current rating for low-load domestic circuits
- 30mA residual current protection
- Type A protection for AC and pulsating DC fault detection
- Curve B tripping characteristic for standard domestic applications
- 6kA breaking capacity
- Designed for compatible FuseBox consumer units
- Combines overload, short-circuit and earth fault protection
- IP20 rated for protected consumer unit installation
- Manufactured to BS EN 61009-1
FuseBox Compatibility
This device is intended for use with compatible FuseBox consumer units. Choosing the correct FuseBox protective device helps ensure proper fit, terminal alignment and board compatibility.
Browse the full range of FuseBox RCBOs, view FuseBox consumer units, or shop all FuseBox electrical products.
Need a Higher Rating?
If you need protection for a larger load, see the FuseBox 16A Type A RCBO. For help choosing the correct rating, read our RCBO sizing guide.
