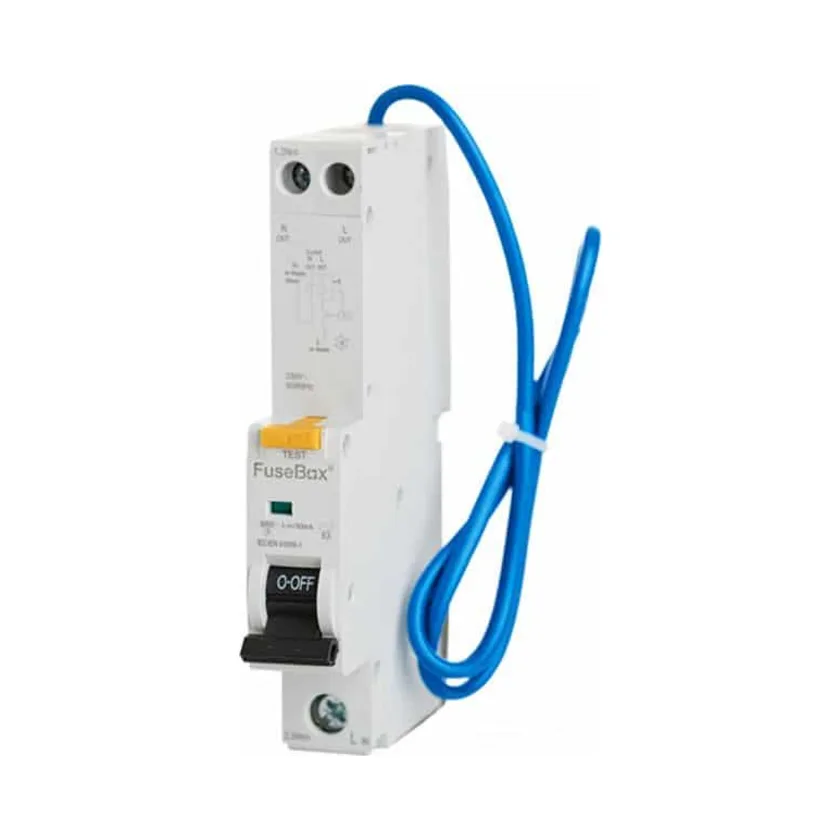

FuseBox RTA061630B 30mA Curve B 16A Type A RCBO
FuseBox RTA061630B 30mA Curve B 16A Type A RCBO is designed for medium-load domestic circuits where combined overcurrent and earth fault protection is required. It is suitable for applications such as socket radial circuits, immersion heaters and electric underfloor heating supplies, when selected and installed correctly.
This FuseBox RTA061630B 30mA Curve B 16A Type A RCBO combines overload protection, short-circuit protection and 30mA residual current protection in one compact unit. The Curve B tripping characteristic is commonly used for standard domestic loads, while Type A protection detects AC and pulsating DC residual fault currents.
Typical Uses
- Socket radial circuits
- Immersion heater circuits
- Electric underfloor heating supplies
- Medium-load domestic final circuits requiring 16A protection
Key Features
- 16A current rating for selected domestic circuits
- 30mA residual current protection
- Type A protection for AC and pulsating DC fault detection
- Curve B tripping characteristic for standard domestic applications
- 6kA breaking capacity
- Designed for compatible FuseBox consumer units
- Combines overload, short-circuit and earth fault protection
- IP20 rated for protected consumer unit installation
- Manufactured to BS EN 61009-1
FuseBox Compatibility
This device is intended for use with compatible FuseBox consumer units. Choosing the correct FuseBox protective device helps ensure proper fit, terminal alignment and board compatibility.
Browse the full range of FuseBox RCBOs, view FuseBox consumer units, or shop all FuseBox electrical products.
Need a Different Rating?
For a lower-rated circuit, see the FuseBox 10A Type A RCBO. For a higher load, see the FuseBox 20A Type A RCBO. For help choosing the correct rating, read our RCBO sizing guide.
