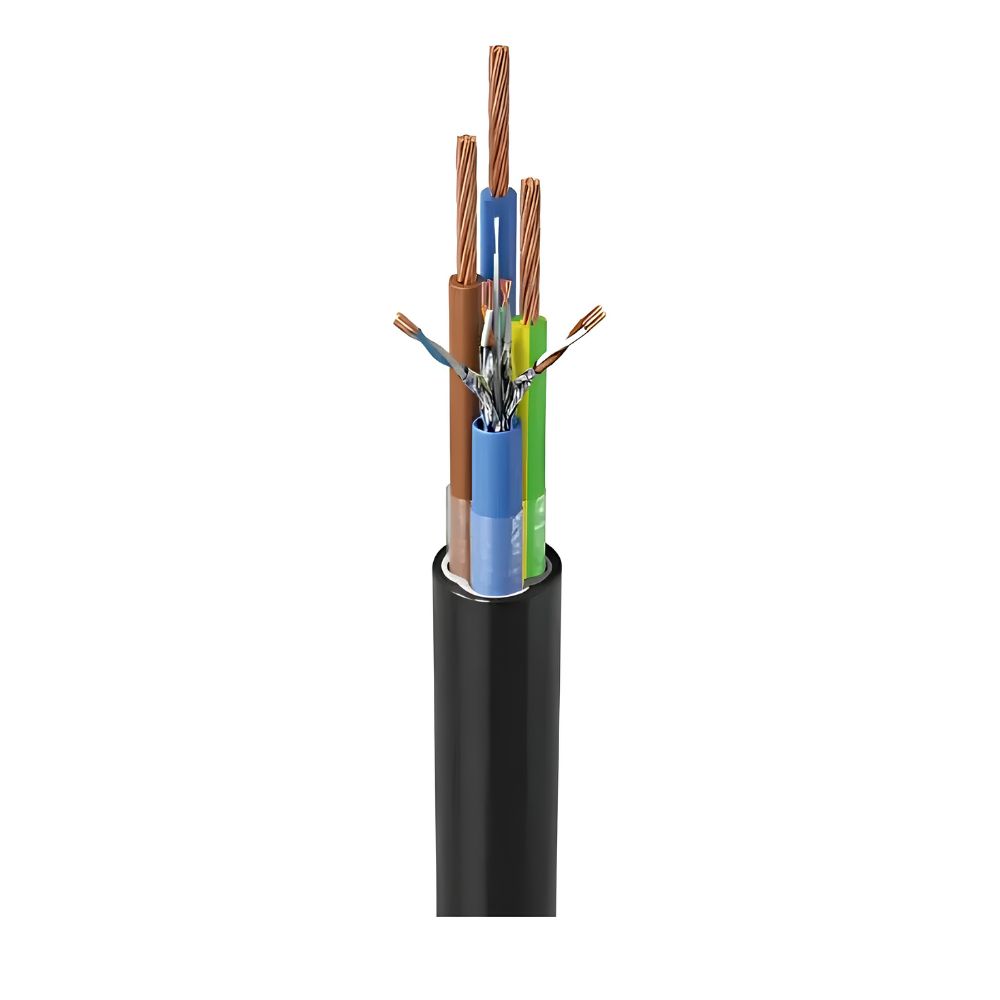

Trident Plus6 3 Core 10mm EV Cable | Cat6A FTP Power & Data
Combined Power and Cat6A Data Cable for EV Installations
The Trident Plus6 3 Core 10mm EV Cable combines 600/1000V power conductors with an integrated screened Cat6A FTP data cable within one hybrid cable. Designed for EV charging and smart electrical installations, it allows power and communication cabling to be installed within a single cable run.
This is the non-armoured 3 Core 10mm² version with a nominal outside diameter of approximately 16.7mm. Combining power and Cat6A data within one cable can help reduce separate cable runs, simplify routing and create a cleaner, more organised installation.
Minimum order quantity for this cable is 10 metres.
Key Features – Trident Plus6 3 Core 10mm EV Cable
- 3 Core 10mm² stranded copper power conductors
- Integrated screened Cat6A FTP data cable
- Combined power and data cable for EV charger installations
- 600/1000V rated power cable
- XLPE insulated power conductors
- Durable black PVC outer sheath
- Non-armoured construction
- Nominal outside diameter: approximately 16.7mm
- Helps reduce separate power and communication cable runs
- Suitable for tray, clipped-direct and suitably protected outdoor installations
Technical Information
- Cable type: Hybrid power and data cable
- Power configuration: 3 Core
- Conductor size: 10mm²
- Data cable: Cat6A FTP
- Construction: Non-armoured
- Nominal voltage: 600/1000V
- Overall diameter: approximately 16.7mm
- Approximate weight: 566kg/km
- Operating temperature range: -15°C to +90°C
- Minimum bending radius: 6 × overall diameter
- Power conductor insulation: XLPE
- Outer sheath: Black PVC
- Standards: IEC 60502-1, IEC 60228 and TIA/EIA 568-B
Recommended Cable Gland and Cleat
For the Trident Plus6 3 Core 10mm EV Cable, the nominal outside diameter is approximately 16.7mm. The following accessories are suitable for completing the installation:
- Recommended cable gland: Wiska ShieldGLAND Pro M20L IP68 Cable Gland – Pack of 2 – premium brass gland supplied with locknut, earth spring and earth fly lead.
- Suitable cable cleat: No.7 Cable Cleat – suitable for securing this approximately 16.7mm diameter cable.
Always confirm cable diameter, enclosure entry, gland arrangement and installation requirements before final selection.
Suitable Applications
- Domestic EV charger installations
- Commercial EV charging points
- Smart EV charging systems requiring data connectivity
- CCTV systems
- Access control installations
- Temporary buildings and site installations
- Smart infrastructure requiring combined power and data
Supplied Cut Per Metre
The Trident Plus6 3 Core 10mm EV Cable is supplied cut to the length ordered, subject to a minimum order quantity of 10 metres. For example, ordering a quantity of 10 will supply a 10 metre continuous length where available.
Why Choose Trident Plus6?
The Trident Plus6 design combines electrical power and high-speed Cat6A data connectivity within one cable construction. This makes it particularly useful for modern EV charging installations where communication cabling is required alongside the electrical supply.
Using one combined cable can help simplify cable routing, reduce the number of individual cable runs and support a cleaner domestic or commercial EV charger installation.
Related EV Charging Products
Complete your EV charging installation with compatible products from our range:
- Ohme Chargers – including Ohme Home Pro and Ohme ePod smart EV chargers
- EV Cable Clips – for neat and secure cable installation
- EV Consumer Units – dedicated distribution boards for EV charging circuits
- EV Circuit Protection – protective devices for EV charger installations
About UK Cables and Trident
UK Cables supplies specialist electrical cable solutions for domestic, commercial and infrastructure projects. The Trident Plus6 range combines electrical power and data connectivity within one cable construction, helping simplify modern EV charging and smart electrical installations.
Visit UK Cables for further manufacturer information.
Compliance
The Trident Plus6 3 Core 10mm EV Cable is manufactured in accordance with IEC 60502-1 and IEC 60228, with the integrated Cat6A data element designed in accordance with TIA/EIA 568-B requirements.
Installation Notes
EV charging cable should be selected and installed by a qualified electrician in accordance with current UK wiring regulations, the EV charger manufacturer’s instructions and the requirements of the installation. The installer should confirm the cable size, route, circuit protection, termination method, cable gland, cleat and associated accessories before installation.
