Live Electrical MMGU32C-SP EV Consumer Unit with 32A C Curve RCBO, SPD and Busbar
Live Electrical MMGU32C-SP EV Consumer Unit

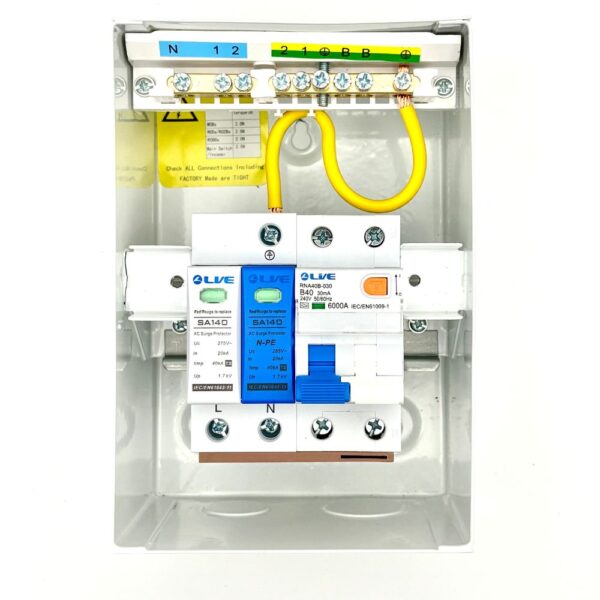

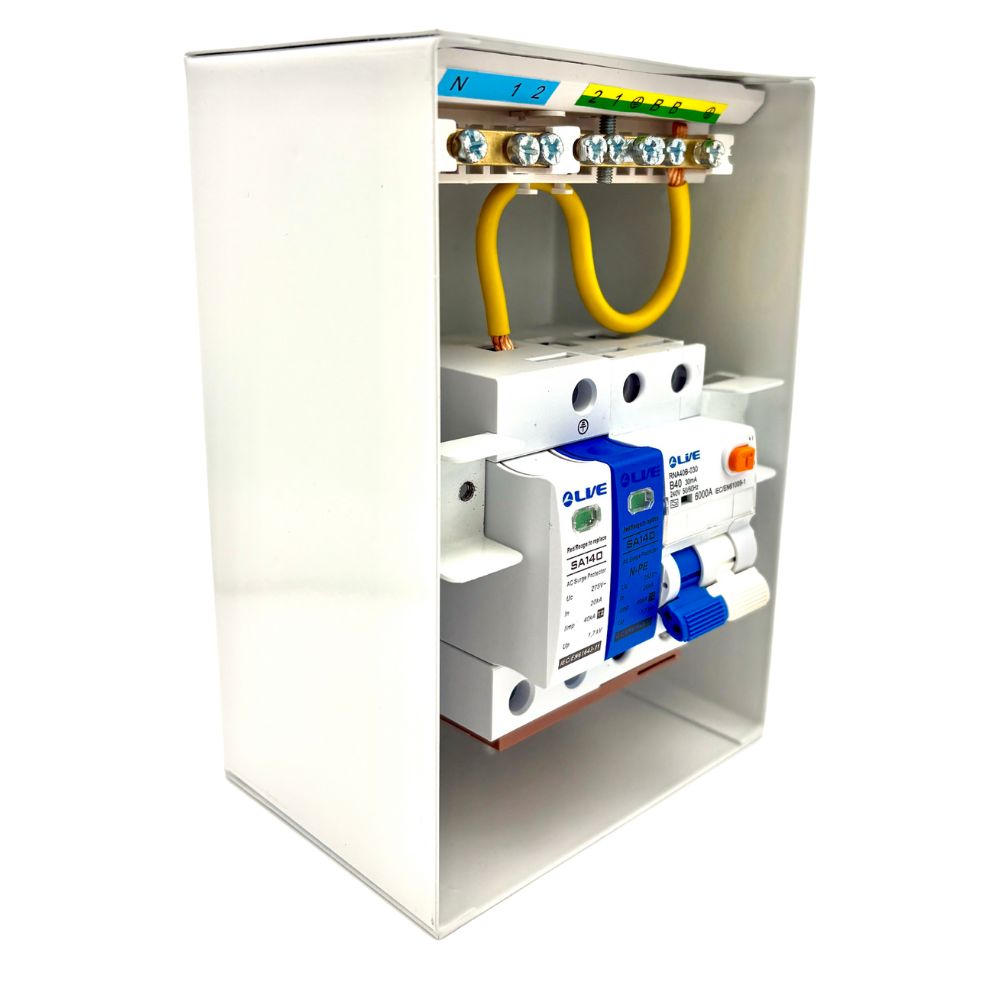

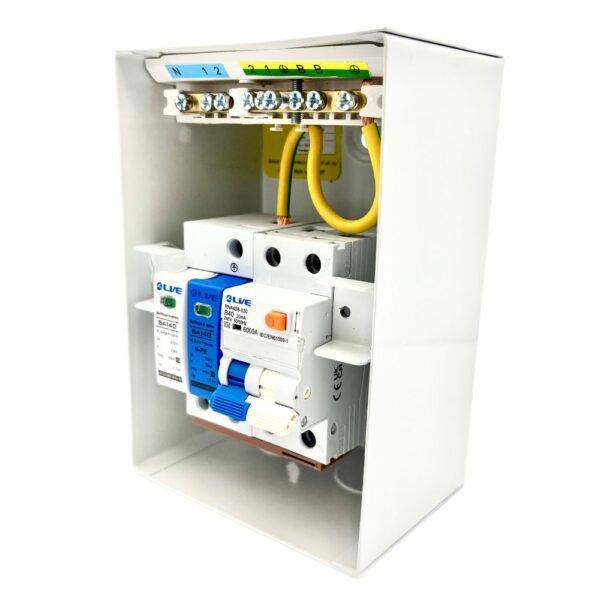

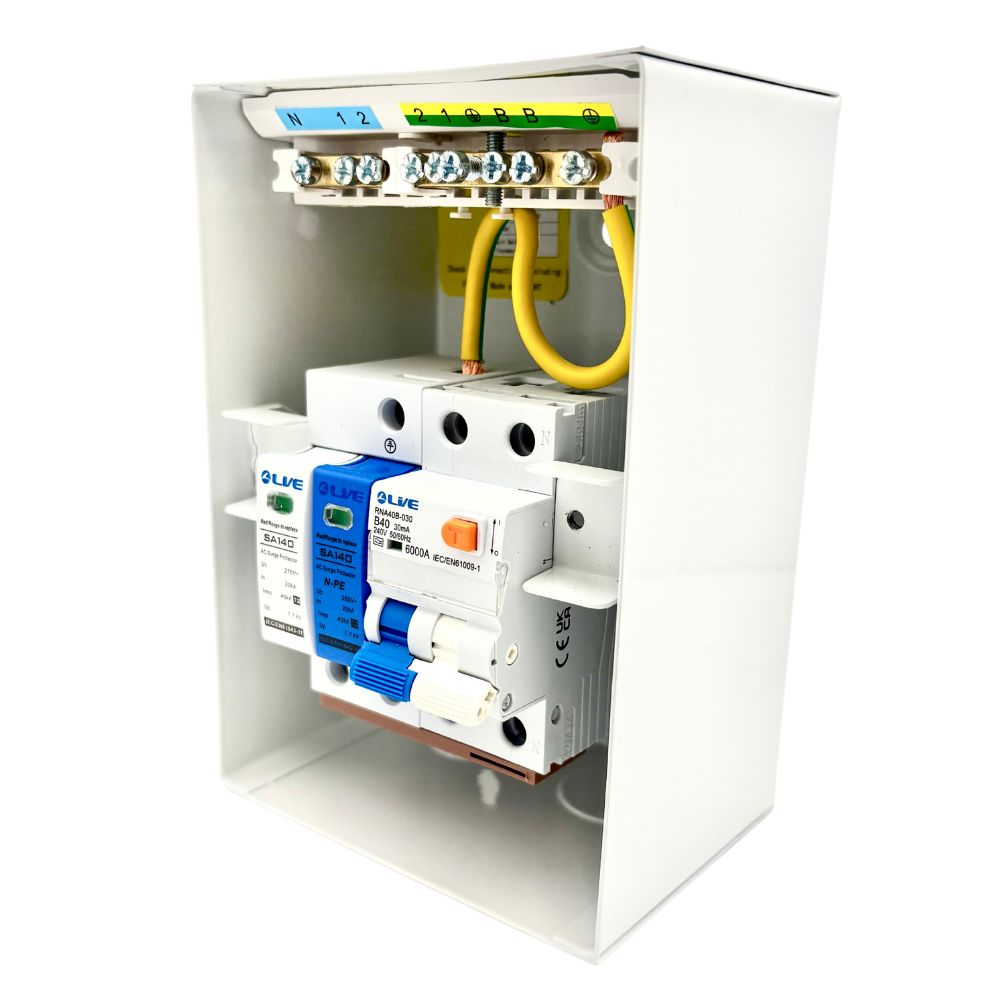

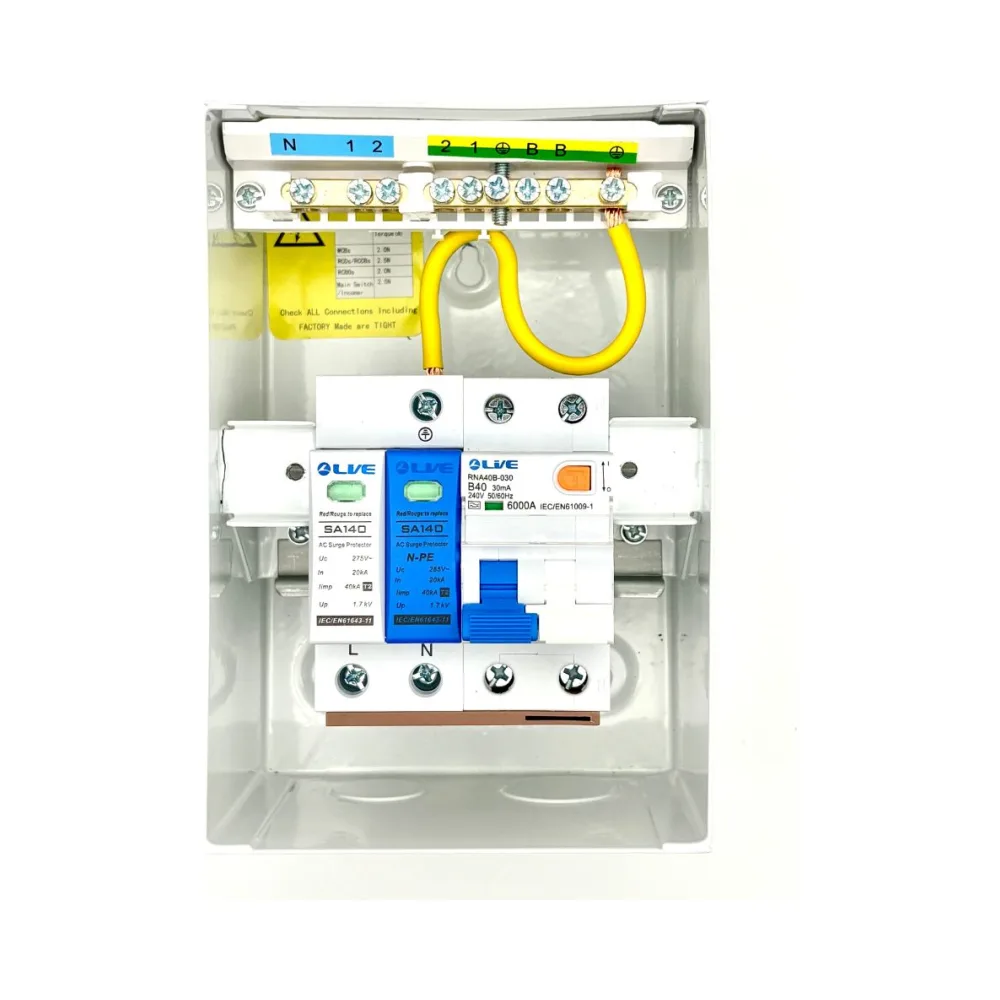

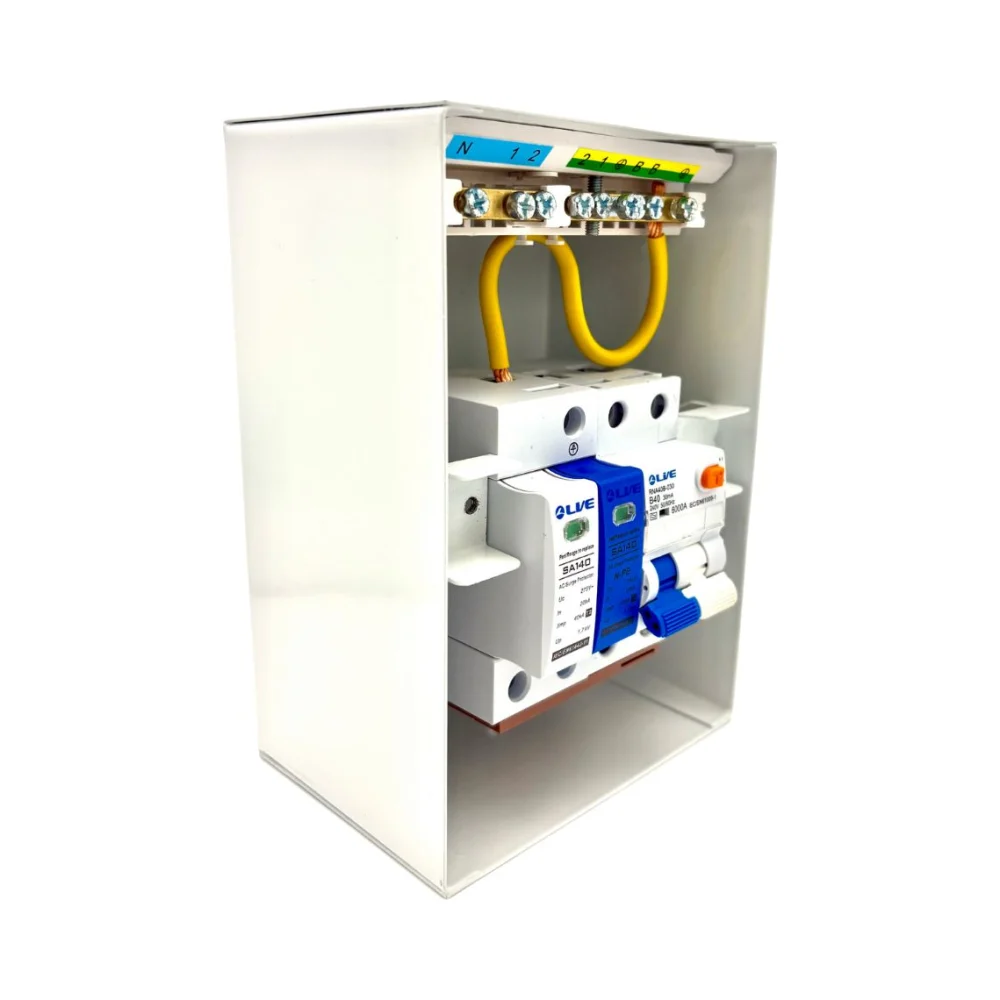

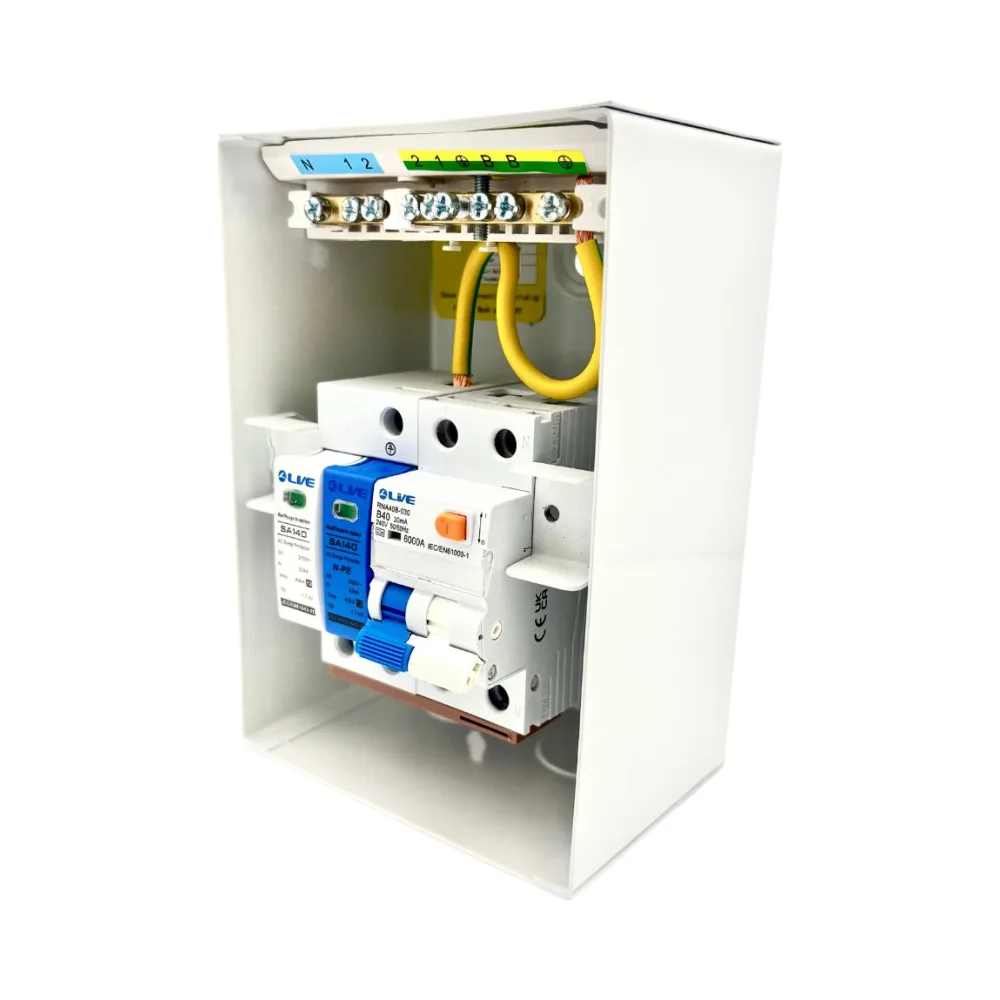

The Live Electrical MMGU32C-SP EV Consumer Unit is designed for dedicated electric vehicle charger installations in domestic and light commercial settings. It includes a 2 pole 32A C Curve Type A RCBO, built-in surge protection device and pre-installed internal busbar, all housed in a compact IP20 metal enclosure.
This 32A C Curve EV consumer unit is suitable for indoor installations where the charger specification or circuit design requires a C Curve protective device. Correct selection should always be confirmed by the installer based on the charger, cable route, Zs values, inrush characteristics and installation conditions.
Live Electrical products are designed and quality controlled by the brand’s UK-based team, with manufacturing carried out under supplier-controlled processes. This unit should be selected, installed and tested by a qualified electrician in accordance with current UK wiring regulations and manufacturer instructions.
Key Features
- Live Electrical MMGU32C-SP EV consumer unit
- 2 pole 32A C Curve Type A RCBO included
- Built-in 20/40kA 1P+N surge protection device

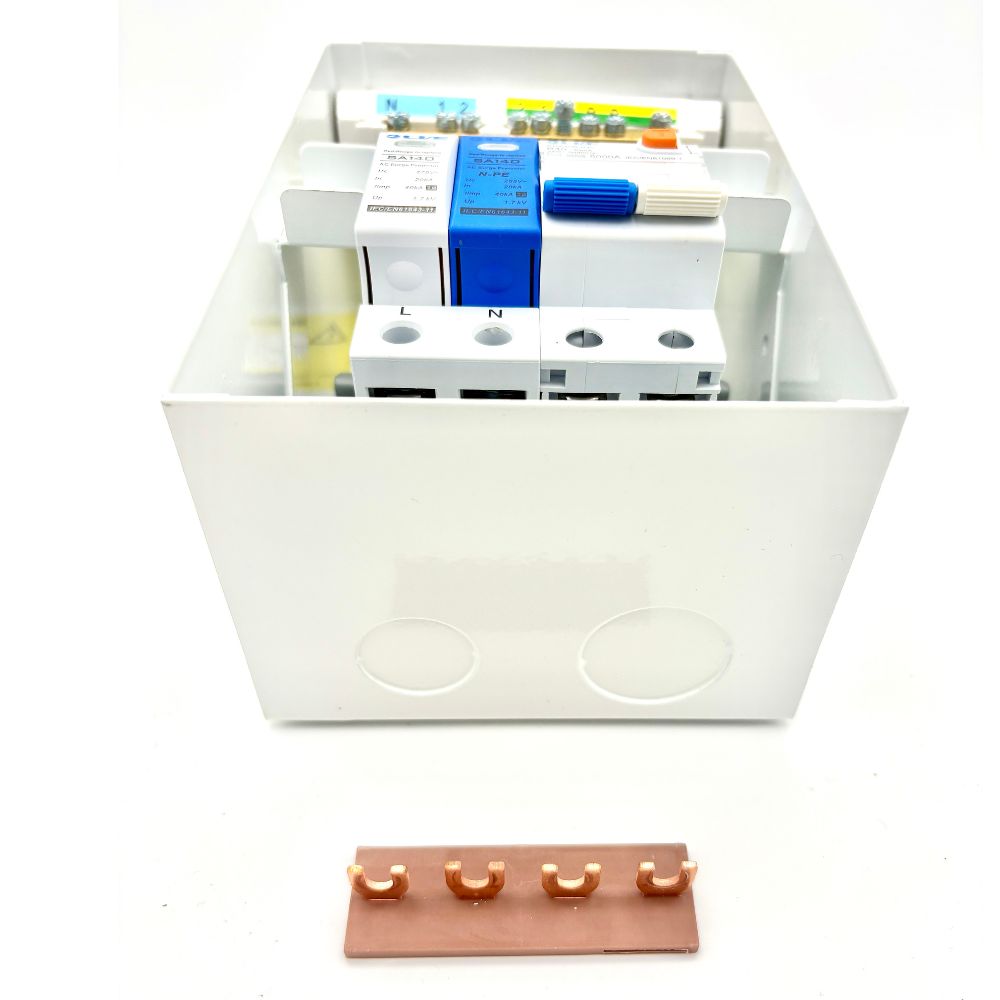

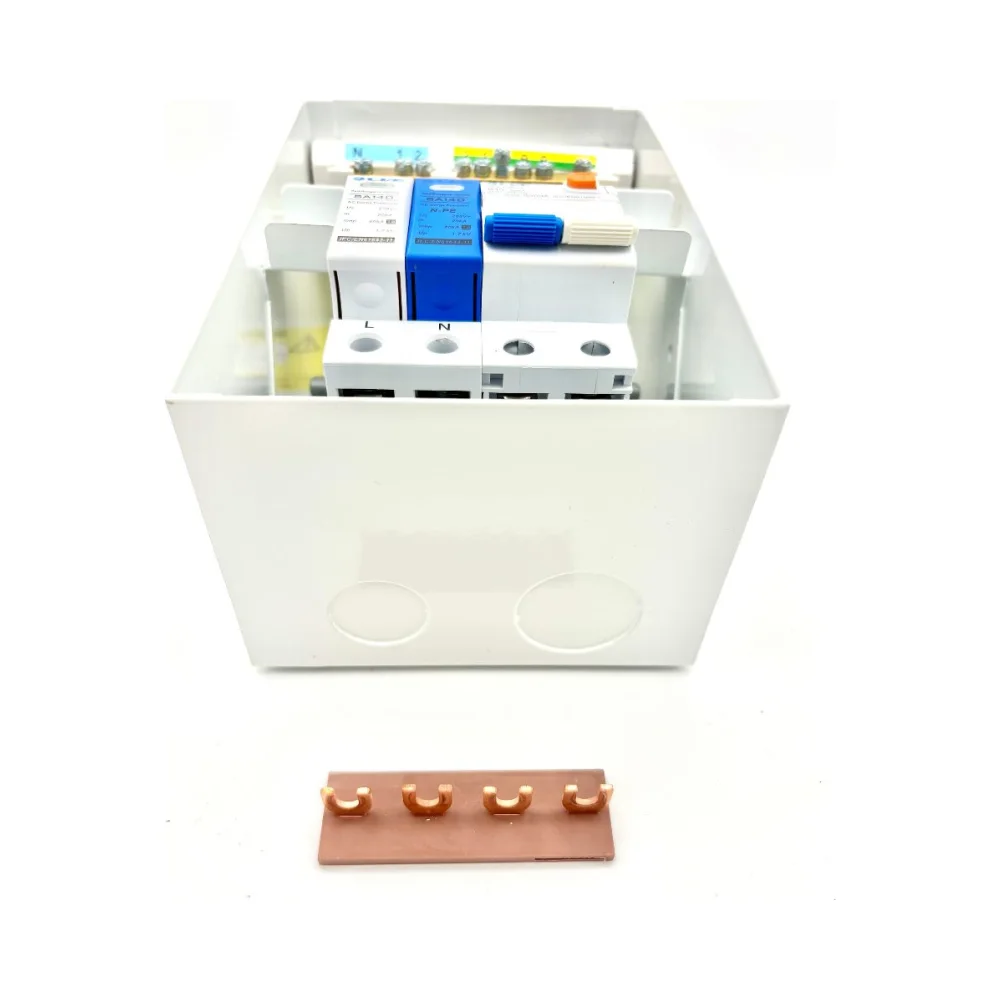

- Pre-installed internal busbar
- 4 way metal enclosure
- White powder-coated finish, RAL9010

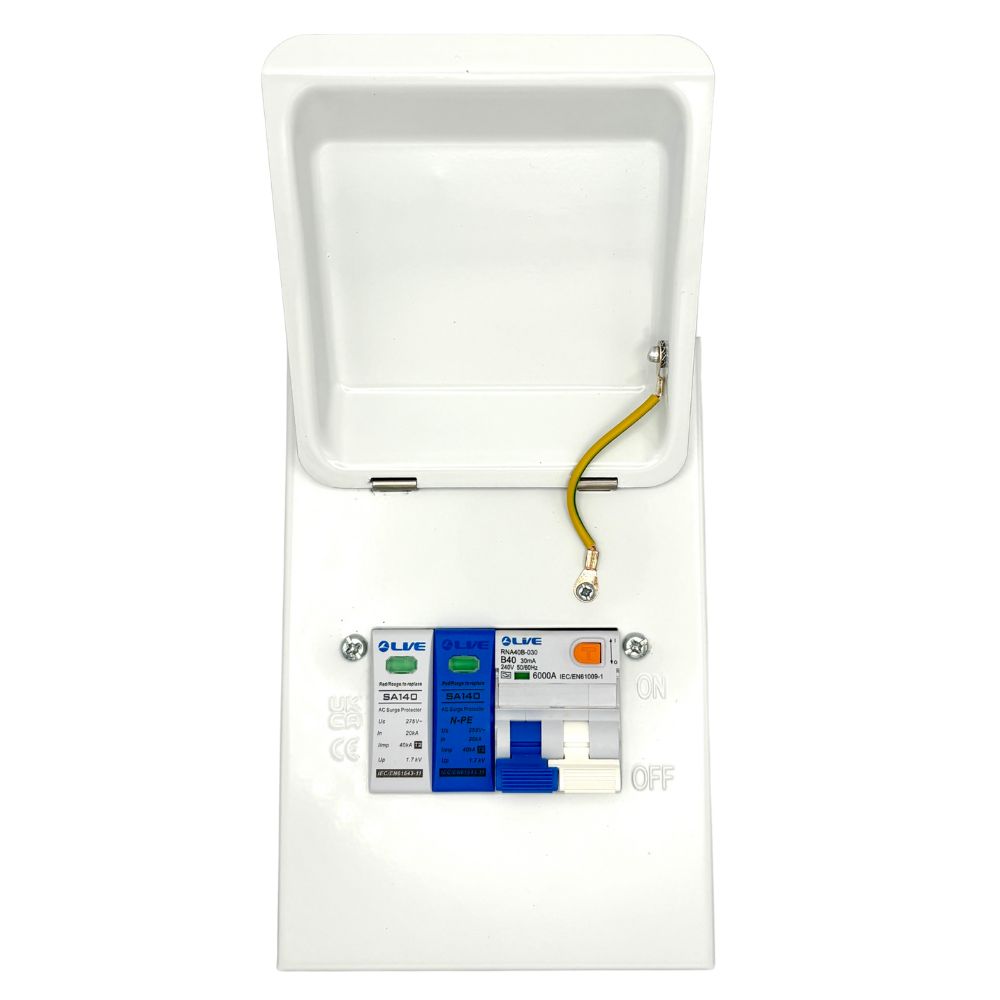

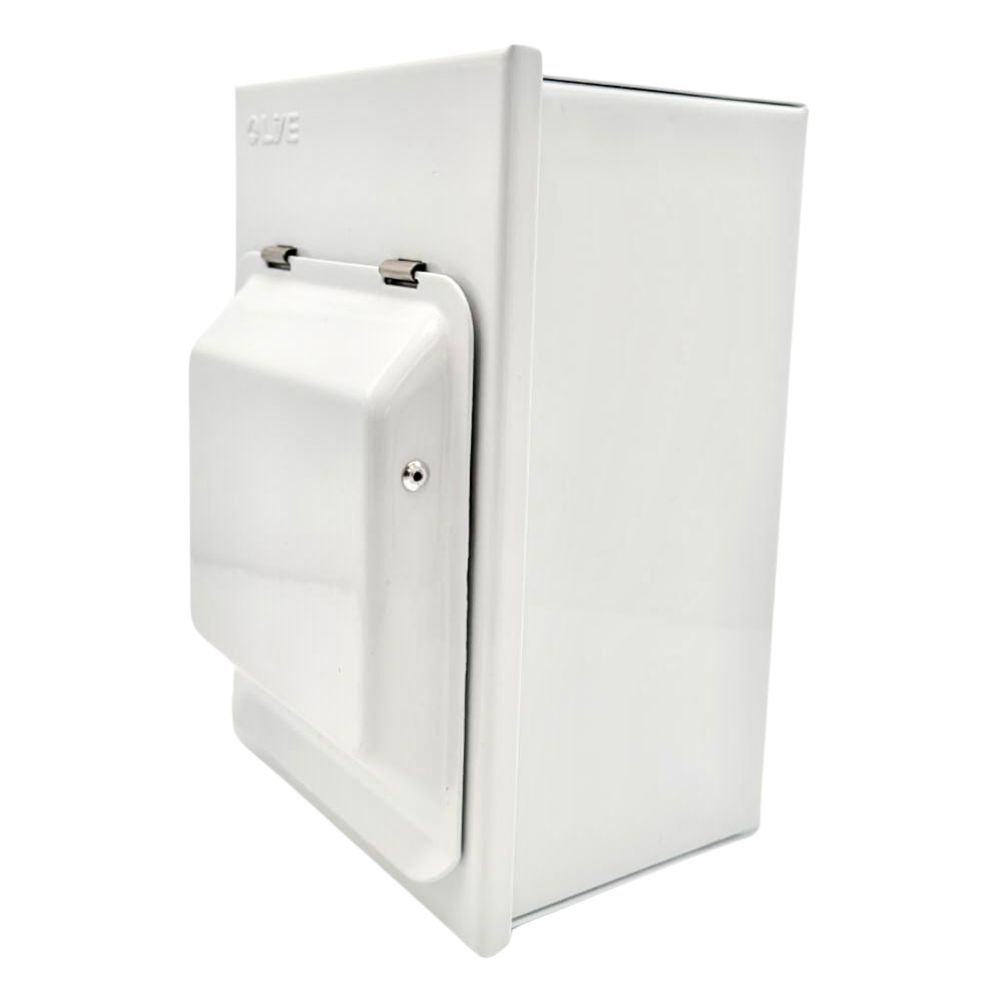

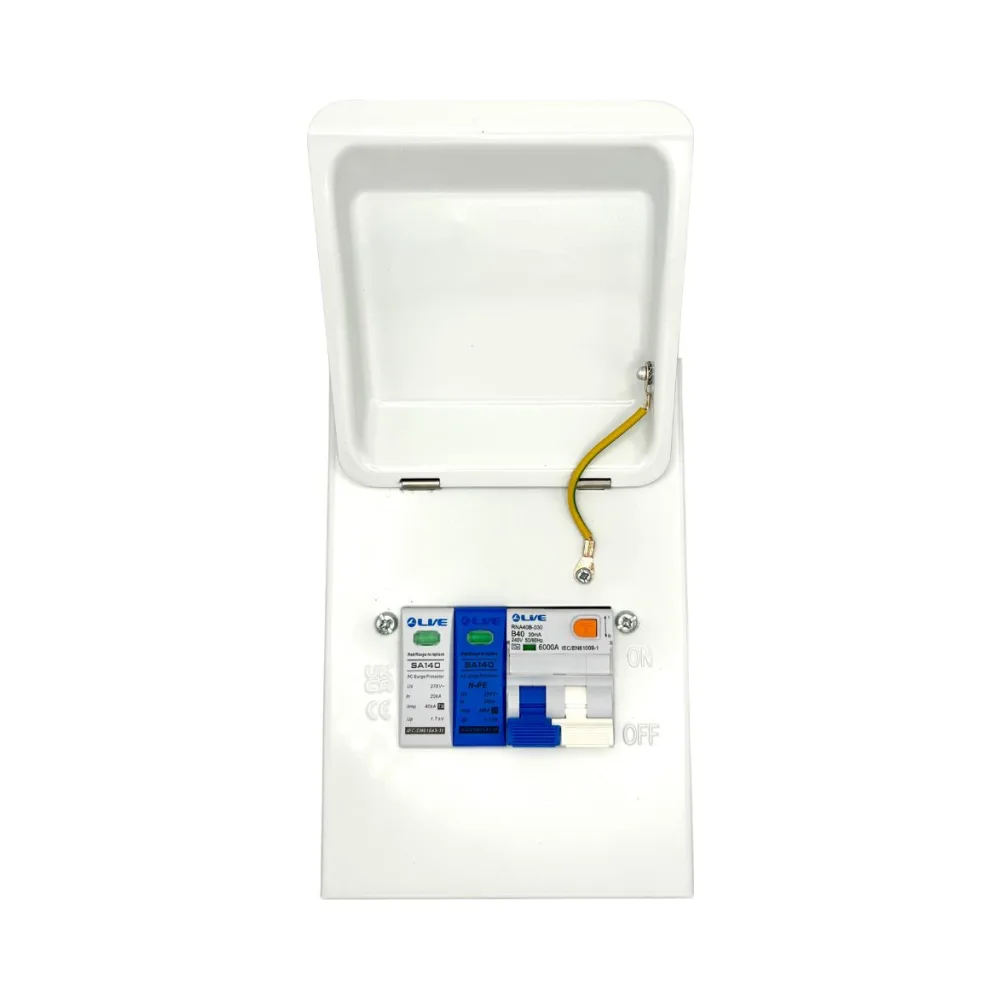

- Drop-down front cover with lockable lid
- Top and bottom knockouts for cable entry
- Compact dimensions: 125mm x 183mm x 110mm
- IP20 rating for indoor installation only
Why Choose a 32A C Curve RCBO?
A C Curve RCBO is designed to tolerate higher short-duration inrush currents than a B Curve device. This can make it suitable for certain EV charger installations where the charger design or load characteristics may otherwise cause unwanted tripping.
The correct tripping curve should always be confirmed by the electrician. Earth fault loop impedance, cable size, voltage drop, installation method and protective device suitability should all be checked before installation.
Best Suited For
- Domestic EV charger installations where C Curve protection is required
- Indoor commercial or office EV charging points
- Dedicated 32A EV charger circuits
- Installations requiring RCBO and surge protection in one compact enclosure
- Installers looking for a compact Live Electrical EV consumer unit
B Curve or C Curve EV Protection?
Not sure whether a B Curve or C Curve RCBO is the better fit for the installation? Read our guide: B Curve vs C Curve | 32A vs 40A Explained.
If you need an outdoor-rated alternative, check the correct IP65 Live Electrical EV consumer unit option for the required rating and tripping curve. The Live Electrical LEV432SP-BP IP65 EV consumer unit is the 32A B Curve outdoor version.
EV Charger Installation Links
This unit is part of the EV charger supply setup, so the charger, cable route and accessories should be planned together. For charger options, see our Ohme charger range, including Ohme Home Pro and Ohme ePod smart EV chargers.
For standard board ranges, visit our main consumer units category. You may also need suitable EV cables, EV cable clips or additional EV circuit protection, depending on the installation design.
FAQs
Is the Live Electrical MMGU32C-SP suitable for EV charger installations?
Yes, the Live Electrical MMGU32C-SP is designed for dedicated EV charger circuit protection where a 32A C Curve Type A RCBO and surge protection are suitable for the installation design.
What is the difference between B Curve and C Curve?
A C Curve RCBO is designed to tolerate higher short-duration inrush current than a B Curve device. The correct curve should be selected by the installer based on the charger, circuit design and test results.
Can this unit be installed outdoors?
No. This unit is IP20 rated and is intended for indoor installation only. For outdoor installations, use a suitable IP-rated EV consumer unit.
Does this EV consumer unit include surge protection?
Yes. The unit includes a built-in 20/40kA 1P+N surge protection device.
Does this unit include a busbar?
Yes. The Live Electrical MMGU32C-SP is supplied with a pre-installed internal busbar.
Can I use 6mm cable with this unit?
The correct cable size depends on the installation method, cable route, design current, protective device, voltage drop and other site conditions. Cable sizing should always be confirmed by a qualified electrician.
Who should install this EV consumer unit?
This EV consumer unit should be selected, installed and tested by a qualified electrician in accordance with current UK wiring regulations, the EV charger manufacturer’s instructions and the requirements of the property.
Installation Notes
The Live Electrical MMGU32C-SP EV Consumer Unit should be selected as part of the full EV charger installation design. The installer should confirm the correct RCBO rating, tripping curve, cable size, earthing arrangement, surge protection requirements and enclosure suitability before installation.
