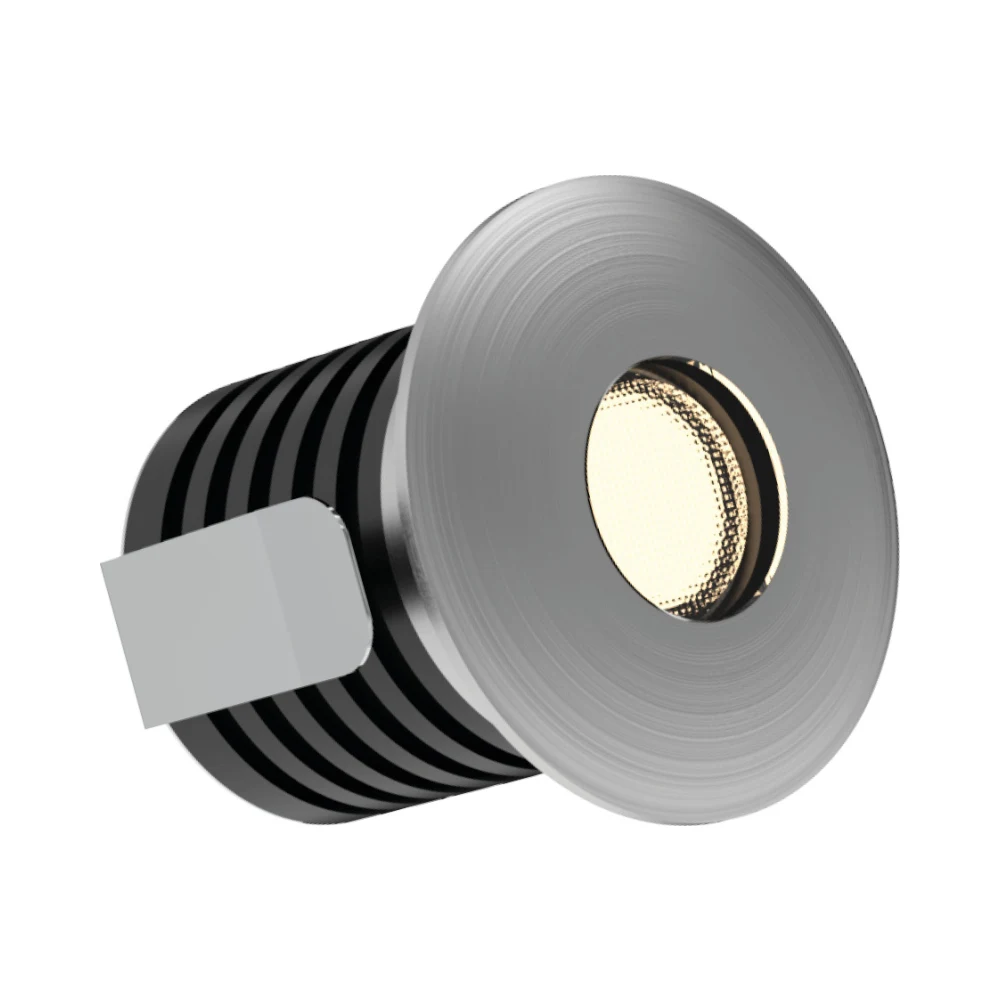

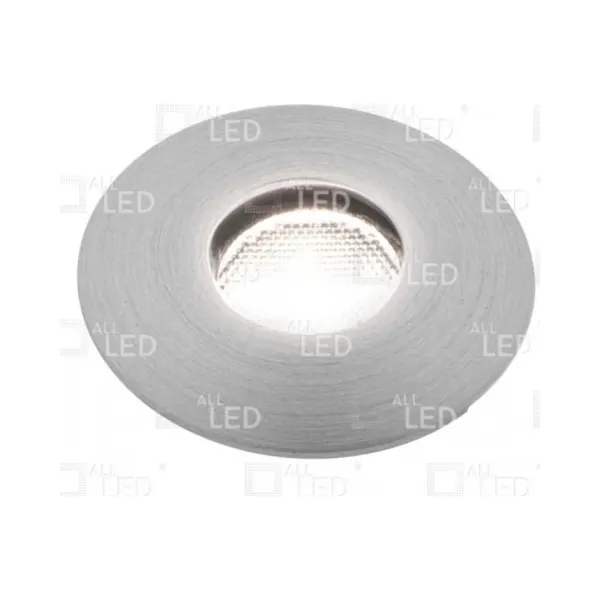

ALL LED AMKR032AL/30 Midi LED Marker Light – 3000K Brushed Aluminium
The ALL LED AMKR032AL/30 Midi LED Marker Light is a compact 1W recessed fitting designed to deliver warm architectural illumination with a stylish matt brushed aluminium finish. Featuring a 3000K warm white LED, 45° beam angle and IP65 protection, it provides discreet accent lighting for bathrooms, stairways, corridors and decorative floor installations.
Part of the ALL LED Midi marker light range, this fitting combines CREE LED technology with an integrated halogen-style diffusing lens. Its aluminium housing and compact 32mm cut-out make it a practical choice for modern residential and commercial projects where discreet recessed lighting is required.
Key Features – ALL LED AMKR032AL/30 Midi LED Marker Light
- 1W energy-efficient recessed LED marker light
- 3000K warm white colour temperature
- Contemporary matt brushed aluminium finish
- Durable aluminium construction
- IP65 protection against dust and water jets
- 45° beam angle for controlled accent illumination
- Integrated halogen-style diffusing lens
- CREE LED diode technology
- Suitable for recessed floor, wall and ceiling installations
- Designed for suitable walk-over applications
- Compact 32mm cut-out diameter
- 37mm overall diameter
- Pre-wired with 2m cable
- 350mA constant current operation
- Requires a separately purchased LED driver
- Multiple fittings must be connected in series using a compatible driver
- 50,000-hour rated lifetime
- 3-year manufacturer’s guarantee
Warm White Architectural Lighting with a Brushed Aluminium Finish
The ALL LED AMKR032AL/30 Midi LED Marker Light delivers a comfortable 3000K warm white illumination, making it particularly suitable for decorative installations where a softer lighting effect is preferred. Its 45° beam angle helps highlight architectural features and provide subtle orientation lighting without the visual impact of larger luminaires.
The matt brushed aluminium housing creates a contemporary appearance that complements metal fittings, modern interiors, stone, timber and tiled surfaces. Unlike painted finishes, the brushed aluminium appearance provides a distinctive metallic detail that can be incorporated into both residential and commercial lighting designs.
The integrated diffusing lens helps soften the appearance of the LED light source, producing controlled accent illumination for floors, walls, stairways and decorative architectural features.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | AMKR032AL/30 |
| Product Range | Midi Marker Light |
| Power Consumption | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 3000K Warm White |
| Housing Finish | Matt Brushed Aluminium |
| Housing Material | Aluminium |
| Beam Angle | 45° |
| Luminous Output | Up to 85lm |
| CRI | >80 |
| IP Rating | IP65 |
| Cut-Out Diameter | 32mm |
| Overall Diameter | 37mm |
| Recess Depth | 37mm |
| Pre-Wired Cable | 2m |
| LED Technology | CREE |
| Operating Temperature | -20°C to +50°C |
| Rated Lifetime | 50,000 Hours |
| Electrical Classification | Class III |
| Certifications | CE, RoHS, ErP |
| Guarantee | 3 Years |
Compact 32mm Recessed Installation
The ALL LED AMKR032AL/30 Midi LED Marker Light is designed for projects where space is limited and discreet lighting is important. With a 32mm cut-out and 37mm overall diameter, it can be incorporated into suitable architectural surfaces without requiring a large visible fitting.
Its compact dimensions make it particularly useful for installation along staircases, within decorative walls and in floor-level lighting arrangements. The matt brushed aluminium bezel provides a neat, professional appearance against contrasting materials.
The fitting is supplied with a 2m pre-wired cable, helping simplify positioning and connection to a suitable constant current LED driver. Installation depth, cable routing and accessibility of the driver should be considered when planning the lighting arrangement.
Walk-Over Lighting and Suitable Outdoor Applications
The robust aluminium housing and IP65 rating make the Midi marker light suitable for appropriate walk-over and architectural lighting installations. It can be used to create decorative illumination within pathways, entrance areas and recessed floor features where the mounting surface and installation method meet the manufacturer’s requirements.
The IP65 rating provides protection against dust and water jets, making this fitting suitable for certain bathroom and outdoor applications. The selected location must still be assessed for exposure to standing water, drainage conditions and mechanical loading.
For installations involving vehicle traffic or heavier mechanical loads, the manufacturer’s specified mounting accessories and load ratings must be verified. Do not assume that the standard recessed fitting alone is suitable for drive-over use.
Compatible 350mA Constant Current LED Drivers
The ALL LED AMKR032AL/30 Midi LED Marker Light requires a suitable 350mA constant current LED driver, purchased separately. It is not designed for direct connection to a 230V mains supply.
The correct driver must be selected according to the number of connected fittings, total LED load, combined forward voltage and required dimming functionality. When multiple fittings are supplied from one compatible constant current driver, they must be wired in series.
Electrical4Less offers a range of ALL LED constant current drivers for individual marker lights and larger multi-fitting installations.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Explore our ALL LED 350mA mains dimmable LED drivers for additional driver options and compatible lighting control equipment.
Important: The stated driver wattage range alone does not guarantee compatibility. Always check the output voltage range, minimum load, maximum load and permitted number of LED fittings before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED MARKER LIGHTS!
The ALL LED AMKR032AL/30 Midi LED Marker Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional LED fittings in series using the same arrangement.
- Connect the negative (-) connection of the final LED fitting back to the negative (-) output of the driver.
- Never connect the LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before switching on the power supply.
- Observe the correct polarity and ensure every connection is secure.
- Check that the driver’s output voltage and load range support the complete series-connected circuit.
- For adjustable constant current drivers, ensure the output is correctly configured to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Always follow the manufacturer’s installation instructions and the wiring diagram provided with the selected driver. Installation must be carried out by a competent person.
Multiple LED Marker Lights and Dimming Control
For projects requiring several matching fittings, the ALL LED AMKR032AL/30 Midi LED Marker Light can be incorporated into a coordinated series-connected lighting arrangement using an appropriately rated 350mA constant current driver.
This arrangement is particularly useful for staircase lighting, corridors and decorative architectural schemes where consistent warm white illumination is required across multiple positions.
When planning a multi-light installation, installers must calculate the combined forward voltage of all connected fittings and check that the selected driver can operate the complete circuit within its specified output range.
Where dimming is required, suitable ALL LED drivers are available with mains-dimming, DALI and 1–10V control options. The driver’s dimming method must be compatible with the intended lighting control system.
Energy-Efficient 3000K Warm White Lighting
With a rated power consumption of just 1W, the ALL LED AMKR032AL/30 Midi LED Marker Light provides an energy-efficient solution for decorative and low-level illumination. Its 3000K warm white colour temperature creates a comfortable lighting atmosphere, particularly suited to residential interiors, entrance areas and architectural accent lighting.
The integrated CREE LED technology and diffusing lens help deliver controlled illumination, while the 45° beam angle directs light towards the intended surface or architectural feature.
The 50,000-hour rated lifetime makes this fitting suitable for installations where long-term reliability and reduced maintenance requirements are important.
Suitable Applications – ALL LED AMKR032AL/30 Midi LED Marker Light
The compact recessed design, matt brushed aluminium housing and IP65 rating make this marker light suitable for a range of residential and commercial lighting projects, including:
- Bathroom accent lighting in appropriately assessed Zone 1 and Zone 2 locations
- Stairway and step illumination
- Decorative floor-level lighting
- Corridor and hallway marker lighting
- Contemporary residential architectural lighting
- Commercial interior feature lighting
- Suitable walk-over lighting installations
- Outdoor architectural lighting in appropriate locations
- Wall and ceiling accent lighting
- Decorative lighting around entrance areas and architectural features
The ALL LED AMKR032AL/30 Midi LED Marker Light is especially useful in installations where subtle warm white illumination is preferred and the appearance of the light fitting needs to remain discreet. Its brushed aluminium finish adds a contemporary decorative detail while maintaining the compact proportions of the Midi range.
Why Choose the ALL LED Midi Marker Light?
For professional electricians and lighting installers, the ALL LED AMKR032AL/30 Midi LED Marker Light offers a combination of compact dimensions, low energy consumption and a durable architectural finish. Its 350mA constant current operation provides flexibility when designing individual or multiple-fitting lighting arrangements with suitable LED drivers.
The combination of IP65 protection, a 50,000-hour rated lifetime, a 3-year manufacturer’s guarantee and a selection of compatible driver options makes this fitting suitable for carefully planned residential and commercial lighting installations.
Order the ALL LED AMKR032AL/30 Midi LED Marker Light from Electrical4Less for professional architectural lighting, compatible LED drivers and electrical installation accessories.
