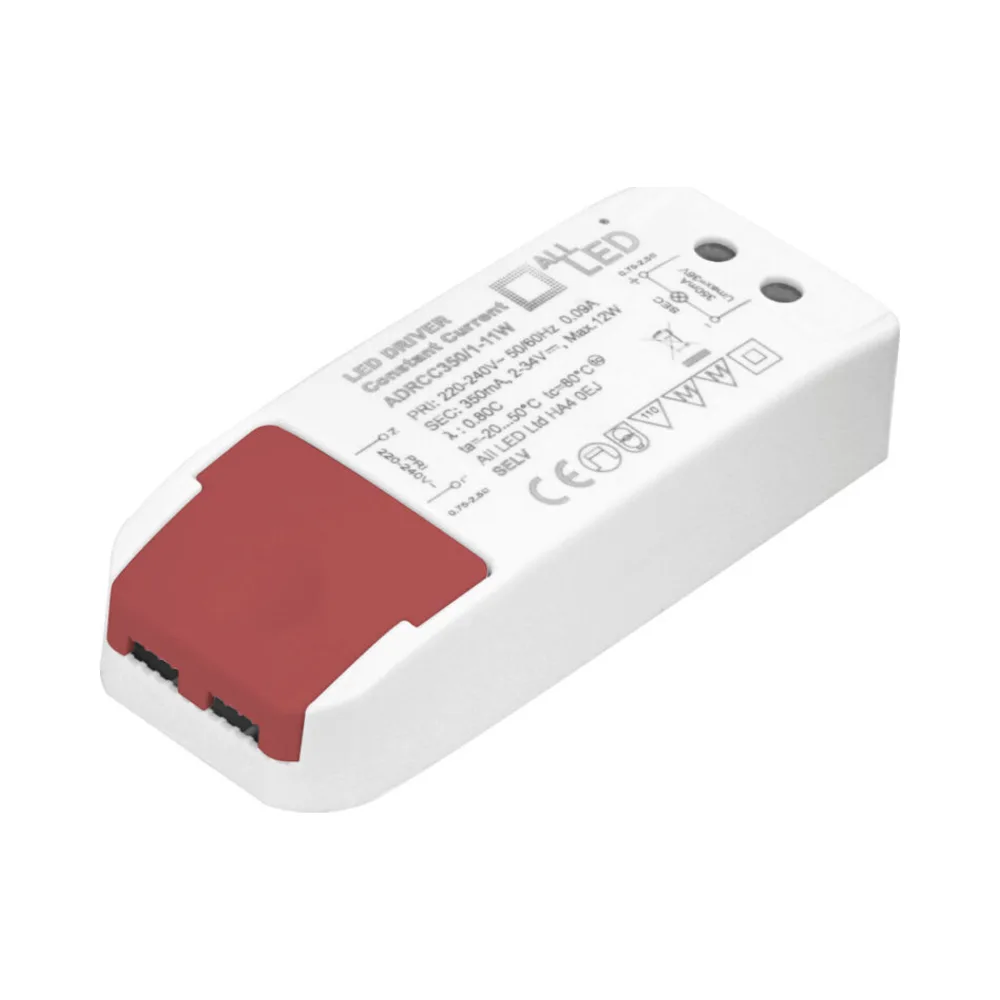

ADRCC350 350mA LED Driver – ALL LED Drive350 1-11W
The ADRCC350 350mA LED Driver from ALL LED is a compact constant current power supply designed for compatible LED lighting systems operating at 350mA. Part of the Drive350 range, the ADRCC350/1-11 supports a power range of 1-11W, making it suitable for low-wattage LED lighting installations in domestic and commercial environments.
Its compact construction is particularly useful where installation space is limited. The driver features loop-in loop-out terminals and generously sized cable connections, helping electricians simplify wiring arrangements in suitable lighting installations.
Key Features
- 350mA regulated constant current output
- 1-11W operating power range
- Suitable for compatible 350mA LED lighting systems
- Loop-in loop-out terminals for straightforward wiring
- Large easy-wire terminals for secure connections
- Compact construction for restricted installation spaces
- Supports up to 200m DC cable length using 1.5mm² cable
- Supports up to 20m DC cable length using 1mm² cable
- Integrated short circuit protection
- Overload and overvoltage protection
- Thermal protection against overheating
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCC350/1-11
- Product Range: Drive350
- Product Type: Constant Current LED Driver
- Input Voltage: 220-240V AC
- Output Current: 350mA
- Operating Power Range: 1-11W
- Output Type: Constant Current
- Connection Type: Loop-In Loop-Out Terminals
- Maximum DC Cable Length (1.5mm²): 200m
- Maximum DC Cable Length (1mm²): 20m
- Electrical Protection: Short Circuit, Overload, Overvoltage and Thermal
Compact Constant Current Driver for LED Lighting
The Drive350 is designed for LED installations requiring a stable 350mA constant current supply. With its 1-11W operating range, it can power compatible low-wattage LED fittings, including suitable recessed lighting and decorative lighting applications.
Unlike constant voltage drivers, the ADRCC350/1-11 regulates output current to match the requirements of compatible LED equipment.
Loop-In Loop-Out Wiring and Extended Cable Lengths
The ALL LED ADRCC350/1-11 features loop-in loop-out terminals that simplify mains wiring connections where suitable. Large terminals provide convenient access for electrical installation and maintenance.
The driver also supports extended DC cable runs, with a stated maximum of 200m using 1.5mm² cable or 20m using 1mm² cable. Installers should follow the manufacturer’s guidance regarding suitable cable arrangements and connected LED loads.
Integrated Electrical Protection
The ADRCC350 350mA LED Driver incorporates short circuit, overload, overvoltage and thermal protection to help safeguard the power supply during abnormal operating conditions.
Its compact design and integrated protection features make it a practical choice for compatible professional lighting installations requiring a fixed 350mA output.
Installation and Compatibility
Before installation, confirm that the connected LED fittings require a 350mA constant current supply and that their combined electrical requirements fall within the driver’s specified 1-11W operating range.
Follow the manufacturer’s installation instructions for wiring, mounting and cable length requirements. This product must not be used with LED lighting requiring a fixed 12V or 24V constant voltage supply.
