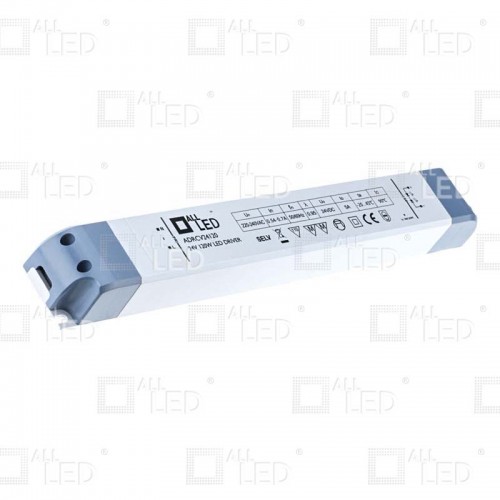

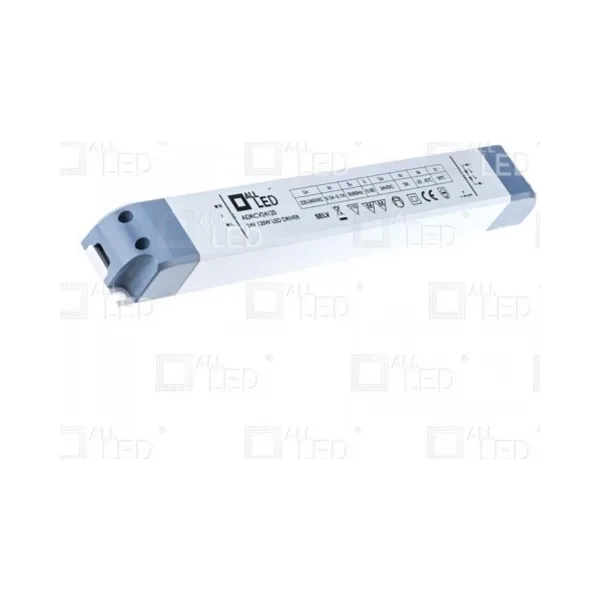

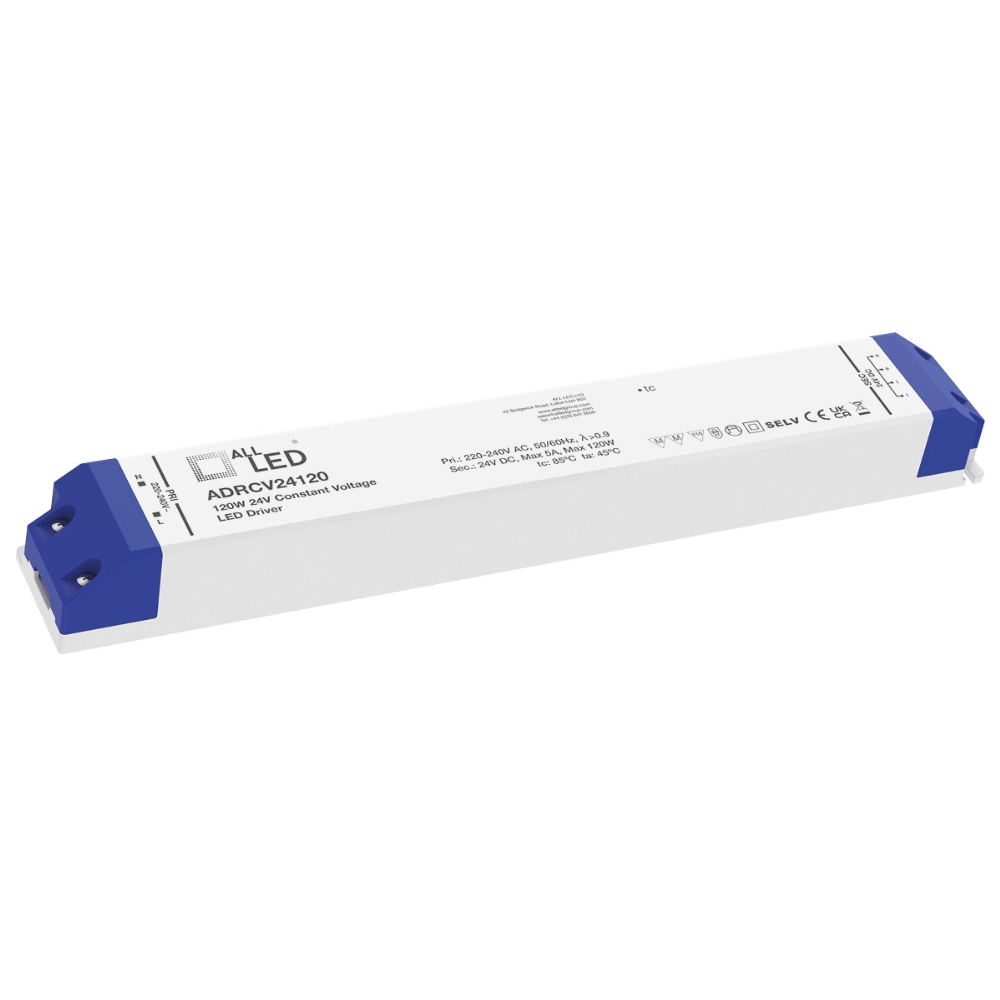

ALL LED ADRCV24120 24V 120W LED Driver
The ALL LED ADRCV24120 24V 120W LED Driver provides a regulated constant voltage power supply for compatible 24V LED lighting installations. With a maximum output of 120W and a zero-load operating capability, this driver offers flexibility for residential, commercial and architectural lighting projects.
Its moulded polycarbonate enclosure provides a durable housing, while the compact construction helps installers position the driver in concealed or restricted spaces. Large connection terminals simplify wiring, making it practical for installations requiring a reliable 24V DC supply.
Key Features
- 24V DC regulated constant voltage output
- 120W maximum output power
- 0-120W operating load range with zero-load capability
- Maximum output current of 5A
- 220-240V AC input supply
- SELV-rated output for low-voltage lighting applications
- Integrated overload protection and thermal cutout
- Durable moulded polycarbonate enclosure
- Large connection terminals for convenient installation
- Compact construction suitable for concealed installations
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCV24120
- Product Type: Constant Voltage LED Driver
- Input Voltage: 220-240V AC
- Output Voltage: 24V DC
- Maximum Output Power: 120W
- Output Current: 5A Maximum
- Operating Load: 0-120W
- Operating Temperature: -15°C to +45°C
- Enclosure Material: Moulded Polycarbonate
- Safety Rating: SELV
- Protection: Overload Protection and Thermal Cutout
120W Power Supply for 24V LED Lighting
The ADRCV24120 is suitable for compatible 24V constant voltage LED systems requiring up to 120W of power. Its wide operating load range makes it useful for different lighting configurations, including LED strip installations, decorative lighting and architectural lighting applications.
Zero-Load Capability and Electrical Protection
Unlike LED drivers requiring a minimum connected load, the ALL LED ADRCV24120 24V 120W LED Driver supports operation with no connected load. This provides additional flexibility when designing and maintaining low-voltage lighting installations.
Integrated overload protection and a thermal cutout help safeguard the driver during abnormal operating conditions. The SELV-rated output and regulated 24V DC supply make it suitable for compatible low-voltage lighting equipment.
Installation and Compatibility
Before installation, confirm that the connected LED lighting requires a 24V DC constant voltage supply and that the total connected load does not exceed 120W or 5A. Position the driver according to the manufacturer’s installation instructions and maintain suitable ventilation.
This is a constant voltage LED driver and must not be used with LED fittings requiring a constant current supply. Dimming compatibility is not specified for this model.
