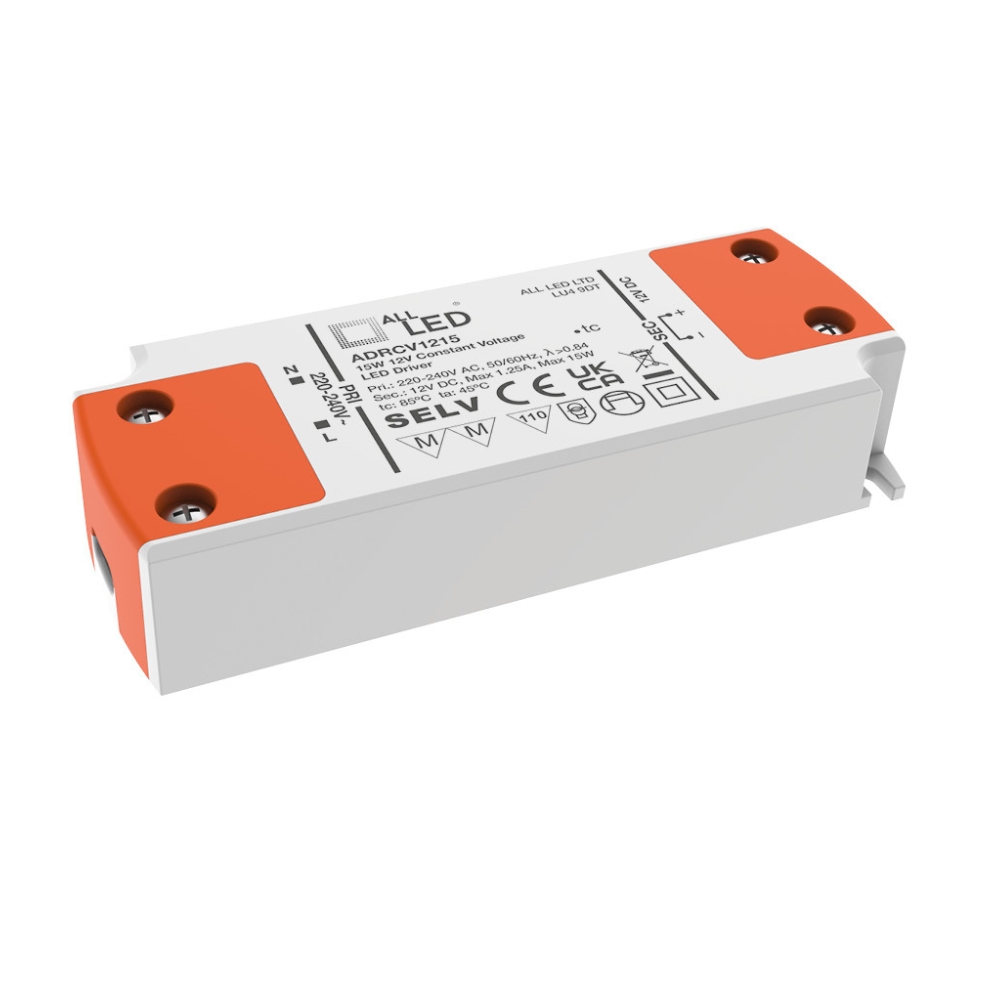

ALL LED ADRCV1215 12V 15W LED Driver
The ALL LED ADRCV1215 12V 15W LED Driver provides a stable, regulated constant voltage supply for compatible low-power LED lighting installations. With a maximum output of 15W, it is designed for smaller 12V DC lighting loads in domestic and commercial environments where dimming is not required.
Its compact construction makes the ADRCV1215 suitable for discreet positioning in confined installation spaces. The moulded polycarbonate enclosure provides a durable housing, while built-in electrical protection helps maintain dependable performance during everyday operation.
Key Features
- 12V DC regulated constant voltage output
- 15W maximum rated output power
- Non-dimmable design for fixed-brightness LED lighting
- 0-15W operating load range
- Zero-load capability without a minimum connected load
- Maximum output current of 1.25A
- 220-240V AC input supply
- SELV-rated output
- Integrated overload protection and thermal cutout
- Durable moulded polycarbonate enclosure
- Compact construction for concealed installations
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCV1215
- Product Type: Non-Dimmable Constant Voltage LED Driver
- Input Voltage: 220-240V AC
- Output Voltage: 12V DC
- Maximum Output Power: 15W
- Maximum Output Current: 1.25A
- Operating Load Range: 0-15W
- Dimming: Non-Dimmable
- Output Type: Regulated Constant Voltage
- Operating Temperature: -15°C to +45°C
- Enclosure Material: Moulded Polycarbonate
- Safety Rating: SELV
- Electrical Protection: Overload Protection and Thermal Cutout
Compact Power Supply for 12V LED Lighting
The ADRCV1215 is particularly suited to smaller LED lighting systems requiring a consistent 12V DC supply. Its 15W capacity makes it a practical choice for compatible decorative lighting, low-power LED strips and compact architectural lighting arrangements.
Zero-Load Operation and Electrical Protection
The ALL LED ADRCV1215 12V 15W LED Driver supports zero-load operation, allowing it to function without a minimum connected load. This provides flexibility for low-wattage installations and helps accommodate different compatible LED lighting configurations.
Integrated overload protection and a thermal cutout help protect the driver during abnormal operating conditions. The regulated constant voltage output ensures the connected lighting receives a stable 12V DC supply within the specified operating limits.
Installation and Compatibility
Before installation, confirm that the connected LED lighting requires a 12V DC constant voltage supply and that the total connected load does not exceed 15W or 1.25A. Install the driver in accordance with the manufacturer’s instructions, allowing suitable space for electrical connections and heat dissipation.
This product is non-dimmable and is not intended for use with dimming controls. It must not be used with LED fittings requiring a constant current driver.
