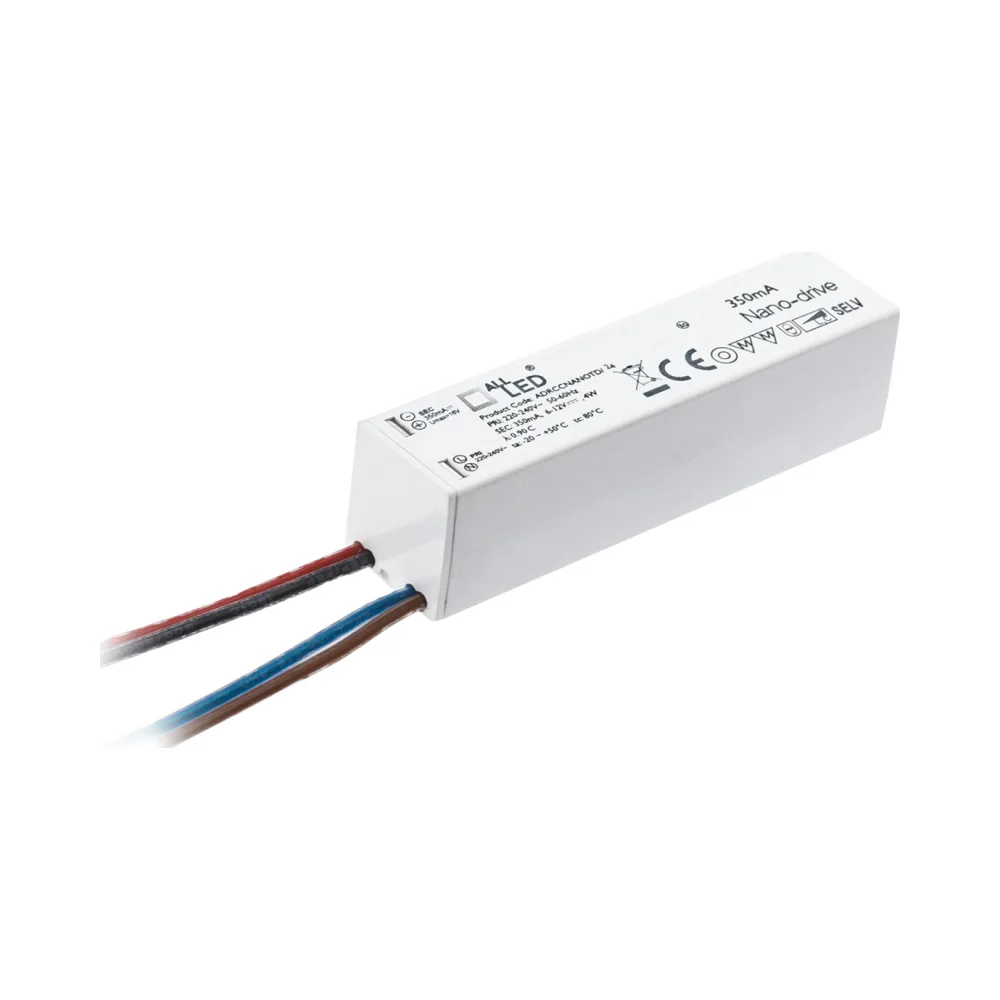

350mA Dimmable Nano LED Driver – ALL LED ADRCC350NANOTD/2-4
The ALL LED ADRCC350NANOTD/2-4 is a compact 350mA Dimmable Nano LED Driver designed for low-wattage LED lighting installations where space is limited. Delivering a constant current output for compatible 2-4W LED fittings, this miniature driver is suitable for applications requiring dimming control and discreet installation.
Its compact construction allows installation through a 28mm diameter opening, making it particularly useful for recessed LED lighting and other confined spaces. The IP55-rated enclosure provides protection against dust ingress and water jets.
Key Features
- 350mA constant current LED driver
- 2-4W operating range for dimmable LED applications
- Compact Nano design suitable for restricted installation spaces
- Fits through a 28mm diameter opening
- IP55-rated enclosure
- Pre-wired with durable high-temperature cables
- Maximum DC cable length of 200m using 1.5mm² cable, subject to installation requirements
Technical Specifications
- Brand: ALL LED
- Product Code: ADRCC350NANOTD/2-4
- Product Type: Dimmable Constant Current LED Driver
- Output Current: 350mA
- Power Range: 2-4W
- Dimming: Supported with compatible LED loads of 2W or above
- IP Rating: IP55
- Installation Opening: 28mm diameter
- Maximum DC Cable Length: 200m with 1.5mm² cable
Compact LED Driver for Recessed Lighting
The 350mA Dimmable Nano LED Driver is designed for installations where conventional LED drivers may be difficult to accommodate. Its miniature size and pre-wired connections make it practical for compact recessed fittings and architectural lighting applications.
Important Compatibility Information
This model is intended for compatible 350mA constant current LED fittings operating within the 2-4W dimming range. The separately available 1-4W on/off version should not be confused with this dimmable model. Always confirm LED load compatibility and dimmer requirements before installation.
