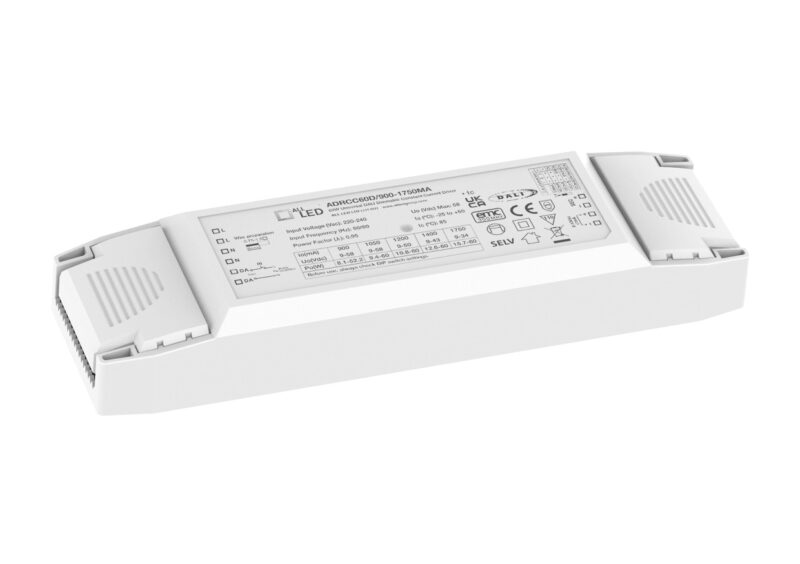

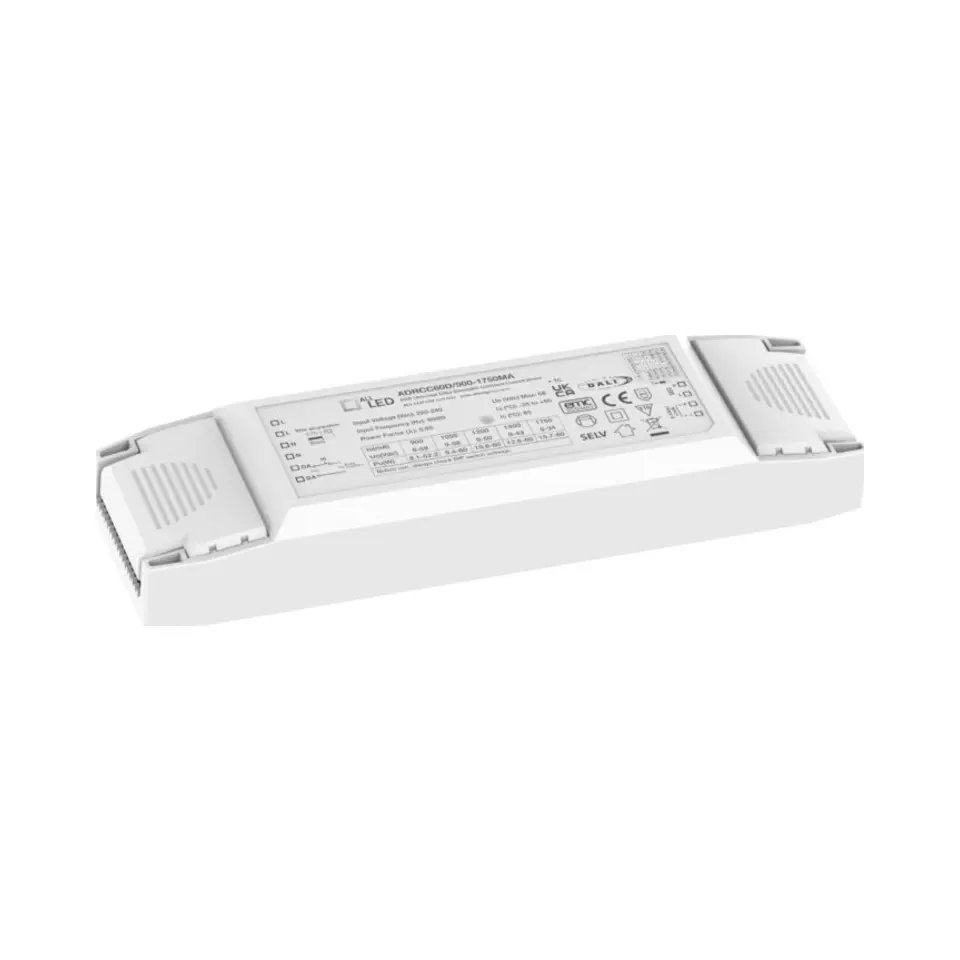

ALL LED ADRCC60D 60W DALI Driver – UNIDRIVE-CC
The ALL LED ADRCC60D 60W DALI Driver is a versatile dimmable constant current LED power supply from the UNIDRIVE-CC range. Designed for professional lighting installations, it combines DALI, DALI-2, 1-10V and retractive push dimming capabilities in a single unit, providing flexible lighting control for residential and commercial applications.
With an adjustable constant current output ranging from 900mA to 1750mA, the ADRCC60D/900-1750mA allows installers to select the appropriate output using integrated DIP switches. This makes it suitable for compatible LED fittings with different current requirements, without needing separate fixed-current drivers.
Key Features
- 60W dimmable constant current LED driver
- DALI and DALI-2 dimming compatibility
- Supports 1-10V and 0-10V dimming control
- Retractive push dimming functionality
- Selectable constant current output using DIP switches
- Adjustable output current from 900mA to 1750mA
- Wide output voltage range for compatible LED fittings
- Built-in short circuit protection
- Overtemperature protection
- Overvoltage protection
- All-in-one dimming control for flexible lighting installations
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCC60D/900-1750mA
- Product Range: UNIDRIVE-CC
- Product Type: Dimmable Constant Current LED Driver
- Maximum Output Power: 60W
- Selectable Output Current: 900-1750mA
- Output Current Selection: DIP Switch
- Dimming Protocols: DALI, DALI-2, (0)1-10V and Retractive Push
- Output Type: Constant Current
- Electrical Protection: Short Circuit, Overtemperature and Overvoltage
Multiple Dimming Options in One Driver
The UNIDRIVE-CC provides several lighting control methods within a single driver, helping installers accommodate different control requirements. DALI and DALI-2 compatibility makes it suitable for appropriately designed digital lighting control systems, while 1-10V and retractive push dimming provide alternative control methods for compatible installations.
This flexibility makes the driver suitable for lighting upgrades and new installations where the selected control system may vary between projects.
Adjustable 900-1750mA Constant Current Output
Unlike fixed-output LED drivers, the ADRCC60D/900-1750mA allows the output current to be selected using DIP switches. This enables the driver to be configured for compatible constant current LED fittings with different electrical requirements.
The ALL LED ADRCC60D 60W DALI Driver also features a wide output voltage range, allowing it to accommodate suitable LED loads within the manufacturer’s specified operating limits.
Built-In Electrical Protection
Integrated short circuit, overtemperature and overvoltage protection help safeguard the driver during abnormal operating conditions. These features support dependable operation in compatible professional LED lighting installations.
Installation and Compatibility
Before installation, confirm the LED fitting’s required constant current, forward voltage and total power consumption. Set the DIP switches to the appropriate current according to the manufacturer’s instructions before connecting the LED load.
Ensure the chosen dimming system is compatible with the driver and that the connected load remains within the specified 60W maximum output and permitted voltage range.
This is a constant current LED driver and must not be used with LED lighting requiring a fixed 12V or 24V constant voltage supply.
