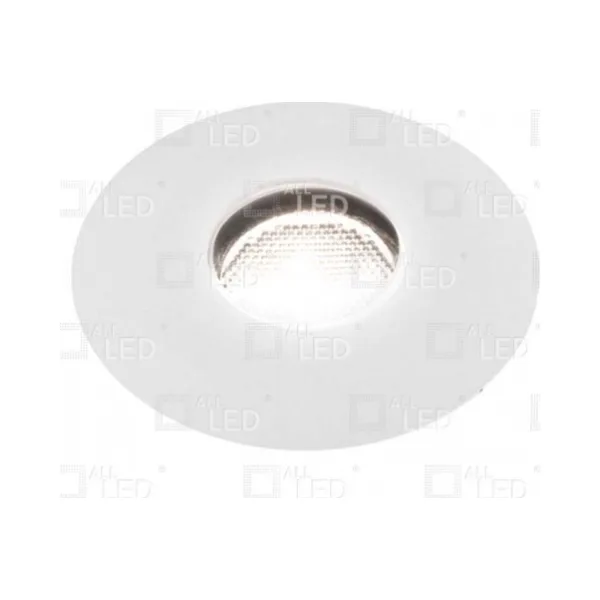

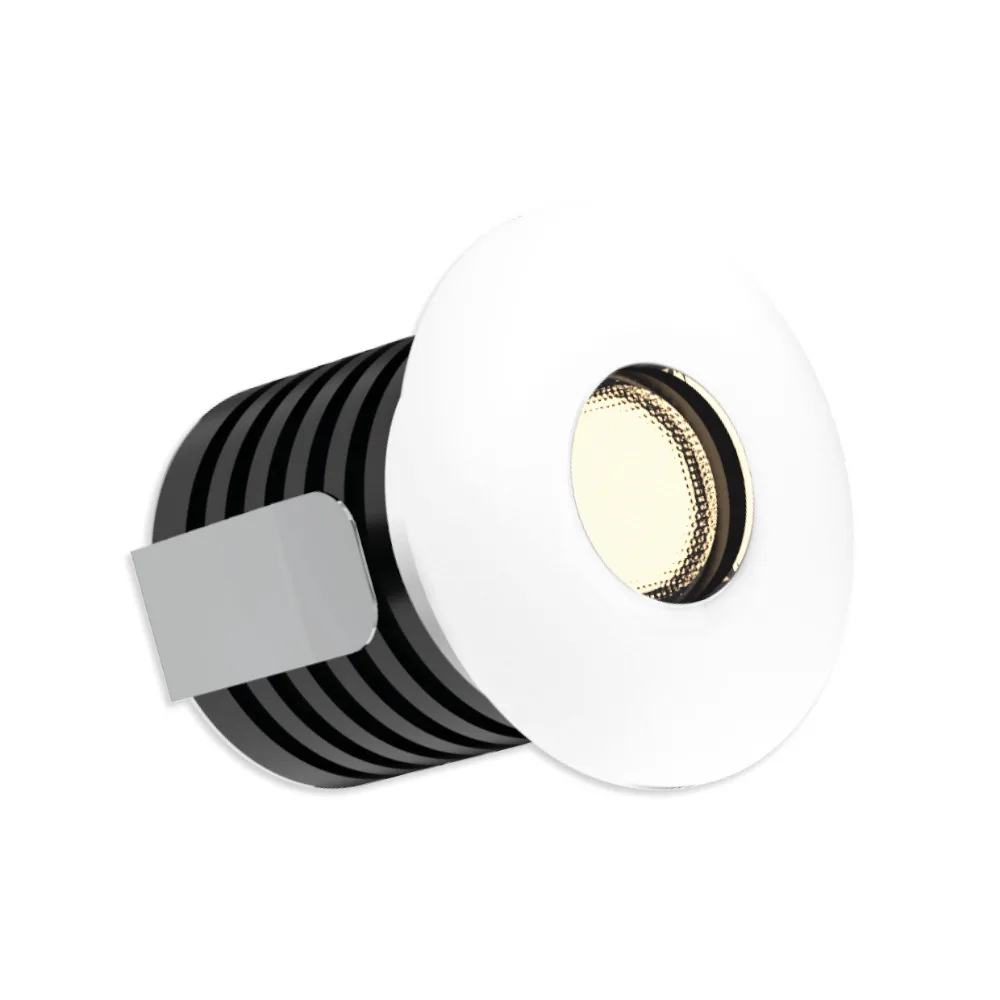

ALL LED AMKR032WH/30 Midi 1W LED Marker Light
The ALL LED AMKR032WH/30 Midi LED Marker Light is a compact 1W recessed architectural fitting that delivers warm 3000K illumination in a discreet polar white housing. Designed for decorative floor, wall and ceiling installations, it combines CREE LED technology, a halogen-style diffusing lens and IP65 protection for versatile residential and commercial lighting applications.
Its powder-coated aluminium construction provides a durable, paintable finish, while the compact 32mm cut-out makes it suitable for installations where larger luminaires would be visually intrusive. The warm white output is particularly suited to residential interiors, bathrooms, staircases and architectural features where softer accent lighting is preferred.
Key Features – ALL LED AMKR032WH/30 Midi LED Marker Light
- 1W recessed LED marker light
- 3000K warm white colour temperature
- Polar white powder-coated aluminium housing
- Paintable matt finish for colour-matched installations
- IP65 protection against dust and water jets
- 45° beam angle with halogen-style diffusing lens
- CREE LED diode technology
- Suitable for floor, wall and ceiling installation
- Suitable for walk-over applications
- Drive-over rated up to 2 metric tonnes when installed with the specified AGL/MS032 mounting sleeve
- 32mm cut-out diameter
- Compact 37mm overall diameter
- 350mA constant current operation
- Requires a separately purchased LED driver
- Multiple fittings must be connected in series using a compatible driver
- 50,000-hour rated lifetime
- 3-year manufacturer’s guarantee
3000K Warm White Architectural Lighting
The ALL LED AMKR032WH/30 Midi LED Marker Light produces warm 3000K illumination, creating a softer atmosphere than neutral or cool white alternatives. This makes it particularly suitable for living spaces, hallways, bathrooms and decorative architectural lighting where a welcoming appearance is important.

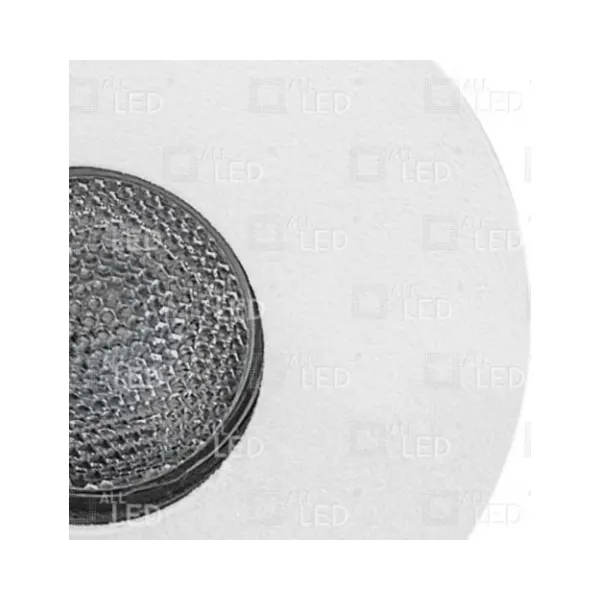

Its 45° beam angle provides controlled light distribution for highlighting steps, wall features, floor edges and pathways. The integrated halogen-style diffusing lens helps produce an attractive lighting effect while maintaining the compact appearance of the fitting.
The polar white finish complements light-coloured surfaces and contemporary interiors. For projects requiring a coordinated decorative finish, the powder-coated aluminium housing can also be painted in accordance with the manufacturer’s recommendations.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | AMKR032WH/30 |
| Product Range | Midi Marker Light |
| Power Consumption | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 3000K Warm White |
| Housing Colour | Polar White |
| Housing Material | Aluminium |
| Finish | Powder-Coated Matt White, Paintable |
| Beam Angle | 45° |
| Luminous Output | Up to 85lm |
| CRI | >80 |
| IP Rating | IP65 |
| Cut-Out Diameter | 32mm |
| Overall Diameter | 37mm |
| Recess Depth | 37mm |
| LED Technology | CREE |
| Operating Temperature | -20°C to +50°C |
| Rated Lifetime | 50,000 Hours |
| Electrical Classification | Class III |
| Drive-Over Rating | Up to 2 Metric Tonnes with AGL/MS032 Mounting Sleeve |
| Certifications | CE, RoHS, ErP |
| Guarantee | 3 Years |
Compact Recessed Lighting for Floors, Walls and Ceilings
The ALL LED AMKR032WH/30 Midi LED Marker Light has been designed for installations where minimal visual impact is essential. Its 37mm overall diameter allows the fitting to sit discreetly within the surrounding surface, providing practical accent lighting without the bulk of conventional luminaires.
The small 32mm cut-out offers installation flexibility across suitable plasterboard, timber and tiled surfaces. This makes the fitting especially useful for decorative wall lighting, stairway illumination and discreet floor-level guidance lighting.
Its aluminium construction provides a robust housing for demanding installations, while the polar white finish helps the light blend into pale architectural surfaces.
Walk-Over and Drive-Over Applications
The Midi marker light is suitable for walk-over installations where discreet floor lighting is required. It can be incorporated into pathways, entrance areas and decorative floor layouts, subject to appropriate mounting and installation conditions.
For drive-over applications, the manufacturer specifies a loading capacity of up to 2 metric tonnes when the fitting is used with the appropriate AGL/MS032 32mm mounting sleeve.
The mounting sleeve is an important part of this installation arrangement and should not be omitted where the specified drive-over rating is required. Ensure the supporting surface and installation method are suitable for the intended loading.
Compatible 350mA Constant Current LED Drivers
The ALL LED AMKR032WH/30 Midi LED Marker Light operates at 350mA constant current and requires a suitable LED driver, sold separately. It must not be connected directly to a 230V mains supply.
Driver selection depends on the number of fittings connected, the combined LED load, the driver’s output voltage range and any required dimming functionality. When multiple fittings are supplied from one compatible constant current driver, they must be connected in series.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Explore our ALL LED 350mA mains dimmable LED drivers for additional driver options and compatible control gear.
Important: A driver’s wattage range alone does not establish compatibility. Always verify its output voltage range, minimum load, maximum load and supported number of fittings before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED MARKER LIGHTS!
The ALL LED AMKR032WH/30 Midi LED Marker Light is a 350mA CONSTANT CURRENT fitting. It requires a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE WIRED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue the same series arrangement for additional LED fittings.
- Connect the negative (-) connection of the final fitting to the negative (-) output of the LED driver.
- Never connect these 350mA LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before applying power.
- Check polarity carefully and ensure all terminals are secure.
- Confirm that the driver supports the combined forward voltage and power requirements of the complete circuit.
- Adjustable constant current drivers must be correctly configured to 350mA before the circuit is energised.
DO NOT CONNECT IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Follow the ALL LED manufacturer’s installation instructions and the wiring diagram supplied with the chosen driver. Installation must be carried out by a competent person.
Multiple Marker Lights and Dimming Control
The ALL LED AMKR032WH/30 Midi LED Marker Light can be used in carefully planned multi-fitting installations, making it suitable for staircases, corridors, floor-level guidance lighting and architectural displays.
Where several lights are installed together, the selected 350mA driver must accommodate the total connected load and combined forward voltage. A correct series connection allows the specified constant current to flow through each LED fitting in the circuit.
For installations requiring adjustable lighting levels, compatible dimmable drivers can be selected to suit the intended control method. Different ALL LED driver models support mains dimming, DALI or 1–10V systems, so the driver and control arrangement should be chosen together.
Energy-Efficient Warm White Accent Lighting
With a rated consumption of just 1W, the ALL LED AMKR032WH/30 Midi LED Marker Light offers an economical solution for low-level decorative lighting. Its 3000K warm white output is well suited to living spaces, entrance areas and bathrooms where a softer lighting atmosphere is preferred.
The combination of CREE LED technology and a diffusing lens provides controlled illumination for highlighting architectural details, while the 50,000-hour rated lifetime reduces the need for frequent lamp replacement in correctly installed systems.
For larger residential and commercial projects, matching Midi fittings can create a consistent lighting appearance across multiple areas while keeping individual fitting power consumption low.
Suitable Applications – ALL LED AMKR032WH/30 Midi LED Marker Light
Designed for flexible recessed mounting, this compact LED marker light is suitable for a range of decorative and practical applications, including:
- Bathroom lighting in suitably assessed Zone 1 and Zone 2 locations
- Stairway and step illumination
- Decorative recessed floor lighting
- Hallway and corridor marker lighting
- Residential architectural accent lighting
- Commercial interior feature lighting
- Walk-over applications
- Drive-over applications with the specified AGL/MS032 mounting sleeve and suitable installation conditions
- Suitable outdoor architectural lighting installations
The ALL LED AMKR032WH/30 Midi LED Marker Light is particularly useful where discreet recessed lighting is needed without the appearance of larger conventional fittings. Its compact aluminium housing, warm white output and polar white finish make it a practical choice for modern lighting schemes.
Why Choose the ALL LED Midi Marker Light?
For professional installers, the ALL LED AMKR032WH/30 Midi LED Marker Light combines a compact 32mm cut-out, efficient 1W operation and a durable polar white finish with versatile mounting possibilities. Its IP65 rating and compatibility with suitable constant current drivers make it suitable for carefully designed accent lighting systems.
With a 50,000-hour rated lifetime, 3-year manufacturer’s guarantee and options for both non-dimmable and dimmable driver configurations, this warm white marker light provides a dependable solution for individual fittings and coordinated multi-light projects.
