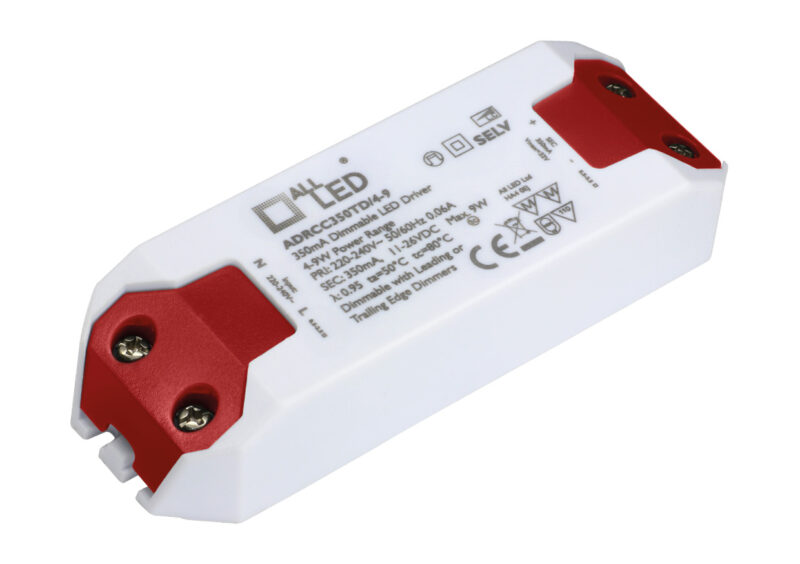

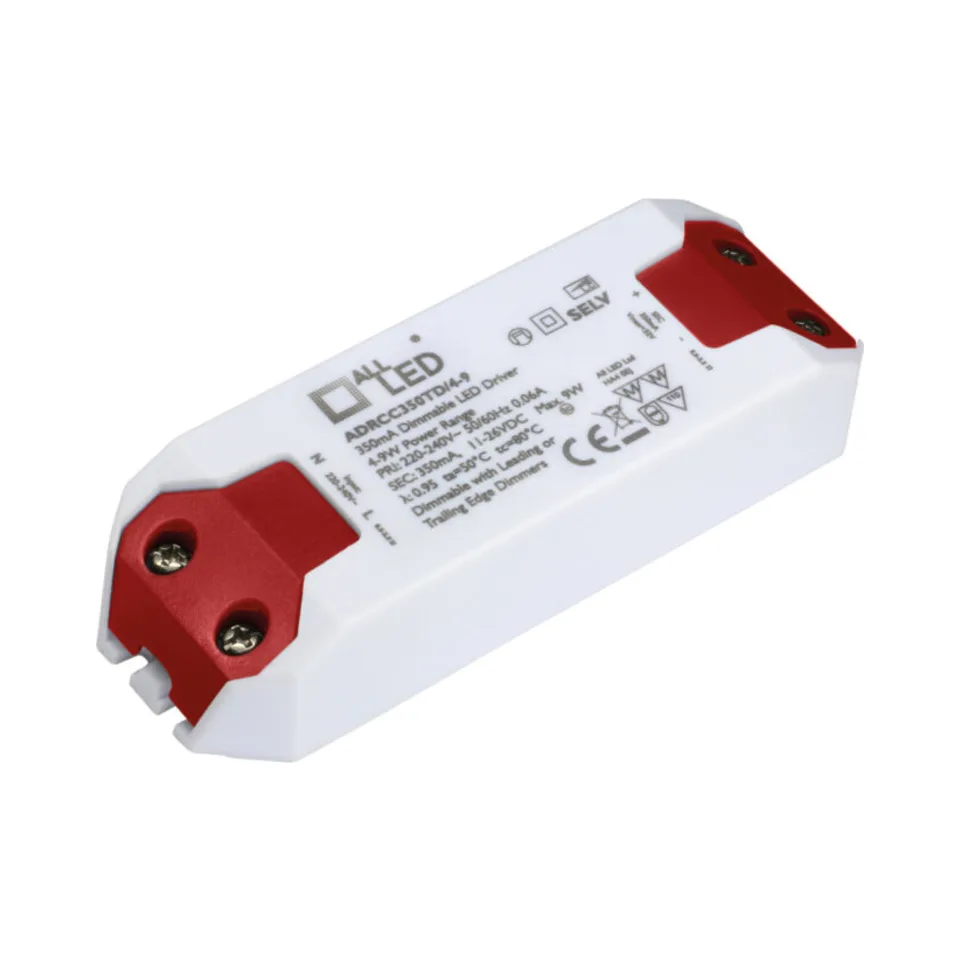

ADRCC350TD 4-9W LED Driver – ALL LED Drive350 Dimmable 350mA
The ADRCC350TD 4-9W LED Driver from ALL LED’s Drive350 range is a compact, dimmable constant current power supply designed for compatible 350mA LED lighting installations. Supporting a 4-9W operating range, this driver provides adjustable brightness through suitable mains dimming controls, making it a practical choice for residential and commercial lighting projects.
Designed for installations where space is limited, the ADRCC350TD/4-9 combines a compact housing with large easy-wire terminals. Its flicker-free dimming feature is intended to provide comfortable lighting adjustment when used with compatible LED fittings and dimming equipment.
Key Features
- 350mA constant current output
- 4-9W operating power range
- Dimmable via compatible mains dimming controls
- Flicker-free dimming performance
- Suitable for 4-9 compatible 1W LED modules
- Large easy-wire terminals for convenient connections
- Loop-in loop-out terminal arrangement
- Compact design for restricted installation spaces
- Maximum stated DC loom length of 200m using 1.5mm² cable
- Suitable for compatible domestic and commercial LED lighting
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCC350TD/4-9
- Product Range: Drive350
- Product Type: Dimmable Constant Current LED Driver
- Output Current: 350mA
- Operating Power Range: 4-9W
- LED Compatibility: 4-9 x 1W LED Modules at 350mA
- Dimming: Mains Dimmable
- Dimming Performance: Flicker-Free
- Connections: Large Easy-Wire Terminals
- Maximum DC Loom Length: 200m with 1.5mm² cable
Mains Dimming for 350mA LED Lighting
The Drive350 driver enables brightness adjustment in compatible constant current LED lighting installations using an appropriate mains dimmer. Its dimming capability makes it suitable for recessed LED downlights, decorative fittings and other applications requiring adjustable illumination.
Flicker-free dimming is a key feature of the ADRCC350TD/4-9, helping provide comfortable changes in light output across compatible lighting arrangements.
Compact Design and Easy-Wire Connections
The ADRCC350TD 4-9W LED Driver is designed to simplify installation where space is restricted. Large connection terminals allow electricians to make secure wiring connections, while the loop-in loop-out arrangement supports convenient mains wiring configurations.
Its compact construction makes the driver suitable for appropriately designed concealed installations where a larger LED power supply may be difficult to accommodate.
Extended DC Cable Length
The manufacturer’s stated maximum DC loom length is 200m when using 1.5mm² cable, providing flexibility when positioning compatible LED fittings away from the driver. Installers should confirm the permissible cable arrangement, voltage requirements and installation conditions before using extended cable runs.
Installation and Compatibility
Before installation, verify that the connected LED fittings require a 350mA constant current supply and operate within the driver’s specified 4-9W range. The number of connected LEDs must also be compatible with the driver’s output voltage limitations.
Confirm compatibility with the selected mains dimmer and follow the manufacturer’s installation instructions for wiring and positioning.
This product is a constant current LED driver and must not be used with LED lighting requiring a fixed 12V or 24V constant voltage supply.
