Tauras STORM M25 Cable Gland with EarthingNut
SWA TSTORM25 IP68 Cable Gland – Pack of 2
The Tauras STORM M25 Cable Gland with EarthingNut from SWA provides a fast and practical solution for terminating SWA armoured, non-armoured, SY and CY braided cables. Designed as part of the SWA STORM range, TSTORM25 combines IP68 ingress protection with a fast-fit, shroud-free construction for professional cable installations.

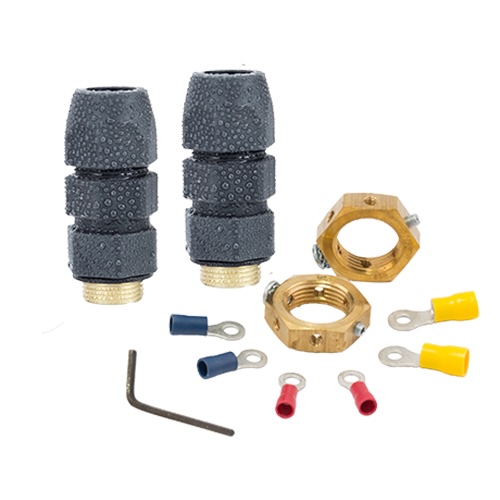

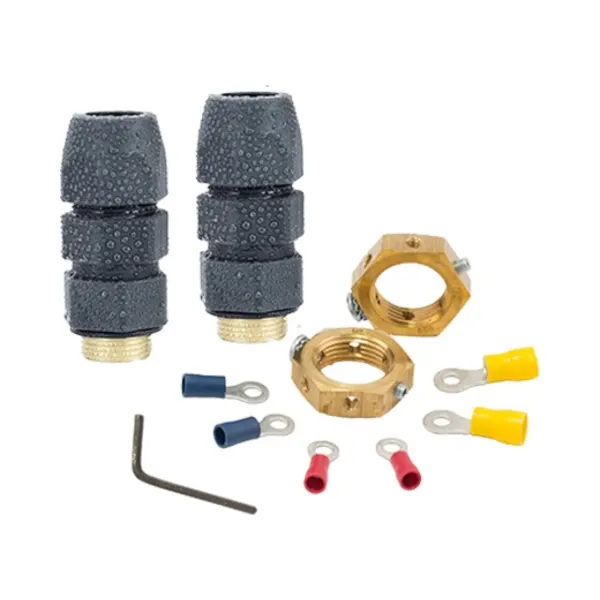

The Tauras version incorporates SWA’s EarthingNut system, providing a more convenient earthing connection method than the traditional separate earth tag and locknut arrangement. This helps simplify installation while maintaining a secure and effective cable termination.
Key Features
- Tauras STORM M25 cable gland with EarthingNut system
- M25 x 1.5 entry thread
- IP68 rated for protection against dust and water ingress
- Suitable for SWA armoured cable
- Suitable for non-armoured cables
- Suitable for SY and CY braided cables
- Fast-fit STORM gland design
- No separate gland shroud required
- UV stabilised
- Zero-halogen construction
- Operating temperature from -20°C to +80°C
- Tested in accordance with BS EN 62444
- Pack quantity: 2
M25 Cable Acceptance
- Entry thread: M25 x 1.5
- Thread length: 17mm
- Maximum inner sheath diameter: 20.5mm
- Outer sheath diameter: 20.5mm to 27.5mm
- Armour wire diameter: 1.20mm to 1.60mm
Durable STORM Gland Construction

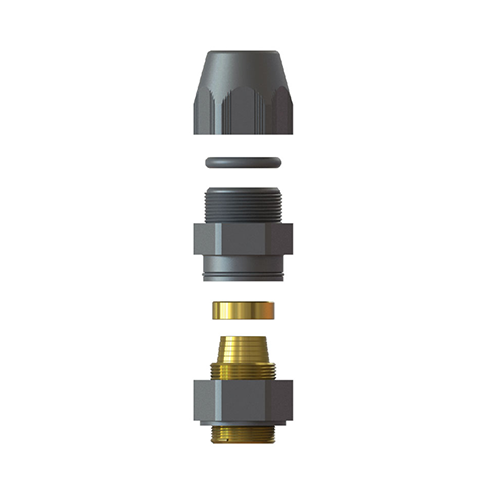

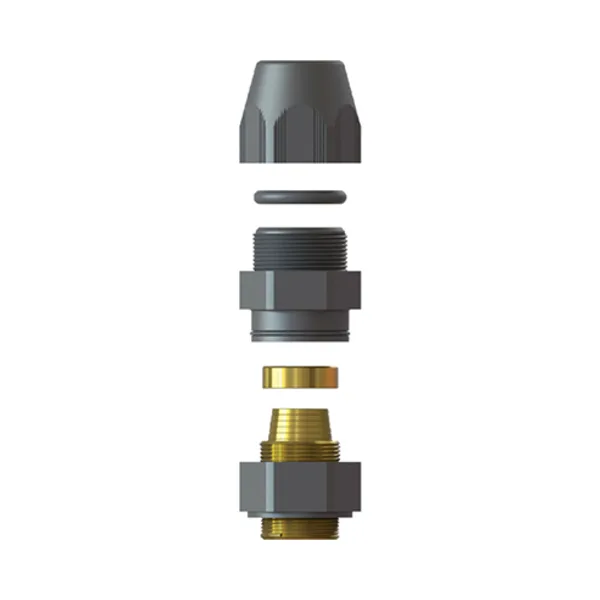

The STORM gland upper and lower bodies are manufactured from PA66 reinforced with 30% glass fibre, with a brass armour ring and NBR gasket and O-rings. This construction provides a robust cable termination while supporting the gland’s IP68 environmental protection.
The STORM range has been tested in accordance with BS EN 62444 for cable glands used in electrical installations, including testing for impact resistance, anchorage, electrical performance, ingress protection, operating temperature and reaction to fire.
Faster Earthing with the Tauras System
The Tauras STORM M25 Cable Gland with EarthingNut is designed for installations where a convenient earthing arrangement is preferred over a traditional separate earth tag and locknut. Combined with the shroud-free STORM design, it helps reduce installation components and provides a neat, professional cable termination.
