STORM M20S Cable Gland for Fast, Secure Cable Termination
SWA STORM20S M20S IP68 Cable Gland – Pack of 2
The STORM M20S Cable Gland from SWA provides a fast and reliable method of terminating SWA armoured, non-armoured, SY and CY braided cables. Designed as part of the SWA STORM range, STORM20S offers improved ingress protection and faster fitting compared with conventional armoured cable glands.

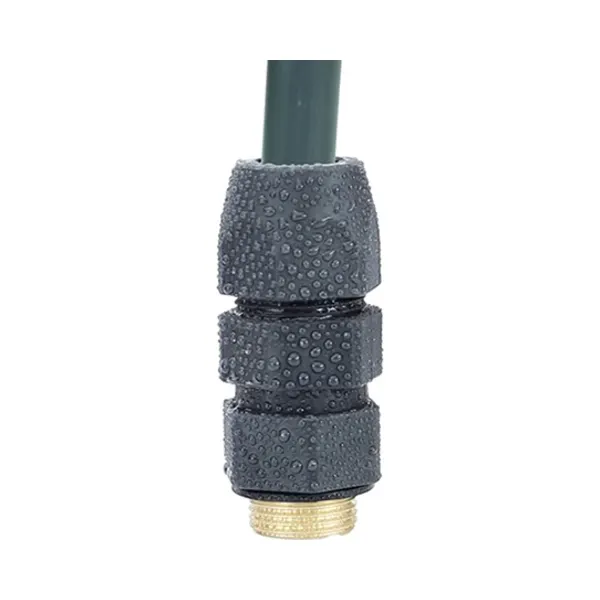

Its shroud-free construction reduces the number of components required around the finished gland, helping create a neat installation while simplifying the termination process. With an IP68 rating, UV-stabilised construction and zero-halogen materials, it is suitable for a wide range of professional electrical applications.
STORM20S Key Features
- STORM M20S cable gland
- M20 x 1.5 entry thread
- IP68 rated
- Suitable for SWA armoured cables
- Suitable for non-armoured cables
- Suitable for SY and CY braided cables
- Fast-fit STORM gland design
- No separate gland shroud required
- UV stabilised
- Zero-halogen construction
- Operating temperature range from -20°C to +80°C
- Tested in accordance with BS EN 62444
- Pack quantity: 2
M20S Cable Acceptance
- Entry thread: M20 x 1.5
- Thread length: 17mm
- Maximum inner sheath diameter: 12mm
- Outer sheath diameter: 10.5mm to 16.0mm
- Armour wire diameter: 0.80mm to 1.25mm
Dimensions and Tightening Data
- Cap spanner width: 27mm
- Upper body spanner width: 27mm
- Lower body spanner width: 27mm
- Overall height: 51mm
- Across corners: 30mm
- Cap tightening torque: 2.5 Nm
- Upper body tightening torque: 8 Nm
IP68 STORM Gland Construction

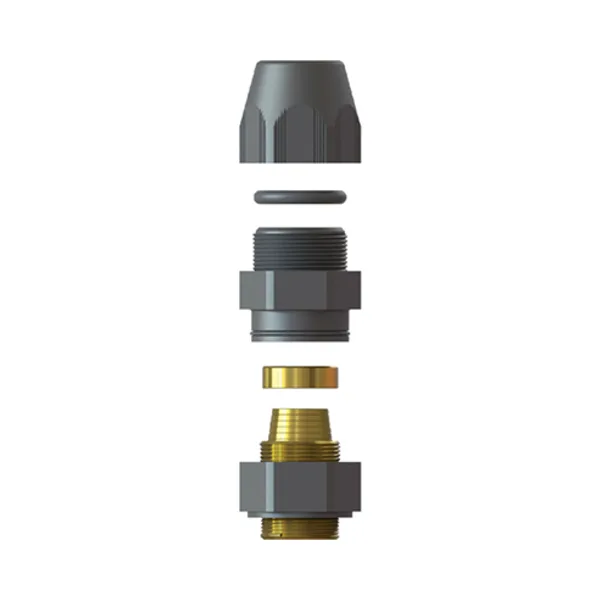

The upper and lower gland bodies are manufactured from PA66 reinforced with 30% glass fibre, with a brass armour ring and NBR gasket and O-rings. This combination provides a robust cable termination while supporting the gland’s IP68 environmental sealing.
The SWA STORM range has been tested in accordance with BS EN 62444 for cable glands used in electrical installations, including testing for impact, anchorage, electrical performance, ingress protection, operating temperature and reaction to fire.
Standard STORM Cable Gland Range
STORM20S is the standard STORM M20S gland option. SWA also offers Tauras STORM gland packs incorporating its EarthingNut system where an alternative earthing connection method is required.
