Syncbox | SB-004 | Standard Recessed Power & Cat6 Media Socket Kit

SKU: SB-004
In Stock

IMPORTANT – Syncbox Socket Standard SB-004 is a complete recessed media kit with the installation box and cover included. It is NOT a direct replacement for a standard socket or media plate. The 78mm-deep box must be recessed into the wall, requiring additional wall preparation. Please check suitability before ordering.

Quantity Discount (%) Price
1 — £49.95
2+ 6% £46.95
3+ 9% £45.45
5+ 17% £41.46

Syncbox Socket Standard SB-004 – Recessed Power, Cat6 and Satellite Connection Kit

IMPORTANT – Syncbox Socket Standard SB-004 is a complete recessed media connection kit with the installation box and cover included. It is NOT a direct replacement for a conventional socket or media plate. The 78mm-deep box must be recessed into the wall, requiring additional wall preparation. Please check suitability before ordering.

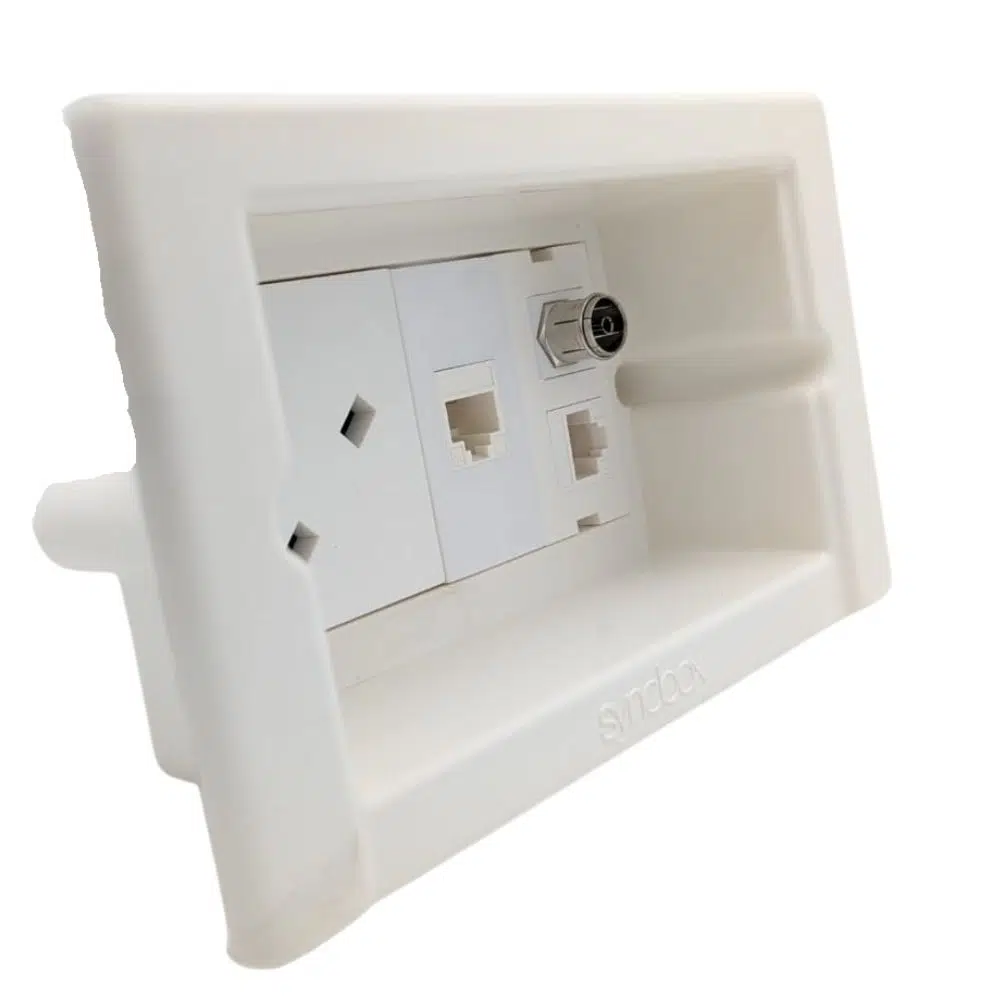

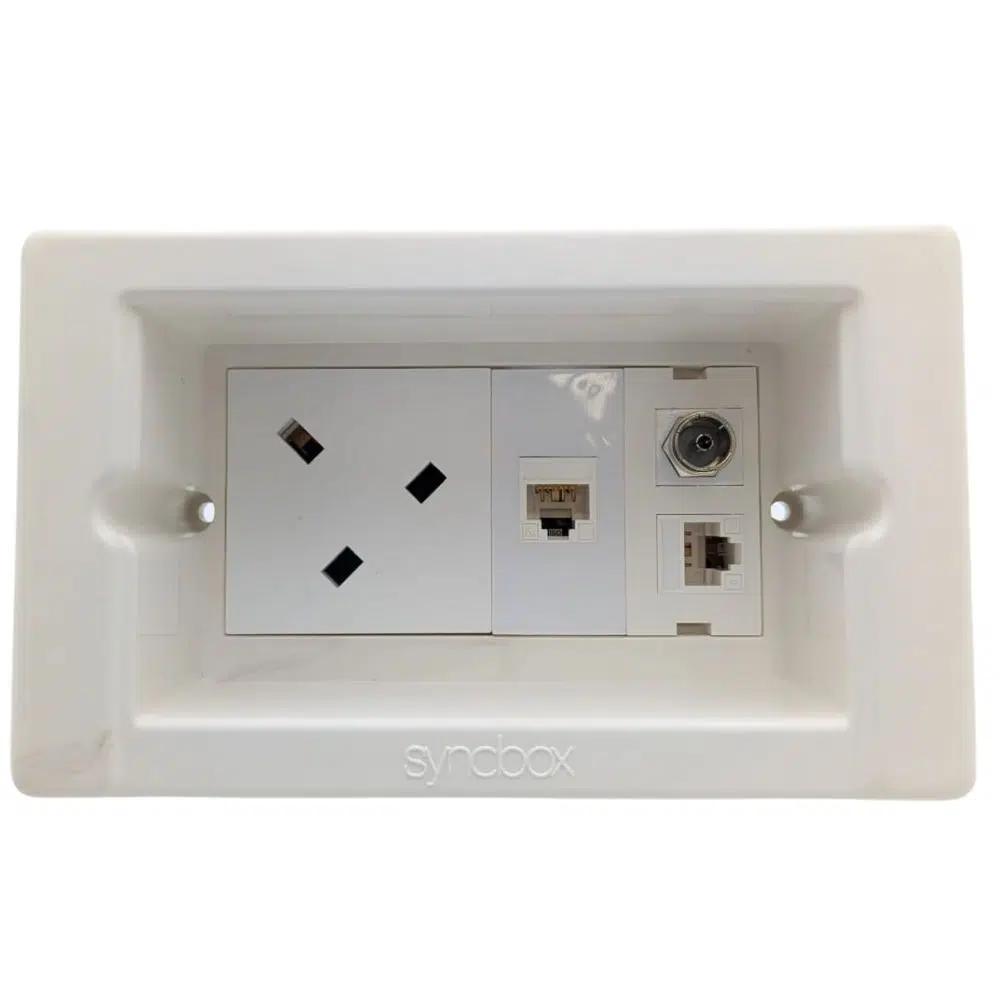

Syncbox Socket Standard SB-004 is a recessed power and media connection kit designed to combine mains power, wired data and satellite connectivity in one discreet wall-mounted system. It includes an angled 13A UK socket, two Cat6 data sockets and one F-type satellite connection, making it particularly suitable for planned TV and home entertainment installations.

By positioning suitable plugs and media connections inside a purpose-designed wall recess, the SB-004 helps reduce protruding cables and visible wall plates behind wall-mounted televisions and other equipment.

Syncbox Socket Standard SB-004 – Key Features

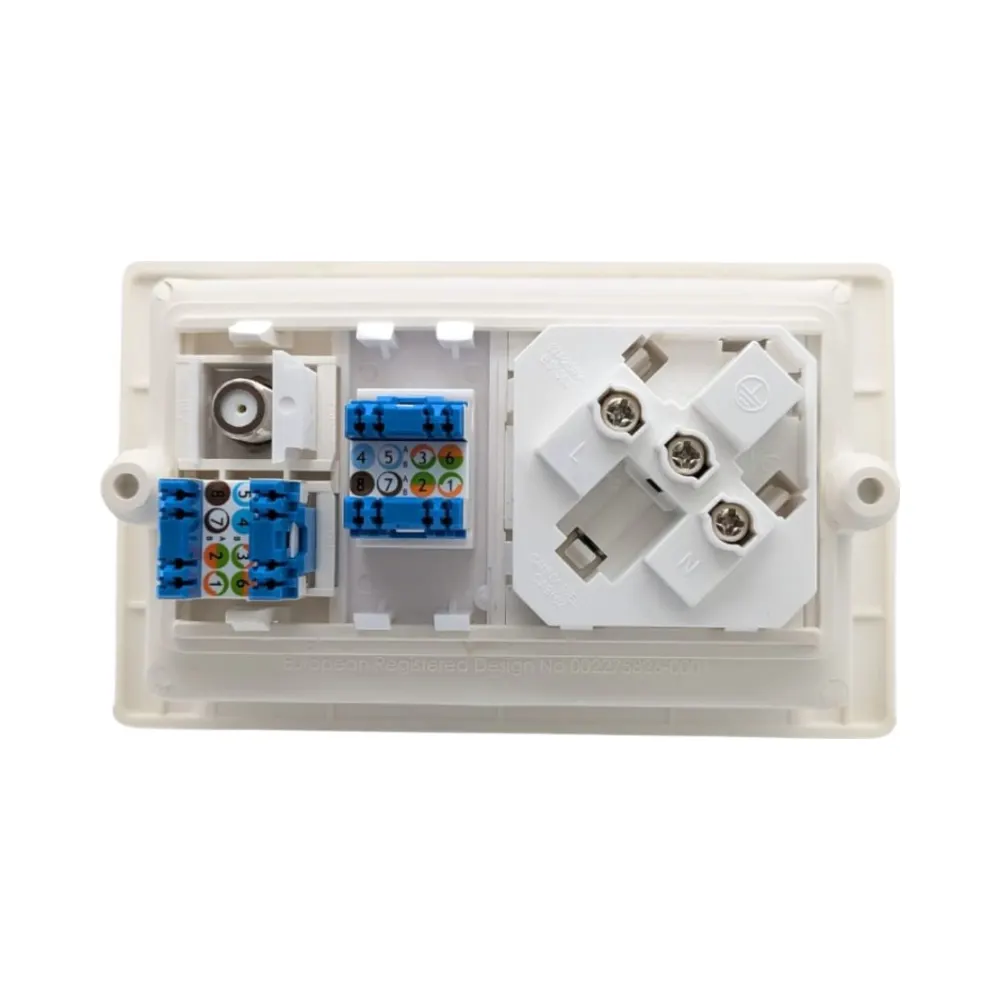

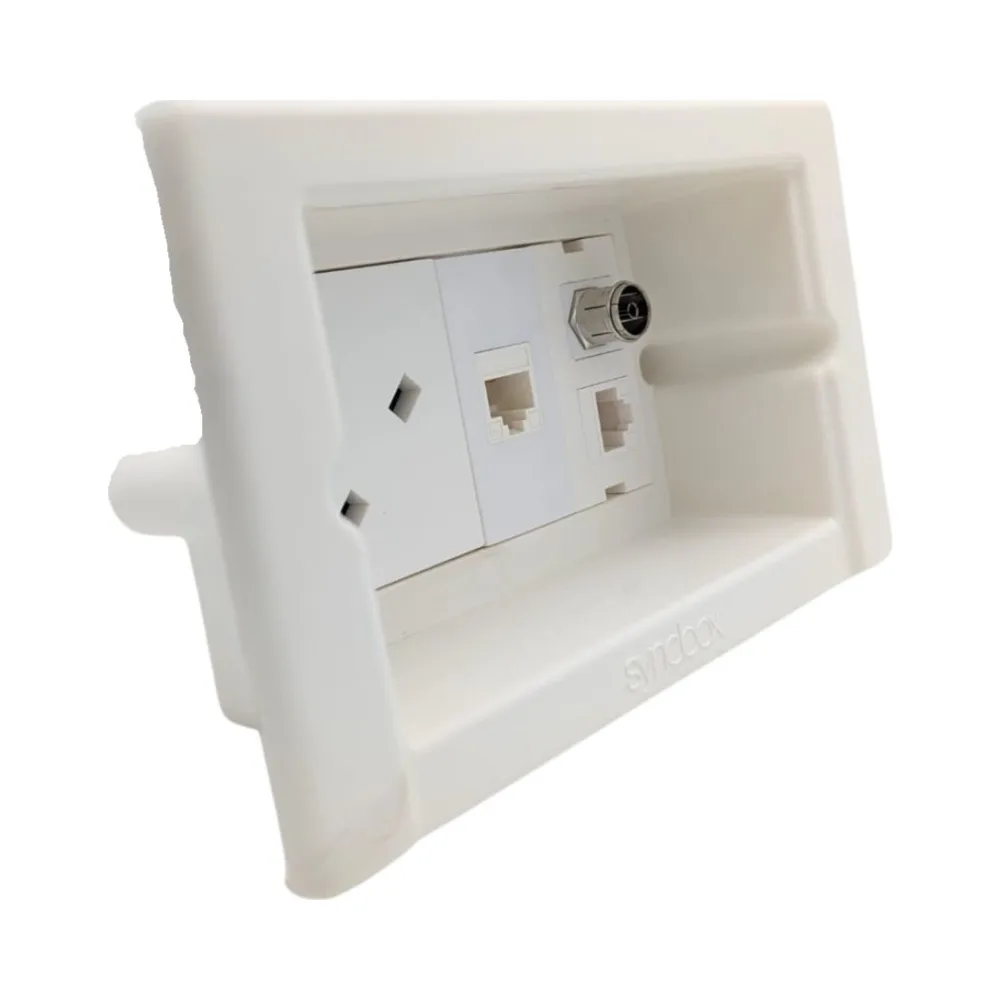

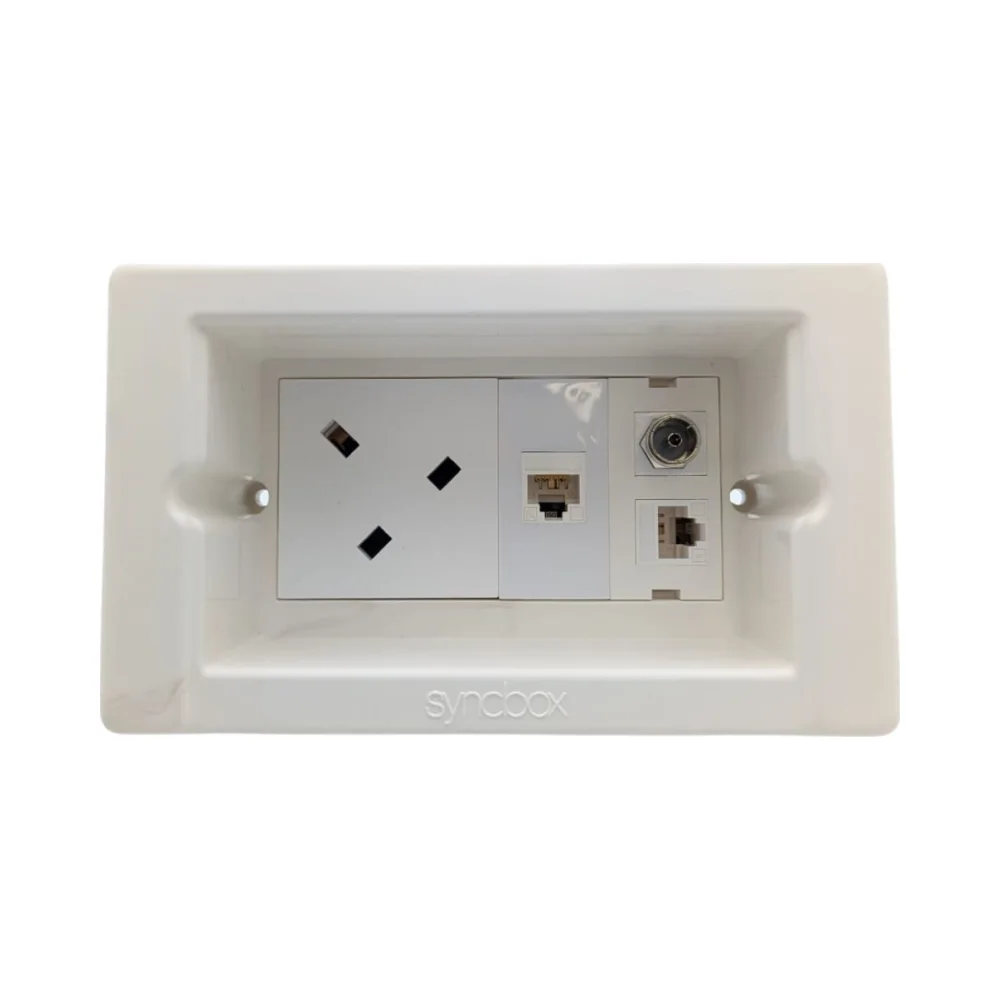

  • Complete recessed power and media connection kit
  • One angled 13A UK power socket
  • Two Cat6 data sockets for wired Ethernet connections
  • One F-type satellite connection
  • Three voltage selector dividers, as specified for SB-004
  • Hybrid installation box and white cover plate included
  • Fixing pack and instruction manual included
  • 78mm-deep installation enclosure
  • Helps conceal suitable plugs and media cables
  • Suitable for compatible solid-wall and plasterboard installations
  • Designed for new installations and planned refurbishments

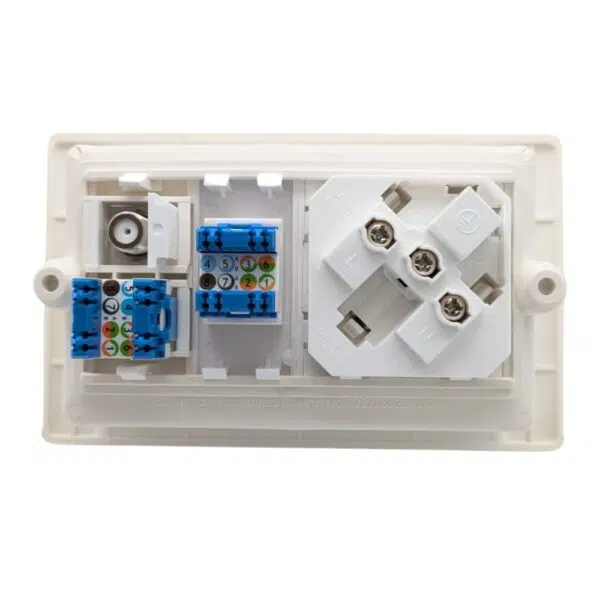

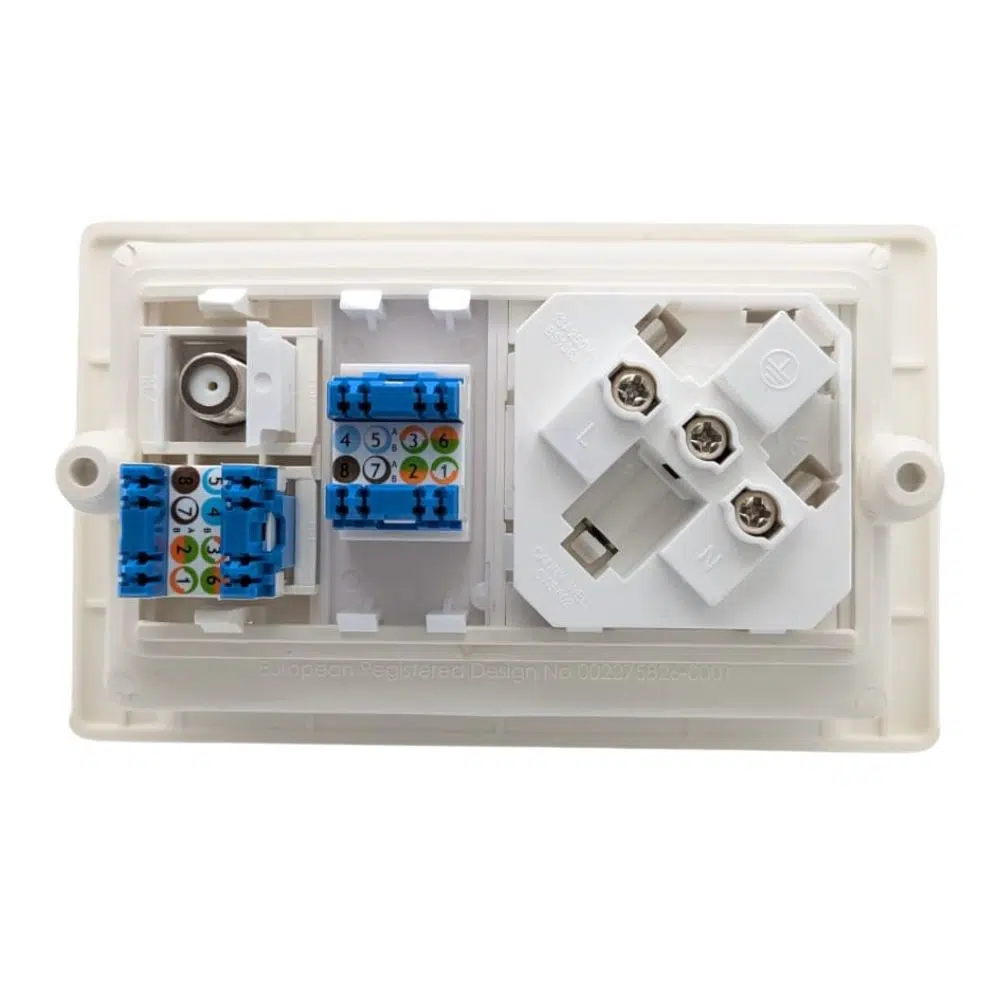

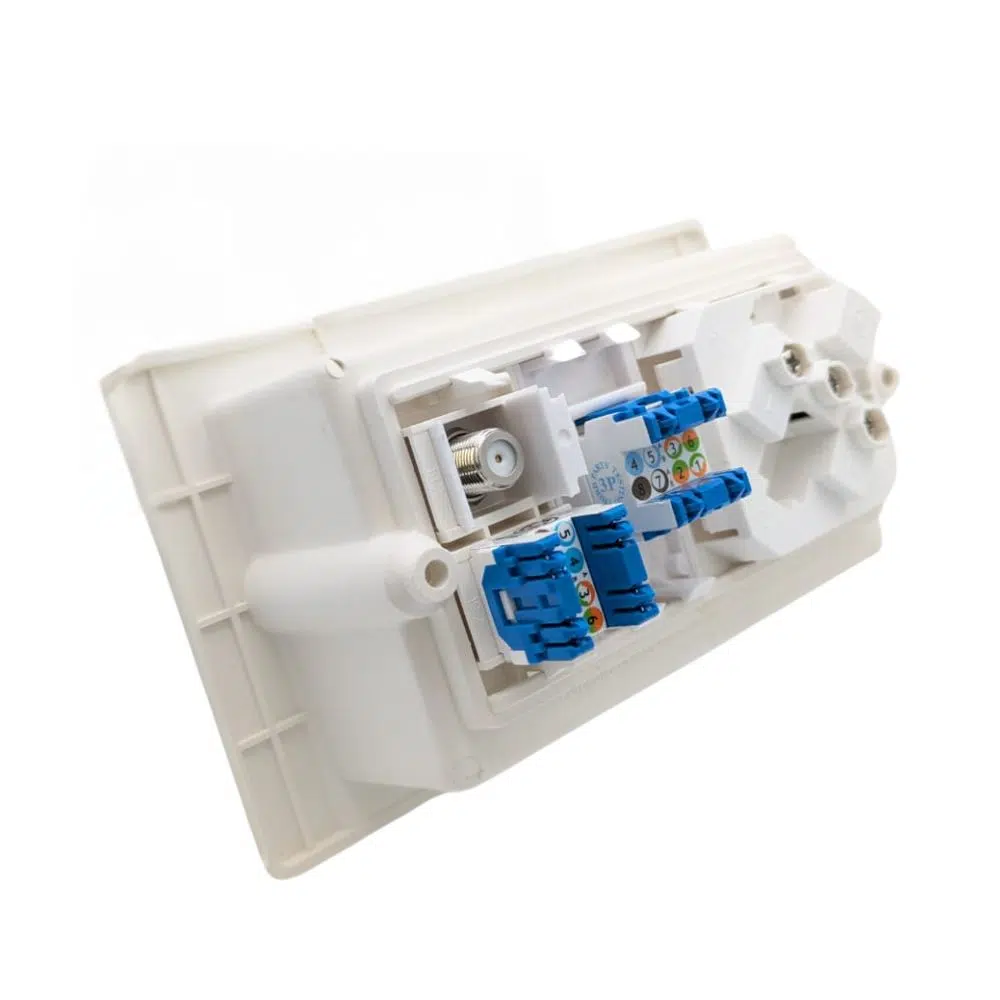

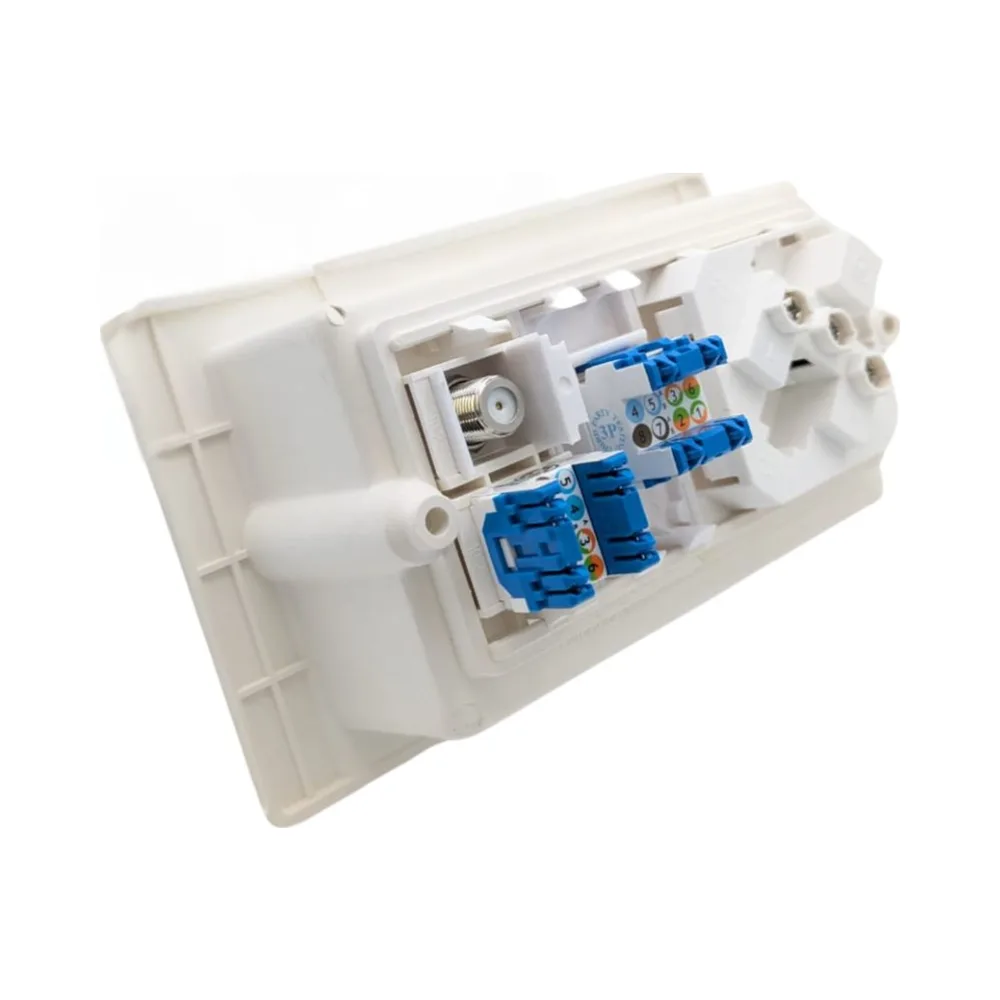

What’s Included in the Syncbox SB-004 Kit?

Syncbox Standard SB-004 is supplied as a complete recessed connection system rather than just a replacement socket faceplate.

  • 1 × Syncbox hybrid installation box
  • 1 × white cover plate
  • 1 × fixing pack
  • 1 × instruction manual
  • 1 × angled 13A UK power socket
  • 2 × Cat6 data sockets
  • 1 × F-type satellite socket

The product specification also lists three voltage selector dividers. These are used within the modular connection arrangement; installation and separation requirements must follow the manufacturer’s instructions.

Power, Data and Satellite Connections in One Location

The SB-004 brings together three commonly required connection types for a television or media installation.

  • 13A power socket: Provides a local mains outlet for compatible equipment.
  • Two Cat6 sockets: Provide separate wired Ethernet connection points for suitable devices such as smart TVs, streaming equipment and games consoles.
  • F-type satellite socket: Provides a coaxial connection point for compatible satellite distribution systems.

The two Cat6 connections can support devices requiring independent network outlets, provided each connection is correctly terminated and connected to suitable network infrastructure.

The F-type socket provides a physical connection point and does not itself supply a satellite signal or replace the necessary receiving equipment.

Angled 13A Socket for Concealed Power Connections

The angled 13A UK power socket is designed to make effective use of the space inside the recessed enclosure, helping accommodate suitable plugs behind wall-mounted televisions and other equipment.

Plug dimensions and cable exit arrangements vary. Larger moulded plugs or certain cable configurations may not fit within the available recessed space. The installer should check compatibility before installation.

Designed for Wall-Mounted TVs and Media Installations

Conventional sockets and media plates can create additional depth behind a wall-mounted television, particularly when several plugs and data cables are connected.

Syncbox SB-004 provides a recessed connection arrangement that helps position suitable connections inside the wall, reducing visible wiring and allowing a neater finished installation.

It is particularly useful for new media walls, planned home cinema installations and refurbishments where the required wall recess can be prepared in advance.

Why Syncbox Is Not a Direct Replacement for a Standard Socket

Conventional power sockets and media plates are normally installed on relatively shallow mounting boxes, with the faceplate positioned on the finished wall surface.

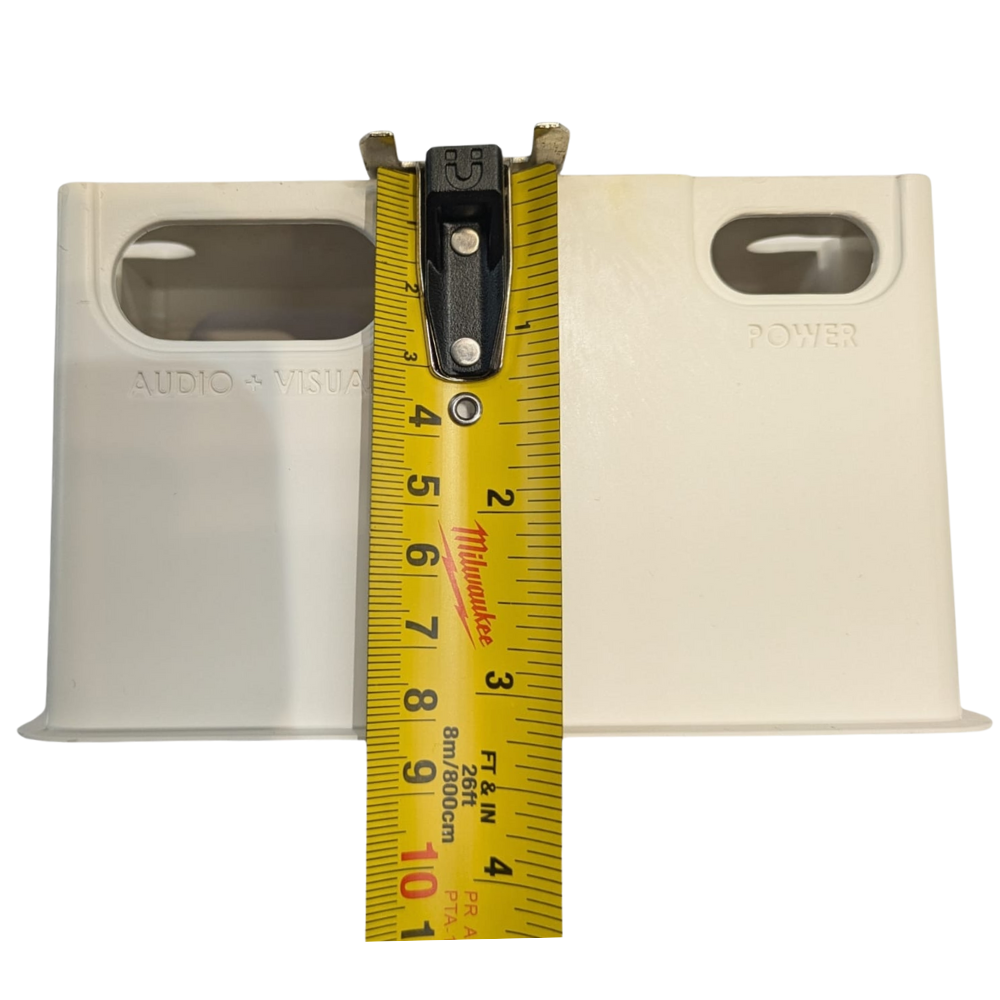

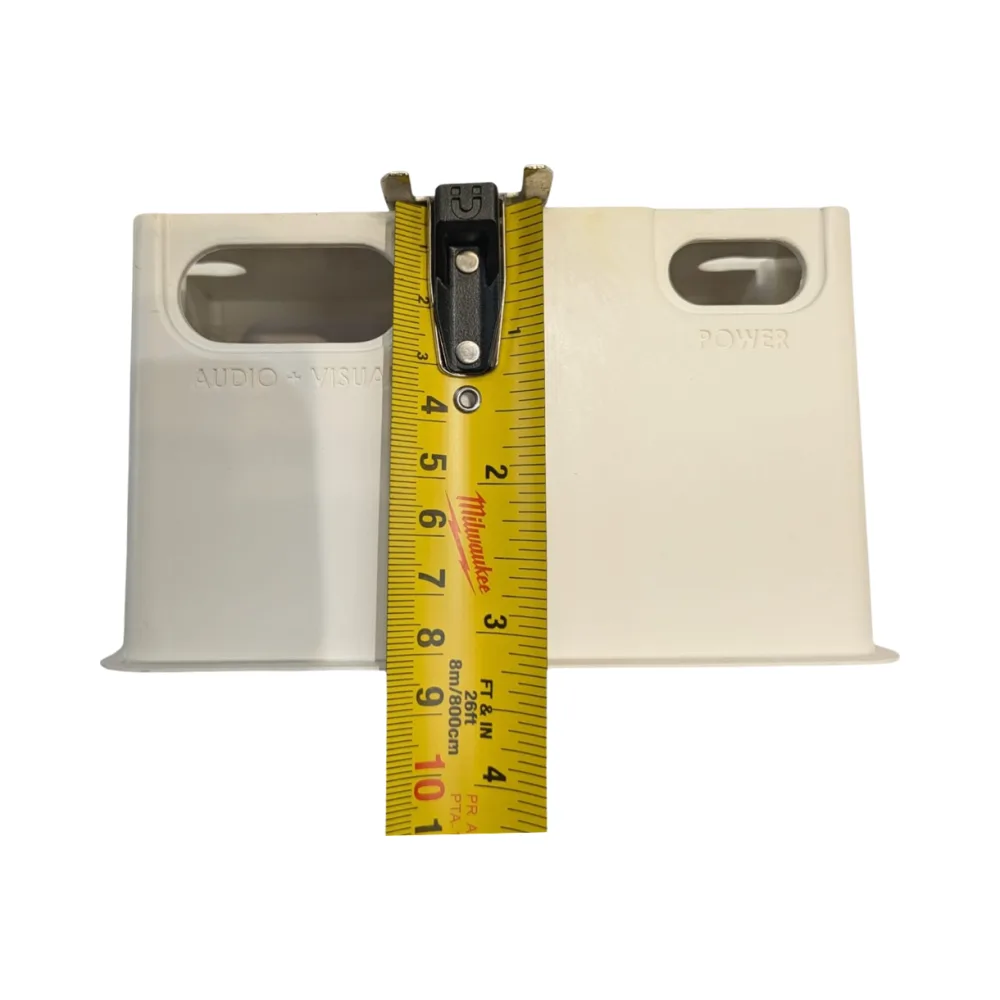

Syncbox SB-004 uses a different mounting arrangement. The included hybrid installation box measures 137mm wide × 77mm high × 78mm deep, allowing suitable power and media connections to be housed within a recessed enclosure.

Replacing an existing socket or media plate will normally require modifications to the wall opening and mounting position. This may involve additional cutting, chasing, creating a deeper recess or adjusting cable routes.

Simply removing an existing socket and fitting Syncbox into the same mounting position will NOT achieve the intended recessed finish.

BEFORE YOU ORDER – REPLACING AN EXISTING SOCKET OR MEDIA PLATE? Syncbox Socket Standard SB-004 includes its own 78mm-deep installation box. Your existing standard back box cannot simply be reused to achieve a recessed finish. The wall opening must be adapted to accommodate the deeper enclosure. Additional wall preparation and installation work are required. Please check suitability with your electrician and review the installation drawings in the Downloads section.

Installing Syncbox in Solid Walls and Plasterboard

The Syncbox hybrid installation box is designed for suitable solid-wall and plasterboard applications. The method of securing the enclosure depends on the wall construction.

  • Solid walls: The enclosure is secured within a suitably prepared wall recess using side fixings. The mounting flange may be removed where required.
  • Plasterboard walls: The mounting flange must remain in position. Ratchet-style fixing straps are used to secure the installation box.
  • Existing installations: The original wall opening and mounting arrangement will normally require modification.
  • Available depth: Wall construction, cavity space, cable routes and nearby services must be checked before installation.
  • Power and data separation: The installer must follow the manufacturer’s instructions and applicable electrical requirements when routing mains and extra-low-voltage connections.

Detailed installation instructions are available in the manufacturer’s Solid Wall Installation Guide and Drywall Installation Guide in the Downloads section.

Syncbox SB-004 Technical Specifications

  • Brand: Syncbox
  • Model: Standard SB-004
  • Product type: Recessed power and media connection kit
  • Power connection: 1 × angled 13A UK socket
  • Data connections: 2 × Cat6 sockets
  • Satellite connection: 1 × F-type socket
  • Additional configuration: 3 × voltage selector dividers (listed specification)
  • Installation box dimensions: 137mm (W) × 77mm (H) × 78mm (D)
  • Internal recess depth: 45mm
  • Standard cover dimensions: 155mm (W) × 95mm (H) × 10mm (D)
  • Cover colour: White
  • Installation box material: Flame-retardant ABS
  • Power cable entries: 25 × 12mm oval
  • Media cable entries: 41 × 18mm oval
  • Additional cable entries: 20mm
  • Installation type: Recessed wall mounting requiring wall preparation
  • Wall compatibility: Suitable solid walls and plasterboard

Manufacturer Installation Guides and Technical Downloads

Before purchasing or installing Syncbox Socket Standard SB-004, please review the manufacturer’s documentation available in the Downloads section of this product page.

The following five documents provide technical details and fitting guidance:

  • Brochure: Syncbox system information, dimensions, modular configurations and typical applications.
  • Tips Essentials Guide: Installation recommendations, module positioning, cable management and preparation.
  • Drywall Installation Guide: Illustrated instructions for fitting the hybrid box into suitable plasterboard walls.
  • Solid Wall Installation Guide: Instructions for preparing and securing the enclosure within solid walls.
  • Installation Drawing: Detailed dimensions and assembly information for checking installation suitability.

Please note: The 78mm measurement is the depth of the manufacturer’s hybrid installation box. The required wall preparation depends on the wall construction, available space and fitting method. It should not be treated as a universal wall-cutting depth.

We recommend reviewing the relevant installation guide and technical drawing with your electrician before ordering, particularly when replacing an existing power or media socket.

Syncbox Socket Standard SB-004 – Frequently Asked Questions

Can I replace my existing double socket or media plate with Syncbox SB-004 and achieve a recessed finish?

NO – Syncbox SB-004 is NOT a direct replacement for a conventional socket or media plate. The included 78mm-deep installation box must be recessed into the wall. Simply replacing an existing socket or faceplate will not achieve the recessed finish. Additional wall preparation and changes to the mounting arrangement are normally required.

Does Syncbox SB-004 include the installation box and cover?

Yes. Syncbox Standard SB-004 is a complete recessed connection kit supplied with the hybrid installation box, white cover plate, fixing pack, instruction manual, one angled 13A socket, two Cat6 sockets and one F-type satellite connection.

What connections are included with Syncbox Standard SB-004?

SB-004 includes one angled 13A UK power socket, two Cat6 data sockets and one F-type satellite socket. This provides power, wired data and a compatible satellite connection within one recessed enclosure.

Does Syncbox SB-004 include two separate Cat6 connections?

Yes. The kit includes two Cat6 data sockets, allowing two independent wired network connection points when correctly connected to suitable network infrastructure.

Can I use my existing socket back box?

Generally, no. Syncbox uses its own 78mm-deep hybrid installation box. A conventional back box cannot simply be reused in its existing position to achieve the recessed finish.

How deep does the wall need to be for Syncbox SB-004?

The supplied hybrid installation box measures 78mm deep. The actual wall preparation depends on construction, available space and cable arrangements. Refer to the manufacturer’s Installation Drawing and installation guides in the Downloads section before purchasing.

Can Syncbox SB-004 be installed in solid brick or block walls?

Yes, where sufficient depth and a suitable recess can be achieved. The manufacturer provides a dedicated Solid Wall Installation Guide, available in the Downloads section.

Can Syncbox SB-004 be installed in plasterboard?

Yes. The hybrid installation box is designed for suitable plasterboard installations using ratchet-style fixing straps. The mounting flange must remain in place. Refer to the Drywall Installation Guide in the Downloads section.

Can I connect a smart TV and streaming device to the Cat6 sockets?

Yes. The two Cat6 sockets provide separate wired Ethernet connection points for compatible devices, provided suitable network cabling and infrastructure are installed.

Does the F-type socket provide a Freeview aerial connection?

The supplied F-type socket is intended for compatible coaxial satellite connections. Standard Freeview aerial installations may use different connectors, so direct compatibility should not be assumed. Check the intended signal distribution system and connector requirements with your installer.

Where can I find the Syncbox installation instructions?

The manufacturer’s Brochure, Tips Essentials Guide, Drywall Installation Guide, Solid Wall Installation Guide and Installation Drawing are available in the Downloads section of this product page. We recommend reviewing the appropriate documents before ordering or installing the product.
