Syncbox Socket SB-IRS – Recessed Quadplex Media Connection Kit
IMPORTANT – Syncbox Socket SB-IRS is a complete recessed media connection kit with the installation box and cover included. It is NOT a direct replacement for a conventional socket or media plate. The 78mm-deep box must be recessed into the wall, requiring additional wall preparation. Please check suitability before ordering.
Syncbox Socket SB-IRS is a recessed media connection kit designed for multi-switch and home entertainment installations where several services need to terminate neatly at one wall position. Combining a Quadplex plate, BT telephone module and brush cable-entry module, it provides an organised connection point while helping conceal associated wiring.
The complete kit includes a purpose-designed hybrid installation box, white cover plate, fixing pack, instruction manual and media modules. Its recessed construction makes it suitable for planned installations where a conventional media wall plate would leave connections and cables more exposed.
Syncbox Socket SB-IRS – Key Features
- Complete recessed media connection kit
- One Quadplex media connection plate
- One BT telephone connection module
- One brush module for cable pass-through
- Designed for compatible multi-switch media installations
- Helps organise coaxial, telephone and other media cabling
- Hybrid installation box included
- White cover plate, fixing pack and instruction manual included
- 78mm-deep enclosure for recessed wall mounting
- Suitable for compatible solid-wall and plasterboard installations
- Designed for new installations and planned refurbishment work
What’s Included in the Syncbox SB-IRS Kit?
Syncbox SB-IRS is supplied as a complete recessed media connection assembly rather than a replacement faceplate alone.
- 1 × Syncbox hybrid installation box
- 1 × white cover plate
- 1 × fixing pack
- 1 × instruction manual
- 1 × Quadplex media plate
- 1 × BT telephone module
- 1 × brush cable-entry module
The installation box is designed for suitable solid-wall and plasterboard applications using the appropriate manufacturer’s fixing method.

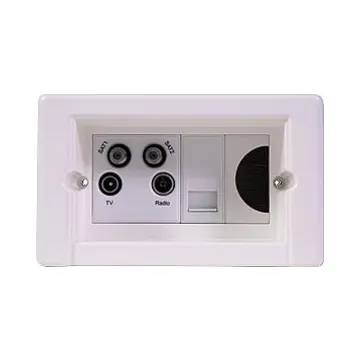

Quadplex Media Plate for Multi-Switch Installations
The Quadplex plate provides a grouped media connection point for compatible distribution systems. This makes Syncbox SB-IRS particularly useful where multiple media cables are brought together from a central distribution or multi-switch installation.
The recessed enclosure helps organise the connection area and reduces the amount of visible cabling around televisions and other media equipment.
Important: The exact connections and signal compatibility of the Quadplex plate should be checked against the intended distribution system before installation. The Quadplex plate is a connection interface and does not itself generate or distribute television signals.
BT Telephone Connection Module
The included BT telephone module provides a dedicated connection point for compatible telephone wiring within the recessed media assembly.
Combining the telephone module with the Quadplex and brush modules allows different services to terminate neatly at one location instead of requiring several separate wall plates.
Compatibility with existing telephone wiring, equipment and service arrangements should be confirmed before installation.
Brush Module for Neat Cable Pass-Through
The integrated brush module provides a practical opening for routing suitable media cables through the wall plate without requiring an additional exposed cable-entry accessory.
This is useful for cable arrangements where a direct pass-through is preferable to a fixed connector module, subject to cable size, routing and installation requirements.
Suitable cable management should be provided, and the brush opening must not be treated as a substitute for any required cable protection or separation.
Designed for Home Entertainment and Media Distribution
Syncbox SB-IRS is particularly suited to planned installations where several media services need to be brought together at a single connection point.
Typical applications include:
- Home entertainment and television connection points
- Compatible multi-switch distribution installations
- Media walls and concealed AV connection locations
- Telephone and coaxial media connections
- Refurbishments where a recessed media point is being planned
The modular arrangement helps reduce the need for separate conventional media plates while providing access to the installed connections.
Why Syncbox Is Not a Direct Replacement for a Standard Media Plate
Conventional media plates and telephone outlets are commonly mounted onto relatively shallow back boxes, with their faceplates sitting on the finished wall surface.

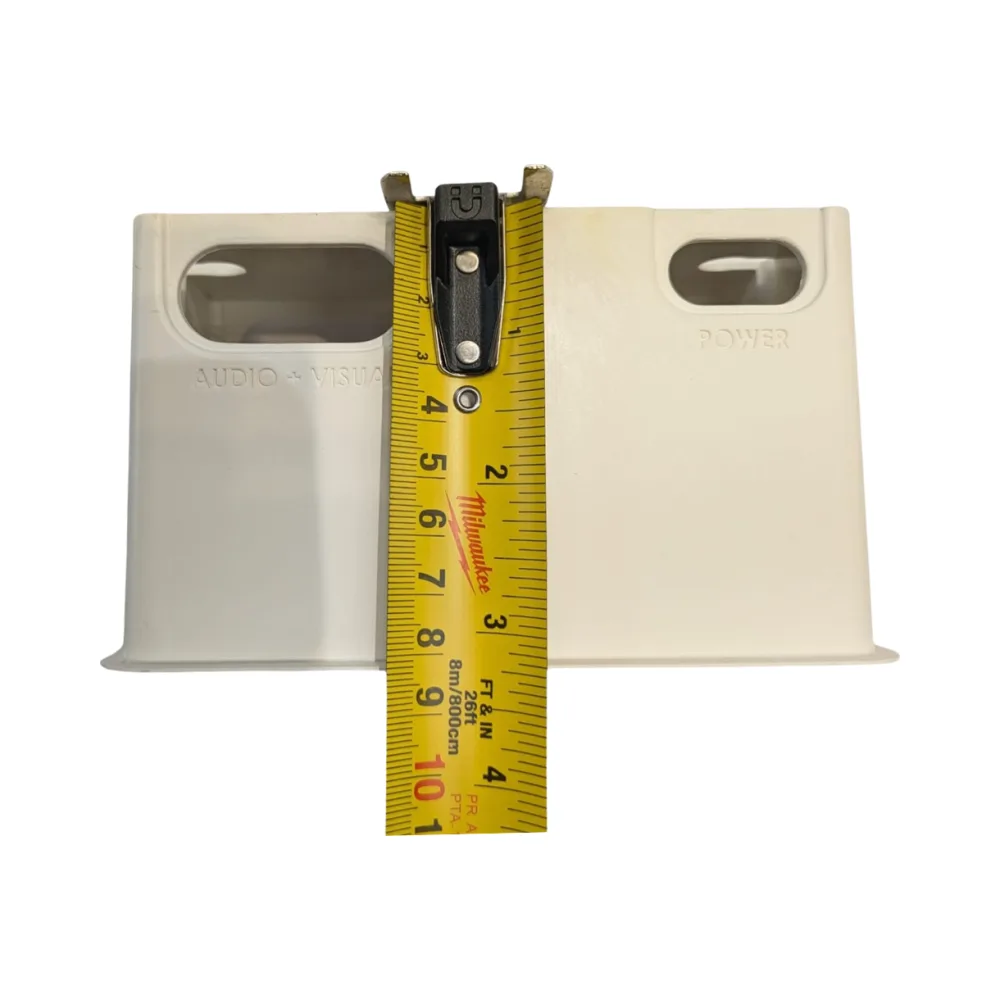

Syncbox SB-IRS uses a purpose-designed recessed installation system. The supplied hybrid installation box measures 137mm wide × 77mm high × 78mm deep, allowing suitable connections and cables to be positioned within the wall recess.
Replacing an existing media plate will normally require alterations to the wall opening and mounting arrangement. Depending on the wall construction, this may involve additional cutting, chasing, preparing a deeper recess or modifying cable routes.
Simply removing an existing media plate and fitting Syncbox in the same mounting position will NOT achieve the intended recessed finish.
BEFORE YOU ORDER – REPLACING AN EXISTING MEDIA PLATE? Syncbox Socket SB-IRS includes its own 78mm-deep installation box. A standard existing back box cannot simply be reused to achieve the recessed finish. The wall opening must be adapted to accommodate the deeper enclosure. Additional installation work is required. Please check with your installer and review the technical drawings in the Downloads section.
Installing Syncbox in Solid Walls and Plasterboard
The Syncbox hybrid installation box is designed for suitable solid-wall and plasterboard applications. The fixing method depends on wall construction and available installation space.
- Solid walls: The enclosure is secured within a suitably prepared wall recess using side fixings. The mounting flange may be removed where required.
- Plasterboard walls: The mounting flange must remain in place. Ratchet-style fixing straps are used to secure the installation box.
- Existing installations: The original wall opening and mounting arrangement will normally require alteration.
- Available depth: Wall construction, cavity space and nearby services must be checked before preparation.
- Cable routing: Coaxial, telephone and other media cables should be routed and protected appropriately for the installation.
For detailed fitting instructions, please consult the manufacturer’s Solid Wall Installation Guide or Drywall Installation Guide available in the Downloads section.
White Cover Plate for Concealed Media Connections
The SB-IRS includes a white cover plate that helps conceal the recessed connection assembly and associated cabling.
The discreet appearance makes it suitable for installations behind televisions, entertainment equipment and other areas where visible wall connections would be undesirable.
Connector dimensions, cable bending space and future access requirements should be considered before the installation position is finalised.
Syncbox SB-IRS Technical Specifications
- Brand: Syncbox
- Model: SB-IRS
- Product type: Recessed Quadplex media connection kit
- Media plate: 1 × Quadplex plate
- Telephone connection: 1 × BT module
- Cable pass-through: 1 × brush module
- Installation box dimensions: 137mm (W) × 77mm (H) × 78mm (D)
- Internal recess depth: 45mm
- Standard cover dimensions: 155mm (W) × 95mm (H) × 10mm (D)
- Cover colour: White
- Installation box material: Flame-retardant ABS
- Media cable entries: 41 × 18mm oval
- Additional cable entries: 20mm
- Installation: Recessed mounting requiring wall preparation
- Wall compatibility: Suitable solid walls and plasterboard
- Typical applications: Media distribution, multi-switch systems and concealed AV connections
Manufacturer Installation Guides and Technical Downloads
Before purchasing or installing Syncbox Socket SB-IRS, please review the manufacturer’s documentation available in the Downloads section of this product page.
The following five documents provide essential technical details and fitting guidance:
- Brochure: Syncbox system information, dimensions, product configurations and typical applications.
- Tips Essentials Guide: Installation recommendations, module positioning, cable management and preparation.
- Drywall Installation Guide: Illustrated instructions for fitting the hybrid installation box into suitable plasterboard walls.
- Solid Wall Installation Guide: Instructions for preparing and securing the enclosure within solid walls.
- Installation Drawing: Detailed dimensions and assembly information for checking installation suitability.
Please note: The 78mm measurement is the depth of the manufacturer’s installation box. Actual wall preparation depends on the construction, available space and installation method. It should not be treated as a universal wall-cutting measurement.
We recommend reviewing the relevant installation guide and drawing with your installer before ordering, particularly when replacing an existing media connection plate.
Syncbox Socket SB-IRS – Frequently Asked Questions
Can I replace my existing media wall plate with Syncbox SB-IRS and achieve a recessed finish?
NO – Syncbox SB-IRS is NOT a direct replacement for a conventional media wall plate. The included 78mm-deep installation box must be recessed into the wall. Simply replacing an existing faceplate will not create the intended recessed finish. Additional wall preparation and changes to the mounting arrangement are normally required.
Does Syncbox SB-IRS include the installation box and cover?
Yes. Syncbox SB-IRS is supplied as a complete media connection kit containing the hybrid installation box, white cover plate, fixing pack, instruction manual, Quadplex plate, BT telephone module and brush module.
What connections are included with Syncbox SB-IRS?
The kit includes one Quadplex media plate, one BT telephone module and one brush cable pass-through module. The exact compatibility of the Quadplex connections must be checked against the intended media distribution system.
What is the Quadplex plate used for?
The Quadplex plate provides a grouped connection interface for compatible media distribution or multi-switch systems. It is intended to help organise multiple media connections at one recessed location. The specific signal arrangement should be checked with the installer.
What is the brush module for?
The brush module provides an opening for passing suitable media cables through the wall plate while helping keep the installation tidy. It is useful where cables need to pass directly through rather than terminate in a separate connector module.
Does Syncbox SB-IRS include a 13A power socket?
No 13A socket is listed among the SB-IRS kit contents. This configuration is supplied with Quadplex, BT telephone and brush modules. If a mains power connection is also required, a suitable Syncbox power configuration should be selected separately.
Can I use my existing socket or media back box?
Generally, no. Syncbox uses its own purpose-designed 78mm-deep installation box. A conventional back box cannot simply be reused in its existing position to achieve the intended recessed finish.
How deep does the wall need to be for Syncbox SB-IRS?
The included hybrid installation box measures 78mm deep. Actual wall preparation depends on construction, available space and cable routing. Please review the manufacturer’s Installation Drawing and the relevant wall installation guide in the Downloads section.
Can Syncbox SB-IRS be installed in solid brick or block walls?
Yes, provided sufficient depth and a suitable recess can be achieved. The manufacturer provides a dedicated Solid Wall Installation Guide, available in the Downloads section.
Can Syncbox SB-IRS be installed in plasterboard?
Yes. The hybrid installation box is designed for suitable plasterboard installations using ratchet-style fixing straps. The mounting flange must remain in place. Refer to the Drywall Installation Guide in the Downloads section.
Is Syncbox SB-IRS suitable for multi-switch media systems?
Yes. The SB-IRS is intended for compatible multi-switch and media distribution installations where several media services need to terminate at one recessed connection point. The exact signal connections and equipment compatibility must be checked before installation.
Where can I find the Syncbox installation instructions?
The manufacturer’s Brochure, Tips Essentials Guide, Drywall Installation Guide, Solid Wall Installation Guide and Installation Drawing are available in the Downloads section of this product page. We recommend reviewing the relevant documents before ordering.
