Syncbox Socket SB-5.1 – Recessed Surround Sound Speaker Connection Kit
IMPORTANT – Syncbox Socket SB-5.1 is a complete recessed speaker connection kit with the installation box and cover included. It is NOT a direct replacement for a conventional socket or speaker wall plate. The 78mm-deep installation box must be recessed into the wall, requiring additional wall preparation. Please check suitability before ordering.

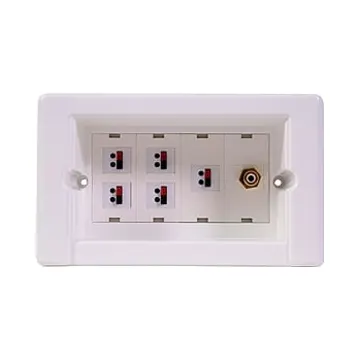

Syncbox Socket SB-5.1 is a recessed surround sound connection kit designed for home cinema systems and integrated speaker installations. Featuring five keystone speaker terminals and a dedicated phono connection for a subwoofer, it provides an organised connection point for speaker cabling within a discreet wall-mounted enclosure.
The complete kit includes the Syncbox installation box, white cover plate, fixing pack, instruction manual and audio connection modules. Its recessed design helps conceal speaker connections and associated cables, providing a neat finished appearance around home entertainment equipment.
Syncbox Socket SB-5.1 – Key Features
- Complete recessed surround sound connection kit
- Five keystone speaker terminal modules
- One phono connection for a subwoofer
- Designed for 5.1 surround sound installations
- Provides a central connection point for installed speaker cabling
- Hybrid recessed installation box included
- White cover plate, fixing pack and instruction manual included
- 78mm-deep installation box for concealed mounting
- Helps organise and conceal audio connections
- Suitable for compatible solid-wall and plasterboard installations
- Ideal for home cinema rooms and integrated speaker systems
What’s Included in the Syncbox SB-5.1 Kit?
Syncbox SB-5.1 is supplied as a complete recessed audio connection system rather than a replacement speaker faceplate.
- 1 × Syncbox hybrid installation box
- 1 × white cover plate
- 1 × fixing pack
- 1 × instruction manual
- 5 × keystone speaker terminals
- 1 × phono connection for a subwoofer
The included installation box is designed for suitable solid-wall and plasterboard installations. The correct mounting method depends on the wall construction and must follow the manufacturer’s instructions.
Five Speaker Terminals and Dedicated Subwoofer Connection
The SB-5.1 provides five keystone speaker terminals for connecting installed speaker cables to compatible audio equipment.
These connections can be used as part of a conventional 5.1-channel surround sound arrangement, typically comprising:
- Front left speaker
- Front right speaker
- Centre speaker
- Surround left speaker
- Surround right speaker
- Subwoofer connection via the dedicated phono module
The five speaker terminals provide convenient connection points for suitable speaker wiring, while the phono module offers a separate connection for a compatible subwoofer signal.
Important: The phono connection is a signal connection, not a powered speaker output. Compatibility with the subwoofer and amplifier or AV receiver should be checked before installation.
Designed for Home Cinema and Integrated Audio Systems
The Syncbox SB-5.1 is particularly useful where multiple speaker cables terminate at a central connection point near an amplifier or AV receiver.
Rather than leaving speaker cables projecting from the wall or using a conventional surface-mounted connection plate, the recessed Syncbox design allows suitable audio connections to sit within a purpose-designed enclosure.
This makes the system suitable for planned home cinema installations, dedicated media rooms and integrated surround sound systems where neat cable management is important.
Why Syncbox Is Not a Direct Replacement for a Standard Wall Plate
Conventional speaker connection plates and electrical sockets are generally mounted onto shallow back boxes, with the faceplate positioned on the finished wall surface.

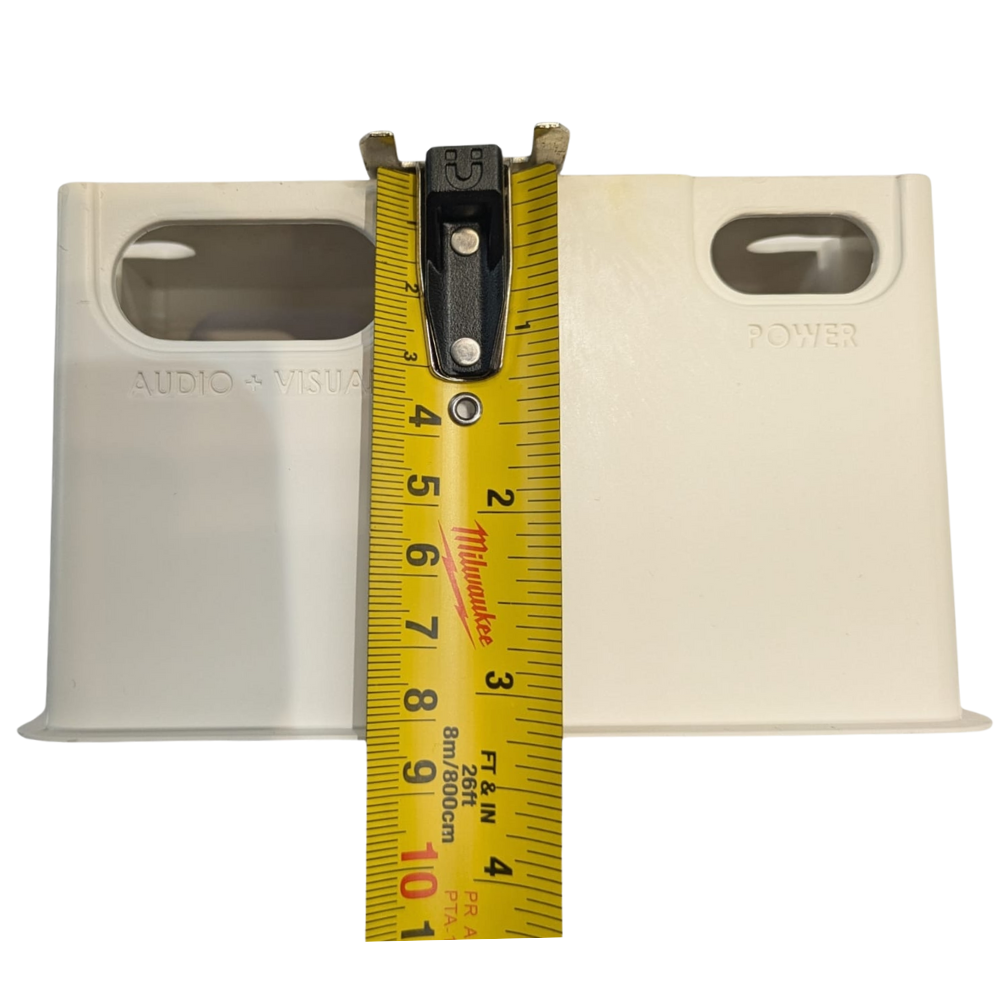

Syncbox SB-5.1 uses a different installation arrangement. The supplied hybrid installation box measures 137mm wide × 77mm high × 78mm deep, allowing the audio connections and suitable cables to be accommodated within a recessed enclosure.
Replacing an existing speaker plate or wall socket will normally require alterations to the wall opening and mounting arrangement. Depending on the wall construction, installation may involve additional cutting, chasing, preparing a deeper recess or adjusting cable routes.
Simply removing an existing wall plate and fitting Syncbox in the same mounting position will NOT achieve the intended recessed finish.
BEFORE YOU ORDER – REPLACING AN EXISTING SPEAKER WALL PLATE? Syncbox Socket SB-5.1 includes its own 78mm-deep installation box. Your existing standard back box cannot simply be reused to achieve a recessed finish. The wall opening must be adapted to accommodate the deeper enclosure. Additional installation work is required. Please consult your installer and review the technical drawings in the Downloads section.
Installing Syncbox in Solid Walls and Plasterboard
The Syncbox hybrid installation box is designed for suitable solid-wall and plasterboard applications. The method of fixing the enclosure depends on the wall construction.
- Solid walls: The box is secured within a suitably prepared wall recess using side fixings. The mounting flange may be removed where required.
- Plasterboard walls: The mounting flange must remain in position. Ratchet-style fixing straps secure the enclosure to suitable plasterboard.
- Existing speaker outlets: The original mounting position and wall opening will normally require modification.
- Wall depth: The installer must check wall thickness, cavity space and nearby services before preparing the opening.
- Cable routing: Speaker cables and the subwoofer signal cable should be planned and routed appropriately before installation.
Detailed instructions for both installation methods are available in the manufacturer’s Solid Wall Installation Guide and Drywall Installation Guide in the Downloads section.
Concealed Audio Connections with a White Cover Plate
The Syncbox SB-5.1 includes a white cover plate designed to provide a discreet appearance once the speaker connections are installed.
The recessed format helps keep speaker terminals, connectors and suitable cabling within the wall enclosure, reducing the visible clutter often associated with multiple audio connections.
Connector dimensions, cable bending space and access requirements should be considered when planning the installation.
Part of the Modular Syncbox Connection System
Syncbox is a modular recessed wiring system developed for power, television, media, data and audio installations.
The SB-5.1 configuration is specifically arranged for five speaker connections and one subwoofer phono connection, offering a convenient termination point for compatible surround sound systems.
Syncbox SB-5.1 Technical Specifications
- Brand: Syncbox
- Model: SB-5.1
- Product type: Recessed surround sound speaker connection kit
- Speaker connections: 5 × keystone speaker terminals
- Subwoofer connection: 1 × keystone phono module
- Typical system: 5.1 surround sound
- Installation box dimensions: 137mm (W) × 77mm (H) × 78mm (D)
- Internal recess depth: 45mm
- Standard cover dimensions: 155mm (W) × 95mm (H) × 10mm (D)
- Cover colour: White
- Installation box material: Flame-retardant ABS
- Media cable entries: 41 × 18mm oval
- Additional cable entries: 20mm
- Installation type: Recessed wall installation requiring wall preparation
- Wall compatibility: Suitable solid walls and plasterboard
- Typical applications: Home cinema, surround sound and integrated speaker installations
Manufacturer Installation Guides and Technical Downloads
Before purchasing or installing Syncbox Socket SB-5.1, please review the manufacturer’s documentation available in the Downloads section of this product page.
The following five documents provide important technical information and installation guidance:
- Brochure: Syncbox system overview, technical dimensions, available configurations and applications.
- Tips Essentials Guide: Essential installation recommendations, module orientation, cable management and preparation.
- Drywall Installation Guide: Illustrated instructions for installing the hybrid enclosure into suitable plasterboard walls.
- Solid Wall Installation Guide: Step-by-step instructions for preparing and securing Syncbox within solid walls.
- Installation Drawing: Detailed technical dimensions and assembly information to assist with installation planning.
Please note: The 78mm dimension refers to the manufacturer’s hybrid installation box depth. The actual wall preparation depends on construction, available space and the appropriate installation method. It is not a universal wall-cutting measurement.
We recommend reviewing the relevant installation guide and drawing with your installer before ordering, especially when replacing an existing speaker connection plate.
Syncbox Socket SB-5.1 – Frequently Asked Questions
Can I replace my existing speaker wall plate with Syncbox SB-5.1 and achieve a recessed finish?
NO – Syncbox SB-5.1 is NOT a direct replacement for a conventional speaker wall plate. The included 78mm-deep installation box must be recessed into the wall. Simply replacing an existing faceplate will not achieve the intended finish. Additional wall preparation and modifications to the mounting arrangement are normally required.
Does Syncbox SB-5.1 include the installation box and cover?
Yes. Syncbox SB-5.1 is a complete recessed speaker connection kit. It includes the installation box, white cover plate, fixing pack, instruction manual, five keystone speaker terminals and one subwoofer phono connection.
How many speaker connections does Syncbox SB-5.1 provide?
The SB-5.1 provides five keystone speaker terminals together with one dedicated phono connection for a compatible subwoofer signal. It is designed for use as a connection point in suitable 5.1 surround sound installations.
Does Syncbox SB-5.1 include a subwoofer connection?
Yes. The kit includes one phono connection intended for a compatible subwoofer signal. This is a signal connection rather than a speaker power output. Check compatibility with your amplifier, AV receiver and subwoofer before installation.
Can I use my existing socket or speaker back box?
Generally, no. Syncbox uses its own purpose-designed 78mm-deep hybrid installation box. A conventional back box cannot simply be reused in its original mounting position to achieve the recessed finish.
How deep does the wall need to be for Syncbox SB-5.1?
The included hybrid installation box measures 78mm deep. Actual wall preparation depends on the wall construction, available space and cable routing. Refer to the Installation Drawing and relevant manufacturer installation guide in the Downloads section before ordering.
Can Syncbox SB-5.1 be installed in a solid brick or block wall?
Yes, provided sufficient space and a suitable recess can be achieved. The manufacturer provides a dedicated Solid Wall Installation Guide explaining the fitting method. This document is available in the Downloads section.
Can Syncbox SB-5.1 be installed in plasterboard?
Yes. The hybrid installation box is designed for suitable plasterboard installations using ratchet-style fixing straps. The mounting flange must remain in position. Refer to the Drywall Installation Guide in the Downloads section.
Is Syncbox SB-5.1 suitable for a home cinema system?
Yes. It is designed to provide an organised connection point for five speaker channels and a compatible subwoofer signal in a 5.1 surround sound installation. The speaker wiring, amplifier connections and subwoofer compatibility must be checked when planning the system.
Does Syncbox SB-5.1 include speakers or an amplifier?
No. The SB-5.1 is a recessed connection system for compatible speaker cabling and subwoofer signals. It does not include loudspeakers, an amplifier or an AV receiver.
Where can I find the Syncbox installation instructions?
The manufacturer’s Brochure, Tips Essentials Guide, Drywall Installation Guide, Solid Wall Installation Guide and Installation Drawing are available in the Downloads section of this product page. Please review the relevant documents before purchasing or installing the product.
