Syncbox | SB-PowerPlus | Recessed 13A TV Power & AV Socket Kit

SKU: SB-Powerplus
In Stock

IMPORTANT – Syncbox Socket SB-PowerPlus is a recessed power and AV kit supplied with an installation box and cover. It is NOT a direct replacement for a standard socket. The 78mm-deep box must be recessed into the wall, requiring additional wall preparation. Please check suitability before ordering.

Quantity Discount (%) Price
1 — £54.99
2+ 6% £51.69
3+ 9% £50.04
5+ 17% £45.64

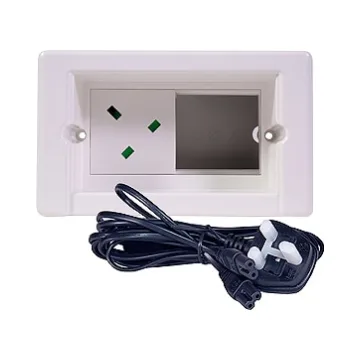

Syncbox Socket SB-PowerPlus – Recessed TV Power and AV Connection Kit

IMPORTANT – Syncbox Socket SB-PowerPlus includes a purpose-designed recessed installation box and cover. It is NOT a direct replacement for a conventional wall socket. The 78mm-deep box must be accommodated within the wall, requiring additional preparation and installation work. Please check suitability before ordering.

Syncbox Socket SB-PowerPlus is a recessed TV power and AV connection system designed for wall-mounted televisions, soundbars and home entertainment equipment. Its angled 13A UK power socket arrangement helps keep suitable plugs and cables concealed within a purpose-designed wall recess.

The SB-PowerPlus also provides space for up to four compatible AV modules, allowing additional connections to be configured around the requirements of the installation. This makes it particularly useful for planned media walls, TV installations and refurbishment projects where a discreet power and connectivity point is required.

Syncbox Socket SB-PowerPlus – Key Features

  • Recessed power and AV connection system
  • Angled 13A UK power socket arrangement
  • Space for up to four compatible additional AV modules
  • Syncbox hybrid installation box included
  • White cover plate and fixing pack included
  • 78mm-deep enclosure for recessed installation
  • Helps conceal suitable plugs and connected cables
  • Designed for wall-mounted TVs, soundbars and media equipment
  • Suitable for compatible solid-wall and plasterboard installations
  • Modular arrangement for planned media connections

What’s Included with Syncbox SB-PowerPlus?

Syncbox SB-PowerPlus is supplied as a recessed installation kit rather than a conventional replacement socket faceplate.

  • 1 × Syncbox hybrid installation box
  • 1 × white cover plate
  • 1 × fixing pack

The SB-PowerPlus product configuration features an angled 13A power socket arrangement and provision for up to four compatible AV modules. The additional AV modules are not listed as part of the supplied kit and should be selected separately according to the intended installation.

Power Connections for Wall-Mounted TVs and Soundbars

The SB-PowerPlus is designed to help reduce the space occupied by conventional plugs and power outlets behind wall-mounted televisions and associated audio-visual equipment.

Its recessed enclosure allows suitable power connections to sit further within the wall, helping achieve a clean installation where the television or equipment is mounted close to the finished surface.

Plug dimensions, cable exit directions and available space must be checked before installation. Large moulded plugs or certain cable arrangements may not fit within the available recess.

Space for Up to Four Additional AV Modules

One of the main advantages of the SB-PowerPlus is its configurable media connection area, which provides space for up to four compatible AV modules.

Depending on the installation requirements, suitable modules may be selected for:

  • Cat6 Ethernet data connections
  • Compatible TV and satellite connections
  • Audio signal connections
  • Other supported Syncbox AV or Keystone modules

Important: The four AV module positions represent the maximum configurable capacity, not four additional connections supplied as standard. Compatible modules must be selected according to the intended application and the manufacturer’s system requirements.

Why Syncbox Is Not a Direct Replacement for a Standard Socket

A conventional wall socket normally uses a relatively shallow mounting box, with the faceplate fitted onto the finished wall surface.

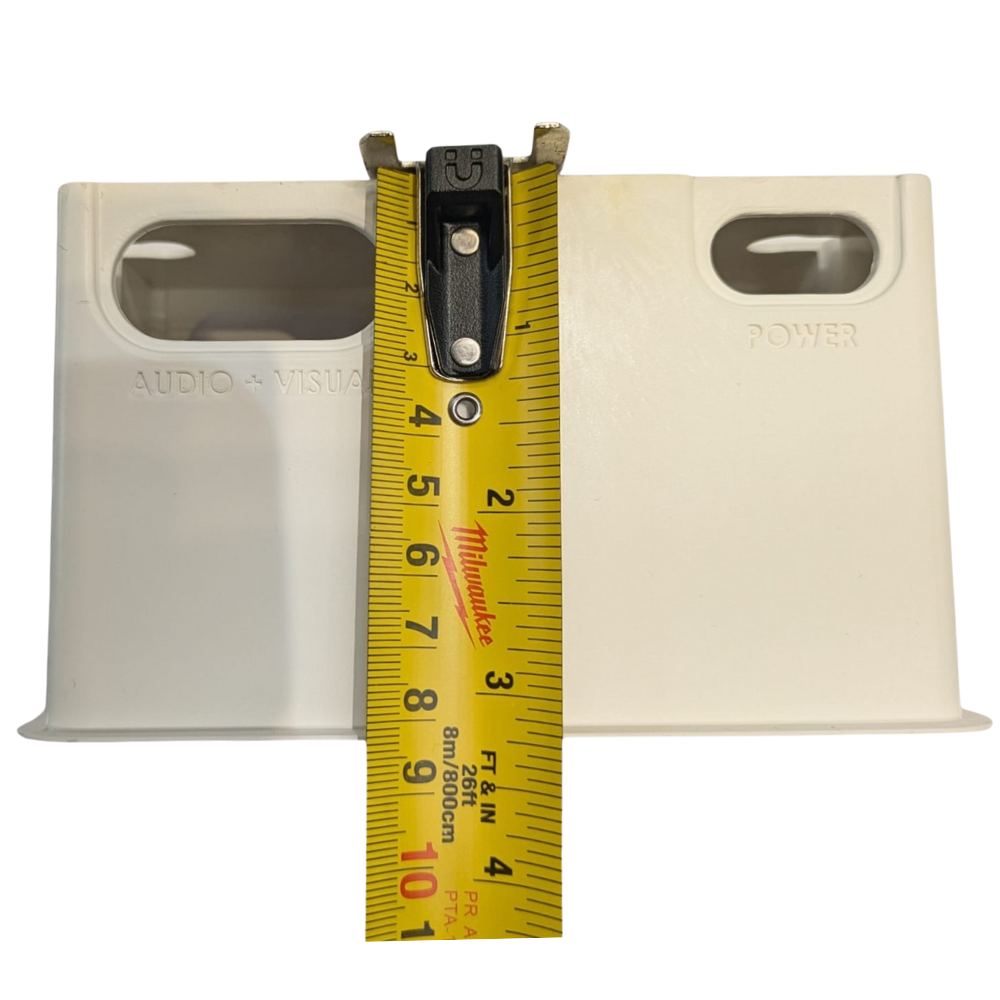

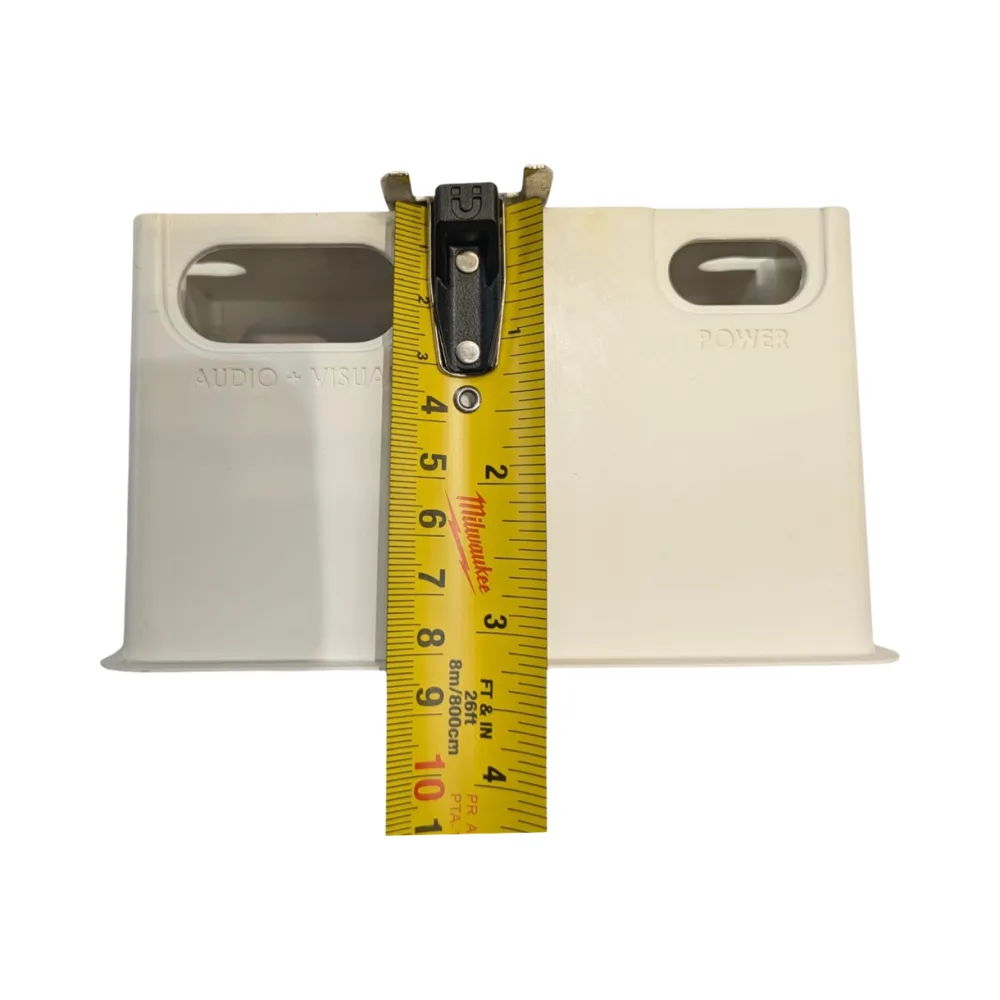

Syncbox SB-PowerPlus uses a different installation arrangement. The manufacturer’s hybrid installation box measures 137mm wide × 77mm high × 78mm deep, allowing suitable plugs and connections to sit within a recessed enclosure.

Replacing an existing socket will normally require modifications to the wall opening and mounting arrangement. Depending on the construction, this may involve additional cutting, chasing, forming a deeper recess or adjusting cable routes.

Simply removing an existing wall socket and fitting Syncbox in the same mounting position will NOT achieve the intended recessed finish.

BEFORE YOU ORDER – REPLACING AN EXISTING SOCKET? Syncbox Socket SB-PowerPlus includes its own 78mm-deep installation box. Your existing standard back box cannot simply be reused to achieve a recessed finish. The wall opening must be adapted to accommodate the deeper enclosure. Additional installation work is required. Please consult your electrician and review the installation drawings in the Downloads section.

Installing Syncbox in Solid Walls and Plasterboard

The Syncbox hybrid installation box is designed for suitable solid-wall and plasterboard applications. Installation methods differ depending on the wall construction.

  • Solid walls: The enclosure is secured within a suitably prepared recess using side fixings. The mounting flange may be removed where required.
  • Plasterboard walls: The mounting flange must remain in position. The ratchet-style fixing straps are used to secure the installation box.
  • Existing socket locations: Alterations to the existing wall opening and mounting arrangement will normally be necessary.
  • Available depth: Wall thickness, cavity space, cable routes and nearby services must be checked before installation.
  • Power and AV connections: Cabling must be installed with appropriate separation and protection in accordance with the manufacturer’s instructions and applicable electrical requirements.

Refer to the relevant manufacturer’s Solid Wall Installation Guide or Drywall Installation Guide in the Downloads section before preparing the installation.

Angled 13A Power Socket Arrangement

The angled 13A UK socket arrangement is designed to make efficient use of the space inside the recessed enclosure.

This is particularly useful behind wall-mounted televisions and media equipment where conventional plugs may protrude from the wall or interfere with the mounting arrangement.

The available space should be checked against the plug dimensions and cable exit direction of the intended connected equipment.

Modular Media Connections for Future Requirements

The configurable AV module area allows the connection point to be planned around the equipment being installed. Compatible data, audio and coaxial modules can be selected to suit specific requirements.

For installations requiring several devices, the SB-PowerPlus provides a practical starting point for combining power and selected media connections within one recessed wall position.

The number and type of additional modules must remain within the supported Syncbox configuration.

Syncbox SB-PowerPlus Technical Specifications

  • Brand: Syncbox
  • Model: SB-PowerPlus
  • Product type: Recessed TV power and configurable AV connection kit
  • Power configuration: Angled 13A UK socket arrangement
  • Additional AV capacity: Up to 4 compatible modules
  • Installation box dimensions: 137mm (W) × 77mm (H) × 78mm (D)
  • Internal recess depth: 45mm
  • Standard cover dimensions: 155mm (W) × 95mm (H) × 10mm (D)
  • Cover colour: White
  • Installation box material: Flame-retardant ABS
  • Power cable entries: 25 × 12mm oval
  • Media cable entries: 41 × 18mm oval
  • Additional cable entries: 20mm
  • Installation type: Recessed wall mounting requiring wall preparation
  • Wall compatibility: Suitable solid walls and plasterboard
  • Typical applications: Wall-mounted TVs, soundbars and configurable AV installations

Manufacturer Installation Guides and Technical Downloads

Before purchasing or installing Syncbox Socket SB-PowerPlus, please review the manufacturer’s documentation available in the Downloads section of this product page.

  • Brochure: Syncbox system overview, technical dimensions, module configurations and product applications.
  • Tips Essentials Guide: Installation recommendations, cable management, module positioning and preparation.
  • Drywall Installation Guide: Illustrated instructions for fitting the hybrid enclosure into suitable plasterboard walls.
  • Solid Wall Installation Guide: Instructions for preparing and securing the enclosure within solid-wall installations.
  • Installation Drawing: Detailed dimensions and assembly information for checking installation suitability.

Please note: The 78mm measurement refers to the manufacturer’s hybrid installation box depth. The actual wall preparation depends on the construction, available space and installation method. It should not be treated as a universal wall-cutting measurement.

We recommend reviewing the relevant installation guide and technical drawing with your electrician before ordering, especially when replacing an existing socket.

Syncbox Socket SB-PowerPlus – Frequently Asked Questions

Can I replace my existing wall socket with Syncbox SB-PowerPlus and achieve a recessed finish?

NO – Syncbox SB-PowerPlus is NOT a direct replacement for a conventional wall socket. The included 78mm-deep installation box must be recessed into the wall. Simply replacing an existing socket will not create the intended finish. Additional wall preparation and alterations to the mounting arrangement are normally required.

Does Syncbox SB-PowerPlus include the installation box and cover?

Yes. The listed kit contents include the Syncbox hybrid installation box, white cover plate and fixing pack. The product is designed as a recessed installation system rather than a conventional replacement faceplate.

How many additional AV modules can Syncbox SB-PowerPlus accommodate?

The SB-PowerPlus provides space for up to four compatible AV modules. This allows the connection point to be configured for suitable data, TV, audio or other supported media connections.

Are the four AV modules included?

No additional AV modules are listed among the standard kit contents. The four positions represent the available configuration capacity. Select compatible modules separately according to the requirements of your installation.

Can Syncbox SB-PowerPlus be used behind a wall-mounted TV?

Yes. The recessed design is particularly useful behind wall-mounted televisions where suitable power plugs and AV connections need to be concealed. The available wall depth, plug dimensions and mounting arrangement must be checked before installation.

Can I connect a soundbar using Syncbox SB-PowerPlus?

SB-PowerPlus is suitable for planned TV and soundbar installations where compatible power and media connections are required. The exact connection arrangement depends on the equipment, plug dimensions and any additional AV modules selected.

Can I use my existing socket back box?

Generally, no. Syncbox uses its own purpose-designed 78mm-deep installation box. A standard socket back box cannot simply be reused in its original position to achieve the recessed finish.

How deep does the wall need to be for Syncbox SB-PowerPlus?

The supplied hybrid installation box measures 78mm deep. Actual wall preparation depends on the construction, available space and cable routing. Refer to the manufacturer’s Installation Drawing and the appropriate installation guide in the Downloads section.

Can Syncbox SB-PowerPlus be installed in solid brick or block walls?

Yes, provided the wall can safely accommodate the required recess and mounting arrangement. The manufacturer provides a Solid Wall Installation Guide in the Downloads section.

Can Syncbox SB-PowerPlus be installed in plasterboard?

Yes. The hybrid installation box is designed for suitable plasterboard installations using ratchet-style fixing straps. The mounting flange must remain in position. Refer to the Drywall Installation Guide in the Downloads section.

Will standard UK plugs fit within the recessed enclosure?

The angled 13A socket arrangement is intended for suitable UK plugs. However, larger moulded plugs and certain cable arrangements may not fit within the available recessed space. Check compatibility before installation.

Where can I find the Syncbox installation instructions?

The manufacturer’s Brochure, Tips Essentials Guide, Drywall Installation Guide, Solid Wall Installation Guide and Installation Drawing are available in the Downloads section of this product page. Please review the relevant documents before ordering.
