Syncbox Socket SB-Power | Recessed Double Power Socket Kit

SKU: SB-Power
In Stock

IMPORTANT – Syncbox Socket SB-Power is a complete kit including the installation box and cover. It is NOT a direct replacement for a standard socket. The 78mm-deep installation box must be recessed into the wall, requiring additional wall preparation. Please check suitability before ordering.

Quantity Discount (%) Price
1 — £49.95
2+ 6% £46.95
3+ 9% £45.45
5+ 17% £41.46

Syncbox Socket SB-Power – Recessed Double 13A Socket Kit

IMPORTANT – Syncbox Socket SB-Power is a complete recessed socket kit with the installation box and cover included. It is NOT a direct replacement for a standard wall socket. The 78mm-deep installation box must be recessed into the wall, requiring additional wall preparation. Please check suitability before ordering.

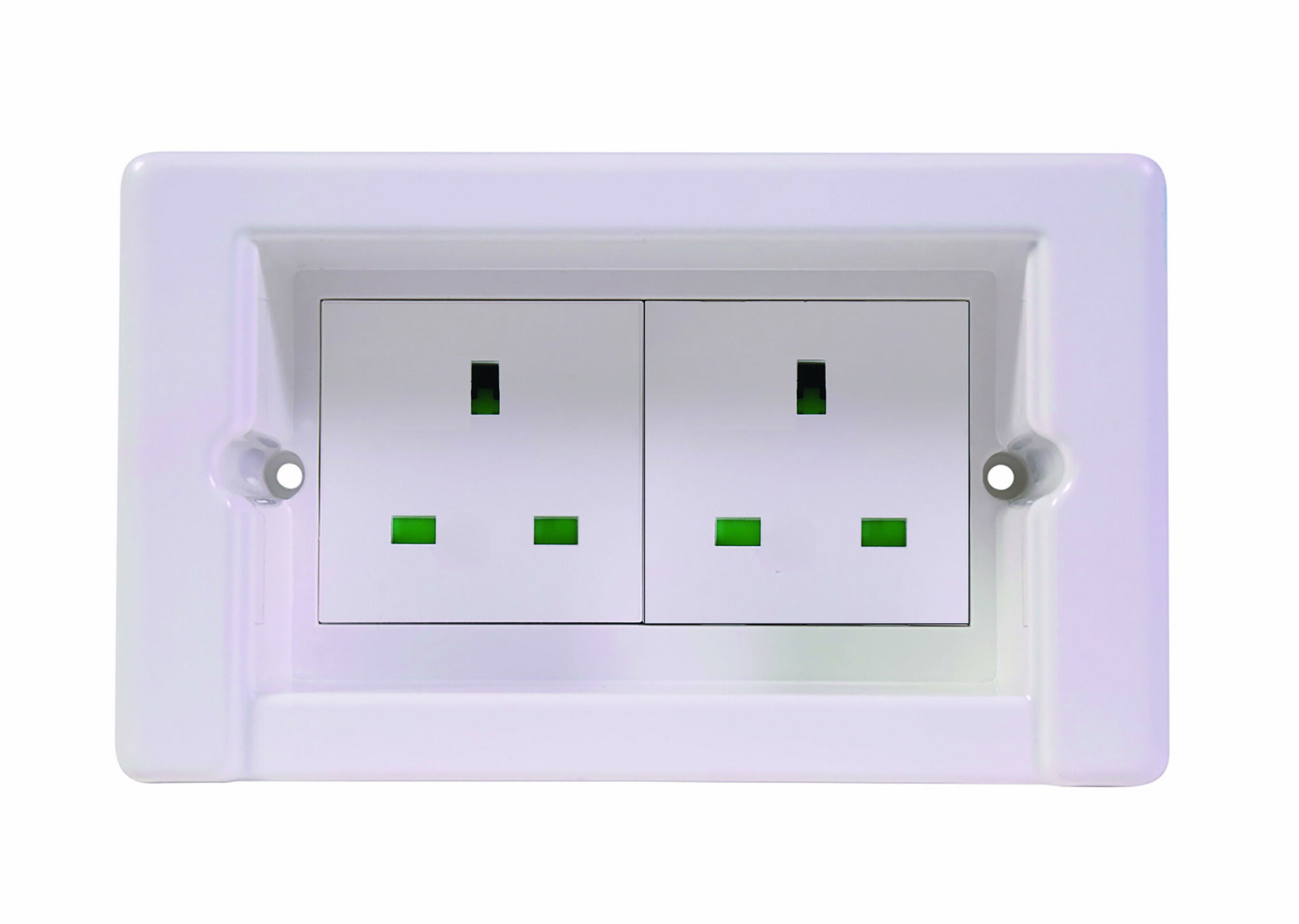

Syncbox Socket SB-Power is a complete recessed double 13A power socket kit designed to conceal plugs and cabling behind wall-mounted televisions, media equipment and furniture. The kit includes two angled 13A UK socket outlets, a purpose-designed hybrid installation box, mounting frame and sliding cover.

Unlike a conventional double socket, the Syncbox system positions suitable plugs and connections inside a specially designed wall recess. This helps reduce protruding plugs and visible cabling, providing a discreet installation for televisions and other equipment mounted close to the wall.

Syncbox Socket SB-Power – Key Features

  • Complete recessed double socket kit with installation box included

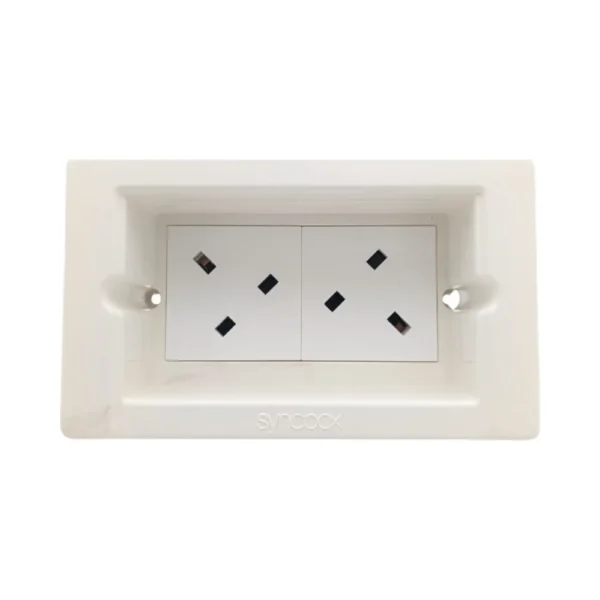

  • Two angled 13A UK power socket outlets
  • Hybrid installation box, mounting frame and sliding cover included
  • 78mm-deep recessed installation enclosure

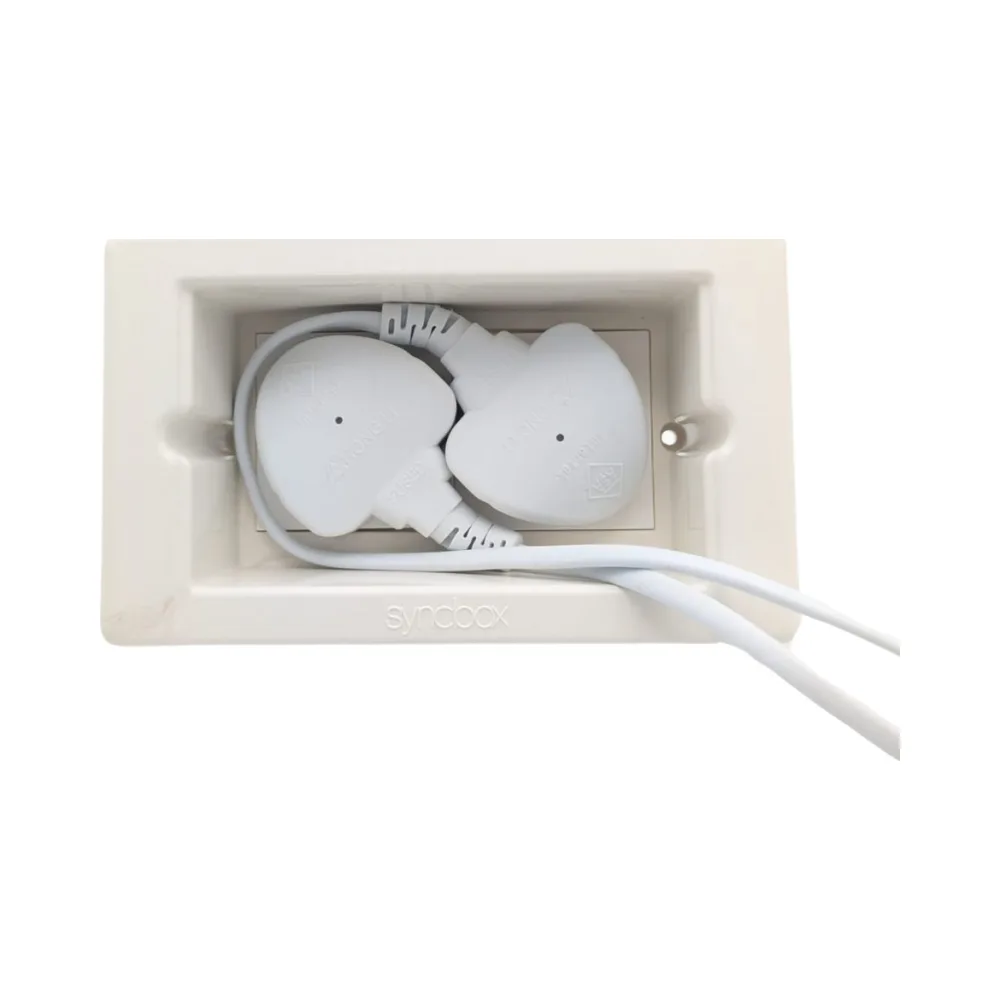

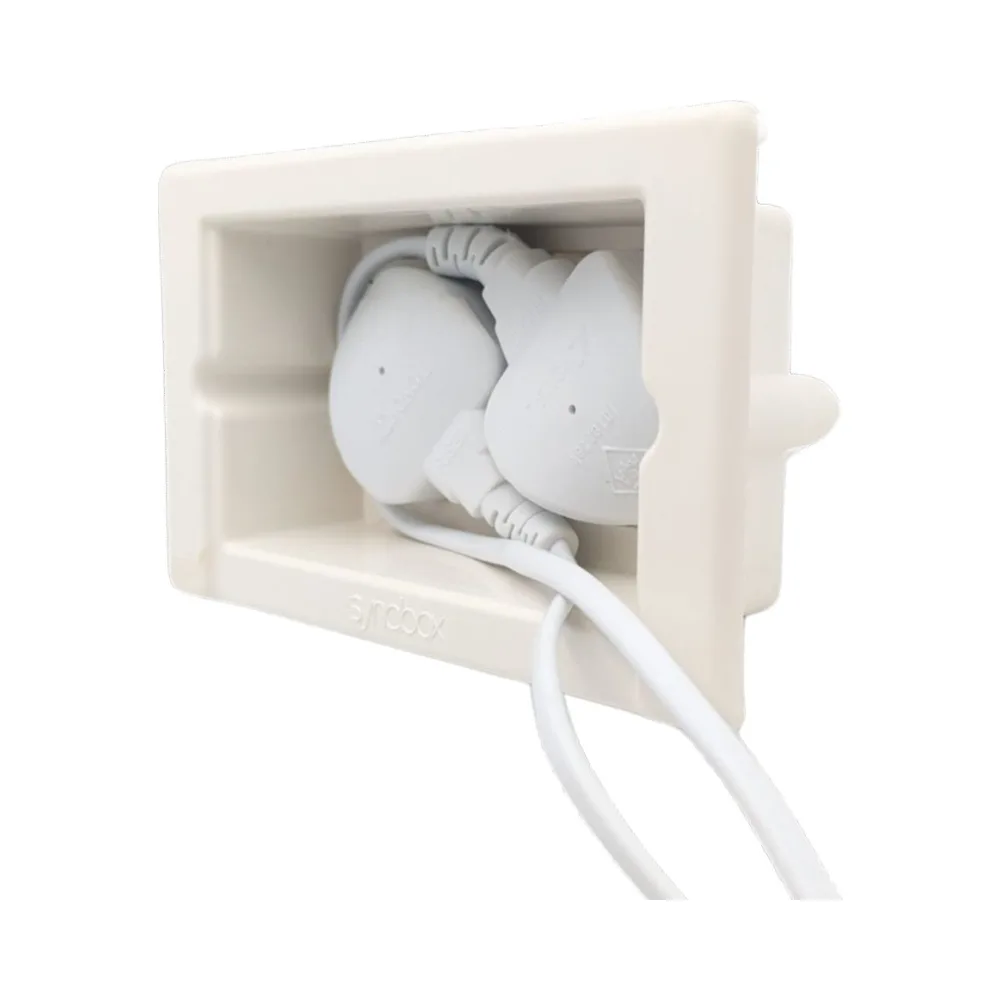

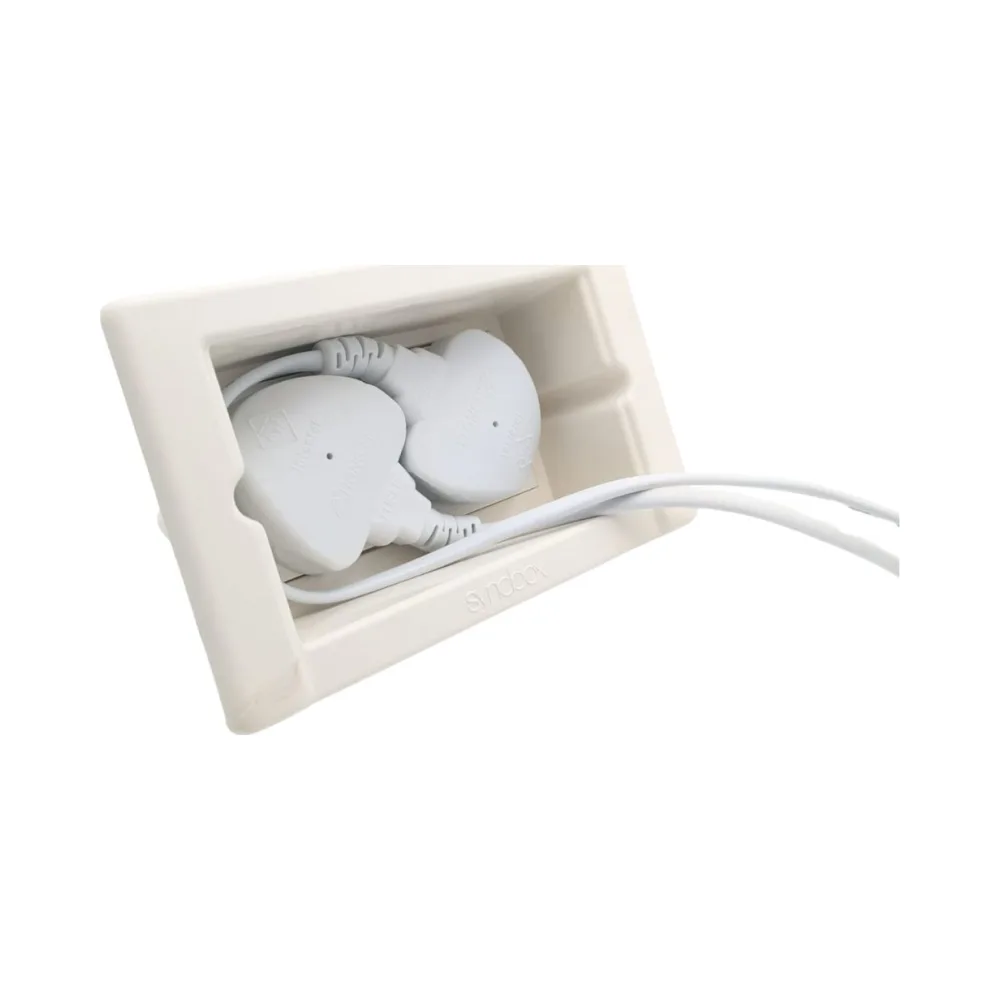

  • Designed to accommodate compatible plugs within the wall recess
  • Ideal for wall-mounted TVs, media equipment and concealed power connections
  • Suitable for compatible solid-wall and plasterboard installations
  • Discreet finished appearance with reduced visible cabling
  • Suitable for new installations and planned refurbishment projects

What’s Included in the Syncbox SB-Power Kit?

The SB-Power is supplied as a complete recessed power socket system, not simply a replacement socket faceplate.

  • 2 × angled 13A UK socket outlets
  • 1 × Syncbox hybrid installation box
  • 1 × socket mounting frame
  • 1 × sliding cover

The included hybrid installation box is designed for suitable solid-wall and plasterboard applications. The correct fixing method depends on the wall construction and must follow the manufacturer’s instructions.

Why Syncbox Is Not a Direct Replacement for a Standard Socket

Conventional double sockets are usually mounted onto relatively shallow back boxes, with the faceplate positioned on the finished wall surface. Syncbox uses a different installation arrangement to create space for plugs and cables within the wall.

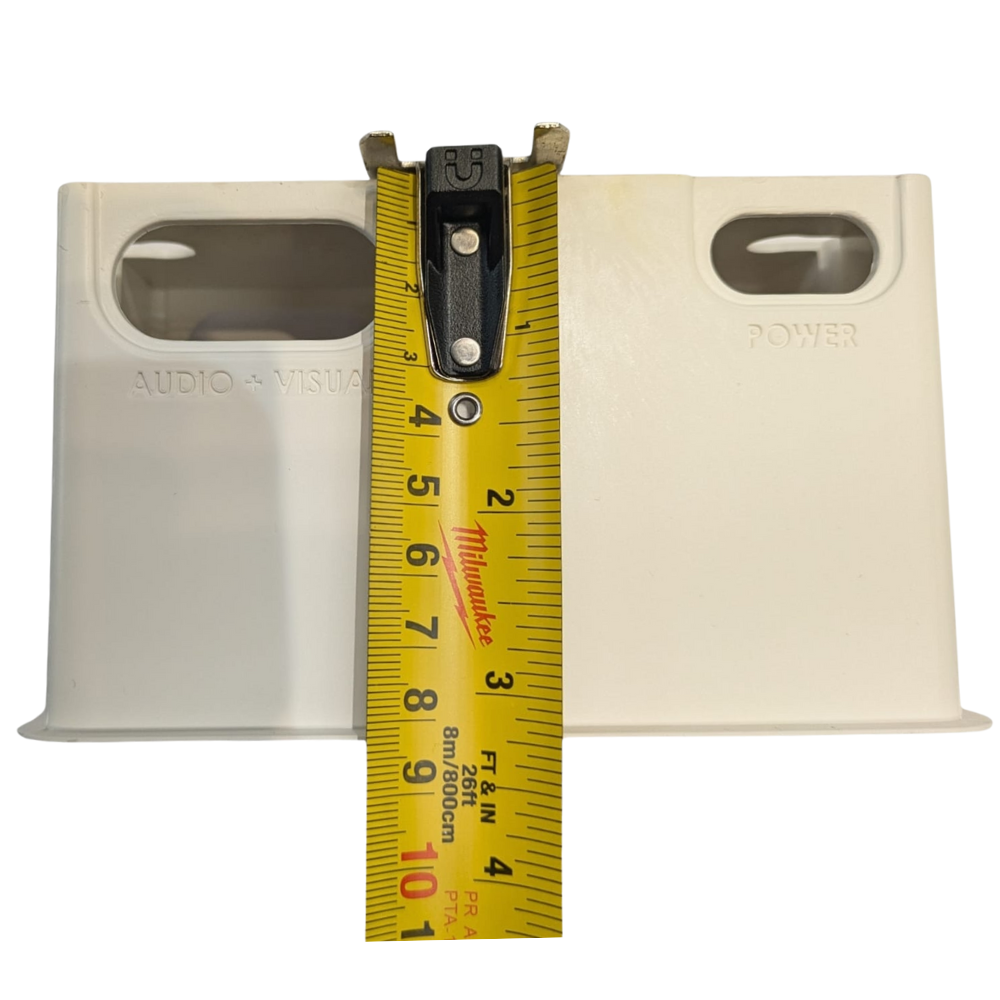

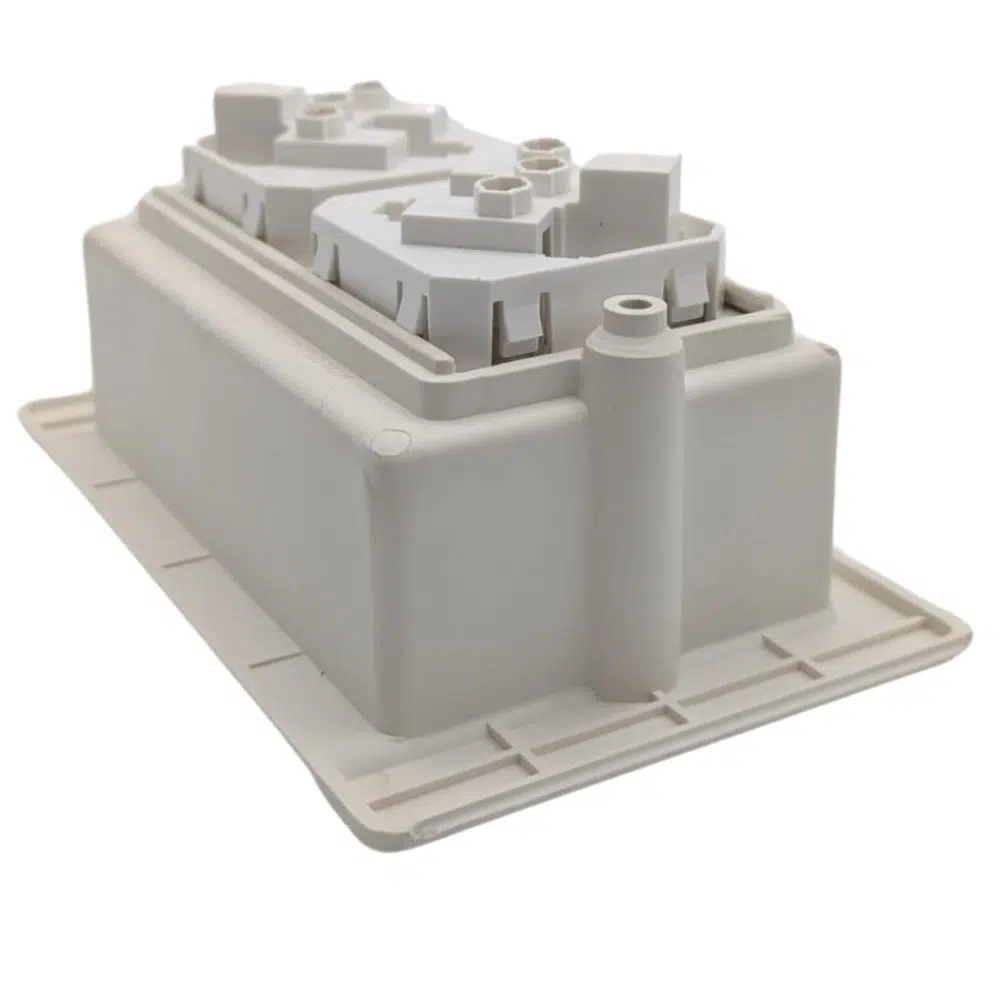

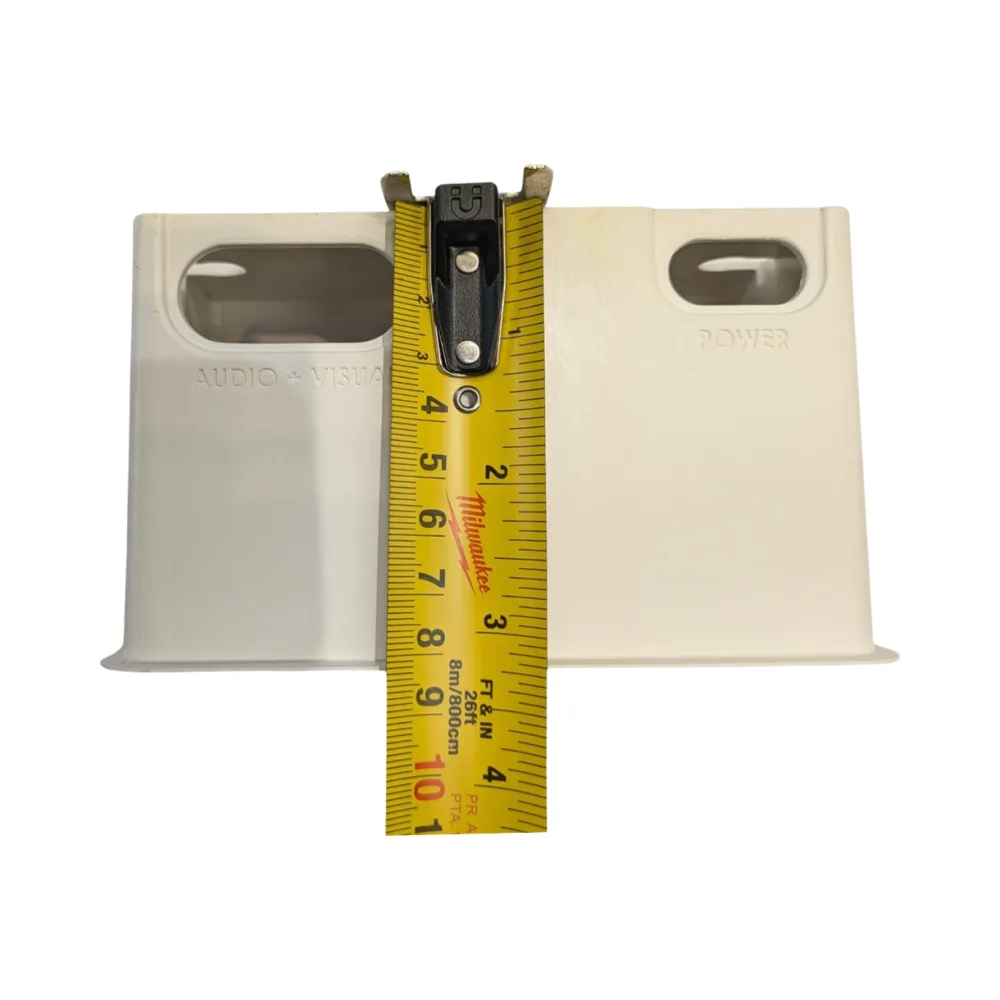

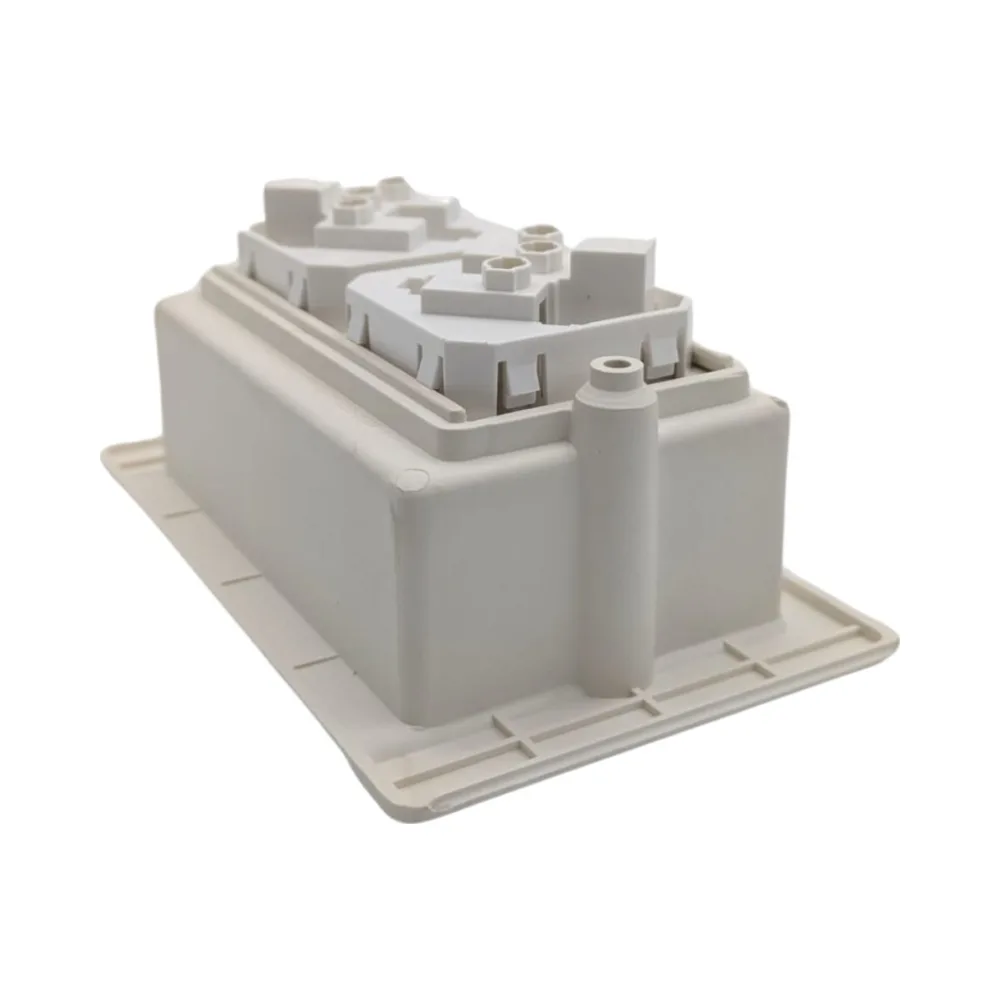

The supplied Syncbox hybrid installation box measures 137mm wide × 77mm high × 78mm deep. This depth allows compatible plugs and their connections to sit within the recessed enclosure.

Replacing an existing socket normally requires alterations to the wall opening and mounting position. Depending on the construction, this may involve additional cutting, chasing, creating a deeper recess or repositioning cables.

Simply removing an existing double socket and installing Syncbox in the same mounting position will NOT achieve the intended recessed finish.

BEFORE YOU ORDER – REPLACING AN EXISTING SOCKET? The Syncbox Socket SB-Power kit includes its own 78mm-deep installation box. Your existing socket back box cannot simply be reused to achieve a recessed finish. The wall opening must be adapted to accommodate the deeper box. Additional installation work is required. Please check with your electrician and review the installation drawings in the Downloads section.

Installing Syncbox in Solid Walls and Plasterboard

The Syncbox hybrid installation box is designed for suitable solid-wall and plasterboard applications. The fixing method differs depending on the wall construction.

  • Solid walls: The enclosure is secured within a suitably prepared wall recess using side fixings. The mounting flange may be removed where required.
  • Plasterboard walls: The mounting flange must remain in place. Ratchet-style fixing straps are used to secure the installation box to the plasterboard.
  • Existing socket installations: Alterations to the original wall opening and mounting arrangement will normally be necessary.
  • Available depth: Wall construction, cable routing and nearby services must be assessed before installation.

For detailed fitting instructions, please consult the manufacturer’s Solid Wall Installation Guide or Drywall Installation Guide in the Downloads section of this product page.

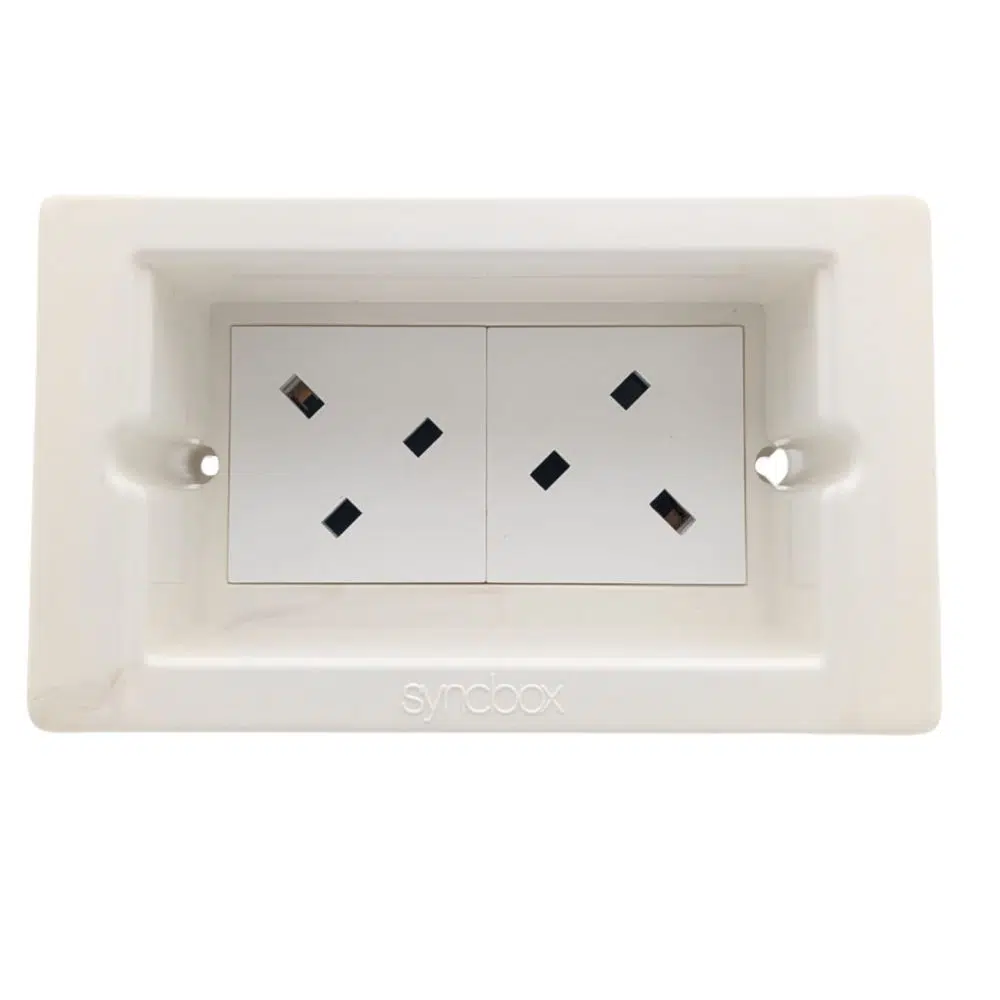

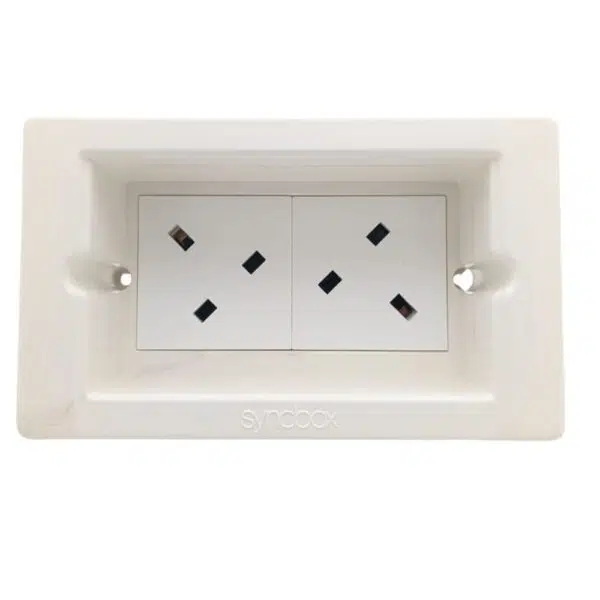

Two Angled 13A Sockets for Concealed Power Connections

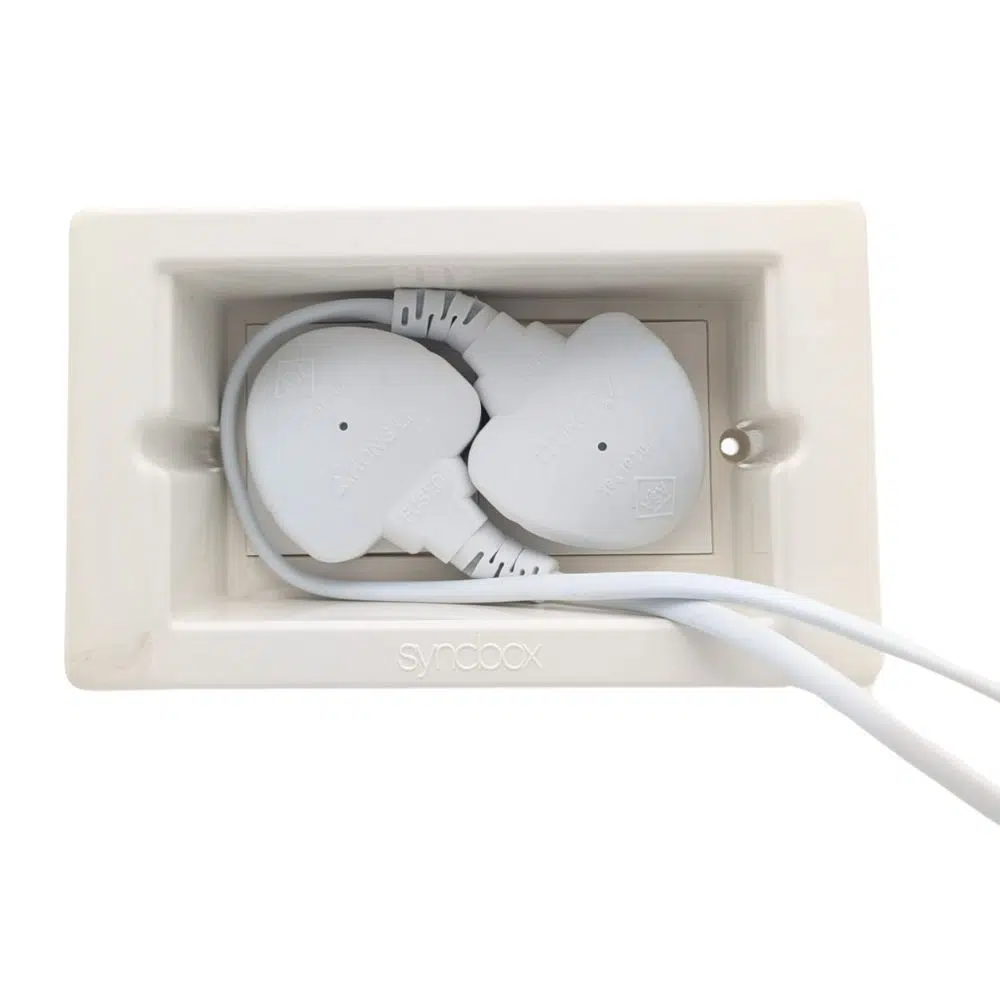

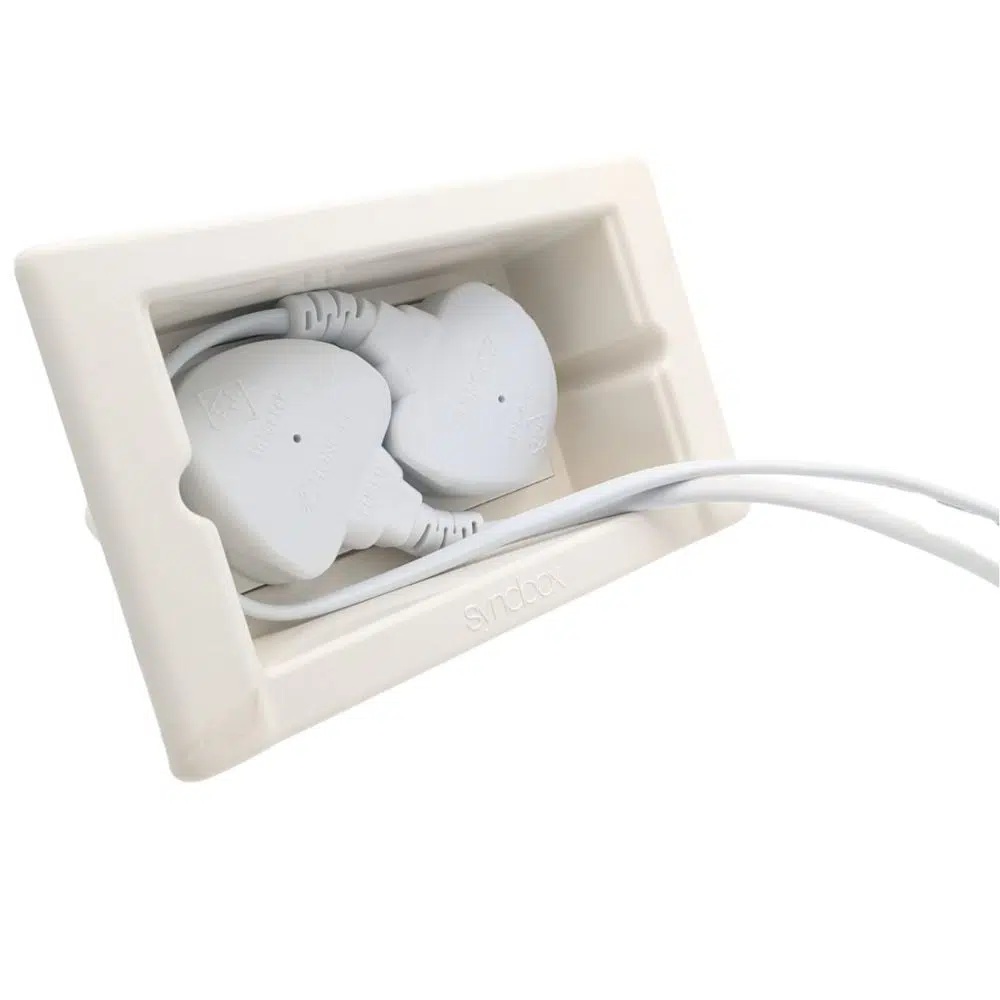

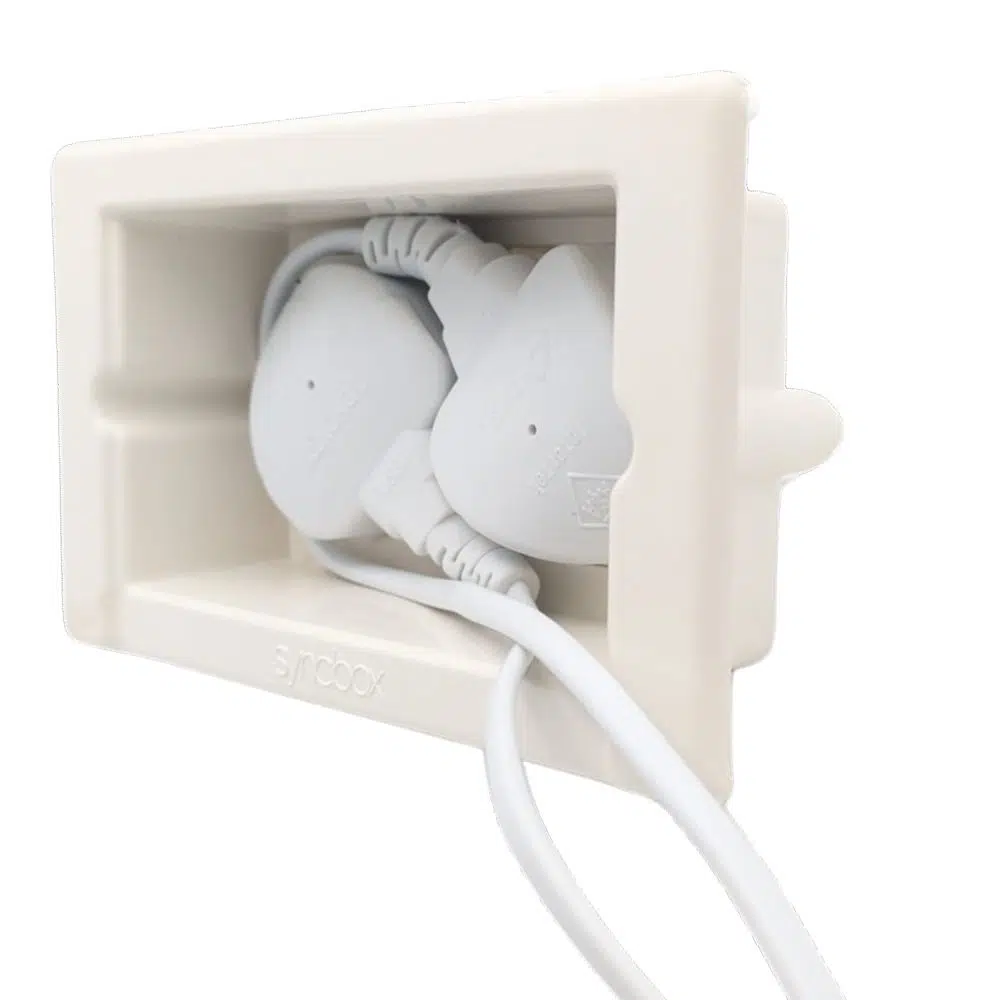

Syncbox SB-Power incorporates two angled 13A UK socket outlets arranged to make efficient use of the space within the recessed enclosure. This design helps accommodate compatible plugs and cables behind wall-mounted televisions, display screens and other electrical equipment.

Plug dimensions and cable exit arrangements vary. Larger moulded plugs or certain cable configurations may not fit within the available recess. Compatibility should be checked before installation.

Ideal for Wall-Mounted TVs and Media Equipment

The recessed design makes Syncbox SB-Power particularly useful where conventional sockets and protruding plugs could prevent a television or display from sitting close to the wall.

By positioning compatible power connections within the wall recess, the system helps conceal cabling and provides a neater finished appearance. It is also suitable for planned media installations and compatible concealed power locations.

Syncbox SB-Power Technical Specifications

  • Brand: Syncbox
  • Model: SB-Power
  • Product type: Complete recessed double socket kit
  • Socket configuration: 2 × angled 13A UK outlets
  • Installation box dimensions: 137mm (W) × 77mm (H) × 78mm (D)
  • Internal recess depth: 45mm
  • Standard cover dimensions: 155mm (W) × 95mm (H) × 10mm (D)
  • Installation box material: Flame-retardant ABS
  • Power cable entries: 25 × 12mm oval
  • Media cable entries: 41 × 18mm oval
  • Additional cable entries: 20mm
  • Installation type: Recessed installation requiring wall preparation
  • Wall compatibility: Suitable solid walls and plasterboard

Manufacturer Installation Guides and Technical Downloads

Before purchasing or installing Syncbox Socket SB-Power, please review the manufacturer documentation available in the Downloads section of this product page.

The following five documents provide technical information, dimensions and installation instructions:

  • Brochure: Product overview, available Syncbox configurations, technical dimensions and system information.
  • Tips Essentials Guide: Essential installation recommendations, module positioning and cable management.
  • Drywall Installation Guide: Illustrated instructions for plasterboard installation, including fixing straps and mounting flange requirements.
  • Solid Wall Installation Guide: Step-by-step guidance for installing the enclosure into a suitable solid wall.
  • Installation Drawing: Detailed technical dimensions and assembly information for checking installation suitability.

Please note: The 78mm measurement refers to the manufacturer’s installation box depth. The actual wall preparation depends on the construction, available space and installation method. It should not be treated as a universal wall-cutting depth.

We strongly recommend reviewing the appropriate installation guide and drawing with your electrician before ordering, particularly when replacing an existing socket.

Syncbox Socket SB-Power – Frequently Asked Questions

Can I replace my existing double socket with Syncbox SB-Power and achieve a recessed finish?

NO – Syncbox SB-Power is NOT a direct replacement for a conventional double socket. The included 78mm-deep installation box must be recessed into the wall. Simply replacing an existing socket will not achieve the intended finish. Additional wall preparation and modifications to the mounting arrangement are normally required.

Does Syncbox SB-Power include the installation box?

Yes. Syncbox SB-Power is a complete recessed socket kit supplied with two angled 13A UK outlets, a purpose-designed hybrid installation box, mounting frame and sliding cover. It is not simply a replacement socket faceplate.

Can I use my existing socket back box?

Generally, no. Syncbox uses its own 78mm-deep hybrid installation box. A conventional socket back box cannot simply be reused in its original mounting position to achieve the recessed finish. Your electrician must assess the required alterations.

How deep does the wall need to be for Syncbox SB-Power?

The included hybrid installation box measures 78mm deep. The required wall preparation depends on the construction, mounting position and cable arrangements. The box depth is not a universal wall-cutting measurement. Refer to the manufacturer’s Installation Drawing and relevant installation guide in the Downloads section.

Can Syncbox SB-Power be installed in a solid brick or block wall?

Yes, provided a suitable recess and sufficient installation space can be achieved. The manufacturer provides a dedicated Solid Wall Installation Guide in the Downloads section explaining the appropriate fixing method.

Can Syncbox SB-Power be installed in a plasterboard wall?

Yes. The hybrid installation box is designed for suitable plasterboard applications using ratchet-style fixing straps. The mounting flange must remain in position. Refer to the Drywall Installation Guide in the Downloads section.

Will standard UK plugs fit inside Syncbox SB-Power?

The two angled 13A socket outlets are designed for suitable standard UK plugs. However, plug dimensions and cable exit arrangements vary. Larger moulded plugs or certain cable configurations may not fit within the available recess, so compatibility should be checked before installation.

Is Syncbox SB-Power suitable for a wall-mounted television?

Yes. Syncbox SB-Power is particularly suited to wall-mounted TV installations where recessed power connections help reduce protruding plugs and visible cabling. The final arrangement depends on wall construction, available depth and the equipment being connected.

Where can I find the Syncbox installation instructions?

The manufacturer’s Brochure, Tips Essentials Guide, Drywall Installation Guide, Solid Wall Installation Guide and Installation Drawing are available in the Downloads section of this product page. Please review the relevant documents before purchasing or installing the product.
