Syncbox | SB-7.1 | Recessed 7.1 Surround Sound Speaker Connection Kit

SKU: SB-7.1
In Stock

IMPORTANT – Syncbox Socket SB-7.1 is a complete recessed speaker connection kit with the installation box and cover included. It is NOT a direct replacement for a standard socket or speaker wall plate. The 78mm-deep box must be recessed into the wall, requiring additional wall preparation. Please check suitability before ordering.

Quantity Discount (%) Price
1 — £59.99
2+ 6% £56.39
3+ 9% £54.59
5+ 17% £49.79

Syncbox Socket SB-7.1 – Recessed 7.1 Surround Sound Speaker Connection Kit

IMPORTANT – Syncbox Socket SB-7.1 is a complete recessed speaker connection kit with the installation box and cover included. It is NOT a direct replacement for a standard socket or speaker wall plate. The 78mm-deep box must be recessed into the wall, requiring additional wall preparation. Please check suitability before ordering.

Syncbox Socket SB-7.1 is a recessed surround sound connection kit designed for home cinema systems, integrated speakers and professional audio installations. Featuring seven keystone speaker terminals and one dedicated phono connection for a subwoofer, it provides an organised termination point for multiple audio cables within a discreet wall-mounted enclosure.

The complete kit includes the Syncbox hybrid installation box, white cover plate, fixing pack, instruction manual and audio connection modules. Its recessed design helps conceal speaker connections and cabling, creating a neat finished appearance around amplifiers, AV receivers and home entertainment equipment.

Syncbox Socket SB-7.1 – Key Features

  • Complete recessed 7.1 surround sound connection kit
  • Seven keystone speaker terminals
  • One dedicated keystone phono connection for a subwoofer
  • Designed for compatible 7.1 surround sound systems
  • Provides a central connection point for installed speaker cabling
  • Hybrid recessed installation box included
  • White cover plate, fixing pack and instruction manual included
  • 78mm-deep installation enclosure
  • Helps conceal speaker terminals and associated cables
  • Suitable for compatible solid-wall and plasterboard installations
  • Ideal for home cinema rooms and integrated audio systems

What’s Included in the Syncbox SB-7.1 Kit?

Syncbox SB-7.1 is supplied as a complete recessed audio connection system rather than simply a replacement speaker wall plate.

  • 1 × Syncbox hybrid installation box
  • 1 × white cover plate
  • 1 × fixing pack
  • 1 × instruction manual
  • 7 × keystone speaker terminals
  • 1 × keystone phono connection for a subwoofer

The included hybrid installation box is designed for suitable solid-wall and plasterboard installations. The correct fitting method depends on wall construction and must follow the manufacturer’s instructions.

Seven Speaker Terminals for 7.1 Surround Sound Systems

The SB-7.1 provides seven keystone speaker terminals, allowing multiple speaker cable runs to terminate at a single recessed wall connection point.

For a typical 7.1-channel surround sound installation, the seven speaker connections can be assigned to:

  • Front left speaker
  • Front right speaker
  • Centre speaker
  • Surround left speaker
  • Surround right speaker
  • Surround back left speaker
  • Surround back right speaker

The speaker terminals provide convenient connection points between installed speaker cabling and compatible amplifiers or AV receivers.

The exact speaker assignment and connection arrangement must match the requirements of the audio equipment being installed.

Dedicated Subwoofer Phono Connection

In addition to the seven speaker terminals, Syncbox SB-7.1 includes one keystone phono connection for a compatible subwoofer signal.

This allows the subwoofer connection to be positioned alongside the other speaker connections, reducing the need for a separate exposed wall plate.

Important: The phono connection is intended for a compatible audio signal, typically between an AV receiver and an active subwoofer. It does not provide a powered speaker output or mains power.

Check the amplifier, subwoofer and cable requirements before installation.

Designed for Home Cinema and Integrated Speaker Systems

Dedicated home cinema installations often involve multiple speaker cables running through walls and ceilings before terminating near an amplifier or AV receiver.

Syncbox SB-7.1 provides an organised connection point for these cables within a recessed wall enclosure, helping reduce exposed wiring and the number of separate connection plates.

Typical applications include:

  • 7.1 home cinema and surround sound systems
  • Dedicated media and entertainment rooms
  • Integrated in-wall and ceiling speaker installations
  • Custom audio systems with concealed speaker wiring
  • Central speaker connection points near AV receivers

The recessed arrangement is particularly useful for new installations and planned refurbishment projects where the connection point and cable routes can be prepared in advance.

Why Syncbox Is Not a Direct Replacement for a Standard Wall Plate

Conventional speaker wall plates and electrical sockets are generally installed onto relatively shallow back boxes, with the faceplate sitting on the finished wall surface.

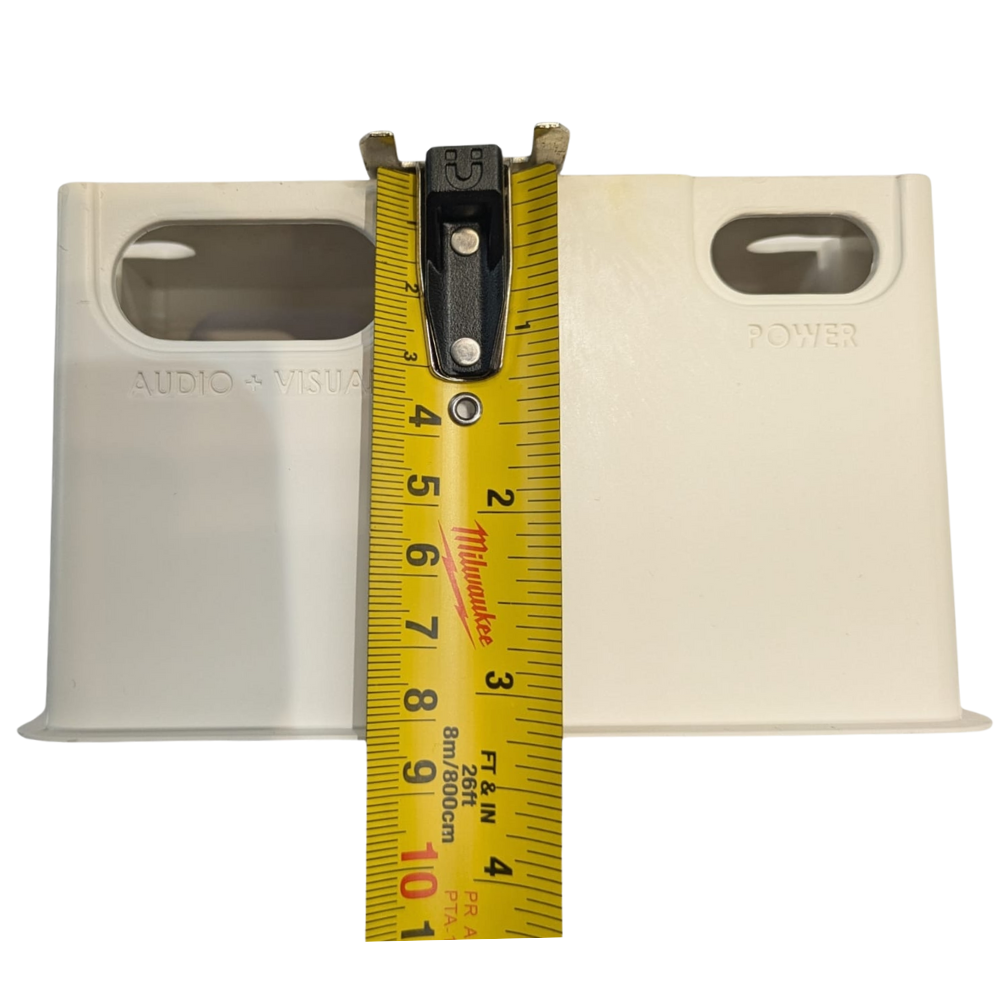

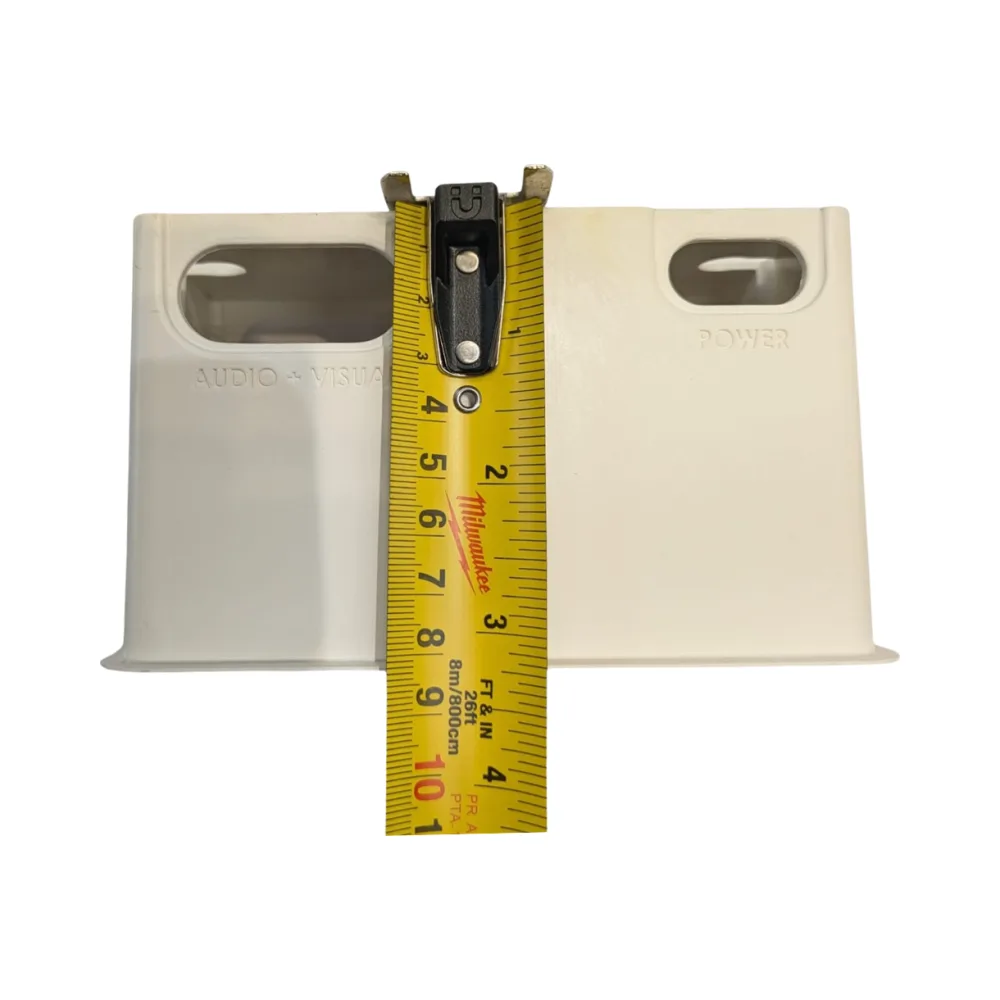

Syncbox SB-7.1 uses a different installation arrangement. The included hybrid installation box measures 137mm wide × 77mm high × 78mm deep, allowing suitable audio connections and cables to sit within a purpose-designed recessed enclosure.

Replacing an existing speaker wall plate will normally require modifications to the wall opening and mounting position. Depending on the construction, this may involve additional cutting, chasing, preparing a deeper recess or adjusting cable routes.

Simply removing an existing speaker wall plate and fitting Syncbox in the same mounting position will NOT achieve the intended recessed finish.

BEFORE YOU ORDER – REPLACING AN EXISTING SPEAKER WALL PLATE? Syncbox Socket SB-7.1 includes its own 78mm-deep installation box. Your existing standard back box cannot simply be reused to achieve a recessed finish. The wall opening must be adapted to accommodate the deeper enclosure. Additional installation work is required. Please consult your installer and review the technical drawings in the Downloads section.

Installing Syncbox in Solid Walls and Plasterboard

The Syncbox hybrid installation box is designed for suitable solid-wall and plasterboard applications. The fixing method depends on the wall construction and available installation space.

  • Solid walls: The enclosure is secured within a suitably prepared wall recess using side fixings. The mounting flange may be removed where required.
  • Plasterboard walls: The mounting flange must remain in position. Ratchet-style fixing straps are used to secure the installation box to suitable plasterboard.
  • Existing speaker outlets: The original mounting arrangement and wall opening will normally require modification.
  • Available depth: Wall thickness, cavity space, cable routes and nearby services must be checked before preparing the opening.
  • Audio cable routing: Speaker and subwoofer cables must be routed appropriately, allowing sufficient space for connections and cable bends.

Detailed fitting instructions are available in the manufacturer’s Solid Wall Installation Guide and Drywall Installation Guide in the Downloads section of this product page.

White Cover Plate for Concealed Audio Connections

The SB-7.1 includes a white cover plate designed to provide a discreet finished appearance once the speaker connections have been installed.

The recessed format helps keep speaker terminals, connectors and associated cabling organised within the wall enclosure, reducing the visual clutter of conventional audio connection plates.

Connector dimensions, available cable bending space and future access requirements should be considered when planning the installation.

Syncbox SB-7.1 Technical Specifications

  • Brand: Syncbox
  • Model: SB-7.1
  • Product type: Recessed 7.1 surround sound connection kit
  • Speaker connections: 7 × keystone speaker terminals
  • Subwoofer connection: 1 × keystone phono module
  • Typical audio configuration: 7.1 surround sound
  • Installation box dimensions: 137mm (W) × 77mm (H) × 78mm (D)
  • Internal recess depth: 45mm
  • Standard cover dimensions: 155mm (W) × 95mm (H) × 10mm (D)
  • Cover colour: White
  • Installation box material: Flame-retardant ABS
  • Media cable entries: 41 × 18mm oval
  • Additional cable entries: 20mm
  • Installation type: Recessed wall mounting requiring additional wall preparation
  • Wall compatibility: Suitable solid walls and plasterboard
  • Typical applications: Home cinema, surround sound and integrated speaker installations

Manufacturer Installation Guides and Technical Downloads

Before purchasing or installing Syncbox Socket SB-7.1, please review the manufacturer’s documentation available in the Downloads section of this product page.

The following five documents provide important technical specifications, dimensions and installation guidance:

  • Brochure: Syncbox system overview, speaker configurations, technical dimensions and typical applications.
  • Tips Essentials Guide: Important installation recommendations, module positioning, cable management and preparation.
  • Drywall Installation Guide: Illustrated instructions for installing the hybrid enclosure into suitable plasterboard walls using the fixing straps.
  • Solid Wall Installation Guide: Step-by-step instructions for preparing and securing Syncbox within solid-wall installations.
  • Installation Drawing: Detailed technical dimensions and assembly information for checking installation suitability.

Please note: The 78mm measurement refers to the manufacturer’s hybrid installation box depth. The actual wall preparation depends on the construction, available space and installation method. It should not be treated as a universal wall-cutting measurement.

We strongly recommend reviewing the relevant installation guide and technical drawing with your installer before ordering, especially when replacing an existing speaker connection plate.

Syncbox Socket SB-7.1 – Frequently Asked Questions

Can I replace my existing speaker wall plate with Syncbox SB-7.1 and achieve a recessed finish?

NO – Syncbox SB-7.1 is NOT a direct replacement for a conventional speaker wall plate. The included 78mm-deep installation box must be recessed into the wall. Simply replacing an existing faceplate will not achieve the intended recessed finish. Additional wall preparation and changes to the mounting arrangement are normally required.

Does Syncbox SB-7.1 include the installation box and cover?

Yes. Syncbox SB-7.1 is a complete recessed surround sound connection kit supplied with the hybrid installation box, white cover plate, fixing pack, instruction manual, seven keystone speaker terminals and one subwoofer phono connection.

How many speaker connections does Syncbox SB-7.1 provide?

Syncbox SB-7.1 provides seven keystone speaker terminals and one separate phono connection for a compatible subwoofer signal. This arrangement is designed for suitable 7.1 surround sound installations.

Is Syncbox SB-7.1 suitable for a 7.1 home cinema system?

Yes. SB-7.1 provides seven speaker connection modules and one subwoofer phono connection, matching the connection requirements of many conventional 7.1-channel home cinema systems. Compatibility with the amplifier, speaker wiring and subwoofer must be checked before installation.

Does Syncbox SB-7.1 include a subwoofer connection?

Yes. The kit includes one keystone phono connection intended for a compatible subwoofer signal. It is not a powered speaker output and does not provide mains power to the subwoofer.

Does Syncbox SB-7.1 include speakers or an amplifier?

No. Syncbox SB-7.1 is a recessed audio connection kit. It does not include loudspeakers, a subwoofer, amplifier or AV receiver. These must be supplied separately.

Can I use my existing speaker socket back box?

Generally, no. Syncbox uses its own purpose-designed 78mm-deep hybrid installation box. A conventional back box cannot simply be reused in its existing mounting position to achieve the recessed finish.

How deep does the wall need to be for Syncbox SB-7.1?

The included hybrid installation box measures 78mm deep. Actual wall preparation depends on construction, available space and cable routing. Please review the manufacturer’s Installation Drawing and appropriate installation guide in the Downloads section before ordering.

Can Syncbox SB-7.1 be installed in a solid brick or block wall?

Yes, provided a suitable wall recess and sufficient installation space can be achieved safely. The manufacturer provides a dedicated Solid Wall Installation Guide, available in the Downloads section.

Can Syncbox SB-7.1 be installed in plasterboard?

Yes. The hybrid installation box is designed for suitable plasterboard installations using ratchet-style fixing straps. The mounting flange must remain in place. Refer to the Drywall Installation Guide in the Downloads section.

Can I use Syncbox SB-7.1 with ceiling speakers?

Yes. The speaker terminals can provide a connection point for compatible ceiling or in-wall speaker wiring as part of an integrated audio system. The final configuration depends on the amplifier, speaker arrangement and wiring requirements.

Where can I find the Syncbox installation instructions?

The manufacturer’s Brochure, Tips Essentials Guide, Drywall Installation Guide, Solid Wall Installation Guide and Installation Drawing are available in the Downloads section of this product page. Please review the relevant documents before purchasing or installing the product.
