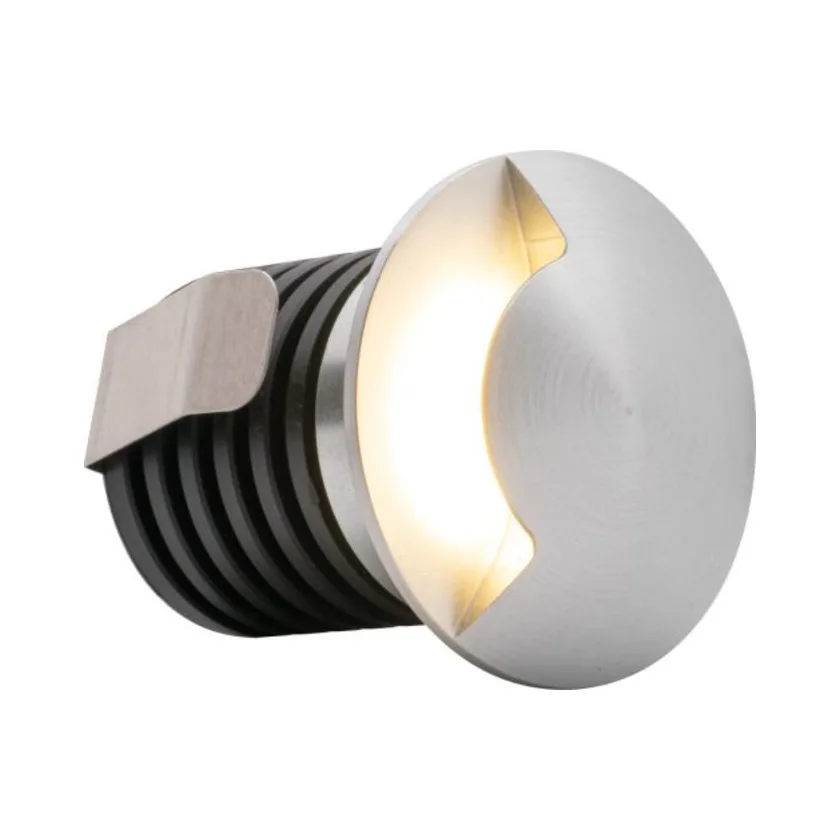

Pathfinder 1W LED Low Level Light 3000K
ALL LED APF032AL/01/30 – IP65 Unidirectional Marker Light in Matte Brushed Aluminium
The Pathfinder 1W LED Low Level Light 3000K is a compact architectural marker light designed to illuminate pathways, steps and ground-level features with controlled, warm white lighting. Manufactured by ALL LED, this unidirectional fitting combines a contemporary matte brushed aluminium finish with an ultra-slim profile, making it suitable for residential and commercial installations.
The ALL LED APF032AL/01/30 features an integrated 1W LED, IP65 protection and a frosted glass diffuser that helps soften the light output. Its single-direction illumination provides discreet guidance lighting without the intensity of traditional outdoor floodlights.
Key Features
- Brand: ALL LED
- Product Code: APF032AL/01/30
- Range: Pathfinder
- Light Source: Integrated 1W LED
- Colour Temperature: 3000K Warm White
- Finish: Matte Brushed Aluminium
- Lighting Direction: Unidirectional – Single Direction
- Protection Rating: IP65 – Dust-tight and protected against water jets
- Operating Current: 350mA Constant Current
- Frosted Glass Diffuser: Provides controlled, softer illumination
- Anti-Glare Design: Helps minimise unwanted direct glare
- Profile: Ultra-slim recessed construction
- Drive-Over Rating: Up to 2 metric tonnes when installed with the AGL/MS032 mounting sleeve
- Mounting Sleeve: AGL/MS032, 32mm – Sold Separately
- Cable: 1m pre-wired cable
- Dimming: Compatible with suitable dimmable 350mA constant current drivers
- Driver: Required separately and not included
Unidirectional Lighting for Steps and Pathways
The Pathfinder 1W LED Low Level Light 3000K directs illumination towards one side of the fitting, allowing installers to create clearly defined low-level lighting effects. This unidirectional arrangement is especially useful for staircases, garden paths, corridors and pedestrian access routes where controlled illumination is preferred.
Unlike multidirectional marker lights, the single-direction design allows light to be aimed towards the intended area while reducing unwanted spill. The frosted diffuser further improves visual comfort, producing a balanced lighting effect suited to discreet architectural installations.
Matte Brushed Aluminium and IP65 Protection
The Pathfinder Unidirectional LED Marker Light features a matte brushed aluminium finish that complements contemporary paving, stonework and modern architectural surroundings. Its slim visible profile allows the fitting to integrate neatly into appropriately prepared mounting surfaces.
With an IP65 rating, the fitting is protected against dust ingress and water jets, making it suitable for appropriate indoor and outdoor applications when correctly installed. The integrated LED provides energy-efficient low-level illumination with a comfortable 3000K warm white colour temperature.
Drive-Over Installation with Optional AGL/MS032 Mounting Sleeve
The ALL LED APF032AL/01/30 can withstand drive-over loads of up to 2 metric tonnes when installed correctly using the manufacturer’s AGL/MS032 32mm mounting sleeve. This enables the fitting to be used in suitable paved areas and ground-level locations where occasional vehicle movement may occur.
IMPORTANT: The AGL/MS032 mounting sleeve is sold separately. The stated drive-over rating applies when the correct mounting sleeve is used and the installation follows ALL LED’s instructions.
The supplied 1m pre-wired cable allows connection to a compatible constant current lighting system. Suitable environmental protection must be provided for cable joints and electrical connections.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS CAN PERMANENTLY DAMAGE THE LED MARKER LIGHTS!
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
The ALL LED APF032AL/01/30 operates at 350mA constant current and requires a compatible external LED driver. The driver is sold separately and is not included with the fitting.
- Connect multiple LED marker lights in series, following the manufacturer’s wiring instructions.
- Never connect the fittings in parallel.
- Never connect the LED fittings directly to a 230V mains supply.
- Use a compatible 350mA constant current LED driver with the appropriate output voltage and power range.
- Ensure the total number of connected fittings is within the driver’s specified operating limits.
- Switch off the power supply before installing or modifying any connections.
- All connections must be completed correctly before the driver is energised.
IMPORTANT: Always check the manufacturer’s installation instructions before connecting or powering the fittings. Incorrect wiring or the use of an unsuitable driver may cause permanent LED damage.
Compatible ALL LED 350mA Drivers
The Pathfinder 1W LED Low Level Light 3000K requires a suitable 350mA constant current LED driver. The following ALL LED drivers provide dimmable and non-dimmable options for single and multiple-light installations, subject to the electrical load and output voltage requirements.
- ADRCC350/1-11 – Non-dimmable 350mA driver, supporting 1–11 x 1W LEDs.
- ADRCC350TD/1-4 – Dimmable 350mA driver, supporting 1–4 x 1W LEDs.
- ADRCC350NANOTD/2-4 – Compact dimmable driver, supporting 2–4 x 1W LEDs.
- ADRCC350TD/4-9 – Dimmable 350mA driver, supporting 4–9 x 1W LEDs.
- ADRCC350TD/9-18 – Dimmable 350mA driver, supporting 9–18 x 1W LEDs.
- ADRCC350TD/12-25 – Dimmable 350mA driver, supporting 12–25 x 1W LEDs.
- ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming options.
- ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming options.
For adjustable-output drivers, the operating current must be set to 350mA. The total number of connected fittings must remain within the driver’s specified output voltage and power ranges. Always confirm compatibility against the manufacturer’s technical documentation.
