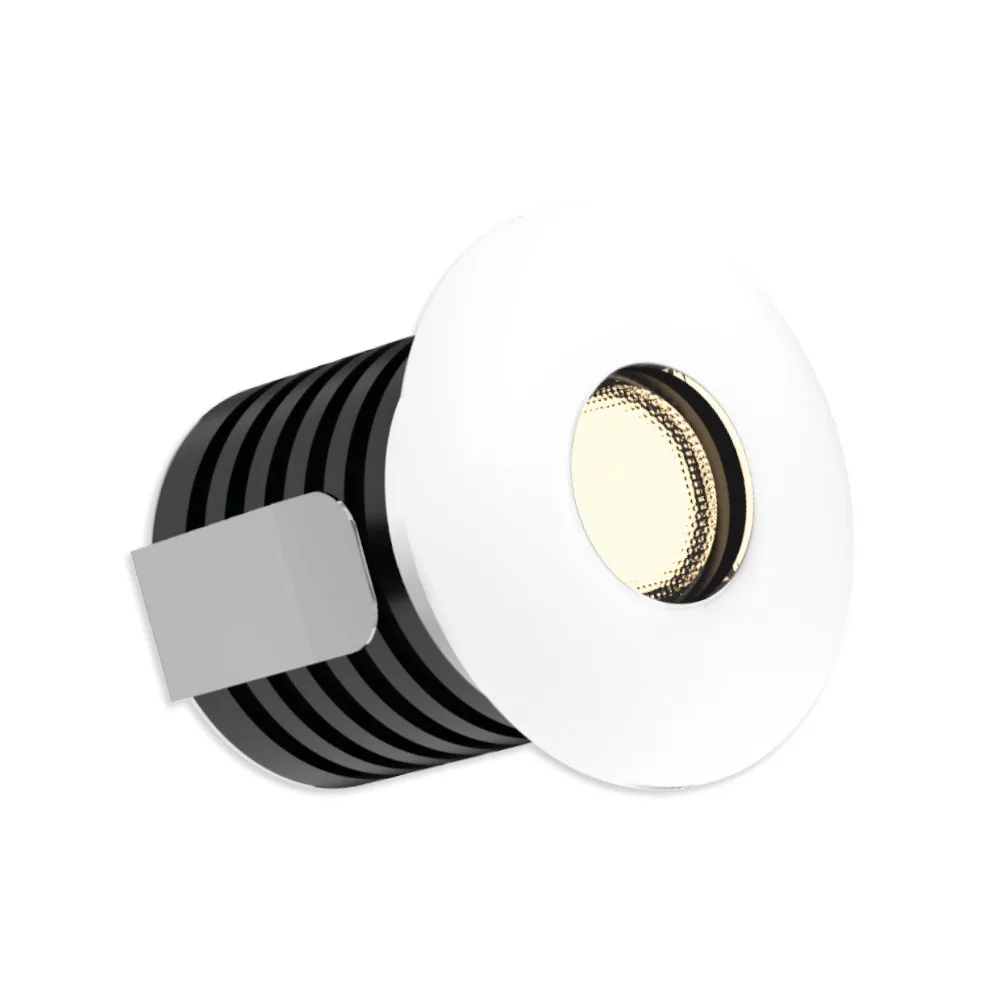

ALL LED AMKR032WH/BL Blue LED Marker Light – IP65 Polar White
The ALL LED AMKR032WH/BL Blue LED Marker Light is a compact 1W recessed fitting designed to create distinctive blue architectural lighting effects. Featuring a powder-coated polar white aluminium housing, IP65 protection and a halogen-style diffusing lens, it provides decorative illumination for bathrooms, staircases, pathways and contemporary interior spaces.
Part of the ALL LED Midi range, this marker light combines energy-efficient CREE LED technology with a discreet 32mm cut-out. The blue light output creates a distinctive visual effect, making the fitting particularly suitable for decorative lighting schemes, feature walls and floor-level accent illumination.
Key Features – ALL LED AMKR032WH/BL Blue LED Marker Light
- 1W recessed LED marker light with blue illumination
- Polar white powder-coated aluminium finish
- Paintable housing for colour-matched installations
- IP65 protection against dust and water jets
- 45° beam angle with halogen-style diffusing lens
- CREE LED diode technology
- Suitable for appropriate floor, wall and ceiling installations
- Designed for suitable walk-over applications
- Drive-over rated up to 2 metric tonnes when installed with the specified AGL/MS032 mounting sleeve
- 32mm cut-out diameter
- 37mm overall diameter
- Pre-wired with 2m cable
- 350mA constant current operation
- Requires a separately purchased LED driver
- Multiple fittings must be connected in series using a compatible driver
- 50,000-hour rated lifetime
- 3-year manufacturer’s guarantee
Decorative Blue Lighting with a Polar White Finish
The ALL LED AMKR032WH/BL Blue LED Marker Light produces a distinctive blue illumination that can be used to highlight architectural details and create decorative lighting effects. Unlike standard warm white or neutral white marker lights, this version provides a coloured accent particularly suited to contemporary interiors and feature lighting installations.
The polar white powder-coated aluminium housing complements light-coloured walls, ceilings and architectural surfaces. Its paintable finish offers additional flexibility where the surrounding decoration requires a coordinated appearance.
The integrated halogen-style diffusing lens provides controlled illumination through a 45° beam angle, making the fitting suitable for creating blue lighting accents along staircases, walls, floors and decorative installations.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | AMKR032WH/BL |
| Product Range | Midi Marker Light |
| Power Consumption | 1W |
| Operating Current | 350mA Constant Current |
| Light Colour | Blue |
| Housing Colour | Polar White |
| Housing Material | Aluminium |
| Finish | Powder-Coated Matt White, Paintable |
| Beam Angle | 45° |
| Luminous Output | Up to 40lm |
| IP Rating | IP65 |
| Cut-Out Diameter | 32mm |
| Overall Diameter | 37mm |
| Recess Depth | 37mm |
| Pre-Wired Cable | 2m |
| LED Technology | CREE |
| Operating Temperature | -20°C to +50°C |
| Rated Lifetime | 50,000 Hours |
| Electrical Classification | Class III |
| Drive-Over Rating | Up to 2 Metric Tonnes with AGL/MS032 Mounting Sleeve |
| Certifications | CE, RoHS, ErP |
| Guarantee | 3 Years |
Compact 32mm Recessed Installation
The ALL LED AMKR032WH/BL Blue LED Marker Light is designed for discreet installation where minimal visual impact is required. Its compact 37mm overall diameter and 32mm cut-out allow the fitting to be incorporated into suitable plasterboard, timber and tiled surfaces.
The polar white bezel creates a clean appearance against light-coloured backgrounds, while the recessed light source provides blue accent illumination without the need for larger decorative luminaires.
With a factory-fitted 2m cable, the marker light can be positioned as part of a carefully planned lighting arrangement. Installers should consider the available recess depth, cable routing and the accessibility of the separately installed LED driver.
Walk-Over and Drive-Over Lighting Applications
The compact aluminium construction makes this Midi marker light suitable for appropriate walk-over lighting installations. Blue illumination can be used to outline pathways, define steps or create decorative effects within entrance areas and architectural floor features.
For drive-over installations, the manufacturer specifies a load rating of up to 2 metric tonnes when the fitting is installed with the appropriate AGL/MS032 32mm mounting sleeve.
The mounting sleeve is required where this drive-over rating is needed. The supporting surface, fixing arrangement and installation conditions must also be suitable for the intended mechanical load.
Its IP65 rating provides protection against dust and water jets, but outdoor installations must still account for drainage, standing water and the manufacturer’s installation requirements.
Compatible 350mA Constant Current LED Drivers
The ALL LED AMKR032WH/BL Blue LED Marker Light operates at 350mA constant current and requires a suitable LED driver, sold separately. The fitting must not be connected directly to a 230V mains supply.
The appropriate driver depends on the number of connected fittings, their combined forward voltage, the driver’s permissible output range and whether dimming is required. Multiple fittings connected to one compatible constant current driver must be wired in series.
Electrical4Less offers a selection of ALL LED constant current drivers for individual fittings and coordinated multi-light installations.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Explore our ALL LED 350mA mains dimmable LED drivers for suitable driver options and lighting control equipment.
Important: The driver’s wattage rating alone does not guarantee compatibility. Always verify its minimum load, maximum load, output voltage range and permitted number of connected LED fittings before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED MARKER LIGHTS!
The ALL LED AMKR032WH/BL Blue LED Marker Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional LED fittings in series using the same arrangement.
- Connect the negative (-) connection of the final fitting back to the negative (-) output of the driver.
- Never connect the fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before switching on the power supply.
- Observe the correct polarity and ensure every connection is secure.
- Check that the driver’s output voltage range and load capacity support the complete series-connected circuit.
- For adjustable constant current drivers, ensure the output is correctly configured to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Always follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected driver. Installation must be carried out by a competent person.
Creating Decorative Blue Lighting Effects
The ALL LED AMKR032WH/BL Blue LED Marker Light offers a distinctive alternative to conventional white architectural lighting. Its blue illumination is particularly suitable for decorative schemes where lighting is intended to contribute to the appearance and atmosphere of a space.
Several fittings can be positioned along a corridor, staircase or architectural feature to create a coordinated pattern of blue accent lighting. The compact recessed design helps maintain a discreet appearance during daylight hours while producing an attractive coloured lighting effect when switched on.
Blue LED marker lights can also be incorporated into entertainment areas, contemporary bathrooms and commercial decorative interiors where a more colourful lighting scheme is preferred.
Multiple Marker Lights and Dimming Control
For installations involving several fittings, the ALL LED AMKR032WH/BL Blue LED Marker Light can be connected in a series circuit using a suitable 350mA constant current driver. This allows installers to plan coordinated lighting arrangements while maintaining the correct operating current through each fitting.
The combined forward voltage of the connected marker lights must fall within the selected driver’s permitted output range. All connections must be completed and checked before the driver is energised.
Where adjustable brightness is required, compatible dimmable drivers can be selected according to the intended control method. Suitable driver options include mains dimming, DALI and 1–10V control, subject to the specifications of the selected equipment.
Energy-Efficient Blue LED Accent Lighting
With a rated power consumption of just 1W, the ALL LED AMKR032WH/BL Blue LED Marker Light provides an energy-efficient way to introduce coloured lighting into residential and commercial installations.
Its CREE LED technology and integrated diffusing lens produce controlled blue illumination through a 45° beam angle. The compact design is particularly useful where decorative lighting is required without the appearance of larger light fittings.
The 50,000-hour rated lifetime makes this marker light suitable for installations where dependable long-term operation is important, while the 3-year manufacturer’s guarantee provides additional reassurance.
Suitable Applications – ALL LED AMKR032WH/BL Blue LED Marker Light
The compact dimensions, distinctive blue output and IP65 protection make this recessed marker light suitable for various decorative architectural lighting projects.
- Bathroom accent lighting in appropriately assessed Zone 1 and Zone 2 locations
- Decorative blue stairway and step illumination
- Feature wall lighting
- Floor-level architectural lighting
- Contemporary residential interiors
- Commercial decorative lighting schemes
- Entertainment and leisure areas
- Suitable walk-over lighting installations
- Drive-over applications with the specified AGL/MS032 mounting sleeve and suitable installation conditions
- Appropriate outdoor architectural lighting locations
The ALL LED AMKR032WH/BL Blue LED Marker Light is particularly effective where a decorative blue lighting effect is required alongside a discreet polar white fitting. Its combination of compact recessed mounting, coloured illumination and durable aluminium construction makes it suitable for carefully planned architectural lighting designs.
Why Choose the ALL LED Midi Blue Marker Light?
For professional electricians and lighting installers, the ALL LED AMKR032WH/BL Blue LED Marker Light combines distinctive blue illumination with a compact 32mm cut-out, a paintable polar white finish and 350mA constant current operation.
Its IP65 protection, 50,000-hour rated lifetime and compatibility with suitable LED drivers make it a practical option for individual accent lights and larger coordinated installations.
Order the ALL LED AMKR032WH/BL Blue LED Marker Light from Electrical4Less for architectural lighting, compatible 350mA constant current drivers and professional electrical installation accessories.
