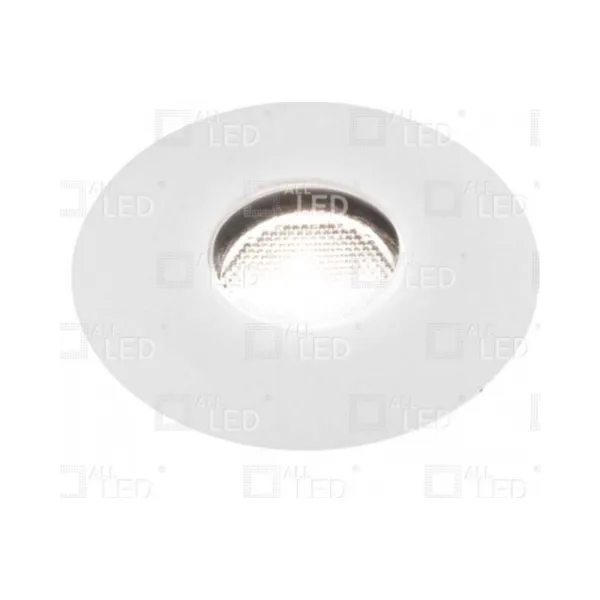

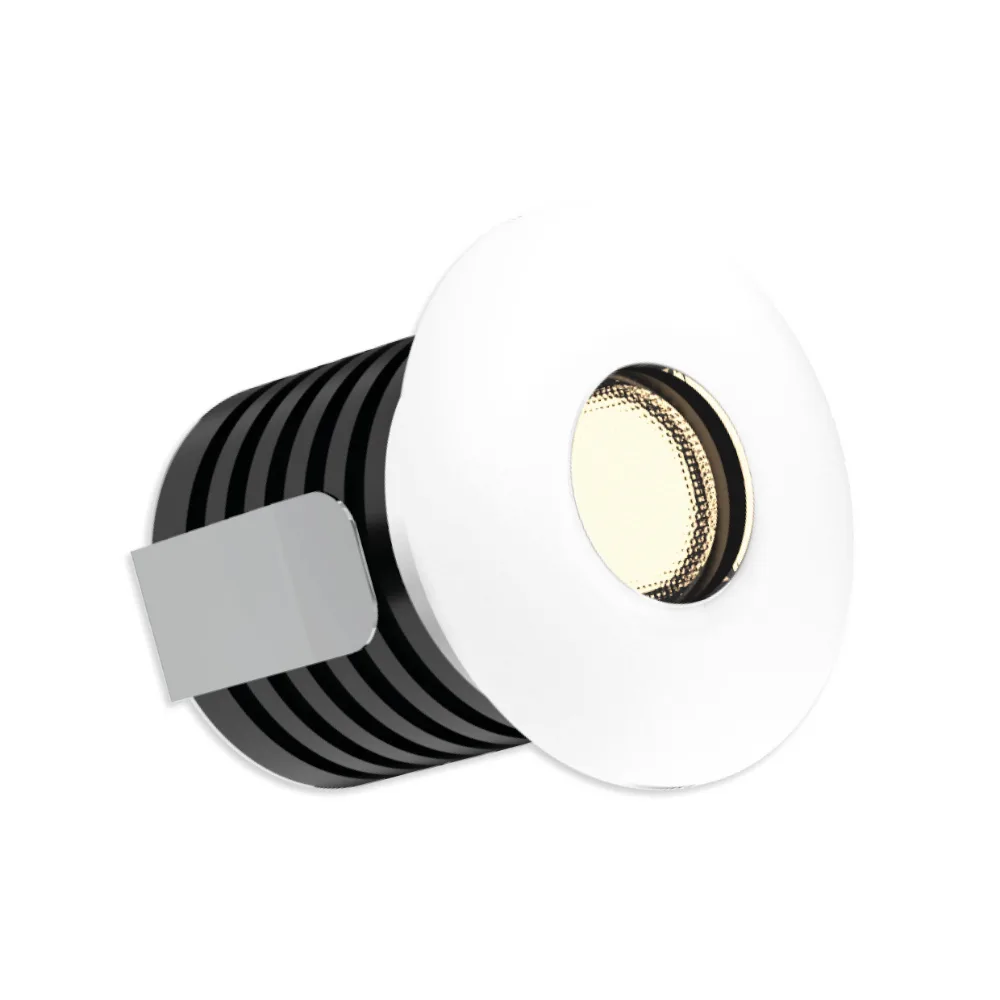

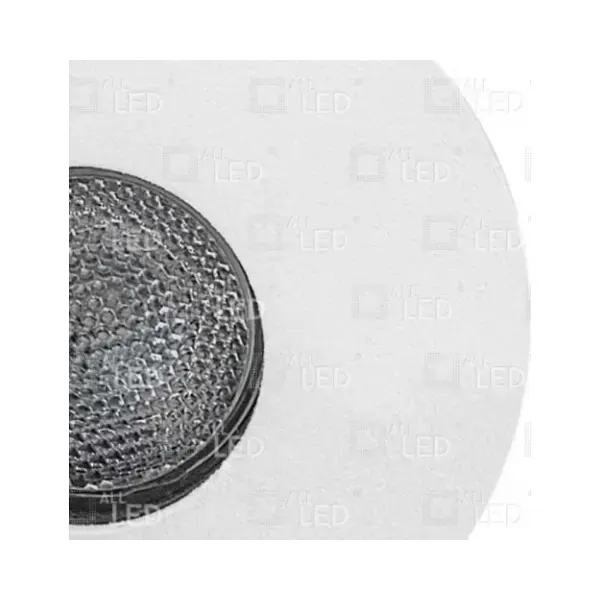

ALL LED AMKR032WH/40 Midi LED Marker Light – 4000K Polar White
The ALL LED AMKR032WH/40 Midi LED Marker Light is a compact 1W recessed fitting designed for decorative and architectural lighting. Featuring a powder-coated polar white finish, 4000K neutral white output and an IP65 rating, it provides discreet illumination for bathrooms, stairways, corridors and suitable outdoor lighting installations.
Manufactured from aluminium, this marker light incorporates CREE LED technology and a halogen-style diffusing lens for controlled light distribution. Its compact dimensions and 32mm cut-out make it suitable for installation in floors, walls and ceilings, making it a practical choice for both residential and commercial lighting projects.
Key Features – ALL LED AMKR032WH/40 Midi LED Marker Light
- 1W low-energy recessed LED marker light
- 4000K neutral white colour temperature
- Polar white powder-coated aluminium finish
- Paintable housing to complement surrounding surfaces
- IP65 protection against dust and water jets
- 45° beam angle with halogen-style diffusing lens
- CREE LED diode technology
- Suitable for walk-over installations
- Compact 32mm cut-out diameter
- Pre-wired with 2m cable
- Requires a separate 350mA constant current driver
- Multiple fittings must be connected in series using a suitable driver
- 50,000-hour rated lifetime
- 3-year manufacturer’s guarantee
4000K Neutral White Architectural Lighting
The ALL LED AMKR032WH/40 Midi LED Marker Light produces crisp 4000K neutral white illumination, making it suitable for contemporary interiors and commercial environments. Its 45° beam angle helps highlight architectural details, floor edges, stairways and decorative features without overpowering the surrounding space.
The matt polar white finish blends neatly into light-coloured surfaces, while the paintable powder-coated housing provides additional flexibility where colour coordination is important. The halogen-style diffusing lens helps create controlled light distribution for discreet accent lighting.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | AMKR032WH/40 |
| Range | Midi Marker Light |
| Power Consumption | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 4000K Neutral White |
| Housing Colour | Polar White |
| Housing Material | Aluminium |
| Finish | Powder-Coated Matt White, Paintable |
| Beam Angle | 45° |
| Luminous Output | Up to 95lm |
| CRI | >80 |
| IP Rating | IP65 |
| Cut-Out Diameter | 32mm |
| Overall Diameter | 37mm |
| Recess Depth | 37mm |
| Pre-Wired Cable | 2m |
| LED Technology | CREE |
| Operating Temperature | -20°C to +50°C |
| Rated Lifetime | 50,000 Hours |
| Electrical Class | Class III |
| Certifications | CE, RoHS, ErP |
| Guarantee | 3 Years |
Compact Recessed Lighting for Modern Installations
The ALL LED AMKR032WH/40 Midi LED Marker Light is particularly useful where traditional lighting fittings would be too large or visually intrusive. With an overall diameter of just 37mm and a 32mm cut-out, this recessed marker light can be integrated discreetly into architectural surfaces while providing practical accent illumination.
Its compact construction makes it suitable for decorative lighting arrangements in corridors, stairways, bathrooms and other areas where space is limited. The polar white finish is especially effective against pale walls, ceilings and interior surfaces, creating a coordinated appearance without drawing unnecessary attention to the fitting.
Whether used as a single accent light or incorporated into a larger lighting arrangement, the Midi marker light offers a straightforward way to highlight architectural details, define pathways and create subtle lighting effects.
Compatible 350mA Constant Current LED Drivers
The ALL LED AMKR032WH/40 Midi LED Marker Light operates at 350mA constant current and requires a suitable LED driver. The driver is not included and must be purchased separately.
Driver selection depends on the number of fittings being connected, the driver’s supported output voltage and load range, and whether dimming functionality is required. When connecting multiple marker lights to one compatible constant current driver, the fittings must be wired in series.
Electrical4Less offers a selection of ALL LED drivers for different lighting configurations, including non-dimmable, mains-dimmable and adjustable constant current models.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano constant current driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured for 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured for 350mA.
Explore our ALL LED 350mA mains dimmable LED drivers for additional driver options suitable for constant current lighting installations.
Always verify the selected driver’s permitted load, output voltage range, connection method and compatibility with the total number of connected LED fittings before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES CONNECTION ONLY
WARNING: INCORRECT CONNECTIONS CAN PERMANENTLY DAMAGE THE LED MARKER LIGHTS!
The ALL LED AMKR032WH/40 Midi LED Marker Light is a 350mA CONSTANT CURRENT fitting. It must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional LED fittings in series using the same arrangement.
- Connect the negative (-) connection of the final LED fitting back to the negative (-) output of the driver.
- Never connect the LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and check all connections before switching on the power supply.
- Observe the correct polarity and ensure every connection is secure.
- Check that the driver’s output voltage and load range support the complete series-connected circuit.
- For adjustable constant current drivers, ensure the output is correctly configured to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING, AN UNSUITABLE DRIVER OR CONNECTING FITTINGS WHILE POWERED MAY CAUSE IRREVERSIBLE LED DAMAGE.
Always follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected LED driver. Installation must be carried out by a competent person.
Multiple LED Marker Light Installations
For larger projects requiring several matching fittings, the ALL LED AMKR032WH/40 Midi LED Marker Light can be incorporated into a series-connected lighting circuit using a suitably rated 350mA constant current driver. This makes it practical for creating coordinated lighting effects along staircases, corridors and other architectural features.
Before installation, the total LED load and combined forward voltage must be checked against the selected driver’s specifications. Drivers with different output ranges are available to accommodate different numbers of fittings, provided the manufacturer’s compatibility requirements are satisfied.
Where dimming is required, a compatible dimmable driver should be selected. The dimming method must also be suitable for the intended lighting controls, whether mains dimming, DALI or 1–10V control.
Energy-Efficient 4000K LED Accent Lighting
With a power consumption of just 1W per fitting, the ALL LED AMKR032WH/40 Midi LED Marker Light provides an energy-efficient solution for decorative lighting projects. Its 4000K neutral white output produces a balanced lighting effect suitable for contemporary interiors, white finishes and modern architectural materials.
The combination of CREE LED technology, a halogen-style diffusing lens and a 45° beam angle helps create focused illumination for steps, corridors and decorative features. With a rated lifetime of 50,000 hours, the fitting is also suitable for installations where long-term performance and reduced maintenance requirements are important.
Suitable Applications – ALL LED AMKR032WH/40 Midi LED Marker Light
The compact construction, IP65 rating and recessed design make this marker light suitable for a variety of residential and commercial lighting applications.
- Bathroom accent lighting, including suitably installed Zone 1 and Zone 2 applications
- Stairway and step illumination
- Decorative floor and wall lighting
- Corridor and hallway marker lighting
- Commercial interior architectural lighting
- Walk-over lighting applications
- Suitable outdoor architectural installations
- Decorative illumination around architectural features
The ALL LED AMKR032WH/40 Midi LED Marker Light is particularly effective in installations where subtle lighting is preferred over large visible luminaires. Its compact dimensions help maintain a clean architectural appearance while providing practical illumination where required.
Why Choose the ALL LED Midi Marker Light?
For professional installers, the ALL LED AMKR032WH/40 Midi LED Marker Light provides a versatile solution for creating subtle lighting effects in bathrooms, staircases, corridors and architectural features. Its compact recessed design, polar white aluminium construction and 350mA constant current operation make it suitable for carefully planned lighting installations.
The combination of IP65 protection, a 50,000-hour rated lifetime, a 3-year manufacturer’s guarantee and a wide choice of compatible LED drivers makes the fitting suitable for individual accent lighting and larger installations requiring multiple matching marker lights.
Order the ALL LED AMKR032WH/40 Midi LED Marker Light from Electrical4Less, your supplier of professional electrical installation products, architectural lighting and compatible LED control gear.
