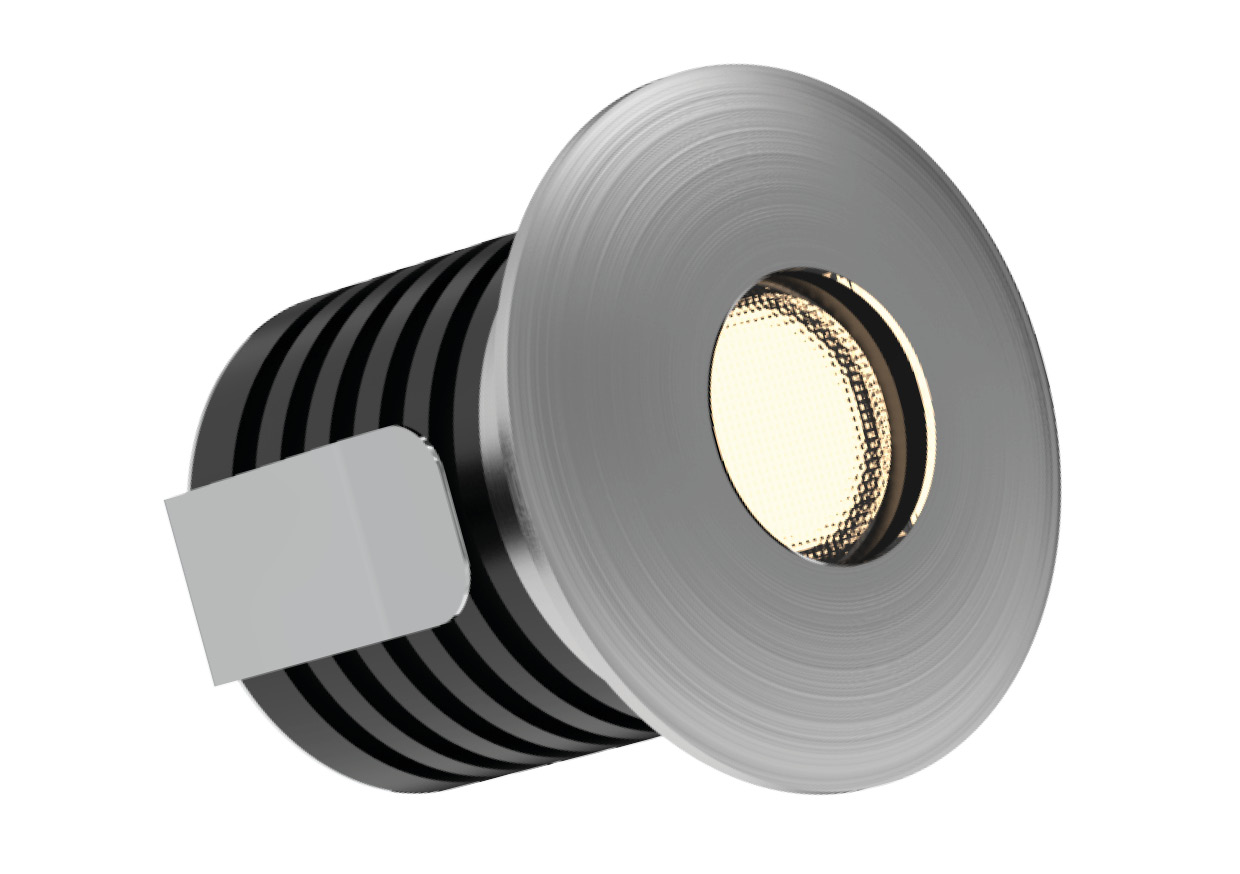

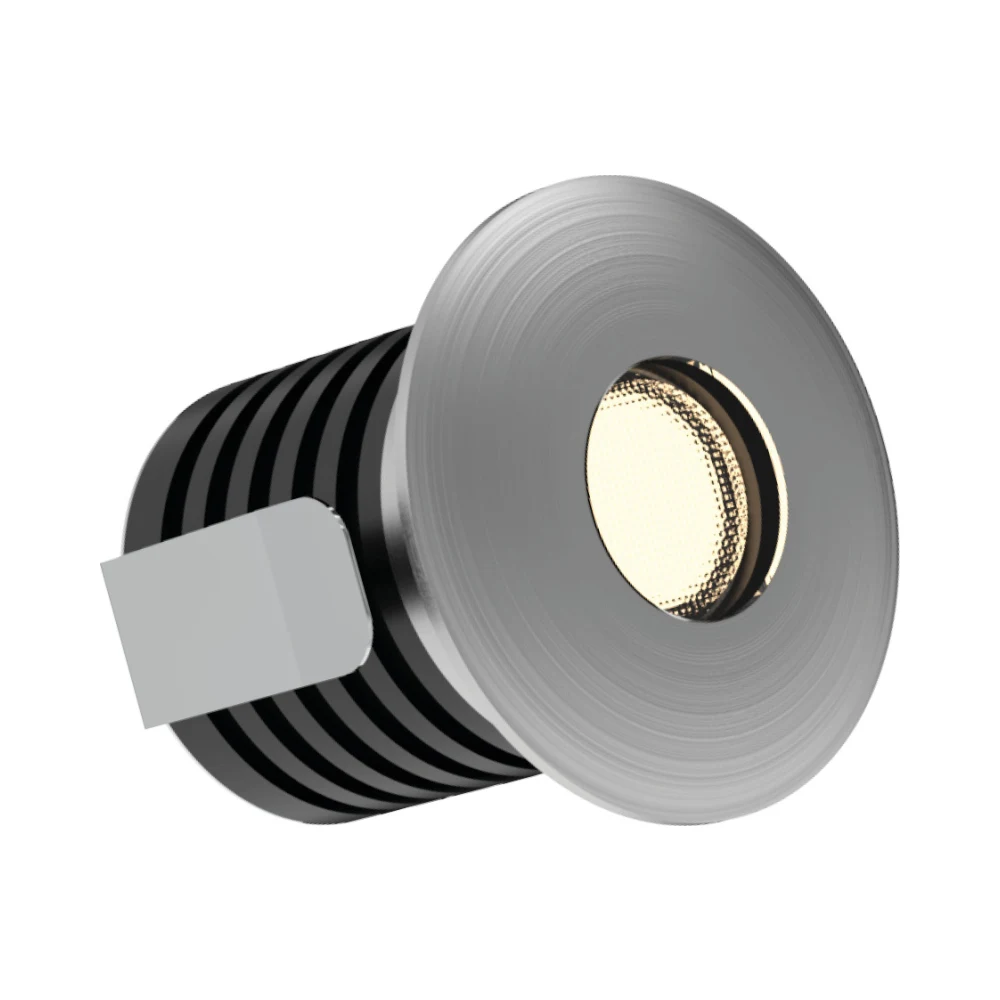

ALL LED AMKR032AL/BL Blue LED Marker Light – Brushed Aluminium IP65
The ALL LED AMKR032AL/BL Blue LED Marker Light is a compact 1W recessed fitting designed to introduce striking blue illumination into modern architectural lighting schemes. Combining a matt brushed aluminium finish, energy-efficient CREE LED technology and IP65 protection, this Midi marker light is suitable for decorative floor, wall and ceiling installations.
With its integrated halogen-style diffusing lens and 45° beam angle, the fitting provides controlled blue accent lighting for bathrooms, staircases, corridors and contemporary interiors. Its compact 32mm cut-out and 37mm overall diameter allow discreet installation where larger decorative luminaires would be visually intrusive.
Key Features – ALL LED AMKR032AL/BL Blue LED Marker Light
- 1W recessed LED marker light with distinctive blue illumination
- Contemporary matt brushed aluminium finish
- Durable aluminium housing
- IP65 protection against dust and water jets
- 45° beam angle for controlled accent lighting
- Integrated halogen-style diffusing lens
- Energy-efficient CREE LED diode technology
- Suitable for recessed floor, wall and ceiling installations
- Designed for appropriate walk-over applications
- Compact 32mm cut-out diameter
- 37mm overall diameter
- Pre-wired with 2m cable
- 350mA constant current operation
- Requires a separately purchased constant current LED driver
- Multiple fittings must be wired in series using a suitable driver
- 50,000-hour rated lifetime
- 3-year manufacturer’s guarantee
Vibrant Blue Illumination with a Brushed Aluminium Finish
The ALL LED AMKR032AL/BL Blue LED Marker Light offers a distinctive alternative to conventional warm white and neutral white recessed lighting. Its blue LED output creates a decorative lighting effect that can highlight architectural details, define pathways and introduce colour into contemporary interiors.
The matt brushed aluminium bezel complements modern fittings, stainless steel accessories, stone surfaces and contemporary decorative materials. Its metallic finish provides a subtle contrast against darker floors and walls while maintaining a discreet appearance when the light is switched off.
The integrated diffusing lens helps distribute the blue light through a controlled 45° beam, making the fitting particularly useful for feature walls, recessed floor lighting and decorative staircase installations.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | AMKR032AL/BL |
| Product Range | Midi Marker Light |
| Power Consumption | 1W |
| Operating Current | 350mA Constant Current |
| Light Colour | Blue |
| Housing Finish | Matt Brushed Aluminium |
| Housing Material | Aluminium |
| Beam Angle | 45° |
| Luminous Output | Up to 40lm |
| IP Rating | IP65 |
| Cut-Out Diameter | 32mm |
| Overall Diameter | 37mm |
| Recess Depth | 37mm |
| Pre-Wired Cable | 2m |
| LED Technology | CREE |
| Operating Temperature | -20°C to +50°C |
| Rated Lifetime | 50,000 Hours |
| Electrical Classification | Class III |
| Certifications | CE, RoHS, ErP |
| Guarantee | 3 Years |
Compact 32mm Recessed Installation
The ALL LED AMKR032AL/BL Blue LED Marker Light is designed for installations requiring a compact and unobtrusive light fitting. Its 32mm cut-out and 37mm overall diameter make it suitable for discreet recessed mounting in compatible architectural surfaces.
The brushed aluminium bezel creates a neat finish when installed into suitable timber, plasterboard or tiled surfaces. The small dimensions are particularly beneficial for decorative lighting schemes where the appearance of the fitting should remain secondary to the lighting effect.
A factory-fitted 2m cable provides flexibility when routing connections to a compatible constant current LED driver. Installers should allow adequate space for the fitting, cable routing and any required connection accessories.
Walk-Over and Outdoor Architectural Lighting
The robust aluminium construction of the Midi marker light makes it suitable for appropriately designed walk-over lighting installations. Its blue output can be used to define pathways, highlight steps and provide decorative illumination around entrances and architectural features.
The IP65 rating provides protection against dust and water jets, making the fitting suitable for certain bathroom and sheltered outdoor applications. The selected installation location must still be assessed for water accumulation, mechanical loading and the manufacturer’s mounting requirements.
Where the fitting may be exposed to vehicle traffic or additional mechanical loads, a suitable manufacturer-approved mounting arrangement and confirmed load rating are essential. Do not assume the standard fitting alone is suitable for drive-over installations.
Compatible 350mA Constant Current LED Drivers
The ALL LED AMKR032AL/BL Blue LED Marker Light operates at 350mA constant current and requires a suitable LED driver, which must be purchased separately. The fitting is not designed for direct connection to a 230V mains supply.
Driver selection depends on the number of connected fittings, their combined forward voltage, the driver’s specified operating range and whether dimming functionality is required. When multiple marker lights are supplied from one compatible constant current driver, they must be connected in series.
Electrical4Less offers a selection of ALL LED constant current drivers for individual fittings and larger decorative lighting arrangements.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Browse our ALL LED 350mA mains dimmable LED drivers for additional driver options and compatible lighting control equipment.
Important: The wattage range printed on a driver does not automatically guarantee compatibility. The total LED forward voltage, minimum load, maximum load and driver’s approved connection arrangement must be checked before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED MARKER LIGHTS!
The ALL LED AMKR032AL/BL Blue LED Marker Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional LED fittings in series using the same arrangement.
- Connect the negative (-) connection of the final fitting back to the negative (-) output of the driver.
- Never connect these 350mA LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before applying power.
- Observe the correct polarity and ensure every connection is secure.
- Check that the selected driver supports the combined forward voltage and load of the complete LED circuit.
- Adjustable constant current drivers must be correctly configured to 350mA before the circuit is energised.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected driver. Electrical installation must be carried out by a competent person.
Creating Decorative Blue Architectural Lighting
The ALL LED AMKR032AL/BL Blue LED Marker Light provides a distinctive way to introduce coloured illumination into architectural projects. Its blue LED output is particularly effective when used to accentuate modern interior features, define floor edges or create decorative lighting patterns.
Several matching marker lights can be positioned along walls, steps or corridors to produce a coordinated blue lighting arrangement. The compact recessed design keeps the fittings discreet while allowing the illumination itself to become the main decorative feature.
The matt brushed aluminium finish makes this version especially suitable for contemporary interiors where metallic accessories and architectural detailing form part of the overall design.
Multiple Marker Lights and Dimming Control
For installations requiring several fittings, the ALL LED AMKR032AL/BL Blue LED Marker Light can be incorporated into a series-connected circuit using an appropriately specified 350mA constant current driver.
Correct driver selection is particularly important when installing multiple fittings. The combined LED forward voltage must fall within the driver’s permitted output voltage range, and the total connected load must satisfy the manufacturer’s requirements.
Where variable brightness is required, suitable dimmable constant current drivers can be selected according to the intended control system. ALL LED driver options include mains-dimmable, DALI and 1–10V arrangements, depending on the selected model.
Energy-Efficient Blue LED Accent Lighting
With a rated power consumption of just 1W, the ALL LED AMKR032AL/BL Blue LED Marker Light offers an efficient solution for decorative coloured lighting. Its compact design makes it particularly useful where a number of small luminaires are required to create a consistent lighting effect.
The CREE LED diode and integrated diffusing lens provide controlled blue illumination through a 45° beam angle. This makes the fitting suitable for highlighting selected architectural details without introducing larger visible light fittings.
Its 50,000-hour rated lifetime and 3-year manufacturer’s guarantee also make it a practical option for carefully planned residential and commercial lighting installations.
Suitable Applications – ALL LED AMKR032AL/BL Blue LED Marker Light
The combination of distinctive blue illumination, a compact brushed aluminium housing and IP65 protection makes this marker light suitable for decorative lighting applications, including:
- Bathroom accent lighting in appropriately assessed Zone 1 and Zone 2 locations
- Decorative staircase and step illumination
- Blue feature wall lighting
- Recessed floor-level architectural lighting
- Contemporary residential interiors
- Commercial decorative lighting schemes
- Entertainment and leisure areas
- Suitable walk-over lighting installations
- Appropriate outdoor architectural lighting locations
- Accent lighting around entrances, corridors and decorative features
The ALL LED AMKR032AL/BL Blue LED Marker Light is an excellent option where coloured accent lighting needs to complement modern architectural finishes. Its 37mm overall diameter allows the fitting to remain visually discreet, while the blue light output provides a distinctive decorative effect.
Why Choose the ALL LED Midi Blue Marker Light?
For professional electricians and lighting installers, the ALL LED AMKR032AL/BL Blue LED Marker Light combines a compact 32mm cut-out, matt brushed aluminium construction and energy-efficient blue illumination. Its 350mA constant current operation makes it suitable for individual fittings and correctly designed multi-light installations using compatible LED drivers.
The combination of IP65 protection, a 50,000-hour rated lifetime, a 3-year manufacturer’s guarantee and a selection of compatible drivers provides flexibility for residential and commercial architectural lighting projects.
Order the ALL LED AMKR032AL/BL Blue LED Marker Light from Electrical4Less for professional architectural lighting, compatible LED drivers and electrical installation accessories.
