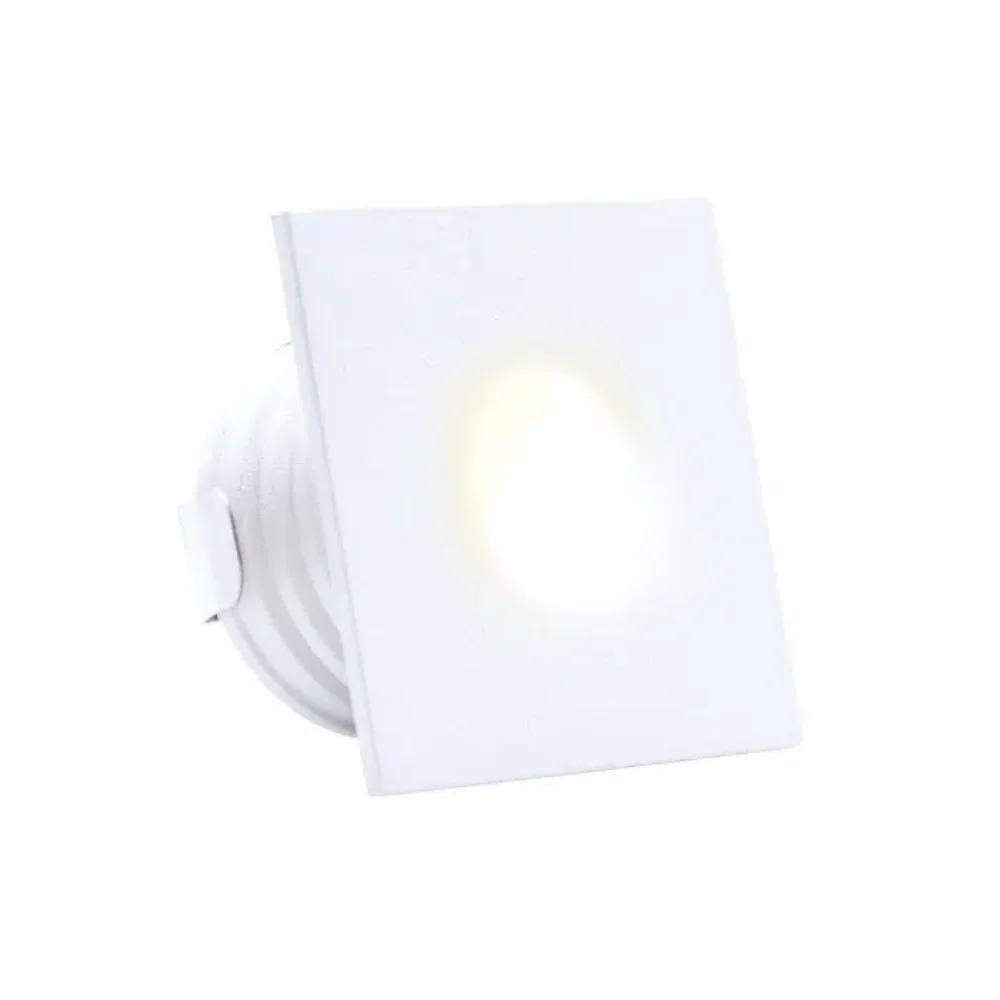

ALL LED ALSQ032WH/40 Sloane Classic LED Light – Polar White 4000K
The ALL LED ALSQ032WH/40 Sloane Classic LED Light is a compact 1W recessed architectural fitting designed to provide comfortable low-level illumination for residential and commercial properties. Featuring a Polar White finish, 4000K neutral white output and IP65 protection, this discreet LED light is particularly suitable for staircases, hallways, walls and decorative plinth lighting.
Part of the ALL LED Sloane Classic range, this fitting incorporates a frosted glass diffuser that distributes light evenly and helps reduce glare. Its ultra-slim profile allows discreet integration into architectural surfaces, making it a practical choice for installations where soft illumination and a clean appearance are important.
Key Features – ALL LED ALSQ032WH/40 Sloane Classic LED Light
- 1W energy-efficient recessed low-level LED light
- 4000K neutral white colour temperature
- Contemporary Polar White finish
- Frosted glass diffuser for soft, even illumination
- Anti-glare design for comfortable accent lighting
- IP65 protection against dust and water jets
- Ultra-slim profile for discreet recessed installation
- Suitable for architectural wall and plinth lighting
- Ideal for staircases, hallways and corridors
- Suitable for appropriately assessed indoor and outdoor installations
- 350mA constant current operation
- Dimmable when paired with a compatible dimmable LED driver
- Supplied with a 1-metre pre-wired cable
- Requires a separately purchased constant current LED driver
- Multiple fittings must be connected in series using a compatible driver
4000K Neutral White Lighting with a Frosted Glass Diffuser
The ALL LED ALSQ032WH/40 Sloane Classic LED Light produces 4000K neutral white illumination, offering a clean, balanced lighting effect for contemporary interiors. This colour temperature is particularly suitable for modern staircases, hallways, corridors and architectural areas where a neutral lighting appearance is preferred.
The integrated frosted glass diffuser helps distribute illumination evenly while softening the appearance of the LED light source. Unlike architectural fittings featuring clear glass lenses that produce sharply defined beams, the Sloane Classic offers a more diffused lighting effect.
This makes the fitting particularly useful for low-level lighting where subtle illumination is required without pronounced light patterns or excessive glare. The 4000K light output also complements white walls, neutral decorative finishes and contemporary interior materials.
Polar White Finish and Contemporary Styling
The Polar White finish allows the Sloane Classic fitting to blend discreetly into white-painted walls, pale architectural surfaces and modern interior schemes.
Its ultra-slim construction helps minimise the visual impact of the fitting, making it suitable for areas where conventional wall-mounted luminaires would be too prominent.
The clean white appearance complements modern switches, sockets and decorative accessories, providing a coordinated finish across residential and commercial installations.
For larger projects requiring several matching fittings, the Polar White version offers a discreet alternative to brushed aluminium and polished chrome finishes.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALSQ032WH/40 |
| Product Range | Sloane Classic |
| Product Type | Recessed Low-Level LED Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 4000K Neutral White |
| Finish | Polar White |
| Diffuser | Frosted Glass |
| Light Distribution | Soft, Evenly Distributed Illumination |
| Glare Control | Anti-Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | Yes, with Compatible Dimmable LED Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring with Compatible Constant Current Driver |
Discreet Low-Level Lighting for Staircases and Hallways
The ALL LED ALSQ032WH/40 Sloane Classic LED Light is particularly useful for staircases and hallways where discreet supplementary lighting can enhance the appearance of the surrounding architecture.
When recessed into a suitable wall at low level, the fitting provides soft illumination across nearby steps, floor surfaces and decorative features. Its frosted glass diffuser creates a smoother lighting effect than a conventional clear-lens architectural fitting.
For longer corridors or staircases, multiple Sloane Classic fittings can be positioned at carefully planned intervals to establish a consistent lighting arrangement. The Polar White finish helps the lights blend into pale walls when switched off.
The 4000K neutral white output creates a clean appearance, making it particularly suitable for contemporary residential interiors, apartment developments and commercial circulation spaces.
Ultra-Slim Recessed Installation
The Sloane Classic range is designed for discreet architectural integration, featuring an ultra-slim profile that helps reduce the visible appearance of the fitting.
The ALL LED ALSQ032WH/40 Sloane Classic LED Light can be incorporated into suitable recessed wall and plinth installations, subject to the manufacturer’s mounting requirements and available installation dimensions.
Its factory-fitted 1-metre cable provides a convenient connection for routing towards the selected 350mA constant current LED driver. Installers should consider recess depth, cable routing, electrical connection accessibility and driver positioning before completing the installation.
The fitting requires a separate constant current LED driver and must never be connected directly to a 230V mains supply.
Compatible 350mA Constant Current LED Drivers
The ALL LED ALSQ032WH/40 Sloane Classic LED Light operates at 350mA constant current and requires a suitable LED driver, which is sold separately.
The correct driver depends on the number of connected fittings, their combined forward voltage, the driver’s permitted output range and whether dimming functionality is required. Multiple fittings connected to one compatible constant current driver must be wired in series.
Electrical4Less offers a selection of ALL LED constant current drivers for individual architectural lights and coordinated multi-fitting installations.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Browse our ALL LED 350mA mains dimmable LED drivers to explore additional driver options and suitable lighting control equipment.
Important: A driver’s wattage range alone does not guarantee compatibility. Always verify its output voltage range, minimum load, maximum load and approved connection arrangement before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALSQ032WH/40 Sloane Classic LED Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional fittings in series using the same arrangement.
- Connect the negative (-) connection of the final fitting back to the negative (-) output of the driver.
- Never connect these LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before switching on the power supply.
- Observe correct polarity and ensure all electrical connections are secure.
- Check that the driver’s output voltage range and load capacity support the complete series-connected circuit.
- For adjustable constant current drivers, ensure the output is correctly configured to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected LED driver. Installation must be carried out by a competent person.
Multiple Sloane Classic Lights and Dimming Control
For projects requiring several matching fittings, the ALL LED ALSQ032WH/40 Sloane Classic LED Light can be incorporated into coordinated architectural lighting arrangements using a suitable 350mA constant current LED driver.
Multiple lights can be positioned along staircases, corridors and decorative wall features to provide consistent neutral white illumination. The frosted glass diffuser creates a smooth appearance, making the fitting particularly useful for subtle lighting schemes.
When several LED fittings are connected to one driver, their combined forward voltage must fall within the driver’s specified operating range. All connections must be completed securely in series before energising the circuit.
Where adjustable brightness is required, a compatible dimmable driver can be selected according to the intended control system. ALL LED driver options include mains dimming, DALI and 1–10V control, depending on the selected model.
Energy-Efficient 1W Neutral White Low-Level Lighting
With a rated power consumption of just 1W, the ALL LED ALSQ032WH/40 Sloane Classic LED Light provides an efficient solution for decorative architectural lighting and discreet low-level illumination.
Its 4000K neutral white output creates a balanced lighting appearance, while the frosted glass diffuser helps soften the light distribution. This makes the fitting well suited to contemporary interiors where comfortable illumination and discreet architectural styling are important.
Unlike clear-lens architectural lights designed to produce pronounced beams, the Sloane Classic offers a more diffused effect that can be used to complement the main lighting installation.
For larger projects, multiple low-wattage fittings can be incorporated into a coordinated lighting scheme while keeping individual fitting power consumption low.
Suitable Applications – ALL LED ALSQ032WH/40 Sloane Classic LED Light
The combination of its Polar White finish, 4000K neutral white output, frosted glass diffuser and IP65 protection makes this fitting suitable for a variety of residential and commercial architectural lighting applications.
- Staircase and step-level wall lighting
- Low-level corridor and hallway illumination
- Decorative recessed wall lighting
- Architectural plinth lighting
- Contemporary residential interiors
- Commercial architectural lighting installations
- Entrance and lobby accent illumination
- Suitable bathroom installations
- Appropriate outdoor architectural lighting locations
- Decorative illumination around architectural wall features
The ALL LED ALSQ032WH/40 Sloane Classic LED Light is particularly suitable where soft, low-glare illumination needs to blend discreetly into light-coloured walls and modern architectural finishes. Its Polar White design maintains a clean appearance, while the frosted glass diffuser creates an attractive neutral white lighting effect.
Why Choose the ALL LED Sloane Classic LED Light?
For professional electricians and lighting designers, the ALL LED ALSQ032WH/40 Sloane Classic LED Light combines efficient 1W operation, a contemporary Polar White finish, frosted glass diffusion and IP65 protection.
Its 350mA constant current design provides flexibility for individual fittings and correctly planned multi-light installations using compatible LED drivers. Dimming can also be incorporated when an appropriate dimmable driver and suitable lighting control system are selected.
Order the ALL LED ALSQ032WH/40 Sloane Classic LED Light from Electrical4Less for professional architectural lighting, compatible 350mA constant current drivers and electrical installation accessories.
