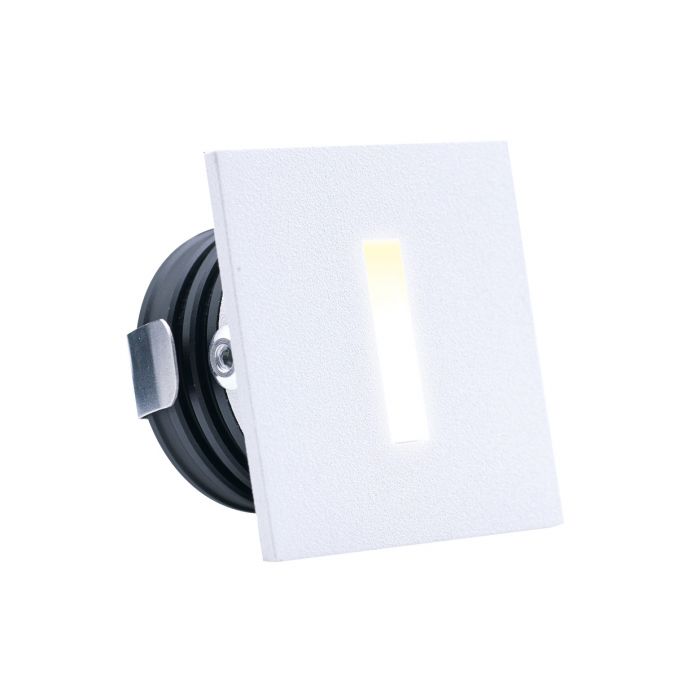

ALL LED ALSQ032SC/WH/30 Sloane Linear Polar White 3000K
The ALL LED ALSQ032SC/WH/30 Sloane Linear Polar White 3000K is a compact 1W recessed LED marker light designed for architectural accent lighting and low-level illumination. Combining a Polar White finish with warm 3000K light output and IP65 protection, this fitting provides an attractive lighting solution for staircases, corridors, walls and decorative plinths.
Unlike the Sloane Classic range, which incorporates a frosted glass diffuser, the Sloane Linear features a clear glass lens designed to produce a more defined, sharp-edged lighting effect. This makes it particularly suitable for highlighting architectural details and creating distinctive low-level lighting patterns.
Key Features – Sloane Linear LED Marker Light
- 1W energy-efficient recessed LED marker light
- 3000K warm white colour temperature
- Contemporary Polar White finish
- Clear glass lens for sharp-edged light distribution
- Anti-glare design for comfortable accent lighting
- IP65 protection against dust and water jets
- Ultra-slim profile for discreet recessed installation
- Suitable for staircase, wall and plinth lighting
- Suitable for appropriately assessed indoor and outdoor installations
- 350mA constant current operation
- Dimmable using a compatible dimmable LED driver
- Supplied with a 1-metre pre-wired cable
- Requires a separately purchased 350mA constant current LED driver
- Multiple fittings must be wired in series
Defined 3000K Warm White Architectural Lighting
The ALL LED ALSQ032SC/WH/30 Sloane Linear Polar White 3000K produces warm white illumination suited to decorative architectural applications. Its clear glass lens creates a more precisely defined lighting effect than fittings with frosted diffusers.
This characteristic makes the Sloane Linear an attractive option for installations where the appearance of the illuminated surface is an important design consideration.
Positioned along staircases, walls or corridors, these recessed marker lights can create coordinated lighting patterns while complementing the main lighting installation.
Polar White Finish and Ultra-Slim Design
The Polar White finish offers a clean, understated appearance that blends naturally with white-painted walls, decorative panels and contemporary interior surfaces.
Its ultra-slim profile allows the fitting to sit discreetly within suitable recessed mounting locations, reducing the visual impact of the luminaire when switched off.
For installations featuring several marker lights, the matching white finish helps maintain a consistent appearance throughout staircases, corridors and architectural features.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALSQ032SC/WH/30 |
| Product Range | Sloane Linear |
| Product Type | Recessed LED Marker Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 3000K Warm White |
| Finish | Polar White |
| Lens | Clear Glass |
| Light Distribution | Defined, Sharp-Edged Beam |
| Glare Control | Anti-Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | Yes, with Compatible Dimmable Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring |
Recessed Marker Lighting for Staircases and Walls
The Sloane Linear range is particularly suitable for lighting designs where a compact recessed luminaire is preferred over conventional surface-mounted wall lighting.
Installed at low level, the fitting can provide supplementary illumination along staircases, hallways and architectural surfaces. Its clear lens produces a more defined visual effect, making it suitable for decorative arrangements where the light pattern itself forms part of the design.
Several fittings can be arranged along a corridor or staircase to create a coordinated architectural lighting scheme, provided they are connected to a correctly specified constant current driver.
Ultra-Slim Recessed Installation
The ALL LED ALSQ032SC/WH/30 Sloane Linear Polar White 3000K features an ultra-slim construction intended for discreet recessed installation.
Its factory-fitted 1-metre cable allows connections to be routed towards the selected LED driver. Installers should verify the required recess dimensions, mounting conditions, cable routes and driver accessibility before installation.
As a 350mA constant current fitting, this LED marker light requires a compatible driver and must never be connected directly to a 230V mains supply.
Compatible ALL LED 350mA Constant Current Drivers
The ALL LED ALSQ032SC/WH/30 Sloane Linear marker light requires a suitable 350mA constant current LED driver, sold separately.
Driver selection depends on the number of fittings connected, their combined forward voltage, the driver’s permitted operating range and any required dimming functionality.
Electrical4Less supplies a range of ALL LED constant current drivers for recessed marker lights and architectural lighting installations.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver offering DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver offering DALI and 1–10V dimming. Must be configured to 350mA.
Explore our ALL LED 350mA mains dimmable LED drivers for further options.
Important: The driver’s wattage rating alone does not guarantee compatibility. Check its minimum and maximum loads, output voltage range and the total forward voltage of the connected LED fittings.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALSQ032SC/WH/30 Sloane Linear Polar White 3000K is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional fittings in the same series arrangement.
- Connect the negative (-) connection of the final fitting to the negative (-) output of the LED driver.
- Never connect these LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before switching on the power.
- Observe correct polarity and ensure secure electrical connections.
- Verify that the driver’s output voltage range supports the full series circuit.
- Check that the driver’s minimum and maximum load requirements are satisfied.
- Configure adjustable constant current drivers to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Always follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected driver. Installation must be carried out by a competent person.
Multiple Sloane Linear Marker Lights and Dimming
The Sloane Linear range can be incorporated into decorative lighting installations using several matching recessed LED marker lights.
When multiple fittings share one driver, they must be wired in series. The combined forward voltage of all fittings must remain within the driver’s specified operating range.
Where brightness adjustment is required, the installation can incorporate a compatible dimmable constant current driver. Available control methods depend on the driver selected and may include mains dimming, DALI or 1–10V control.
Suitable Applications
- Recessed staircase marker lighting
- Low-level hallway and corridor illumination
- Decorative wall lighting
- Architectural plinth lighting
- Modern residential interiors
- Hotels and apartment buildings
- Commercial architectural lighting
- Suitable bathroom installations
- Appropriately assessed outdoor architectural locations
Energy-Efficient 1W LED Marker Light
Consuming just 1W per fitting, the Sloane Linear LED marker light provides an energy-efficient option for creating decorative architectural lighting effects.
The combination of 3000K warm white illumination, a clear glass lens and Polar White finish makes this fitting suitable for modern environments where discreet installation and precise light distribution are required.
Multiple fittings can be incorporated into coordinated lighting arrangements with a suitable constant current driver, allowing designers to create consistent decorative effects along walls and staircases.
Why Choose the ALL LED Sloane Linear Polar White Marker Light?
The ALL LED ALSQ032SC/WH/30 Sloane Linear Polar White 3000K combines ultra-slim recessed construction, IP65 protection and defined warm white illumination in a discreet architectural fitting.
Its clear glass lens distinguishes the Sloane Linear from more diffused marker light designs, making it an attractive choice where sharper light distribution is preferred.
Order this recessed LED marker light from Electrical4Less alongside compatible ALL LED 350mA constant current drivers and professional installation accessories.
