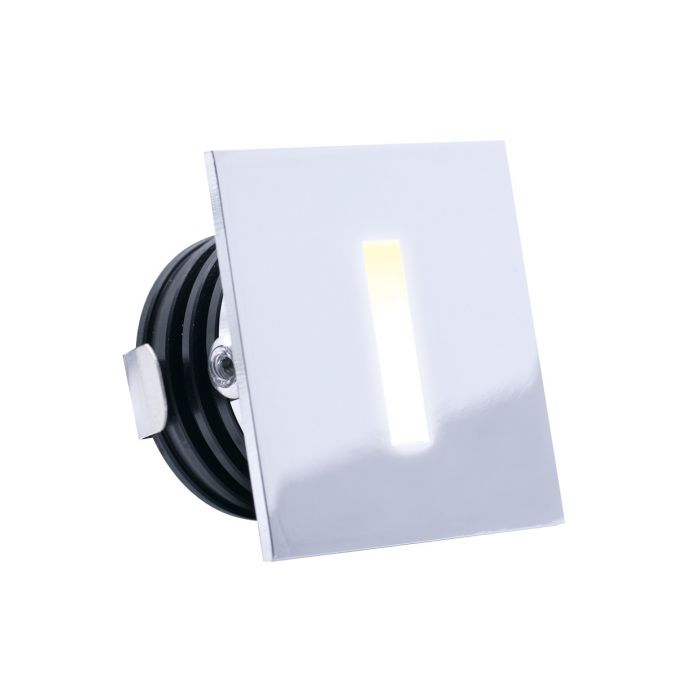

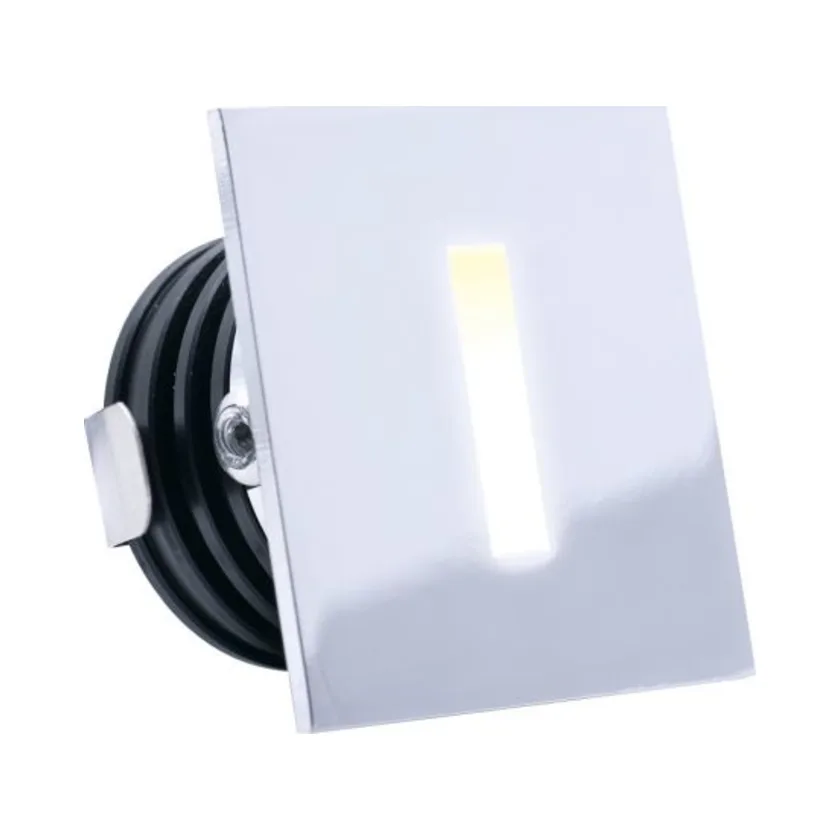

ALL LED Sloane Linear LED Low Level Polished Chrome 4000K
The ALL LED Sloane Linear LED Low Level Polished Chrome 4000K (ALSQ032SC/PC/40) is a compact 1W recessed LED marker light designed to create distinctive architectural lighting effects. Its reflective Polished Chrome finish, neutral white 4000K output and IP65 protection make it suitable for carefully planned low-level lighting installations in residential and commercial settings.
Featuring a clear glass lens, the Sloane Linear produces a defined, sharp-edged beam that highlights surrounding walls, steps and architectural surfaces. Unlike the Sloane Classic range with its frosted diffuser, this fitting creates a more pronounced lighting pattern while maintaining a discreet, ultra-slim appearance.
Key Features – Sloane Linear Polished Chrome Marker Light
- 1W energy-efficient recessed LED marker light
- 4000K neutral white illumination
- Contemporary Polished Chrome finish
- Clear glass lens producing sharp-edged light distribution
- Anti-glare design for architectural accent lighting
- IP65 protection against dust and water jets
- Ultra-slim profile for discreet recessed mounting
- Suitable for staircases, walls, corridors and plinths
- 350mA constant current operation
- Dimmable with a compatible dimmable LED driver
- Factory-fitted 1-metre connection cable
- Requires a separately purchased 350mA constant current driver
- Multiple fittings connected to one driver must be wired in series
Polished Chrome Finish for Contemporary Spaces
The Sloane Linear’s Polished Chrome finish provides a bright, reflective appearance suited to contemporary interiors featuring chrome electrical accessories, glass, stone and modern decorative surfaces.
Its compact profile makes it particularly useful in lighting schemes where the fittings should remain discreet while the projected light creates the visual effect.
For corridors and staircases, several matching recessed marker lights can be arranged to achieve a coordinated appearance throughout the installation.
4000K Neutral White with a Defined Light Beam
The ALL LED Sloane Linear LED Low Level Polished Chrome 4000K produces a neutral white light that complements modern architectural finishes.
Its clear glass lens delivers a more precisely defined beam than a conventional frosted diffuser. This characteristic makes the fitting useful for illuminating decorative wall details, staircase features and plinth surfaces where a distinctive lighting pattern is preferred.
The 4000K colour temperature offers a cooler appearance than the 3000K warm white alternative, making it especially suitable for contemporary environments where a cleaner white lighting effect is desired.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALSQ032SC/PC/40 |
| Product Range | Sloane Linear |
| Product Type | Recessed LED Marker Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 4000K Neutral White |
| Finish | Polished Chrome |
| Lens | Clear Glass |
| Light Distribution | Defined, Sharp-Edged Beam |
| Glare Control | Anti-Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | With Compatible Dimmable Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring |
Low-Level LED Marker Lighting for Stairs and Walls
This recessed IP65 marker light is designed for architectural lighting projects where defined illumination and minimal visible hardware are important.
When positioned at appropriate low-level locations, the fitting creates a decorative beam across adjacent surfaces. This makes it attractive for staircase walls, hallway features, architectural plinths and other areas where supplementary lighting can enhance the overall design.
The Polished Chrome finish complements contemporary residential interiors, commercial corridors and hospitality environments.
Ultra-Slim Installation and 350mA Operation
The Sloane Linear features an ultra-slim recessed design and a factory-fitted 1-metre cable to assist connection to the selected LED driver.
Installers should verify the mounting dimensions, available recess depth, cable routing and accessibility of electrical connections before installation. IP65 protection allows use in suitable environments, subject to the manufacturer’s installation and location requirements.
This fitting operates at 350mA constant current. It requires a compatible constant current driver and must never be connected directly to a 230V mains supply.
ALL LED 350mA Constant Current Driver Options
The ALL LED ALSQ032SC/PC/40 requires a separately purchased 350mA constant current LED driver.
Driver selection depends on the number of connected fittings, their combined forward voltage, the driver’s permitted output range and whether dimming is required.
Electrical4Less offers the following ALL LED driver options for consideration, subject to confirmation of electrical compatibility:
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Configure to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Configure to 350mA.
Explore our ALL LED 350mA mains dimmable LED drivers for additional lighting control options.
Important: A driver’s wattage range alone does not confirm compatibility. Always check its minimum and maximum load, output voltage range and the combined forward voltage of the connected LED fittings.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALSQ032SC/PC/40 Sloane Linear LED marker light operates at 350mA CONSTANT CURRENT and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional fittings using the same series arrangement.
- Connect the negative (-) connection of the final fitting to the negative (-) output of the driver.
- Never connect these fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all electrical connections before switching on the power.
- Observe correct polarity throughout the installation.
- Ensure all connections are secure before energising the driver.
- Confirm that the driver’s output voltage range supports the complete series circuit.
- Check the driver’s minimum and maximum load requirements.
- Configure adjustable constant current drivers to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Always follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected LED driver. Installation must be carried out by a competent person.
Multiple Marker Lights and Dimming Control
The Sloane Linear Polished Chrome marker light can be incorporated into coordinated lighting installations featuring several matching recessed fittings.
When multiple fittings are powered by one constant current driver, they must be connected in series, with their combined forward voltage remaining within the driver’s specified operating range.
For adjustable brightness, a compatible 350mA dimmable driver can be selected. Depending on the driver model, available lighting control options may include mains dimming, DALI or 1–10V.
Suitable Applications
- Recessed staircase and step-level wall lighting
- Low-level hallway and corridor illumination
- Architectural wall marker lighting
- Decorative plinth illumination
- Contemporary residential interiors
- Hotels and apartment buildings
- Commercial architectural accent lighting
- Suitable bathroom installations
- Outdoor architectural locations approved by the manufacturer
Why Choose the Sloane Linear Polished Chrome Marker Light?
The ALL LED Sloane Linear LED Low Level Polished Chrome 4000K combines a reflective decorative finish, neutral white light output and a clear glass lens for precisely defined architectural lighting effects.
Its IP65 rating, 1W power consumption and recessed construction make it an attractive choice for professionally designed low-level lighting installations using appropriately specified 350mA drivers.
Order the ALL LED ALSQ032SC/PC/40 from Electrical4Less alongside suitable constant current LED drivers and electrical installation accessories.
