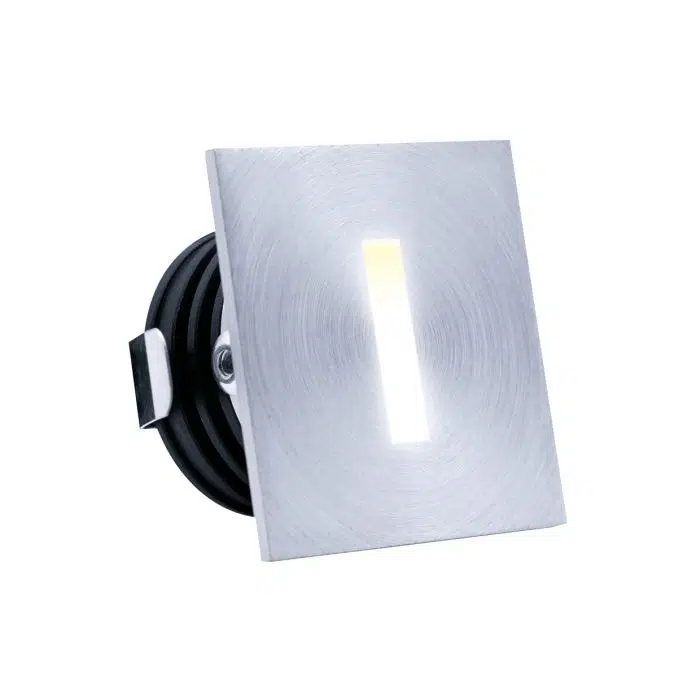

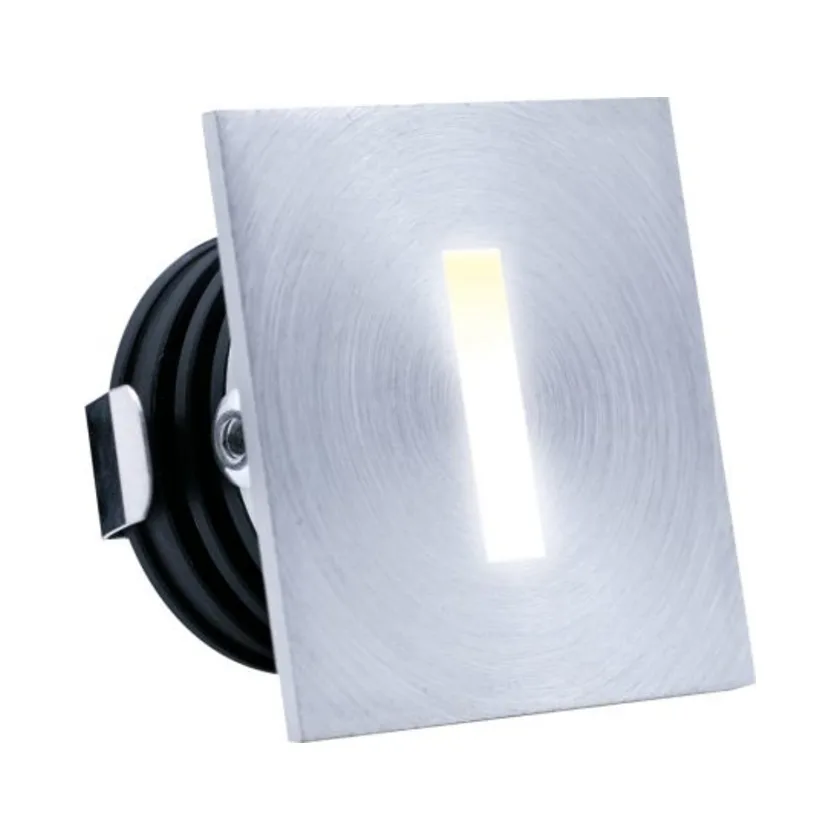

ALL LED ALSQ032SC/AL/40 Sloane Linear Aluminium 4000K
The ALL LED ALSQ032SC/AL/40 Sloane Linear Aluminium 4000K is a compact 1W recessed LED marker light designed for contemporary architectural lighting. Featuring a Brushed Aluminium finish, 4000K cool white illumination and IP65 protection, this fitting is ideal for low-level lighting along staircases, corridors, walls and decorative plinths.
Part of the ALL LED Sloane Linear range, this recessed marker light incorporates a clear glass lens that produces a distinctive sharp-edged lighting effect. Unlike the Sloane Classic range with its frosted glass diffuser, the Linear design creates more defined patterns of light, making it suitable for highlighting architectural surfaces and modern interior features.
Key Features – Sloane Linear LED Marker Light
- 1W low-energy recessed LED marker light
- 4000K cool white illumination
- Contemporary Brushed Aluminium finish
- Clear glass lens for defined light distribution
- Anti-glare design for comfortable accent lighting
- IP65 protection against dust and water jets
- Ultra-slim profile for discreet installation
- Suitable for walls, staircases, corridors and plinths
- Suitable for appropriately assessed indoor and outdoor locations
- 350mA constant current operation
- Dimmable with a compatible dimmable LED driver
- Factory-fitted 1-metre connection cable
- Requires a separate 350mA constant current driver
- Multiple fittings must be connected in series
Brushed Aluminium Finish for Contemporary Interiors
The Brushed Aluminium finish provides a refined metallic appearance that complements modern architectural materials, including stainless steel, natural stone, ceramic tiles and contemporary wall finishes.
Compared with polished chrome fittings, brushed aluminium offers a more understated surface appearance, making it particularly suitable for minimalist interiors and commercial spaces where decorative lighting should integrate naturally with surrounding materials.
Its compact, ultra-slim design allows the marker light to remain discreet when switched off, while providing a distinctive architectural lighting effect when illuminated.
4000K Cool White Light with a Clear Glass Lens
The ALL LED ALSQ032SC/AL/40 Sloane Linear Aluminium 4000K produces neutral, cool white illumination suitable for modern interiors where a crisp lighting appearance is preferred.
The clear glass lens creates a sharp-edged beam that can be used to accentuate wall textures, staircase details and decorative surfaces. This defined light distribution makes the Sloane Linear particularly useful for architectural designs featuring repeated lighting patterns.
For customers preferring a warmer appearance, the Sloane Linear range also includes 3000K versions. The choice between warm and cool white depends on the surrounding materials, intended atmosphere and lighting design.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALSQ032SC/AL/40 |
| Product Range | Sloane Linear |
| Product Type | Recessed LED Marker Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 4000K Cool White |
| Finish | Brushed Aluminium |
| Lens | Clear Glass |
| Light Distribution | Defined, Sharp-Edged Beam |
| Glare Control | Anti-Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | Yes, with Compatible Dimmable Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring |
Architectural Marker Lighting for Stairs and Corridors
The Sloane Linear brushed aluminium marker light is particularly suited to installations where defined lighting effects are used to enhance architectural features.
When recessed at low level, the fitting provides supplementary illumination along nearby surfaces. Several marker lights can be positioned at suitable intervals to create a coordinated lighting arrangement along staircases, corridors and decorative walls.
The combination of a metallic finish and 4000K illumination makes this fitting an attractive choice for contemporary apartments, commercial premises and modern architectural installations.
Ultra-Slim Recessed Installation
The Sloane Linear LED marker light is designed for discreet integration into suitable recessed mounting surfaces. Its ultra-slim construction reduces the visible appearance of the fitting while allowing the clear glass lens to provide a distinctive lighting effect.
The included 1-metre pre-wired cable assists with connection to a separately mounted LED driver. Before installation, electricians should confirm the required mounting dimensions, available recess depth, cable routes and accessibility of electrical connections.
This fitting operates at 350mA constant current and must never be connected directly to a 230V mains supply.
Compatible ALL LED 350mA Constant Current Drivers
The ALL LED ALSQ032SC/AL/40 Sloane Linear Aluminium 4000K requires a suitable 350mA constant current LED driver, which must be purchased separately.
Correct driver selection depends on the number of connected marker lights, their combined forward voltage, the driver’s operating voltage range and whether dimming functionality is required.
Electrical4Less offers the following ALL LED 350mA driver options for consideration, subject to electrical compatibility:
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V control. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V control. Must be configured to 350mA.
Browse our ALL LED 350mA mains dimmable LED drivers for additional lighting control options.
Important: A driver’s stated wattage range alone does not guarantee compatibility. Always confirm its permitted output voltage, minimum and maximum loads and approved connection arrangement before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALSQ032SC/AL/40 Sloane Linear Aluminium 4000K is a 350mA CONSTANT CURRENT LED fitting and must be connected to a correctly specified constant current driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting further fittings using the same series arrangement.
- Connect the negative (-) connection of the final LED fitting to the negative (-) output of the driver.
- Never connect these fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all electrical connections before switching on the power.
- Observe correct polarity throughout the installation.
- Ensure all connections are secure before energising the driver.
- Confirm that the driver’s output voltage range supports the complete series circuit.
- Check that the driver’s minimum and maximum load requirements are satisfied.
- Configure adjustable constant current drivers to 350mA before switching on.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Always follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected driver. Installation must be carried out by a competent person.
Dimming and Multiple LED Marker Light Installations
The ALL LED Sloane Linear marker light can form part of a coordinated architectural lighting installation featuring several matching recessed fittings.
When several lights are connected to one constant current driver, they must be wired in series, with the combined forward voltage remaining within the driver’s specified operating range.
Where adjustable brightness is required, a compatible dimmable 350mA driver can be selected. Depending on the driver model, control methods may include mains dimming, DALI and 1–10V.
Suitable Applications
- Recessed staircase and step-level lighting
- Contemporary hallways and corridors
- Architectural wall marker lighting
- Decorative plinth illumination
- Modern apartments and residential interiors
- Hotels and commercial buildings
- Suitable bathroom installations
- Appropriately assessed outdoor architectural locations
