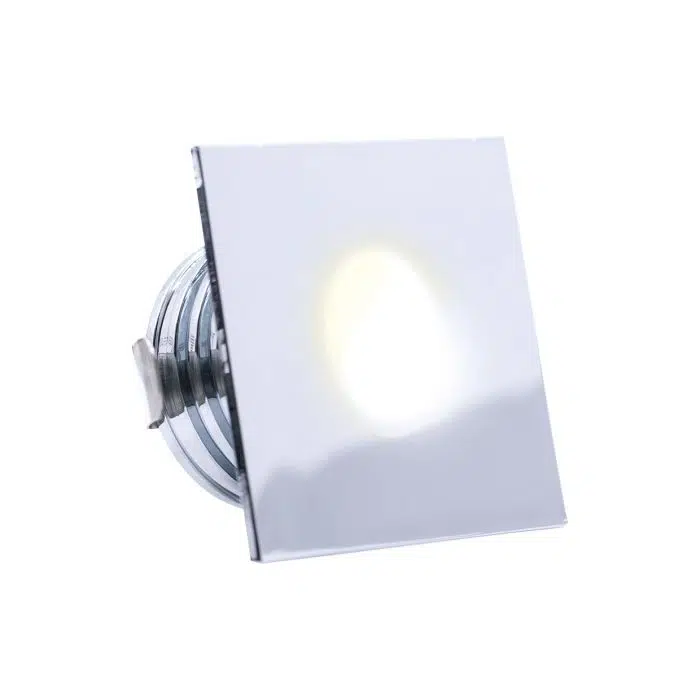

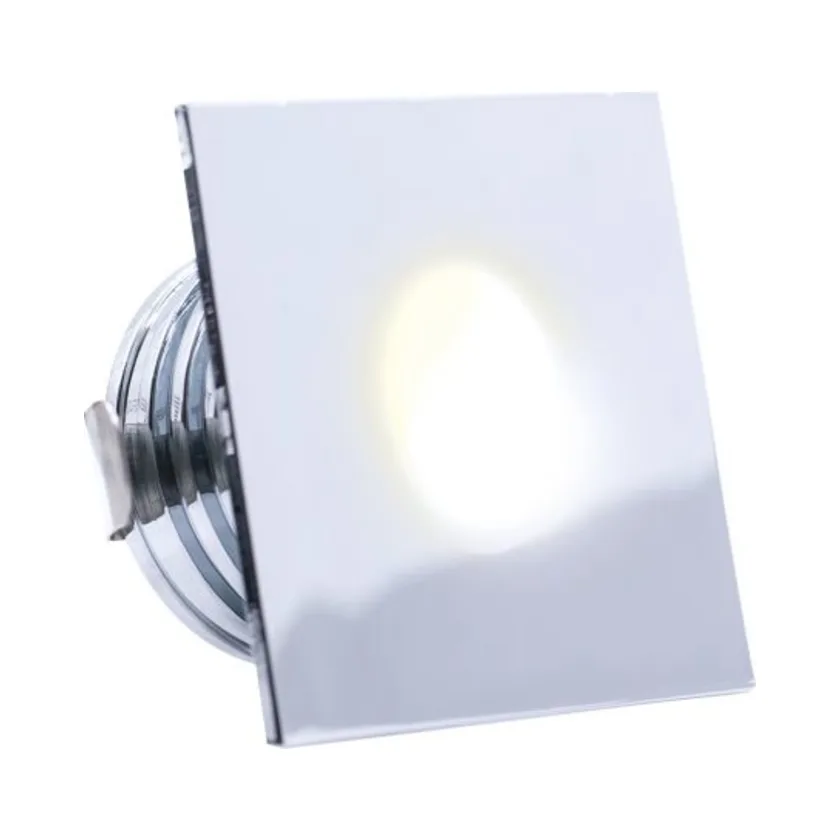

ALL LED ALSQ032PC/30 Sloane Classic LED Light – Polished Chrome 3000K
The ALL LED ALSQ032PC/30 Sloane Classic LED Light is a 1W recessed marker light designed for decorative low-level illumination in residential and commercial settings. Featuring a Polished Chrome finish, warm 3000K light output and IP65 protection, this compact fitting is particularly suitable for staircases, corridors, walls and architectural plinth lighting.
Part of the ALL LED Sloane Classic range, this LED marker light incorporates a frosted glass diffuser to produce comfortable, evenly distributed illumination. Its anti-glare design helps soften the visible light source, making it an attractive solution for areas where subtle lighting is preferred over conventional wall luminaires.
Key Features – ALL LED ALSQ032PC/30 Sloane Classic LED Light
- 1W energy-efficient recessed LED marker light
- 3000K warm white illumination
- Decorative Polished Chrome finish
- Frosted glass diffuser for soft, even lighting
- Anti-glare design for comfortable low-level illumination
- IP65 protection against dust and water jets
- Ultra-slim profile for discreet recessed installation
- Suitable for staircases, corridors, walls and plinths
- Suitable for appropriately assessed indoor and outdoor installations
- 350mA constant current operation
- Dimmable with a compatible dimmable LED driver
- Supplied with a 1-metre pre-wired cable
- Requires a separately purchased 350mA constant current driver
- Multiple fittings must be wired in series using a compatible driver
Polished Chrome LED Marker Light for Contemporary Interiors
The reflective Polished Chrome finish gives the Sloane Classic marker light a modern appearance that complements chrome switches, sockets and other decorative electrical accessories.
Its compact dimensions and ultra-slim construction allow it to be integrated into suitable architectural surfaces without the visual impact of larger light fittings.
This finish works particularly well with contemporary staircases, tiled walls, decorative panels and modern corridors where lighting forms part of the overall interior design.
Warm 3000K Illumination with Frosted Glass Diffuser
The ALL LED ALSQ032PC/30 Sloane Classic LED Light produces warm white 3000K illumination, making it suitable for creating comfortable ambient and accent lighting.
The integrated frosted glass diffuser helps distribute the light smoothly while reducing the harsh appearance of individual LED sources.
Unlike clear-lens marker lights intended to produce more defined illumination patterns, the Sloane Classic provides a softer lighting effect suitable for decorative wall and low-level applications.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALSQ032PC/30 |
| Product Range | Sloane Classic |
| Product Type | Recessed LED Marker Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 3000K Warm White |
| Finish | Polished Chrome |
| Diffuser | Frosted Glass |
| Glare Control | Anti-Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | Yes, with Compatible Dimmable Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring with Compatible Constant Current Driver |
Low-Level Lighting for Staircases and Corridors
A recessed LED marker light can provide useful supplementary illumination along staircases, passageways and architectural features without relying entirely on overhead lighting.
The ALSQ032PC/30 can be installed at suitable low-level positions to create gentle illumination across neighbouring surfaces. Several fittings can also be arranged along a staircase or corridor to provide a coordinated lighting effect.
The warm white output and polished chrome appearance make this fitting particularly suitable for modern residential interiors, hotels, apartment buildings and decorative commercial environments.
Ultra-Slim Recessed Installation
The Sloane Classic LED marker light features an ultra-slim profile designed for discreet architectural installation.
Its factory-fitted 1-metre cable assists with routing connections towards a compatible constant current driver. Installers should check mounting dimensions, available recess depth, cable routes and driver accessibility before installation.
This is a 350mA constant current LED fitting. It requires an appropriate LED driver and must never be connected directly to a 230V mains supply.
Compatible 350mA Constant Current LED Drivers
The ALL LED ALSQ032PC/30 Sloane Classic LED Light requires a suitable 350mA constant current driver, purchased separately.
Driver selection must account for the number of connected fittings, their combined forward voltage, the driver’s operating voltage range and any required dimming functionality.
Electrical4Less supplies several ALL LED constant current drivers for individual fittings and multiple-light installations.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable DALI and 1–10V constant current driver. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable DALI and 1–10V constant current driver. Must be configured to 350mA.
Explore our ALL LED 350mA mains dimmable LED drivers for additional lighting control options.
Important: Matching the driver’s wattage rating alone does not confirm compatibility. Always check the output voltage range, minimum and maximum loads, and manufacturer’s approved connection requirements.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALSQ032PC/30 Sloane Classic LED Light operates at 350mA CONSTANT CURRENT and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional fittings in the same series arrangement.
- Connect the negative (-) connection of the final fitting back to the negative (-) output of the driver.
- Never connect these LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before switching on the power.
- Observe correct polarity throughout the installation.
- Check that the driver’s output voltage range supports the complete series circuit.
- Ensure the driver’s minimum and maximum load requirements are satisfied.
- Configure adjustable constant current drivers to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Always follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected driver. Installation must be carried out by a competent person.
Multiple Marker Lights and Dimming Control
The ALL LED ALSQ032PC/30 Sloane Classic LED Light can be used individually or as part of a coordinated installation incorporating several recessed LED marker lights.
When multiple fittings share one constant current driver, all fittings must be connected in series, and their combined forward voltage must fall within the driver’s permitted output range.
For installations requiring adjustable brightness, compatible 350mA dimmable drivers can provide lighting control. Depending on the selected driver, available options include mains dimming, DALI and 1–10V control.
Suitable Applications for the Sloane Classic Marker Light
- Recessed staircase and step-level lighting
- Low-level hallway and corridor illumination
- Decorative wall marker lighting
- Architectural plinth lighting
- Contemporary residential interiors
- Hotels and apartment corridors
- Commercial architectural accent lighting
- Suitable bathroom installations
- Appropriately assessed outdoor architectural locations
Energy-Efficient 1W Architectural Lighting
With a rated power consumption of just 1W per fitting, the ALL LED ALSQ032PC/30 Sloane Classic LED Light provides an energy-efficient option for decorative low-level illumination.
Its warm 3000K output, frosted glass diffuser and Polished Chrome finish combine practical lighting performance with contemporary styling.
For larger installations, several correctly connected marker lights can create consistent illumination along corridors, staircases and architectural features while keeping individual fitting power consumption low.
Why Choose the ALL LED Sloane Classic Polished Chrome Marker Light?
The ALL LED ALSQ032PC/30 Sloane Classic LED Light combines a decorative Polished Chrome finish with IP65 protection, warm white illumination and an ultra-slim recessed design.
For electricians, lighting designers and homeowners, it offers a discreet approach to low-level architectural lighting, with dimming available through a suitable 350mA constant current driver.
Order the ALL LED ALSQ032PC/30 from Electrical4Less for professional LED marker lighting, compatible constant current drivers and installation accessories.
