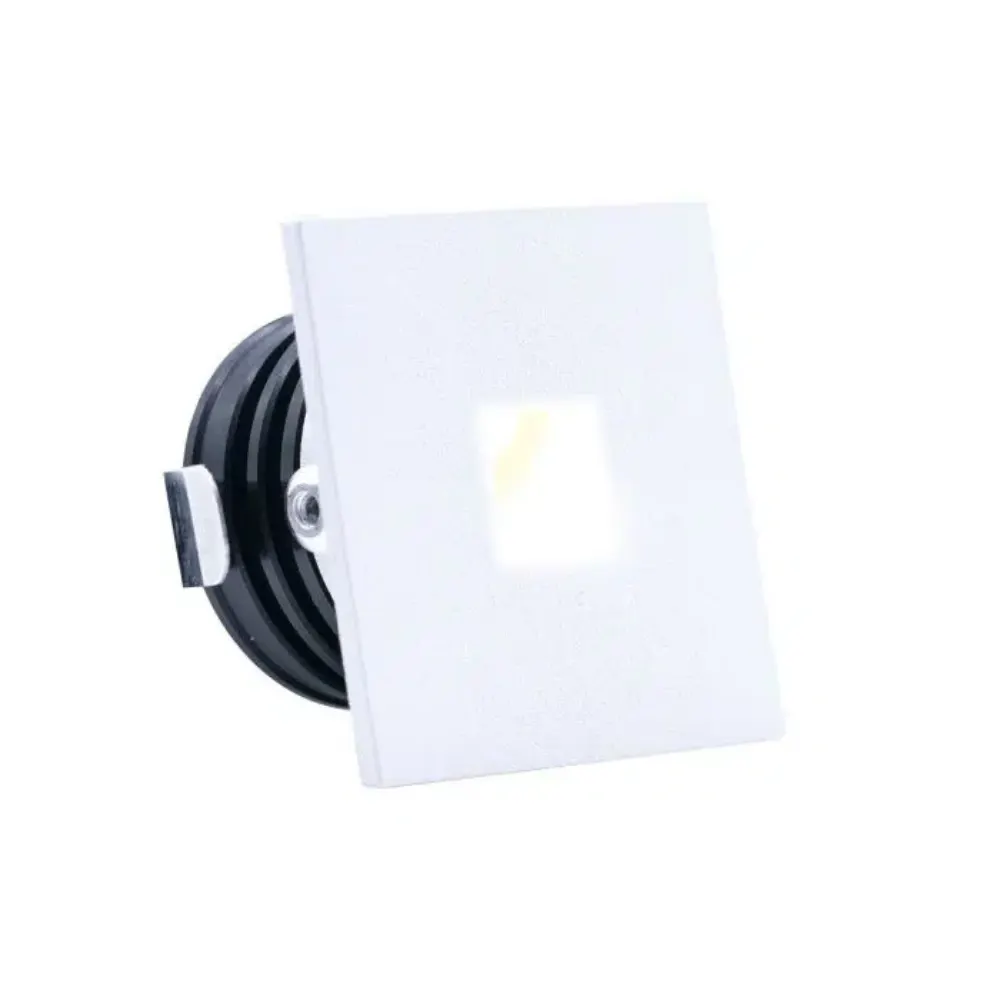

ALL LED ALSQ032OP/WH/30 Sloane Square LED Light – Polar White 3000K
The ALL LED ALSQ032OP/WH/30 Sloane Square LED Light is a compact 1W recessed architectural fitting designed to provide discreet low-level illumination in residential and commercial environments. Featuring a Polar White finish, warm 3000K light output and IP65 protection, this contemporary square LED light is particularly suitable for staircases, hallways, walls and decorative plinth installations.
Part of the ALL LED Sloane Square range, this fitting combines an ultra-slim profile with a clear glass diffuser that produces a defined, sharp-edged light beam. Its anti-glare design helps create comfortable low-level illumination while maintaining a discreet appearance within modern interiors.
Key Features – ALL LED ALSQ032OP/WH/30 Sloane Square LED Light
- 1W energy-efficient recessed low-level LED light
- 3000K warm white colour temperature
- Contemporary Polar White finish
- Distinctive Sloane Square architectural design
- IP65 protection against dust and water jets
- Anti-glare lighting for comfortable illumination
- Clear glass diffuser producing a defined light beam
- Ultra-slim profile for discreet installation
- Suitable for staircases, hallways, walls and plinths
- Suitable for appropriately assessed indoor and outdoor installations
- 350mA constant current operation
- Dimmable when paired with a compatible dimmable LED driver
- Supplied with a 1-metre pre-wired cable
- Requires a separately purchased 350mA constant current LED driver
- Multiple fittings must be connected in series using a compatible driver
3000K Warm White Architectural Lighting
The ALL LED ALSQ032OP/WH/30 Sloane Square LED Light produces a warm 3000K illumination that creates a comfortable, welcoming lighting effect. This colour temperature works particularly well in residential hallways, staircases, living areas and architectural spaces where a softer appearance is preferred.
Its clear glass diffuser creates a defined beam, allowing light to highlight selected surfaces and architectural details. The anti-glare design is particularly useful for low-level applications where direct brightness could otherwise become distracting.
Compared with cooler 4000K alternatives, the 3000K version provides a warmer appearance that complements timber, natural stone, neutral decorative finishes and traditional interior materials.
Polar White Finish and Square Design
The Polar White finish gives the Sloane Square fitting a clean architectural appearance that blends neatly into white-painted walls, pale decorative surfaces and contemporary interiors.
Its distinctive square design provides an alternative to conventional round recessed marker lights, making it particularly suitable for interiors featuring straight architectural lines, rectangular tiles and minimalist decorative features.
For installations requiring several matching fittings, the Polar White finish helps create a coordinated appearance while allowing the warm white illumination to remain the main visual feature.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALSQ032OP/WH/30 |
| Product Range | Sloane Square |
| Product Type | Recessed Low-Level LED Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 3000K Warm White |
| Finish | Polar White |
| Front Design | Square |
| Lens | Clear Glass Diffuser |
| Light Distribution | Defined, Sharp-Edged Beam |
| Glare Control | Anti-Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | Yes, with Compatible Dimmable LED Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring with Compatible Constant Current Driver |
Discreet Staircase and Hallway Lighting
The ALL LED ALSQ032OP/WH/30 Sloane Square LED Light is particularly useful for staircase and hallway installations where discreet low-level illumination is preferred over larger wall-mounted lighting fittings.
When recessed into a suitable wall surface, the fitting can direct warm white light towards adjacent steps and floor areas. Its defined beam helps create an attractive architectural lighting effect while complementing the main lighting installation.
For longer corridors or staircases, several matching Sloane Square lights can be positioned at suitable intervals to create consistent decorative lighting. The Polar White finish helps the fittings blend into pale walls, maintaining a clean appearance during daylight hours.
In commercial interiors, the same lighting approach can be used to highlight corridor walls, entrance areas and architectural features where subtle low-level illumination is required.
Ultra-Slim Recessed Installation
The Sloane Square range is designed for installations where available space and visual appearance are important. Its ultra-slim construction helps minimise the visible profile of the fitting.
The ALL LED ALSQ032OP/WH/30 Sloane Square LED Light can be incorporated into suitable recessed wall and plinth installations, subject to the manufacturer’s mounting requirements and available recess dimensions.
Its factory-fitted 1-metre cable provides a convenient connection for routing towards a separate 350mA constant current LED driver. Installers should consider the recess depth, cable routing, driver accessibility and suitable connection arrangements before installation.
This fitting must never be connected directly to a 230V mains supply. It requires a correctly specified constant current LED driver.
Compatible 350mA Constant Current LED Drivers
The ALL LED ALSQ032OP/WH/30 Sloane Square LED Light requires a suitable 350mA constant current LED driver, which is sold separately.
Driver selection depends on the number of connected fittings, their combined forward voltage, the driver’s specified operating range and whether dimming functionality is required. Multiple fittings connected to one compatible constant current driver must be wired in series.
Electrical4Less offers a range of ALL LED constant current drivers for individual low-level lights and coordinated architectural lighting installations.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Explore our ALL LED 350mA mains dimmable LED drivers for additional driver options and compatible lighting control equipment.
Important: The wattage range printed on an LED driver alone does not confirm compatibility. Always check the output voltage range, permitted load, number of connected fittings and supported dimming method before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALSQ032OP/WH/30 Sloane Square LED Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional LED fittings in series using the same arrangement.
- Connect the negative (-) connection of the final fitting back to the negative (-) output of the driver.
- Never connect these LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before switching on the power supply.
- Observe correct polarity and ensure all electrical connections are secure.
- Check that the driver’s output voltage range and load capacity support the complete series-connected circuit.
- For adjustable constant current drivers, ensure the output is correctly configured to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Always follow the manufacturer’s installation instructions and the wiring diagram provided with the selected driver. Installation must be carried out by a competent person.
Multiple Sloane Square Lights and Dimming Control
The ALL LED ALSQ032OP/WH/30 Sloane Square LED Light can be incorporated into coordinated multi-fitting lighting arrangements using a suitably rated 350mA constant current LED driver.
This makes the fitting particularly useful for staircases, long corridors and decorative wall installations where several matching lights are required to create a consistent warm white lighting effect.
When several fittings are connected to one driver, the combined forward voltage must fall within the driver’s specified operating range. All connections must be completed securely in series before the power supply is energised.
Where adjustable brightness is required, compatible dimmable drivers can be selected to suit the intended control method. Available driver options include mains dimming, DALI and 1–10V systems, depending on the selected model.
Energy-Efficient 1W Warm White Low-Level Lighting
With a rated consumption of just 1W, the ALL LED ALSQ032OP/WH/30 Sloane Square LED Light provides an energy-efficient solution for decorative architectural lighting and low-level illumination.
Its warm 3000K output creates a soft, welcoming lighting appearance that works particularly well in residential staircases, hallways and other spaces where a comfortable atmosphere is important.
The clear glass diffuser and anti-glare design allow light to be directed towards selected architectural features, helping create attractive decorative lighting effects without relying on larger visible luminaires.
For larger lighting projects, multiple low-wattage fittings can be used to produce a coordinated architectural appearance while keeping individual fitting power consumption low.
Suitable Applications – ALL LED ALSQ032OP/WH/30 Sloane Square LED Light
The combination of its Polar White finish, distinctive square design and IP65 protection makes this recessed fitting suitable for a variety of architectural lighting applications.
- Staircase and step-level wall illumination
- Low-level corridor and hallway lighting
- Decorative recessed wall lighting
- Architectural plinth lighting
- Contemporary residential interiors
- Commercial interior architectural lighting
- Entrance and lobby accent illumination
- Suitable bathroom and moisture-exposed installations
- Appropriate outdoor architectural lighting locations
- Decorative lighting around recessed wall features
The ALL LED ALSQ032OP/WH/30 Sloane Square LED Light is a practical choice where warm white illumination needs to blend discreetly into light-coloured walls and contemporary interior finishes. Its Polar White design helps keep the fitting visually unobtrusive while providing defined accent lighting.
Why Choose the ALL LED Sloane Square LED Light?
For electricians and lighting designers, the ALL LED ALSQ032OP/WH/30 Sloane Square LED Light combines an efficient 1W LED light source, contemporary Polar White finish, anti-glare illumination and IP65 protection.
Its 350mA constant current operation provides flexibility for individual fittings and properly designed multi-light arrangements using compatible constant current LED drivers. Dimming can also be incorporated by selecting an appropriate dimmable driver and suitable lighting controls.
