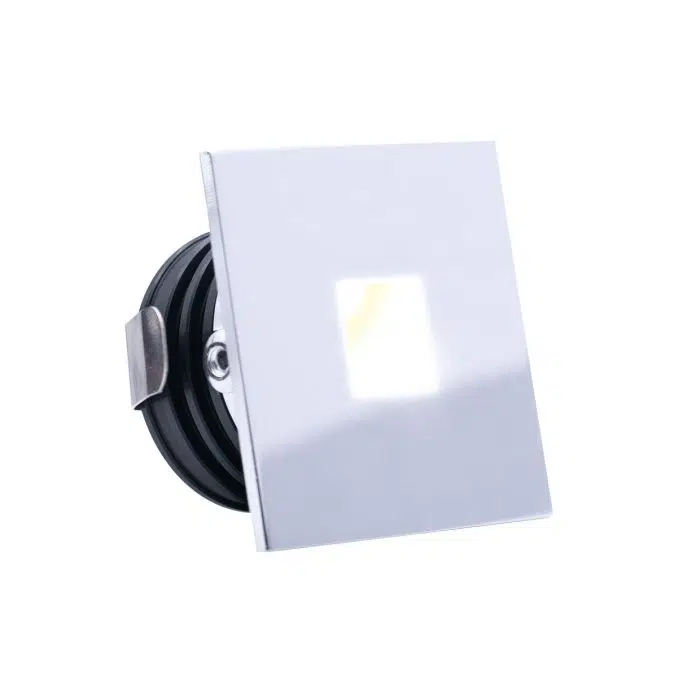

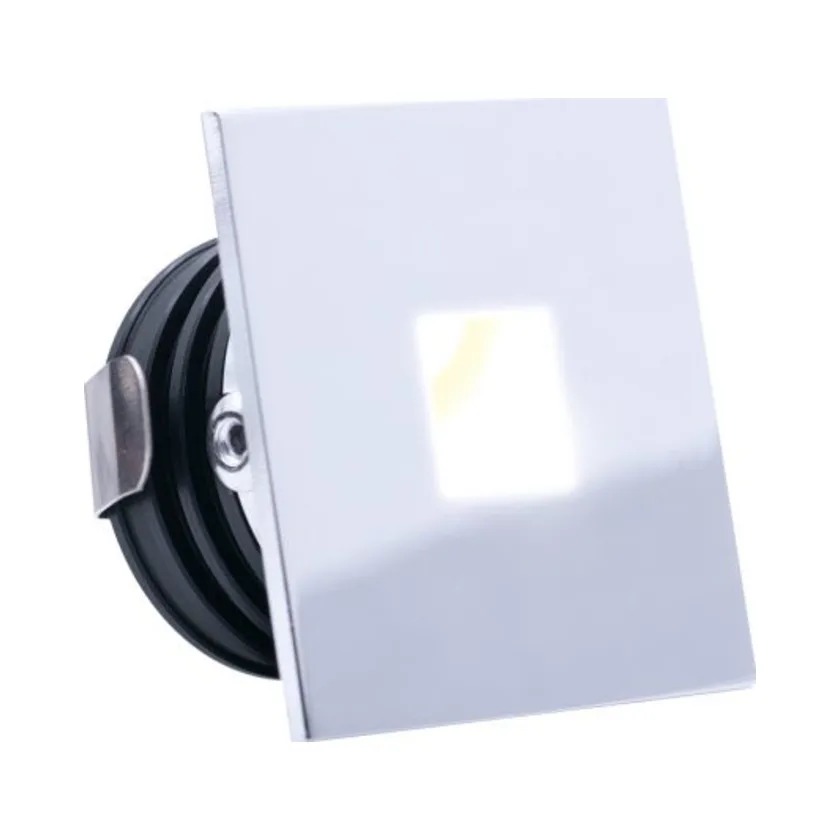

ALL LED ALSQ032OP/PC/40 Sloane Square LED Light – Polished Chrome 4000K
The ALL LED ALSQ032OP/PC/40 Sloane Square LED Light is a compact 1W recessed low-level fitting designed for contemporary architectural lighting. Featuring an elegant polished chrome finish, 4000K neutral white illumination and IP65 protection, this decorative light is ideal for staircases, walls, plinths and discreet accent lighting in residential and commercial interiors.
Part of the ALL LED Sloane Square range, this fitting combines a distinctive square design with a clear glass lens that produces a defined, sharp-edged beam. Its low-glare illumination and ultra-slim profile make it particularly suitable for installations where subtle lighting and a refined appearance are important.
Key Features – ALL LED ALSQ032OP/PC/40 Sloane Square LED Light
- 1W energy-efficient architectural LED light
- 4000K neutral white illumination
- Contemporary polished chrome finish
- Distinctive Sloane Square recessed design
- IP65 protection against dust and water jets
- Low-glare illumination for comfortable lighting
- Clear glass lens producing a defined light beam
- Ultra-slim profile for discreet installation
- Ideal for stairs, walls, plinths and architectural features
- Suitable for appropriately assessed indoor and outdoor installations
- 350mA constant current operation
- Dimmable when used with a suitable dimmable LED driver
- Supplied pre-wired with a 1-metre cable
- Requires a separately purchased constant current driver
- Multiple fittings must be connected in series using a compatible driver
4000K Neutral White Low-Level Architectural Lighting
The ALL LED ALSQ032OP/PC/40 Sloane Square LED Light produces 4000K neutral white illumination, providing a balanced lighting appearance suitable for contemporary interiors and modern architectural projects.
Unlike warm white lighting, which creates a softer decorative effect, 4000K neutral white illumination is particularly suitable for installations where a crisp, clean appearance is preferred. This makes the fitting a practical option for modern staircases, corridors, entrance areas and interior architectural features.
The clear glass lens produces a more defined light pattern, helping highlight selected surfaces without introducing excessive background illumination. Its low-glare design is particularly beneficial for low-level installations where the light source may be visible from nearby positions.
Polished Chrome Finish and Square Design
The polished chrome finish gives the Sloane Square LED light a contemporary appearance that complements modern switches, sockets, bathroom accessories and other chrome architectural fittings.
Its distinctive square profile offers an alternative to conventional round recessed marker lights. This makes it especially suitable for interior schemes featuring straight lines, rectangular tiles and geometric architectural details.
When installed along a staircase or corridor, multiple matching Sloane Square fittings can create a consistent decorative lighting arrangement while maintaining a discreet appearance.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALSQ032OP/PC/40 |
| Product Range | Sloane Square |
| Product Type | Recessed Low-Level LED Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 4000K Neutral White |
| Finish | Polished Chrome |
| Design | Square |
| Lens | Clear Glass |
| Light Distribution | Defined, Sharp-Edged Beam |
| Glare Control | Low Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | Yes, with Compatible Dimmable Driver |
| LED Driver | Required – Sold Separately |
| Connection Method | Series Wiring for Multiple Fittings on One Constant Current Driver |
Low-Glare Lighting for Staircases and Corridors
The ALL LED ALSQ032OP/PC/40 Sloane Square LED Light is particularly suitable for low-level illumination where the fitting needs to provide a useful lighting effect without dominating the surrounding space.
When positioned along a staircase wall, the Sloane Square fitting can help illuminate nearby steps and architectural surfaces. Its defined light distribution creates an attractive lighting effect, making it a useful addition to residential and commercial staircase designs.
In corridors and hallways, these compact low-level lights can provide decorative guidance lighting, complementing the main ceiling lighting and enhancing the overall appearance of the interior.
For longer staircases or corridors, multiple fittings can be positioned at suitable intervals to achieve a consistent lighting arrangement. Final spacing should be determined by the required lighting effect and installation conditions.
Ultra-Slim Recessed Installation
The Sloane Square range has been designed with an ultra-slim profile, making it suitable for installations where a discreet architectural finish is important.
The ALL LED ALSQ032OP/PC/40 Sloane Square LED Light can be incorporated into suitable recessed wall and plinth installations, subject to the manufacturer’s mounting requirements.
Its factory-fitted 1-metre cable provides a convenient connection point for routing towards the selected constant current LED driver. The installer should plan driver positioning, cable access, recess dimensions and any required connection accessories before completing the installation.
Unlike conventional mains-powered luminaires, this fitting requires a separate 350mA constant current LED driver. It must never be connected directly to a 230V mains supply.
Compatible 350mA Constant Current LED Drivers
The ALL LED ALSQ032OP/PC/40 Sloane Square LED Light operates at 350mA constant current and requires a suitable LED driver, sold separately.
Driver selection depends on the number of connected fittings, the combined LED forward voltage, the driver’s permitted operating range and the required dimming method. Multiple fittings connected to one compatible constant current driver must be wired in series.
Electrical4Less offers a range of ALL LED constant current drivers for different lighting arrangements. The following options should be selected according to the manufacturer’s specifications and the total connected load.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Browse our ALL LED 350mA mains dimmable LED drivers to explore additional driver options for low-level lighting installations.
Important: The stated driver wattage range alone does not guarantee compatibility. Always verify the minimum load, maximum load, output voltage range and supported connection arrangement before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALSQ032OP/PC/40 Sloane Square LED Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional fittings in series using the same arrangement.
- Connect the negative (-) connection of the final fitting back to the negative (-) output of the driver.
- Never connect these 350mA LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect every connection before applying power.
- Observe correct polarity and ensure all electrical connections are secure.
- Confirm that the driver supports the combined forward voltage and power requirements of the complete LED circuit.
- Adjustable constant current drivers must be correctly configured to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected LED driver. Installation must be carried out by a competent person.
Multiple Sloane Square LED Lights and Dimming Control
For larger lighting projects, the ALL LED ALSQ032OP/PC/40 Sloane Square LED Light can be incorporated into a coordinated multi-fitting arrangement using an appropriately specified 350mA constant current driver.
This allows installers to create consistent low-level illumination along staircases, corridors, plinths and architectural walls. Several matching fittings can be positioned to provide a uniform appearance while maintaining the distinctive square design of the Sloane range.
The combined forward voltage of the connected fittings must fall within the operating range of the selected driver. All connections must be completed and checked before the driver is energised.
Where adjustable brightness is required, a compatible dimmable driver can be selected to suit the intended lighting control system. Available driver options include mains dimming, DALI and 1–10V control, depending on the selected equipment.
Energy-Efficient 1W LED Low-Level Lighting
With a rated consumption of just 1W, the ALL LED ALSQ032OP/PC/40 Sloane Square LED Light offers an efficient solution for architectural accent lighting. Its low power requirement makes it suitable for coordinated installations where several small light fittings are used to create a decorative lighting effect.
The 4000K neutral white output provides a clean lighting appearance, while the clear glass lens produces a sharply defined beam that can enhance staircase walls, corridor features and decorative plinth installations.
Using multiple low-wattage LED fittings allows the lighting design to focus illumination on selected architectural features rather than relying entirely on larger general lighting luminaires.
Suitable Applications – ALL LED ALSQ032OP/PC/40 Sloane Square LED Light
The Sloane Square range combines low-glare illumination with a polished chrome finish, making it suitable for a variety of decorative and practical lighting installations.
- Staircase and step-level wall lighting
- Low-level corridor and hallway illumination
- Decorative wall lighting
- Architectural plinth lighting
- Contemporary residential interiors
- Commercial interior feature lighting
- Entrance and lobby accent lighting
- Suitable bathroom and moisture-exposed installations
- Appropriate outdoor architectural lighting locations
- Decorative lighting around interior features and recessed wall details
The ALL LED ALSQ032OP/PC/40 Sloane Square LED Light is particularly useful in contemporary interiors where polished chrome accessories, geometric details and carefully positioned architectural lighting form part of the overall design.
Why Choose the ALL LED Sloane Square LED Light?
For electricians and lighting designers, the ALL LED ALSQ032OP/PC/40 Sloane Square LED Light combines a compact 1W LED light source with a distinctive polished chrome finish, clear glass lens and IP65 protection.
Its 350mA constant current operation offers flexibility for single fittings and properly designed multi-light arrangements using compatible LED drivers. Dimming can also be incorporated by selecting an appropriate dimmable driver and control system.
Order the ALL LED ALSQ032OP/PC/40 Sloane Square LED Light from Electrical4Less for professional low-level lighting, architectural LED fittings, compatible constant current drivers and electrical installation accessories.
