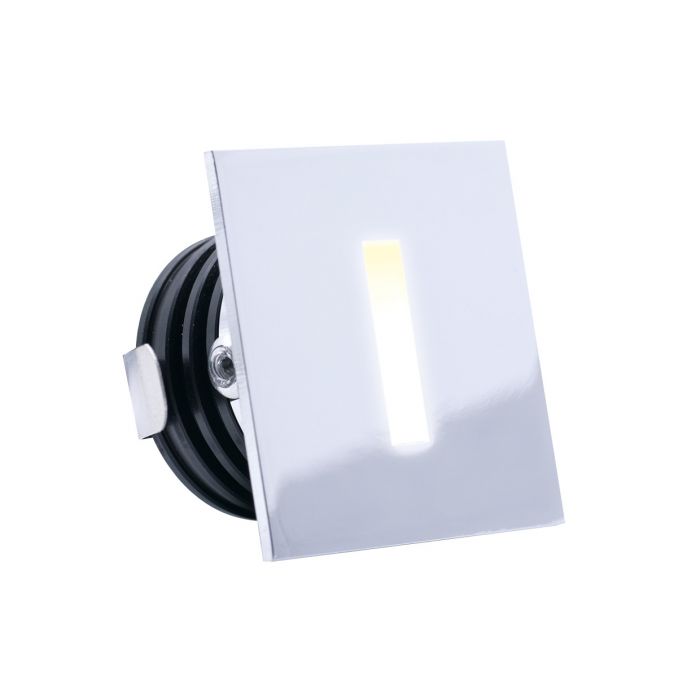

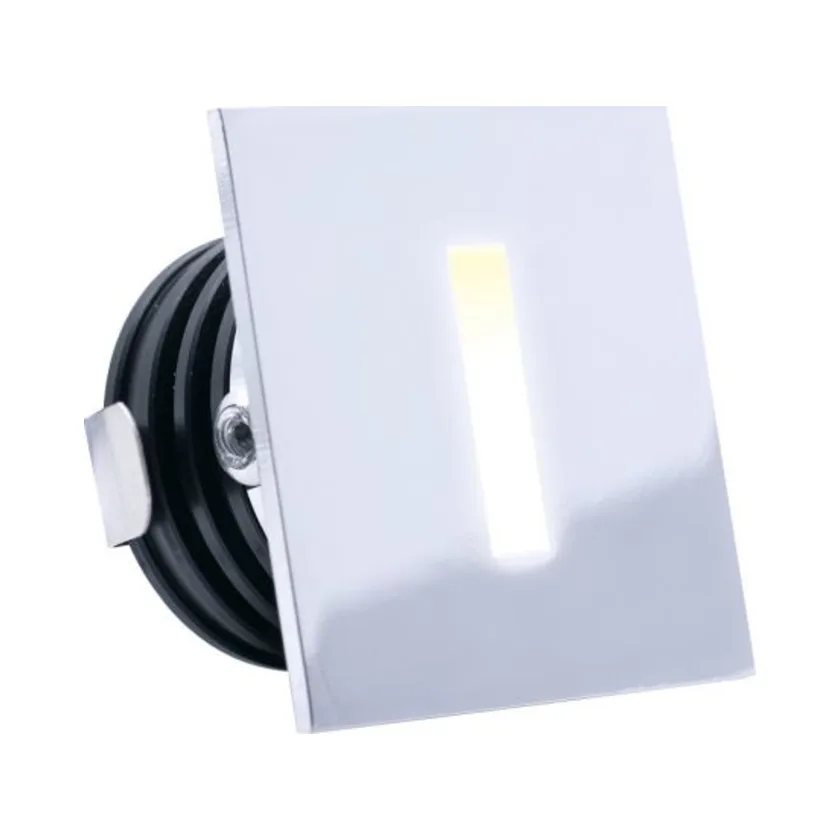

ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light – Polished Chrome 3000K
The ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light is a compact 1W recessed fitting designed for discreet architectural and low-level lighting. Featuring a polished chrome finish, 3000K warm white illumination and IP65 protection, this stylish LED fitting is ideal for staircases, corridors, walls, plinths and contemporary interior lighting schemes.
Part of the ALL LED Sloane Linear range, this architectural light combines an ultra-slim design with a clear glass lens that produces a defined, sharp-edged beam. Its low-glare illumination makes it particularly suitable for decorative installations where a comfortable lighting effect and discreet appearance are important.
Key Features – ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light
- 1W energy-efficient recessed LED low-level light
- 3000K warm white illumination
- Contemporary polished chrome finish
- Distinctive Sloane Linear architectural design
- IP65 protection against dust and water jets
- Low-glare illumination for comfortable lighting
- Clear glass lens producing a defined, sharp-edged beam
- Ultra-slim profile for discreet installation
- Ideal for staircases, corridors, walls and plinths
- Suitable for appropriately assessed indoor and outdoor applications
- 350mA constant current operation
- Dimmable with a compatible dimmable LED driver
- Supplied with a 1-metre pre-wired cable
- Requires a separate constant current LED driver
- Multiple fittings must be connected in series using a suitable driver
3000K Warm White Architectural Lighting
The ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light delivers warm 3000K illumination, creating a comfortable and welcoming lighting effect for residential and commercial interiors. This colour temperature is especially suitable for staircases, hallways, entrance areas and living spaces where softer accent lighting is preferred.
The clear glass lens creates a defined beam, allowing light to highlight selected architectural surfaces without unnecessarily illuminating the entire surrounding area. Its low-glare design also helps reduce the visual impact of the light source when installed at lower levels.
Unlike cooler 4000K alternatives, the 3000K warm white output complements timber, natural stone, neutral decorative finishes and traditional interior materials. It also works well alongside contemporary polished chrome fittings.
Polished Chrome Finish and Linear Design
The polished chrome finish gives the Sloane Linear fitting an elegant appearance that complements modern switches, sockets, door furniture and bathroom accessories.
Its linear styling provides an alternative to conventional round marker lights and square architectural fittings. This makes it particularly suitable for interiors incorporating straight architectural lines, rectangular tiles and minimalist decorative features.
Several matching fittings can be positioned along a wall or staircase to create a coordinated low-level lighting arrangement while maintaining a consistent polished chrome appearance.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALSQ032SC/PC/30 |
| Product Range | Sloane Linear |
| Product Type | Recessed Low-Level LED Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 3000K Warm White |
| Finish | Polished Chrome |
| Design | Linear |
| Lens | Clear Glass |
| Light Distribution | Defined, Sharp-Edged Beam |
| Glare Control | Low Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | Yes, with Compatible Dimmable LED Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring with Compatible Constant Current Driver |
Discreet Staircase and Corridor Lighting
The ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light is particularly useful for low-level illumination in staircases and corridors where conventional wall lights would be too large or visually intrusive.
When recessed into a suitable wall surface, the fitting can direct warm white light towards adjacent steps or floor areas. Its defined light output creates an attractive architectural effect while complementing the main lighting installation.
For longer staircases, several fittings can be arranged at suitable intervals to create a consistent appearance. This approach is useful for residential hallways, commercial circulation areas and other spaces where low-level decorative lighting is required.
The polished chrome finish adds a subtle architectural detail, while the ultra-slim profile keeps the fitting visually discreet.
Ultra-Slim Recessed Installation
The Sloane Linear range is designed for installation where space and visual appearance are important. Its ultra-slim construction makes it suitable for carefully planned recessed wall and plinth lighting applications.
The ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light includes a factory-fitted 1-metre cable, providing flexibility when routing the connection towards a suitable 350mA constant current LED driver.
Installers should check the manufacturer’s required mounting dimensions, available recess depth and suitable cable routes before preparing the installation surface. The driver should remain accessible where required by the installation instructions.
As a 350mA constant current fitting, this product is not designed for direct connection to a 230V mains supply.
Compatible 350mA Constant Current LED Drivers
The ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light requires a compatible 350mA constant current LED driver, sold separately.
Driver selection depends on the number of connected fittings, their combined forward voltage, the driver’s permissible operating range and the required dimming method. Multiple fittings connected to one compatible constant current driver must be wired in series.
Electrical4Less offers a selection of ALL LED constant current drivers for individual low-level lights and larger architectural lighting arrangements.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Explore our ALL LED 350mA mains dimmable LED drivers for additional constant current driver options and suitable lighting control equipment.
Important: A driver’s wattage rating alone does not confirm compatibility. Always check its output voltage range, minimum load, maximum load and approved connection arrangement before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional fittings in series using the same arrangement.
- Connect the negative (-) connection of the final fitting back to the negative (-) output of the driver.
- Never connect these 350mA LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before switching on the power supply.
- Observe correct polarity and ensure all connections are secure.
- Check that the driver’s output voltage and load range support the complete series-connected circuit.
- For adjustable constant current drivers, configure the output to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected LED driver. Installation must be carried out by a competent person.
Multiple Sloane Linear Lights and Dimming Control
The ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light can be incorporated into coordinated multi-fitting architectural lighting schemes using a suitably rated 350mA constant current LED driver.
For staircases and corridors, multiple fittings can be positioned to provide matching warm white illumination while maintaining the distinctive linear design of the Sloane range.
When several LED fittings are supplied from one driver, the combined forward voltage must fall within the driver’s specified output range. Every fitting must be connected correctly in series before the circuit is energised.
Where variable brightness is required, a compatible dimmable driver can be selected. Different ALL LED driver models support mains dimming, DALI or 1–10V control, depending on the chosen equipment.
Energy-Efficient 1W Warm White Lighting
With a rated power consumption of just 1W, the ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light provides an efficient solution for decorative and low-level architectural illumination.
Its 3000K warm white output creates a comfortable appearance, making the fitting particularly suitable for residential staircases, hallways, entrance areas and architectural spaces where softer lighting is preferred.
The clear glass lens creates a defined beam, allowing illumination to be directed towards selected wall and floor surfaces. This makes it practical for installations where lighting is intended to complement the surrounding architecture rather than act as the main room light source.
Suitable Applications – ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light
The combination of polished chrome styling, an ultra-slim profile and IP65 protection makes this recessed low-level light suitable for various residential and commercial architectural lighting installations.
- Staircase and step-level wall lighting
- Low-level corridor and hallway illumination
- Decorative wall lighting
- Architectural plinth lighting
- Contemporary residential interiors
- Commercial interior architectural lighting
- Entrance and lobby accent lighting
- Suitable bathroom installations
- Appropriate outdoor architectural lighting locations
- Decorative lighting around recessed wall details
The ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light is a practical choice where warm white illumination needs to complement modern architectural finishes. Its polished chrome appearance and discreet recessed design allow it to integrate neatly into contemporary interiors.
Why Choose the ALL LED Sloane Linear LED Light?
For professional electricians and lighting designers, the ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light combines a compact 1W LED light source, polished chrome finish, defined light distribution and IP65 protection.
Its 350mA constant current operation provides flexibility for individual fittings and properly designed multi-light installations using compatible drivers. Dimming can also be incorporated when an appropriate dimmable driver and control system are selected.
Order the ALL LED ALSQ032SC/PC/30 Sloane Linear LED Light from Electrical4Less for professional architectural lighting, compatible 350mA constant current drivers and electrical installation accessories.
