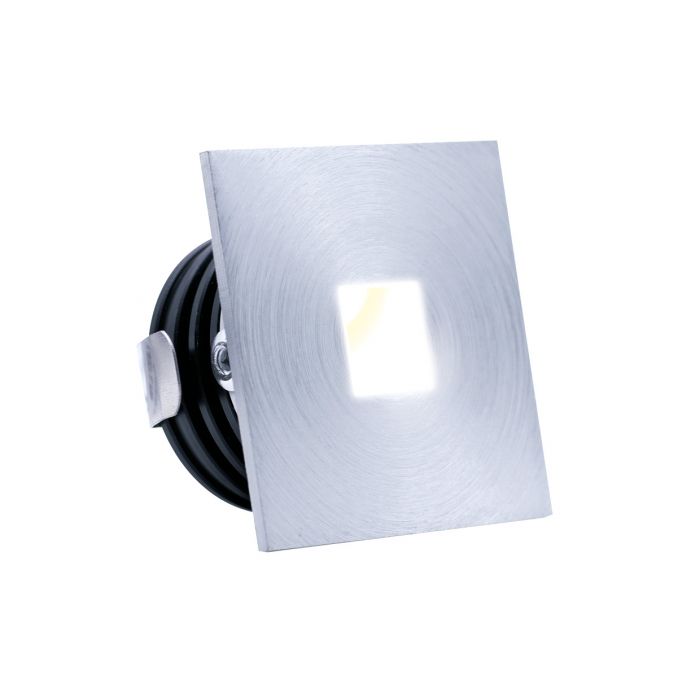

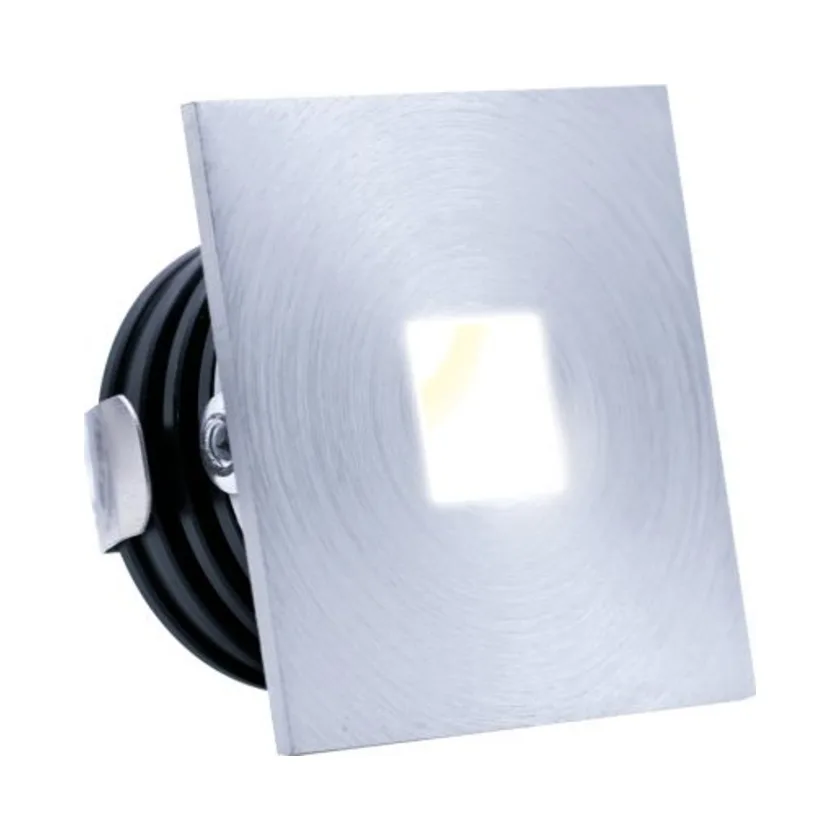

ALL LED ALSQ032OP/AL/40 Sloane Square LED Light – Brushed Aluminium 4000K
The ALL LED ALSQ032OP/AL/40 Sloane Square LED Light is a compact 1W recessed architectural fitting designed to provide discreet low-level illumination in contemporary residential and commercial interiors. Featuring a matt brushed aluminium finish, 4000K neutral white output and IP65 protection, this square LED light is particularly suitable for staircases, corridors, walls and decorative plinth lighting.
Part of the ALL LED Sloane Square range, the fitting combines a sleek square design with an integrated clear glass lens that produces a defined, sharp-edged light beam. Its low-glare illumination and ultra-slim profile provide a practical solution for applications where lighting needs to remain unobtrusive while complementing surrounding architectural features.
Key Features – ALL LED ALSQ032OP/AL/40 Sloane Square LED Light
- 1W energy-efficient recessed LED low-level light
- 4000K neutral white illumination
- Contemporary matt brushed aluminium finish
- Distinctive Sloane Square architectural design
- IP65 protection against dust and water jets
- Low-glare lighting for discreet illumination
- Clear glass lens providing a defined, sharp-edged beam
- Ultra-slim profile for compact installations
- Ideal for staircases, corridors, walls and plinths
- Suitable for appropriately assessed indoor and outdoor applications
- 350mA constant current operation
- Dimmable with a compatible dimmable LED driver
- Supplied with a 1-metre pre-wired cable
- Requires a separate 350mA constant current LED driver
- Multiple fittings must be wired in series using a compatible driver
4000K Neutral White Architectural Lighting
The ALL LED ALSQ032OP/AL/40 Sloane Square LED Light produces crisp 4000K neutral white illumination, offering a balanced lighting appearance for contemporary interiors. This colour temperature is particularly useful where a clean, modern lighting effect is preferred over warmer decorative illumination.
Its clear glass lens creates a defined light distribution, allowing the fitting to highlight nearby surfaces and architectural details. The low-glare design makes it well suited to wall-mounted, low-level applications where excessive brightness or direct glare would be undesirable.
When positioned along staircases or corridors, multiple Sloane Square fittings can create a coordinated architectural lighting scheme that complements existing general lighting.
Matt Brushed Aluminium Finish and Square Design
The matt brushed aluminium housing provides a contemporary metallic appearance that complements modern switches, sockets, stainless steel accessories and architectural ironmongery. Its subtle brushed finish makes it an attractive alternative to polished chrome or painted white fittings.
The square front design works particularly well alongside rectangular tiles, straight architectural lines and minimalist interior finishes. It offers a distinctive appearance while maintaining the compact proportions required for discreet low-level lighting.
For residential and commercial projects where several fittings will be installed in visible positions, the matching brushed aluminium finish helps maintain a consistent decorative appearance throughout the installation.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALSQ032OP/AL/40 |
| Product Range | Sloane Square |
| Product Type | Recessed Low-Level LED Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 4000K Neutral White |
| Finish | Matt Brushed Aluminium |
| Front Design | Square |
| Lens | Clear Glass |
| Light Distribution | Defined, Sharp-Edged Beam |
| Glare Control | Low Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | Yes, with Compatible Dimmable LED Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring with Compatible Constant Current Driver |
Low-Level Lighting for Staircases and Hallways
The ALL LED ALSQ032OP/AL/40 Sloane Square LED Light is particularly effective in staircase and hallway installations where discreet lighting can help illuminate surrounding architectural surfaces.
Mounted at a suitable low level, the fitting can provide a defined lighting effect on nearby walls, steps or floor surfaces. Its anti-glare construction helps create comfortable illumination without relying on larger wall-mounted or ceiling-mounted fittings.
For longer corridors and staircases, several matching Sloane Square lights can be installed at carefully planned intervals. This creates a consistent decorative appearance while maintaining the clean lines of the surrounding walls.
The 4000K neutral white output complements contemporary interiors, particularly where brushed metal accessories, pale walls and modern architectural finishes are used.
Ultra-Slim Recessed Installation
The Sloane Square range is designed for discreet recessed mounting, with an ultra-slim profile that reduces the visual impact of the fitting.
The ALL LED ALSQ032OP/AL/40 Sloane Square LED Light can be incorporated into suitable wall and plinth installations, subject to the manufacturer’s mounting instructions and available installation depth.
Its factory-fitted 1-metre cable provides a convenient connection for routing towards a separately installed 350mA constant current driver. Installers should consider cable routing, accessibility of electrical connections and suitable driver positioning during the planning stage.
The fitting is a low-voltage constant current LED product and must not be connected directly to a 230V mains supply.
Compatible 350mA Constant Current LED Drivers
The ALL LED ALSQ032OP/AL/40 Sloane Square LED Light requires a suitable 350mA constant current LED driver, which is sold separately.
The correct driver must be selected according to the number of connected fittings, their combined forward voltage, the driver’s permitted load range and the required dimming functionality. Multiple fittings supplied from one compatible constant current driver must be connected in series.
Electrical4Less offers a selection of ALL LED constant current drivers for different lighting arrangements, including non-dimmable, mains-dimmable and adjustable constant current models.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Browse our ALL LED 350mA mains dimmable LED drivers to explore suitable driver options for your low-level lighting installation.
Important: The driver’s wattage range alone does not confirm compatibility. Check the output voltage range, permitted load, number of fittings and supported dimming method before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALSQ032OP/AL/40 Sloane Square LED Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional LED fittings in series using the same arrangement.
- Connect the negative (-) connection of the final fitting back to the negative (-) output of the driver.
- Never connect the fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before switching on the power supply.
- Observe correct polarity and ensure all connections are secure.
- Confirm the driver’s output voltage and load range are suitable for the complete series-connected circuit.
- Adjustable constant current drivers must be correctly configured to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Follow the ALL LED manufacturer’s installation instructions and the wiring diagram supplied with the selected driver. Installation must be carried out by a competent person.
Multiple Sloane Square Lights and Dimming Control
The ALL LED ALSQ032OP/AL/40 Sloane Square LED Light can be incorporated into coordinated multi-fitting lighting schemes using a suitably rated 350mA constant current LED driver.
For staircases and long corridors, several matching lights can be positioned to provide consistent low-level illumination. The square brushed aluminium finish creates a coordinated appearance, while the 4000K output produces a clean lighting effect across the installation.
When connecting several fittings to one driver, the combined forward voltage must fall within the driver’s specified operating range. All fittings must be connected securely in series before the power supply is energised.
Where brightness adjustment is required, a compatible dimmable driver can be selected. Different ALL LED driver models support mains dimming, DALI or 1–10V control, depending on the chosen equipment.
Energy-Efficient 1W Architectural Lighting
With a rated power consumption of just 1W, the ALL LED ALSQ032OP/AL/40 Sloane Square LED Light provides an efficient solution for decorative and low-level architectural lighting installations.
Its clear glass lens creates a defined beam, allowing illumination to be directed towards selected surfaces and architectural features. The combination of low-glare output and a slim recessed fitting makes it particularly suitable for projects where lighting comfort and a discreet appearance are important.
Using multiple small LED fittings can help create a carefully controlled decorative lighting scheme while keeping individual fitting power consumption low.
Suitable Applications – ALL LED ALSQ032OP/AL/40 Sloane Square LED Light
The brushed aluminium finish, square design and IP65 protection make this recessed low-level fitting suitable for various residential and commercial architectural lighting applications.
- Staircase and step-level wall lighting
- Corridor and hallway illumination
- Decorative low-level wall lighting
- Architectural plinth lighting
- Contemporary residential interiors
- Commercial architectural lighting
- Entrance and lobby accent lighting
- Suitable bathroom and moisture-exposed locations
- Appropriate outdoor architectural installations
- Decorative lighting around recessed wall features
The ALL LED ALSQ032OP/AL/40 Sloane Square LED Light is an excellent choice where architectural lighting needs to complement brushed metal fittings and contemporary interior details. Its slim construction allows the light to remain visually discreet while creating a defined lighting effect.
Why Choose the ALL LED Sloane Square LED Light?
For professional electricians and lighting designers, the ALL LED ALSQ032OP/AL/40 Sloane Square LED Light combines compact dimensions, energy-efficient 1W operation, a refined brushed aluminium finish and IP65 protection.
Its 350mA constant current design provides flexibility for individual fittings and correctly planned multi-light installations using suitable LED drivers. Dimming is also possible when the appropriate driver and compatible lighting control system are selected.
Order the ALL LED ALSQ032OP/AL/40 Sloane Square LED Light from Electrical4Less for professional architectural lighting, compatible 350mA LED drivers and electrical installation accessories.
