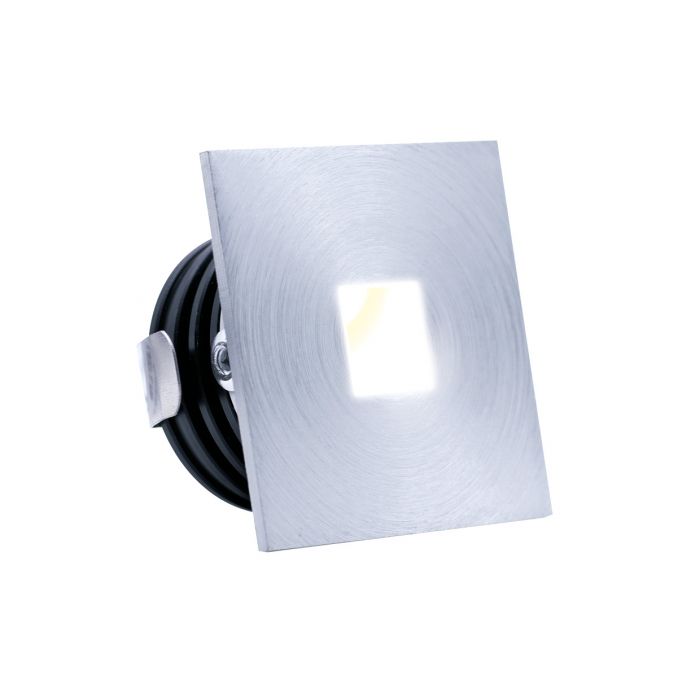

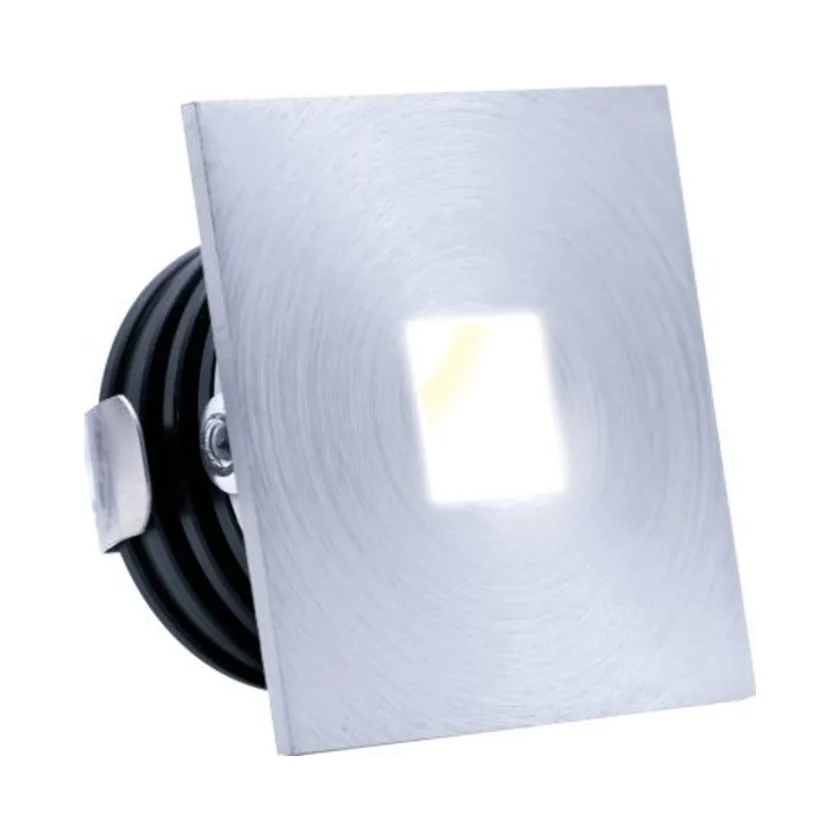

ALL LED ALSQ032OP/AL/30 Sloane Square LED Light – Brushed Aluminium 3000K
The ALL LED ALSQ032OP/AL/30 Sloane Square LED Light is a compact 1W recessed architectural fitting designed to provide discreet low-level illumination in residential and commercial interiors. Featuring a matt brushed aluminium finish, warm 3000K light output and IP65 protection, this contemporary square LED light is ideal for staircases, corridors, walls and decorative plinth lighting.
Part of the ALL LED Sloane Square range, the fitting combines an ultra-slim design with a clear glass lens that creates a defined, sharp-edged beam. Its low-glare illumination makes it particularly suitable for architectural lighting schemes where a comfortable lighting effect and discreet appearance are important.
Key Features – ALL LED ALSQ032OP/AL/30 Sloane Square LED Light
- 1W energy-efficient recessed low-level LED light
- 3000K warm white colour temperature
- Contemporary matt brushed aluminium finish
- Distinctive Sloane Square architectural design
- IP65 protection against dust and water jets
- Low-glare illumination for comfortable lighting
- Clear glass lens producing a defined, sharp-edged beam
- Ultra-slim profile for discreet installation
- Ideal for staircases, corridors, walls and plinths
- Suitable for appropriately assessed indoor and outdoor applications
- 350mA constant current operation
- Dimmable when paired with a compatible dimmable LED driver
- Supplied with a 1-metre pre-wired cable
- Requires a separate 350mA constant current LED driver
- Multiple fittings must be connected in series using a suitable driver
3000K Warm White Architectural Lighting
The ALL LED ALSQ032OP/AL/30 Sloane Square LED Light produces warm 3000K illumination, making it suitable for contemporary interiors where a comfortable, welcoming lighting atmosphere is preferred. This warm white output works particularly well in residential staircases, hallways, entrance areas and decorative architectural installations.
The clear glass lens creates a defined light distribution that can highlight nearby walls, steps and architectural surfaces. The low-glare design helps minimise unwanted brightness when the fitting is installed at lower levels.
Compared with neutral white 4000K alternatives, the 3000K version provides a softer visual appearance that complements timber, natural stone, warm decorative colours and traditional interior materials.
Matt Brushed Aluminium Finish and Square Design
The matt brushed aluminium finish gives the Sloane Square range a refined appearance that complements contemporary switches, sockets, stainless steel accessories and architectural ironmongery.
Its square profile provides an alternative to conventional round recessed marker lights, making it particularly suitable for interiors with straight architectural lines, rectangular tiles and minimalist decorative features.
For projects requiring multiple fittings, the matching brushed aluminium finish creates a coordinated appearance across staircases, corridors and decorative wall installations.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALSQ032OP/AL/30 |
| Product Range | Sloane Square |
| Product Type | Recessed Low-Level LED Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 3000K Warm White |
| Finish | Matt Brushed Aluminium |
| Front Design | Square |
| Lens | Clear Glass |
| Light Distribution | Defined, Sharp-Edged Beam |
| Glare Control | Low Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | Yes, with Compatible Dimmable LED Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring with Compatible Constant Current Driver |
Low-Level Staircase and Hallway Lighting
The ALL LED ALSQ032OP/AL/30 Sloane Square LED Light is particularly effective where discreet illumination is required along staircases, corridors and interior walls. Its low-level mounting arrangement allows light to highlight adjacent architectural surfaces without relying on larger wall-mounted luminaires.
When installed at suitable intervals, several Sloane Square fittings can create a coordinated lighting arrangement along staircase walls. The warm white illumination complements the surrounding interior while providing attractive decorative lighting around steps and landings.
In residential hallways, the square design provides a subtle architectural detail that works particularly well with brushed aluminium accessories and contemporary interior finishes.
For commercial environments, the fittings can be incorporated into entrance areas, corridors and architectural wall features to provide discreet accent lighting alongside the main lighting system.
Ultra-Slim Recessed Installation
The Sloane Square range has been designed for discreet recessed installation, with an ultra-slim profile that helps minimise the visible appearance of the fitting.
The ALL LED ALSQ032OP/AL/30 Sloane Square LED Light can be incorporated into suitable wall and plinth installations, subject to the manufacturer’s mounting requirements and available recess dimensions.
The factory-fitted 1-metre cable provides a convenient connection for routing towards a separately installed 350mA constant current driver. Installers should consider cable routing, driver positioning, accessibility and the available mounting depth before installation.
As a 350mA constant current LED fitting, this product must not be connected directly to a 230V mains supply.
Compatible 350mA Constant Current LED Drivers
The ALL LED ALSQ032OP/AL/30 Sloane Square LED Light requires a suitable 350mA constant current LED driver, which is sold separately.
The correct driver must be selected according to the number of fittings being connected, their combined forward voltage, the driver’s permitted operating range and any required dimming functionality. Multiple fittings connected to one compatible constant current driver must be wired in series.
Electrical4Less offers a selection of ALL LED constant current drivers for individual low-level lights and larger architectural lighting arrangements.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Explore our ALL LED 350mA mains dimmable LED drivers for additional driver options and compatible architectural lighting control equipment.
Important: A driver’s wattage rating alone does not confirm compatibility. Always verify its output voltage range, minimum load, maximum load and supported connection arrangement before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALSQ032OP/AL/30 Sloane Square LED Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional LED fittings in series using the same arrangement.
- Connect the negative (-) connection of the final fitting back to the negative (-) output of the driver.
- Never connect these LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before switching on the power supply.
- Observe the correct polarity and ensure all electrical connections are secure.
- Check that the driver’s output voltage and load range support the complete series-connected circuit.
- For adjustable constant current drivers, ensure the output is configured to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Follow the manufacturer’s installation instructions and the wiring diagram provided with the selected LED driver. Installation must be carried out by a competent person.
Multiple Sloane Square Lights and Dimming Control
For projects requiring several matching fittings, the ALL LED ALSQ032OP/AL/30 Sloane Square LED Light can be incorporated into coordinated lighting arrangements using a suitably rated 350mA constant current driver.
This approach is particularly useful for staircases, long corridors and architectural wall features where consistent warm white illumination is required across multiple positions.
When several lights are connected to one driver, the combined forward voltage must fall within the driver’s specified operating range. All fittings must be securely connected in series before the circuit is energised.
Where adjustable brightness is required, compatible dimmable drivers can be selected to suit the intended control system. Available ALL LED driver models include mains-dimmable, DALI and 1–10V options, depending on the selected equipment.
Energy-Efficient 1W Warm White Lighting
With a rated power consumption of just 1W, the ALL LED ALSQ032OP/AL/30 Sloane Square LED Light provides an energy-efficient solution for decorative and low-level architectural lighting.
Its warm 3000K illumination creates a comfortable lighting atmosphere that works well in residential corridors, staircase areas and other spaces where a softer lighting effect is preferred.
The low-glare design and clear glass lens allow light to be directed towards selected walls, floor surfaces and architectural details, helping create attractive lighting effects without introducing larger visible luminaires.
For larger installations, multiple low-wattage fittings can be used to produce a coordinated appearance while keeping individual fitting power consumption low.
Suitable Applications – ALL LED ALSQ032OP/AL/30 Sloane Square LED Light
The combination of its brushed aluminium finish, distinctive square design and IP65 protection makes this recessed low-level fitting suitable for a variety of architectural lighting installations.
- Staircase and step-level wall lighting
- Low-level corridor and hallway illumination
- Decorative recessed wall lighting
- Architectural plinth lighting
- Contemporary residential interiors
- Commercial architectural lighting
- Entrance and lobby accent lighting
- Suitable bathroom installations
- Appropriate outdoor architectural lighting locations
- Decorative lighting around architectural wall features
The ALL LED ALSQ032OP/AL/30 Sloane Square LED Light is particularly suitable where warm white illumination needs to complement brushed aluminium accessories and contemporary interior finishes. Its discreet recessed construction helps maintain a clean architectural appearance.
Why Choose the ALL LED Sloane Square LED Light?
For professional electricians and lighting designers, the ALL LED ALSQ032OP/AL/30 Sloane Square LED Light combines efficient 1W operation, a refined brushed aluminium finish, IP65 protection and discreet low-glare illumination.
Its 350mA constant current design provides flexibility for individual fittings and correctly planned multi-light installations using compatible LED drivers. Dimming can also be incorporated when an appropriate dimmable driver and suitable lighting control system are selected.
