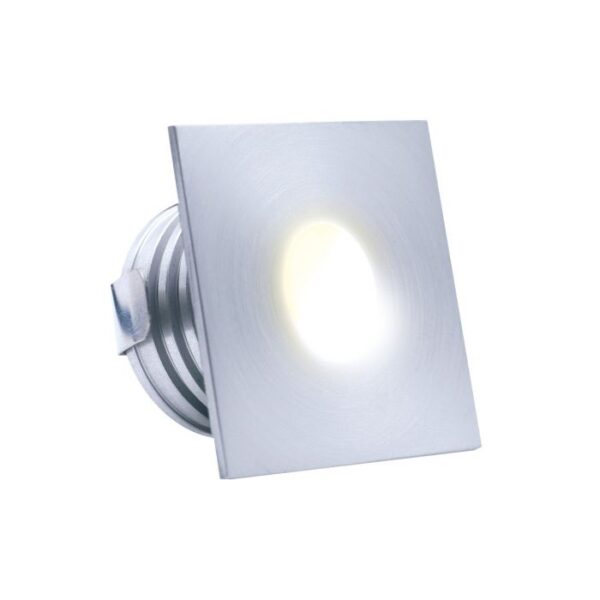

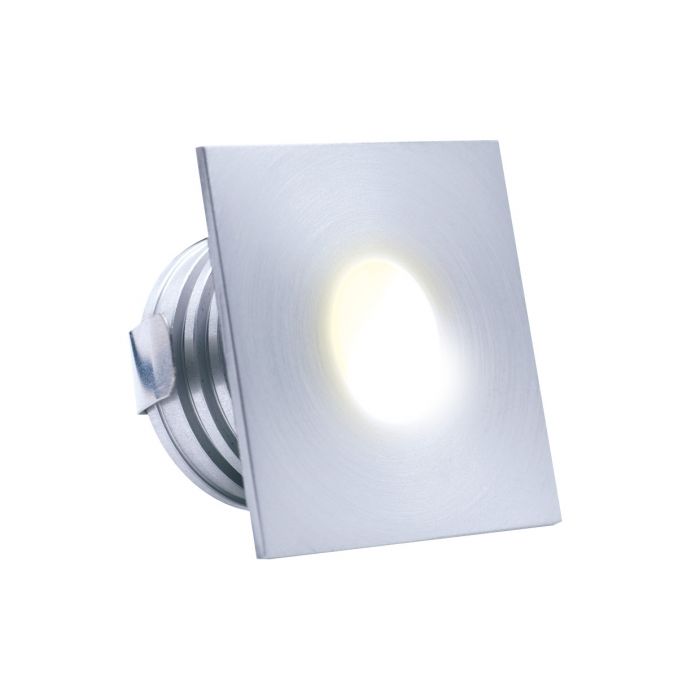

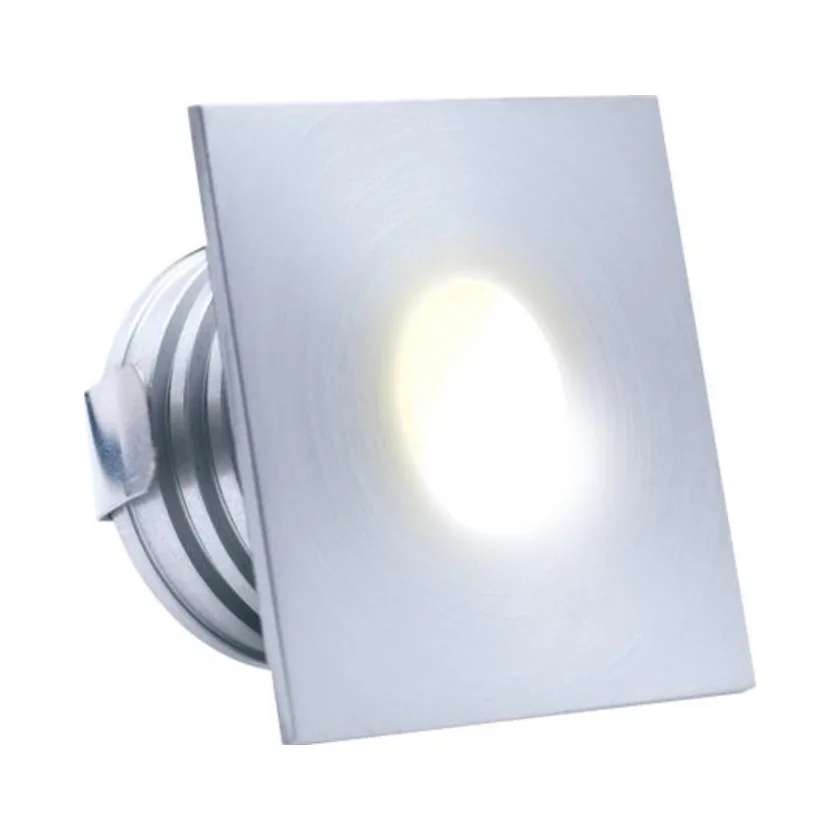

ALL LED ALSQ032AL/30 Sloane Classic LED Light – Brushed Aluminium 3000K
The ALL LED ALSQ032AL/30 Sloane Classic LED Light is a compact 1W recessed architectural fitting designed to deliver soft, warm white illumination for residential and commercial environments. Featuring a contemporary matt brushed aluminium finish, 3000K colour temperature and IP65 protection, this low-level LED light is ideal for staircases, corridors, walls and decorative plinth installations.
Part of the ALL LED Sloane Classic range, this fitting incorporates a frosted glass diffuser that distributes light evenly and reduces glare. Its ultra-slim profile makes it suitable for discreet architectural installations where comfortable illumination and an attractive finish are equally important.
Key Features – ALL LED ALSQ032AL/30 Sloane Classic LED Light
- 1W energy-efficient recessed low-level LED light
- 3000K warm white colour temperature
- Contemporary matt brushed aluminium finish
- Frosted glass diffuser for soft, even illumination
- Low-glare design for comfortable accent lighting
- IP65 protection against dust and water jets
- Ultra-slim profile for discreet recessed installation
- Suitable for architectural wall and plinth lighting
- Ideal for staircases, hallways and corridors
- Suitable for appropriately assessed indoor and outdoor applications
- 350mA constant current operation
- Dimmable with a compatible dimmable LED driver
- Supplied with a 1-metre pre-wired cable
- Requires a separately purchased constant current LED driver
- Multiple fittings must be connected in series using a compatible driver
3000K Warm White Lighting with a Frosted Glass Diffuser
The ALL LED ALSQ032AL/30 Sloane Classic LED Light produces warm 3000K illumination, helping create a comfortable and welcoming atmosphere. This colour temperature is particularly suitable for residential staircases, hallways, living areas and architectural spaces where softer lighting is preferred.
The integrated frosted glass diffuser helps spread the light evenly, creating a smooth lighting effect while reducing the harsh appearance of the LED source. Unlike fittings with clear glass lenses that produce sharply defined beams, the Sloane Classic provides a softer distribution suited to subtle accent lighting.
The warm white output complements timber, natural stone, neutral interior finishes and contemporary brushed metal accessories. This makes it particularly useful for lighting projects that combine decorative architectural details with comfortable low-level illumination.
Matt Brushed Aluminium Finish and Modern Styling
The matt brushed aluminium finish gives the Sloane Classic range a contemporary appearance that works well with modern switches, sockets, stainless steel accessories and architectural ironmongery.
Its subtle metallic finish creates an attractive contrast against painted walls, decorative panels and natural materials. The ultra-slim recessed design helps minimise the visible profile of the fitting, allowing the illumination to complement the surrounding architecture.
For projects requiring several matching lights, the brushed aluminium finish helps maintain a coordinated appearance across staircases, hallways and other architectural lighting installations.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALSQ032AL/30 |
| Product Range | Sloane Classic |
| Product Type | Recessed Low-Level LED Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 3000K Warm White |
| Finish | Matt Brushed Aluminium |
| Diffuser | Frosted Glass |
| Light Distribution | Soft, Evenly Distributed Illumination |
| Glare Control | Low Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | Yes, with Compatible Dimmable LED Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring with Compatible Constant Current Driver |
Soft Low-Level Lighting for Staircases and Hallways
The ALL LED ALSQ032AL/30 Sloane Classic LED Light is particularly suitable for staircase and hallway installations where soft decorative lighting is required without the bulk of traditional wall-mounted luminaires.
When recessed into a suitable wall at low level, the fitting can provide gentle illumination across nearby steps, floor surfaces and architectural features. The frosted glass diffuser helps create a more uniform lighting appearance, making it useful where visual comfort is an important consideration.
For longer corridors and staircases, several matching fittings can be positioned at carefully planned intervals to create consistent architectural lighting. The warm 3000K output helps establish a welcoming atmosphere while complementing the property’s main lighting system.
In commercial environments, the Sloane Classic range can also be incorporated into entrance areas, circulation spaces and decorative interior walls where discreet supplementary illumination is desirable.
Ultra-Slim Recessed Installation
The Sloane Classic range has been designed for discreet architectural integration, with an ultra-slim profile that helps reduce the visible appearance of the fitting.
The ALL LED ALSQ032AL/30 Sloane Classic LED Light can be incorporated into suitable recessed wall and plinth installations, subject to the manufacturer’s mounting requirements and available recess dimensions.
Its factory-fitted 1-metre cable provides a convenient connection for routing towards a suitable 350mA constant current LED driver. Installers should consider mounting depth, cable routes, connection accessibility and driver positioning during the planning stage.
As a 350mA constant current LED fitting, this product requires an appropriate LED driver and must never be connected directly to a 230V mains supply.
Compatible 350mA Constant Current LED Drivers
The ALL LED ALSQ032AL/30 Sloane Classic LED Light requires a suitable 350mA constant current LED driver, which is sold separately.
Driver selection depends on the number of connected fittings, their combined forward voltage, the driver’s permitted operating range and any required dimming functionality. Multiple fittings connected to one compatible constant current driver must be wired in series.
Electrical4Less offers a selection of ALL LED constant current drivers for individual architectural lights and larger coordinated lighting arrangements.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Browse our ALL LED 350mA mains dimmable LED drivers for additional driver options and suitable lighting control equipment.
Important: A driver’s stated wattage range alone does not guarantee compatibility. Always verify its output voltage range, minimum load, maximum load and approved connection arrangement before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALSQ032AL/30 Sloane Classic LED Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional fittings in series using the same arrangement.
- Connect the negative (-) connection of the final fitting back to the negative (-) output of the driver.
- Never connect these LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before switching on the power supply.
- Observe correct polarity and ensure all electrical connections are secure.
- Check that the driver’s output voltage range and load capacity support the complete series-connected circuit.
- For adjustable constant current drivers, ensure the output is configured to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected LED driver. Installation must be carried out by a competent person.
Multiple Sloane Classic Lights and Dimming Control
The ALL LED ALSQ032AL/30 Sloane Classic LED Light can be incorporated into coordinated multi-fitting architectural lighting schemes using a suitably rated 350mA constant current LED driver.
For staircases, corridors and decorative wall installations, multiple matching fittings can provide consistent warm white illumination with the softer lighting effect created by the frosted glass diffuser.
When several fittings are connected to one driver, the combined forward voltage must fall within the driver’s specified operating range. All fittings must be connected securely in series before the power supply is energised.
Where adjustable brightness is required, compatible dimmable drivers can be selected to suit the intended control system. ALL LED driver options include mains dimming, DALI and 1–10V control, depending on the selected model.
Energy-Efficient 1W Warm White Low-Level Lighting
With a rated power consumption of just 1W, the ALL LED ALSQ032AL/30 Sloane Classic LED Light provides an energy-efficient solution for decorative architectural lighting and low-level illumination.
Its 3000K warm white output creates a comfortable lighting atmosphere, while the frosted glass diffuser helps soften the light distribution. This makes the fitting particularly useful in residential interiors where a welcoming appearance is preferred.
Unlike directional architectural fittings with clear glass lenses, the Sloane Classic produces a more diffused lighting effect that can be incorporated into decorative wall installations without creating a pronounced beam pattern.
For larger projects, multiple low-wattage fittings can be used to create a coordinated lighting scheme while keeping individual fitting power consumption low.
Suitable Applications – ALL LED ALSQ032AL/30 Sloane Classic LED Light
The combination of brushed aluminium styling, warm white illumination, a frosted glass diffuser and IP65 protection makes this fitting suitable for a variety of residential and commercial architectural lighting applications.
- Staircase and step-level wall lighting
- Low-level corridor and hallway illumination
- Decorative recessed wall lighting
- Architectural plinth lighting
- Contemporary residential interiors
- Commercial interior architectural lighting
- Entrance and lobby accent lighting
- Suitable bathroom installations
- Appropriate outdoor architectural lighting locations
- Decorative illumination around wall features and recessed architectural details
The ALL LED ALSQ032AL/30 Sloane Classic LED Light is particularly suitable where soft, low-glare illumination needs to complement brushed aluminium accessories and modern interior finishes. Its frosted glass diffuser provides gentle illumination, while the compact recessed construction helps maintain a discreet appearance.
Why Choose the ALL LED Sloane Classic LED Light?
For professional electricians and lighting designers, the ALL LED ALSQ032AL/30 Sloane Classic LED Light combines efficient 1W operation, a contemporary brushed aluminium finish, frosted glass diffusion and IP65 protection.
Its 350mA constant current design provides flexibility for individual fittings and carefully planned multi-light installations using compatible drivers. Dimming can also be incorporated by selecting an appropriate dimmable driver and compatible lighting control system.
Order the ALL LED ALSQ032AL/30 Sloane Classic LED Light from Electrical4Less for professional architectural lighting, compatible 350mA constant current drivers and electrical installation accessories.
