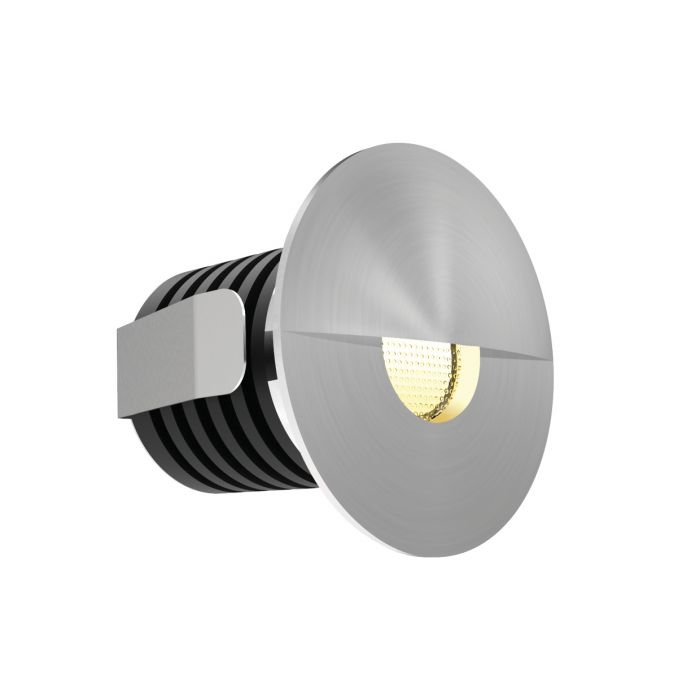

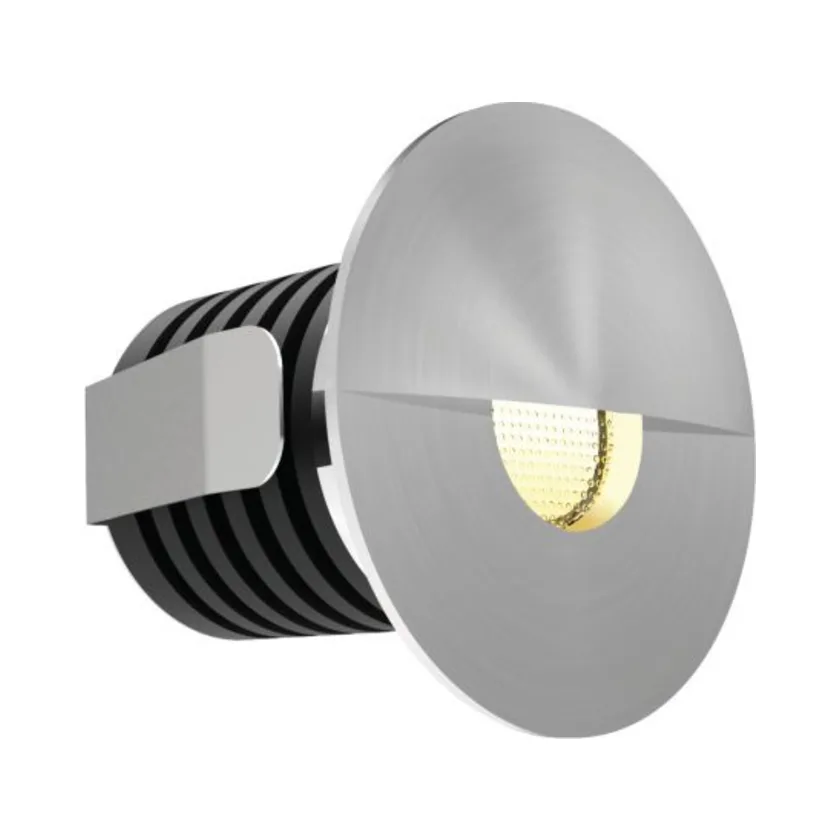

Dawn 1W LED Eyelid Marker Light 2700K
ALL LED ALRE032AL/27 – Brushed Aluminium IP65 Recessed Marker Light
The Dawn 1W LED Eyelid Marker Light 2700K provides soft, discreet illumination for outdoor steps, garden walls and architectural features. Designed by ALL LED, this compact recessed fitting combines a distinctive eyelid-shaped bezel with a Cree LED diode and diamond-cut lens, creating a controlled lighting effect with minimal direct glare.
The ALL LED ALRE032AL/27 produces 34 lumens of very warm white light, making it particularly suitable for relaxed residential environments and subtle landscape lighting schemes. Its matte brushed aluminium finish, flush toughened glass and IP65-rated construction offer an attractive combination of contemporary appearance and outdoor protection.
Key Features
- Brand: ALL LED
- Product Code: ALRE032AL/27
- Product Range: Dawn
- Product Type: Recessed Eyelid LED Marker Light
- Light Source: Integrated 1W Cree LED
- Colour Temperature: 2700K Very Warm White
- Useful Luminous Flux: 34 Lumens
- Beam Angle: 36°
- Peak Intensity: 86cd
- Colour Rendering Index: CRI >80
- Finish: Matte Brushed Aluminium
- IP Rating: IP65 – Dust-tight and protected against water jets
- Operating Current: 350mA Constant Current
- Operating Voltage: 3V
- LED Technology: Cree Diode
- Optics: Diamond-Cut Lens
- Front Glass: Flush Toughened Glass
- Bezel: Super-Slim Eyelid Design
- Visible Diameter: 42mm
- Cut-Out Diameter: 32mm
- Fitting Depth: 37mm
- Pre-Wired Cable: 1 Metre
- Alternative Bezels: Carbon Black and Polar White – Sold Separately
- Dimming: Compatible with suitable dimmable 350mA LED drivers
- Expected Lifetime: 50,000 Hours (L70 B50)
- Manufacturer Guarantee: 3 Years
- LED Driver: Required Separately
2700K Very Warm White Lighting for Outdoor Spaces
The Dawn 1W LED Eyelid Marker Light 2700K is designed for installations where a softer lighting effect is preferred. Its 2700K colour temperature creates a warm, inviting appearance around landscaped gardens, stonework, external walls and pedestrian areas.
Unlike cooler 4000K alternatives, this version produces a gentler light that complements traditional brickwork, timber, natural stone and residential garden features.
With a useful output of 34 lumens, it is intended primarily for decorative low-level illumination and visual guidance rather than general area lighting. Several fittings can be arranged along steps or pathways to produce a coordinated lighting effect.
Low-Glare Eyelid Design with Diamond-Cut Lens
The Dawn Eyelid Low Level Light features a partially shielded LED source, helping direct illumination towards the surrounding surface while reducing unwanted glare.
Its diamond-cut optical lens distributes light through a 36° beam, providing controlled illumination for steps, wall bases and architectural features.
The integrated Cree diode provides efficient LED performance, while the slim bezel keeps the fitting visually discreet when recessed into a suitable mounting surface.
Brushed Aluminium Finish and IP65 Protection
The ALL LED ALRE032AL/27 has a matte brushed aluminium bezel with flush toughened glass, creating a neat appearance suited to contemporary and traditional installations.
The IP65 rating provides protection against dust ingress and water jets, allowing use in appropriately installed indoor and outdoor lighting systems.
Suitable applications include:
- Garden steps and exterior stairways
- Low-level wall and plinth lighting
- Residential pathways and entrance areas
- Decorative landscape lighting
- Recessed architectural marker lighting
- Patio surrounds and sheltered exterior features
The fitting is supplied with a 1-metre pre-wired cable. Connections used outdoors must be protected against moisture and installed in accordance with the manufacturer’s instructions.
Compact Dimensions for Discreet Installation
The Dawn 1W LED Eyelid Marker Light 2700K features a 42mm visible front diameter with a 32mm installation cut-out and 37mm depth.
These compact dimensions allow the fitting to be positioned within suitable walls and prepared ground-level surfaces without the visual impact of larger lighting equipment.
The super-slim eyelid bezel helps maintain a clean appearance while the toughened glass protects the optical components.
Interchangeable Dawn Eyelid Bezels
The standard ALRE032AL/27 is supplied with a matte brushed aluminium bezel. Optional replacement bezels allow installers to change the appearance of the fitting to match surrounding materials or other architectural details.
- ALL LED ALRE032BZ/BLK – Carbon Black Dawn Eyelid Bezel
- ALL LED ALRE032BZ/WH – Polar White Dawn Eyelid Bezel
Important: Alternative bezels are optional accessories and are sold separately. Changing the bezel does not alter the LED colour temperature.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS CAN PERMANENTLY DAMAGE THE LED MARKER LIGHTS!
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
The ALL LED ALRE032AL/27 operates at 350mA constant current and requires a compatible external LED driver. The driver is sold separately and is not included with the fitting.
- Connect multiple LED marker lights in series, following the manufacturer’s wiring instructions.
- Never connect the fittings in parallel.
- Never connect the LED fittings directly to a 230V mains supply.
- Use a compatible 350mA constant current LED driver with the correct output voltage and power range.
- Ensure the combined LED load falls within the driver’s operating limits.
- Disconnect the power supply before making or changing electrical connections.
- Complete all LED connections before energising the driver.
IMPORTANT: Always follow the manufacturer’s installation instructions. Incorrect wiring, an unsuitable driver or an incorrect operating current may permanently damage the integrated LED.
ALL LED 350mA Constant Current Driver Options
The Dawn 1W LED Eyelid Marker Light 2700K requires a suitable 350mA constant current LED driver. ALL LED offers several driver options for different lighting arrangements, including dimmable and non-dimmable installations.
- ADRCC350/1-11 – Non-dimmable 350mA constant current driver, rated 1–11W.
- ADRCC350TD/1-4 – Dimmable 350mA constant current driver, rated 1–4W.
- ADRCC350NANOTD/2-4 – Compact dimmable constant current driver, rated 2–4W.
- ADRCC350TD/4-9 – Dimmable 350mA driver, rated 4–9W.
- ADRCC350TD/9-18 – Dimmable 350mA driver, rated 9–18W.
- ADRCC350TD/12-25 – Dimmable 350mA driver, rated 12–25W.
- ADRCC12D/100-440MA – 12W adjustable constant current driver offering DALI and 1–10V dimming options.
- ADRCC30D/300-900MA – 30W adjustable constant current driver offering DALI and 1–10V dimming options.
For adjustable-output drivers, the operating current must be set to 350mA. The number of connected fittings must remain within the driver’s minimum and maximum output voltage and power limits.
Important: The driver’s wattage rating alone does not guarantee compatibility. Confirm the electrical specifications of the LED fittings and selected driver before installation.
Explore More ALL LED Marker Lights
Browse our ALL LED Marker Lights category for further recessed ground lights, low-level step lighting and architectural marker fittings in a selection of finishes and colour temperatures.
