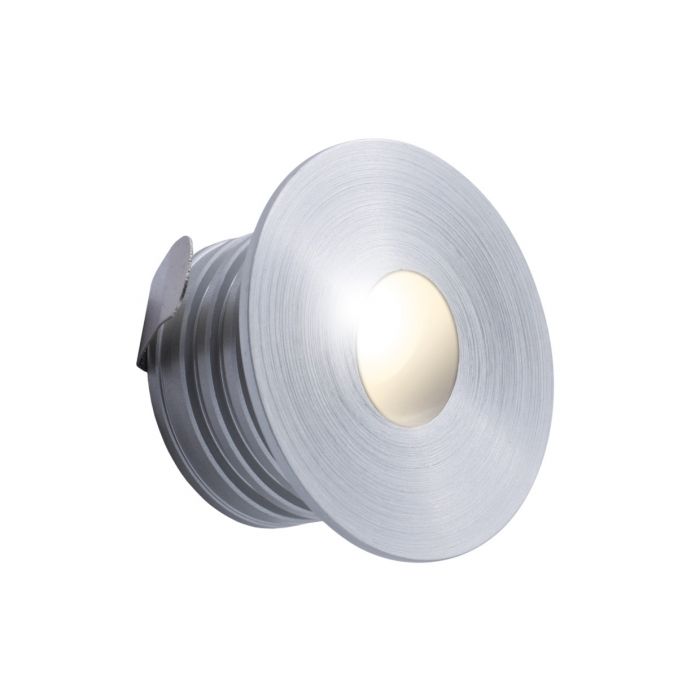

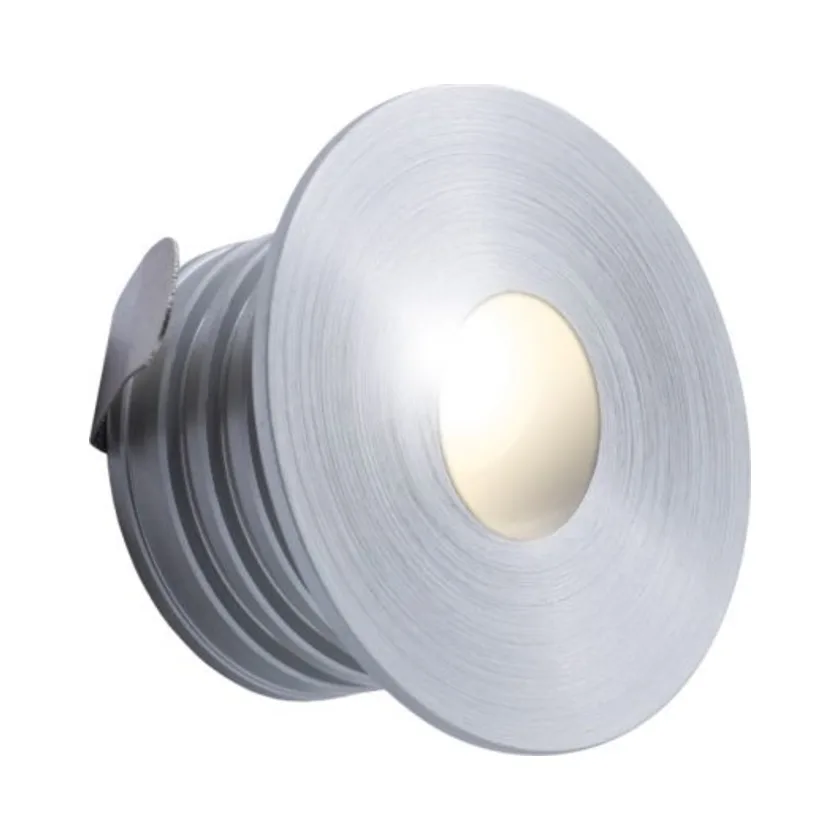

ALL LED ALRD032AL/40 Low Level Light – Oxford Round Brushed Aluminium 4000K
The ALL LED ALRD032AL/40 Low Level Light is a compact 1W recessed LED fitting designed for decorative staircase lighting, low-level wall illumination and architectural features. Part of the ALL LED Oxford range, this round marker light combines a contemporary brushed aluminium finish, 4000K neutral white illumination and IP65 protection for residential and commercial lighting installations.
Featuring an anti-glare design and frosted glass diffuser, the Oxford LED light produces soft, evenly distributed illumination without the harsh appearance of an exposed LED source. Its ultra-slim profile makes it particularly useful for recessed mounting in suitable walls, staircases and plinths where discreet architectural lighting is required.
Key Features – ALL LED ALRD032AL/40 Low Level Light
- 1W energy-efficient recessed LED low level light
- 4000K neutral white colour temperature
- Round Oxford architectural marker light design
- Contemporary brushed aluminium finish
- IP65 protection against dust and water jets
- Frosted glass diffuser for smooth, even illumination
- Anti-glare construction for comfortable low-level lighting
- Ultra-slim profile for discreet recessed installation
- Suitable for staircase, wall and plinth lighting
- Ideal for residential and commercial architectural installations
- 350mA constant current operation
- Dimmable when used with a compatible dimmable LED driver
- Supplied with a 1-metre pre-wired cable
- Requires a separate 350mA constant current LED driver
- Multiple fittings must be connected in series using a suitable driver
4000K Neutral White LED Low Level Lighting
The ALL LED ALRD032AL/40 Low Level Light produces crisp 4000K neutral white illumination, creating a balanced lighting effect suited to contemporary interiors and modern architectural spaces.
Unlike warmer 3000K alternatives, the 4000K output provides a more neutral appearance that works particularly well alongside white walls, brushed metal fittings, pale flooring and contemporary decorative materials.
The frosted glass diffuser spreads illumination evenly, creating a softer lighting effect than clear-lens marker lights designed to produce sharply defined beams. This makes the Oxford fitting particularly suitable for low-level wall lighting, where a discreet appearance and comfortable illumination are important.
With a power consumption of just 1W, several fittings can be incorporated into a coordinated lighting scheme without the higher power requirements associated with larger decorative luminaires.
Round Brushed Aluminium LED Marker Light
The Oxford range combines a traditional round recessed profile with a contemporary brushed aluminium finish, providing a versatile architectural lighting solution for modern properties.
The brushed metallic surface complements stainless steel accessories, decorative ironmongery, modern switches and sockets, and neutral interior finishes. Unlike polished chrome, brushed aluminium offers a more understated appearance with a subtle surface texture.
As a round LED marker light, the Oxford fitting can be integrated into suitable architectural surfaces without the visual impact of larger wall-mounted luminaires. Its circular design also provides an alternative to square or rectangular low-level lighting fittings.
For projects involving several matching lights, the brushed aluminium finish helps create a coordinated appearance across staircases, corridors and decorative wall installations.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | ALRD032AL/40 |
| Product Range | Oxford |
| Product Type | Recessed LED Low Level Light / Marker Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 4000K Neutral White |
| Finish | Brushed Aluminium |
| Front Design | Round |
| Diffuser | Frosted Glass |
| Light Distribution | Soft, Evenly Distributed Illumination |
| Glare Control | Anti-Glare |
| Ingress Protection | IP65 |
| Mounting | Recessed |
| Profile | Ultra-Slim |
| Pre-Wired Cable | 1 Metre |
| Dimmable | With Compatible Dimmable LED Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring with Compatible Constant Current Driver |
LED Staircase Lighting and Recessed Wall Illumination
The ALL LED ALRD032AL/40 Low Level Light is particularly suitable for staircase lighting projects where discreet illumination is needed along walls, steps and architectural features.
Installed at suitable intervals, these recessed LED marker lights can provide decorative illumination along a staircase without relying entirely on ceiling-mounted lights. Their low-level position can also create an attractive lighting effect against nearby walls and floor surfaces.
The anti-glare design and frosted glass diffuser help produce a comfortable lighting effect, making the Oxford range practical for both residential and commercial environments.
For longer corridors and hallways, several matching round marker lights can be incorporated into a coordinated architectural lighting arrangement. The brushed aluminium finish provides a consistent decorative appearance, while the 4000K output maintains a clean, neutral white lighting effect.
In commercial properties, the fitting can also be used for reception areas, architectural wall features and corridors where supplementary decorative lighting is required. It should not be relied upon as the sole source of safety or emergency illumination unless the complete installation has been designed for that purpose.
Ultra-Slim Recessed Installation
The Oxford LED range is designed for discreet architectural installations where space and visual appearance are important.
The ALL LED ALRD032AL/40 Low Level Light features an ultra-slim profile that allows it to be incorporated into suitable recessed walls and plinths, subject to the manufacturer’s specified mounting dimensions.
Its factory-fitted 1-metre cable provides a convenient connection for routing towards a compatible 350mA constant current LED driver. Installers should consider the available recess depth, cable routing, driver positioning and accessibility of electrical connections before installation.
The round brushed aluminium front creates a neat finishing detail against timber, plasterboard, tiled surfaces and other compatible architectural materials.
As a 350mA constant current product, this LED fitting must never be connected directly to a 230V mains supply.
Compatible 350mA Constant Current LED Drivers
The ALL LED ALRD032AL/40 Low Level Light operates at 350mA constant current and requires a suitable LED driver, purchased separately.
The correct driver must be selected according to the number of connected fittings, their combined forward voltage, the driver’s permitted output range and whether dimming functionality is required. Multiple fittings supplied from one compatible constant current driver must be wired in series.
Electrical4Less offers a selection of ALL LED constant current drivers for individual low-level lights and coordinated architectural lighting installations.
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current LED driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA constant current LED driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano LED driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA constant current LED driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA constant current LED driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA constant current LED driver.
- ALL LED ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Explore our ALL LED 350mA mains dimmable LED drivers for additional driver options and compatible lighting control equipment.
Important: The wattage range stated on a driver alone does not guarantee compatibility. Always check its output voltage range, minimum load, maximum load, current setting and approved connection arrangement before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED ALRD032AL/40 Low Level Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first LED fitting to the positive (+) connection of the next fitting.
- Continue connecting additional LED fittings in series using the same arrangement.
- Connect the negative (-) connection of the final LED fitting back to the negative (-) output of the driver.
- Never connect these LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all connections before switching on the power supply.
- Observe correct polarity and ensure all electrical connections are secure.
- Check that the driver’s output voltage range and load capacity support the complete series-connected circuit.
- For adjustable constant current drivers, ensure the output is correctly configured to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Always follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected LED driver. Installation must be carried out by a competent person.
Multiple Oxford LED Marker Lights and Dimming Control
For projects requiring several matching fittings, the ALL LED ALRD032AL/40 Low Level Light can be incorporated into coordinated architectural lighting schemes using an appropriately rated 350mA constant current LED driver.
Multiple round LED marker lights can be positioned along staircases, corridors and decorative wall features to provide consistent neutral white illumination while maintaining the clean appearance of the brushed aluminium finish.
The total forward voltage of all connected LED fittings must fall within the selected driver’s permitted output range. Every fitting must be connected correctly in series before the circuit is energised.
Where variable brightness is required, a suitable dimmable constant current driver can be selected. Depending on the chosen model, ALL LED drivers offer mains dimming, DALI or 1–10V control options.
Energy-Efficient 1W LED Low Level Lighting
The ALL LED ALRD032AL/40 Low Level Light provides an efficient solution for decorative architectural lighting, with a rated power consumption of just 1W per fitting.
Its 4000K neutral white output creates a contemporary appearance, while the frosted diffuser softens the light distribution for comfortable low-level illumination.
Unlike larger general lighting fittings, these compact round LED marker lights can be positioned at selected points along a wall or staircase, allowing the lighting scheme to highlight individual architectural features.
For installations requiring multiple matching fittings, the low individual power consumption allows decorative lighting arrangements to be planned using a suitably rated constant current driver.
Suitable Applications – ALL LED ALRD032AL/40 Low Level Light
The combination of brushed aluminium styling, IP65 protection and a frosted glass diffuser makes the Oxford fitting suitable for a wide range of decorative low-level lighting applications.
- LED staircase lighting and recessed step illumination
- Low-level corridor and hallway lighting
- Decorative recessed wall lighting
- Architectural plinth lighting
- Round LED marker lighting
- Contemporary residential interiors
- Commercial corridors and reception areas
- Suitable bathroom lighting installations
- Appropriately specified outdoor architectural lighting
- Decorative lighting around architectural wall features
The ALL LED ALRD032AL/40 Low Level Light is particularly suitable where neutral white illumination needs to complement brushed metal accessories and contemporary architectural finishes. Its round profile and frosted glass diffuser provide a discreet alternative to conventional wall-mounted lighting.
Why Choose the Oxford Brushed Aluminium Low Level Light?
The Oxford range combines compact round styling with practical architectural lighting features. Its brushed aluminium finish offers a contemporary appearance, while the frosted diffuser provides smooth, comfortable illumination.
For professional electricians and lighting installers, the ALL LED ALRD032AL/40 Low Level Light offers 350mA constant current operation, a factory-fitted 1-metre cable and flexibility for individual or correctly planned multi-fitting installations.
Its 1W output, IP65 protection and compatibility with suitable dimmable LED drivers make it a versatile choice for decorative staircase lighting, recessed wall illumination and architectural features.
