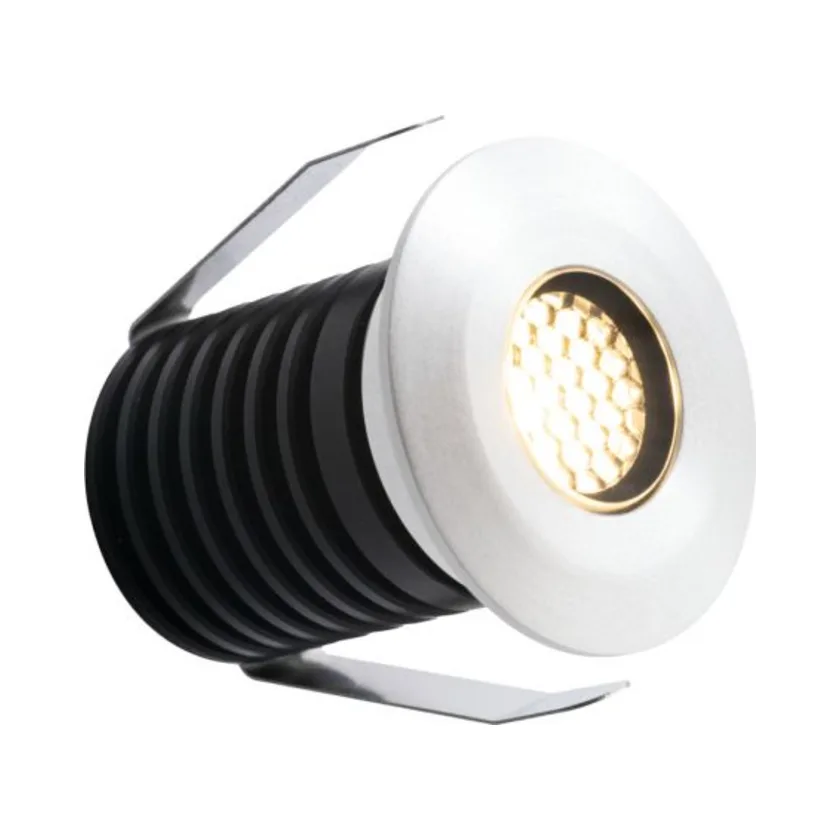

Britannia 1W LED Ground Light 4000K
ALL LED AGLX020WH/40 – IP67 Honeycomb Ground Light in Polar White
The Britannia 1W LED Ground Light 4000K from ALL LED combines contemporary design with precise, low-level outdoor illumination. Featuring a Polar White finish, integrated honeycomb anti-glare baffle and crisp 4000K cool white output, this recessed ground light is ideal for highlighting pathways, driveways, landscaped areas and architectural features.
Designed for professional outdoor installations, the AGLX020WH/40 incorporates a durable IP67-rated housing, toughened flush glass and a focused 15° beam angle. Its recessed construction creates a discreet appearance while delivering directed illumination where it is needed.
Key Features
- Brand: ALL LED
- Product Code: AGLX020WH/40
- Range: Britannia
- Light Source: Integrated 1W LED
- Colour Temperature: 4000K Cool White
- Finish: Polar White
- IP Rating: IP67 – Protected against dust and temporary immersion in water
- Operating Current: 350mA Constant Current
- Beam Angle: 15° for focused illumination
- Honeycomb Baffle: Reduces direct glare for greater visual comfort
- Drive-Over Rating: Up to 2 metric tonnes when correctly installed with the supplied mounting sleeve
- Glass: Toughened flush glass for additional durability
- Cable Gland: Robust metal construction
- Pre-Wired Cable: 2m heavy-duty outdoor rubber cable
- Dimming: Compatible with suitable dimmable 350mA LED drivers
4000K Cool White Outdoor Accent Lighting
Unlike warmer 2700K alternatives, the Britannia 1W LED Ground Light 4000K produces a cooler, more neutral white illumination. This makes it particularly suitable for modern building exteriors, contemporary landscaping and applications where a clean, defined lighting effect is preferred.
The integrated honeycomb baffle helps control unwanted glare, while the narrow 15° beam concentrates light on selected areas. This combination makes the fitting a practical option for decorative ground lighting, architectural detailing and low-level outdoor illumination.
Durable IP67 Ground Light with Drive-Over Protection
The Britannia AGLX020WH/40 is engineered for demanding outdoor environments. Its IP67-rated construction protects against dust and water ingress, while toughened flush glass provides a durable exposed surface.
When installed in accordance with the manufacturer’s instructions using the included mounting sleeve, the fitting offers drive-over resistance up to 2 metric tonnes. The supplied 2m outdoor rubber cable and robust metal cable gland support secure installation in suitable ground-level applications.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS CAN PERMANENTLY DAMAGE THE LED MARKER LIGHTS!
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
The ALL LED AGLX020WH/40 operates at 350mA constant current and requires a compatible external LED driver. The driver is sold separately and is not included with the fitting.
- Connect multiple LED marker lights in series, following the manufacturer’s wiring instructions.
- Never connect the fittings in parallel.
- Never connect the LED fittings directly to a 230V mains supply.
- Use a compatible 350mA constant current LED driver with the appropriate output voltage and power range.
- Ensure the total number of connected fittings is within the driver’s specified operating limits.
- Switch off the power supply before installing or modifying any connections.
- All connections must be completed correctly before the driver is energised.
IMPORTANT: Always check the manufacturer’s installation instructions before connecting or powering the fittings. Incorrect wiring or the use of an unsuitable driver may cause permanent LED damage.
Compatible ALL LED 350mA Drivers
The Britannia 1W LED Ground Light 4000K requires a suitable 350mA constant current driver. The following ALL LED drivers offer options for individual fittings and multiple-light installations, subject to their electrical operating limits.
- ADRCC350/1-11 – Non-dimmable 350mA driver, supporting 1–11 x 1W LEDs.
- ADRCC350TD/1-4 – Dimmable 350mA driver, supporting 1–4 x 1W LEDs.
- ADRCC350ANOTD/2-4 – Compact dimmable driver, supporting 2–4 x 1W LEDs.
- ADRCC350TD/4-9 – Dimmable 350mA driver, supporting 4–9 x 1W LEDs.
- ADRCC350TD/9-18 – Dimmable 350mA driver, supporting 9–18 x 1W LEDs.
- ADRCC350TD/12-25 – Dimmable 350mA driver, supporting 12–25 x 1W LEDs.
- ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming options.
- ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming options.
For adjustable-output drivers, the operating current must be configured to 350mA. Driver suitability depends on the total LED load, output voltage requirements and selected dimming system. Always verify compatibility against the manufacturer’s technical specifications before installation.
