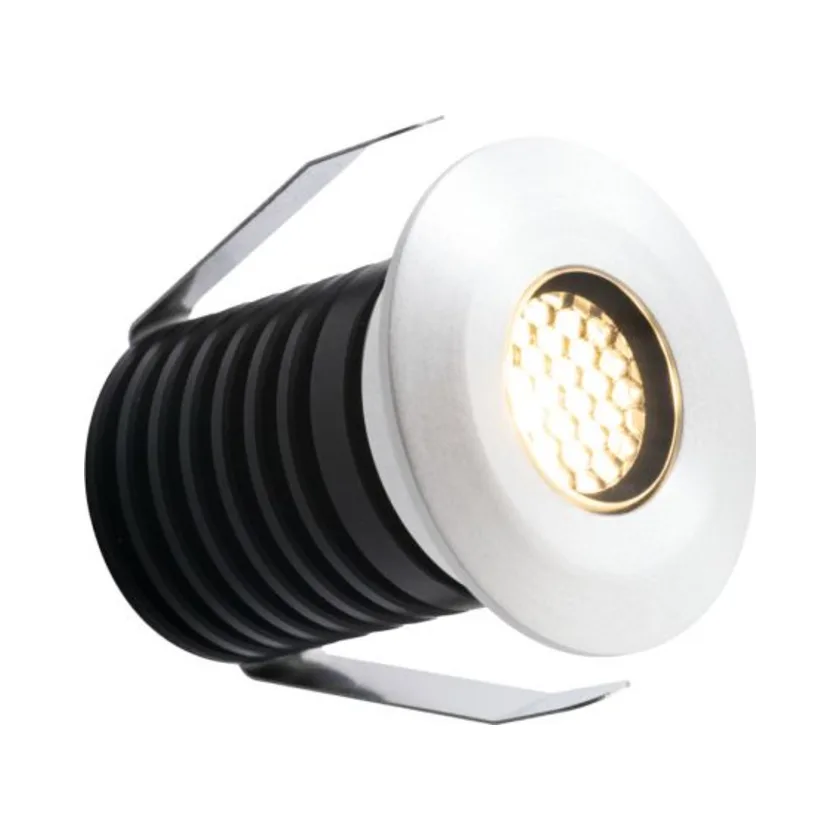

ALL LED AGLX020WH/30 Ground Light
The ALL LED AGLX020WH/30 Ground Light is a 1W recessed architectural LED fitting from the Britannia range, designed for precise low-level illumination. Featuring a glare-reducing honeycomb baffle, narrow 15° beam and 3000K warm white output, it provides controlled accent lighting for suitable driveways, pathways, landscaped gardens and building entrances.
With IP67 protection, toughened flush glass and a contemporary Polar White finish, the Britannia honeycomb ground light combines decorative styling with robust construction. When installed correctly using the supplied mounting sleeve and in accordance with the manufacturer’s instructions, it is drive-over rated for loads up to 2 metric tonnes.
Key Features – Britannia Honeycomb LED Ground Light
- 1W energy-efficient recessed LED ground light
- 3000K warm white illumination
- Polar White decorative finish
- IP67 protection against dust and temporary immersion
- Honeycomb baffle designed to reduce glare
- 15° narrow beam angle for focused accent lighting
- Toughened flush glass for a discreet installation
- Drive-over rated up to 2 metric tonnes when correctly installed with the supplied mounting sleeve
- Suitable for appropriately designed pathways, driveways and landscaped areas
- Robust metal cable gland
- Supplied with a 2-metre pre-wired rubber cable
- 350mA constant current operation
- Dimmable with a compatible dimmable LED driver
- Requires a separately purchased 350mA constant current driver
- Multiple fittings must be wired in series
Honeycomb Baffle for Reduced Glare
The Britannia AGLX020WH/30 incorporates a honeycomb baffle designed to limit unwanted glare and provide a more controlled architectural lighting effect.
This optical arrangement is particularly useful in ground-level installations where light is directed towards architectural features and may otherwise be visible from nearby viewing positions.
By helping shield the LED source, the honeycomb structure contributes to a more comfortable appearance while retaining the focused illumination of the narrow beam.
15° Narrow Beam for Architectural Accent Lighting
Unlike wide-beam ground lights intended to illuminate larger surrounding areas, the Britannia features a narrow 15° beam angle.
This focused distribution makes it suitable for highlighting selected architectural details, decorative walls, columns and landscape features.
The 3000K warm white output complements natural stone, timber, brickwork and traditional building materials, allowing the light to enhance nearby surfaces without creating an excessively cool appearance.
For wider or more uniform illumination, additional fittings or a different beam angle may be required.
IP67 Protection and Toughened Flush Glass
The ALL LED AGLX020WH/30 Ground Light features IP67 ingress protection, making it suitable for appropriately designed outdoor installations exposed to dust and moisture.
Its toughened flush glass provides a low-profile appearance that integrates into suitable recessed mounting surfaces.
IP67 indicates protection against temporary immersion under specified test conditions. It does not automatically establish suitability for permanent underwater installation or locations where water continuously accumulates.
Correct drainage, mounting arrangements and environmental assessment remain essential for reliable operation.
2-Tonne Drive-Over Rated Ground Light
A distinguishing feature of the Britannia range is its drive-over rating of up to 2 metric tonnes when installed using the included mounting sleeve and in accordance with the manufacturer’s requirements.
This makes the fitting suitable for appropriately designed vehicle-access locations where the specified load and installation conditions are satisfied.
The mounting sleeve helps provide the installation arrangement required for the manufacturer’s stated rating. The condition of the surrounding substrate, correct installation depth and applied loading must all be considered.
IMPORTANT: The 2-tonne rating applies only when the fitting is correctly installed with the supplied mounting sleeve. Do not assume suitability for unrestricted vehicle traffic or loads exceeding the manufacturer’s stated limit.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | AGLX020WH/30 |
| Product Range | Britannia |
| Product Type | Recessed Honeycomb LED Ground Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 3000K Warm White |
| Finish | Polar White |
| Ingress Protection | IP67 |
| Beam Angle | 15° |
| Optical Design | Glare-Reducing Honeycomb Baffle |
| Front Glass | Toughened Flush Glass |
| Mounting | Recessed In-Ground |
| Drive-Over Rating | Up to 2 Metric Tonnes with Correct Mounting Sleeve Installation |
| Mounting Sleeve | Included |
| Cable Gland | Metal |
| Pre-Wired Cable | 2 Metre Rubber Cable |
| Dimmable | With Compatible Dimmable Driver |
| LED Driver | Required – Sold Separately |
| Multiple Fitting Connection | Series Wiring Only |
Polar White Finish for Contemporary Ground Lighting
The Polar White finish gives this Britannia marker light a clean appearance suited to modern architecture, light-coloured paving and pale exterior surfaces.
Its discreet flush-glass design reduces the visual impact of the fitting during daylight hours, while the focused 3000K beam provides decorative illumination after dark.
This makes it an attractive option for installations where both the appearance of the fitting and the projected lighting effect are important.
Outdoor Lighting Applications
The Britannia honeycomb ground light is intended for architectural installations requiring compact recessed fittings with focused illumination and robust construction.
Potential applications include driveway edges, garden pathways, exterior architectural features, entrance areas and suitable landscaped installations.
The 15° beam is particularly useful for decorative uplighting where focused illumination is preferred. For general pathway visibility, the overall lighting design should be assessed rather than relying on a single narrow-beam marker light.
Installation and 350mA Constant Current Requirements
The ALL LED Britannia ground light is supplied with a 2-metre pre-wired rubber cable and robust metal cable gland to assist installation.
Its included mounting sleeve must be used in accordance with the manufacturer’s requirements, particularly where the stated drive-over rating is required.
Installers should verify recess dimensions, mounting depth, drainage provisions, cable routes, ground conditions and driver accessibility before installation.
This fitting operates at 350mA constant current. It requires a separately purchased compatible LED driver and must never be connected directly to a 230V mains supply.
ALL LED 350mA Constant Current Driver Options
The ALL LED AGLX020WH/30 Ground Light requires a suitable 350mA constant current LED driver, sold separately.
Driver selection depends on the number of connected fittings, their combined forward voltage, the driver’s permitted operating voltage range and whether dimming is required.
Electrical4Less offers the following ALL LED driver options for consideration, subject to confirmation of electrical compatibility:
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA driver.
- ALL LED ADRCC12D/100-440MA – Adjustable 12W constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable 30W constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Browse our ALL LED 350mA mains dimmable LED drivers for additional lighting control options.
Important: Driver wattage alone does not guarantee compatibility. Always verify the driver’s minimum and maximum load, permitted output voltage and the combined forward voltage of the connected fittings.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED AGLX020WH/30 Ground Light operates at 350mA CONSTANT CURRENT and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the LED driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional fittings using the same series arrangement.
- Connect the negative (-) connection of the final fitting to the negative (-) output of the driver.
- Never connect these LED fittings directly to a 230V mains supply.
- Never connect or disconnect LED fittings while the driver is energised.
- Complete and inspect all electrical connections before switching on the power.
- Observe correct polarity throughout the installation.
- Ensure all connections are secure and suitably protected for outdoor use.
- Check the driver’s output voltage range and minimum and maximum loads.
- Configure adjustable drivers to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Always follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected LED driver. Installation must be carried out by a competent person.
Dimming and Multiple Britannia Ground Lights
Multiple Britannia LED ground lights can be incorporated into coordinated architectural lighting arrangements using an appropriately specified constant current driver.
Where several fittings share one driver, they must be connected in series. Their combined forward voltage must remain within the driver’s specified operating range.
For adjustable brightness, a compatible dimmable 350mA driver can be selected. Depending on the model, available control methods may include mains dimming, DALI and 1–10V.
Suitable Applications
- Recessed driveway marker lighting within the stated load rating
- Decorative garden and landscape illumination
- Pathway-edge marker lighting
- Architectural uplighting for exterior walls and columns
- Building entrances and decorative approach lighting
- Residential and commercial ground-level lighting schemes
- Focused 15° warm white accent lighting
Why Choose the Britannia Honeycomb Ground Light?
The ALL LED AGLX020WH/30 Ground Light combines a narrow 15° beam, glare-reducing honeycomb optics, IP67 protection and toughened flush glass in a compact architectural fitting.
Its Polar White finish and 3000K warm white output make it an attractive choice for modern exterior lighting. The manufacturer’s 2-tonne drive-over rating, when correctly installed with the included mounting sleeve, provides additional installation flexibility for suitable vehicle-access areas.
Order the ALL LED Britannia honeycomb ground light from Electrical4Less alongside suitable 350mA constant current drivers and professional installation accessories.
