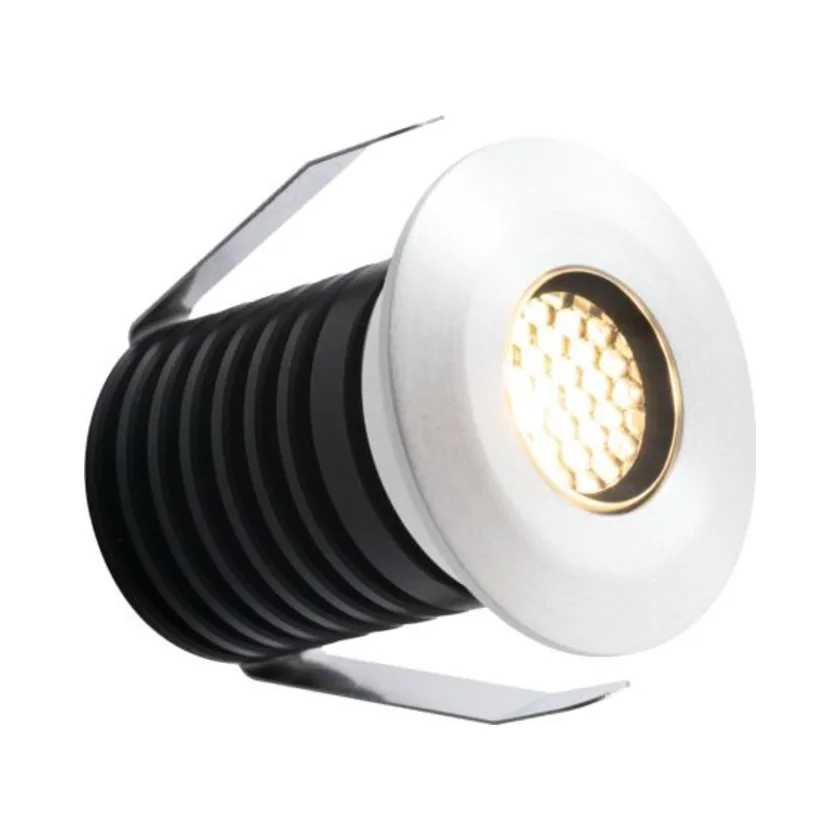

Britannia 1W LED Ground Light 2700K
ALL LED AGLX020WH/27 – IP67 Honeycomb Ground Light in Polar White
The Britannia 1W LED Ground Light 2700K from ALL LED is a compact recessed outdoor fitting designed for discreet architectural and landscape illumination. Featuring a Polar White finish and an anti-glare honeycomb baffle, this 1W LED ground light delivers controlled warm white illumination for pathways, driveways, patios and entrance areas.
Part of the ALL LED Britannia range, this fitting incorporates a narrow 15° beam angle for focused accent lighting. Its IP67 protection rating, toughened flush glass and robust construction make it suitable for demanding outdoor environments.
Key Features – Britannia 1W LED Ground Light 2700K
- Brand: ALL LED
- Product Code: AGLX020WH/27
- Range: Britannia
- Light Source: Integrated 1W LED
- Colour Temperature: 2700K Warm White
- Finish: Polar White
- Protection Rating: IP67
- Operating Current: 350mA Constant Current
- Beam Angle: 15°
- Honeycomb Baffle: Reduces glare for improved visual comfort
- Drive-Over Rating: Up to 2 metric tonnes when correctly installed using the supplied mounting sleeve
- Glass: Toughened flush glass
- Cable: Pre-wired with 2m outdoor rubber cable
- Dimming: Compatible with suitable dimmable constant current drivers
Outdoor Ground and Pathway Lighting
The Britannia 1W LED Ground Light 2700K provides a practical lighting solution for installations where discreet positioning and controlled illumination are important. Its honeycomb baffle helps minimise direct glare, making it particularly useful alongside pedestrian routes, landscaped areas and architectural features.
The Polar White finish offers a clean appearance, while the recessed construction allows the fitting to sit flush with the surrounding surface. When installed correctly with the supplied mounting sleeve, the fitting can withstand drive-over loads of up to 2 tonnes.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS CAN PERMANENTLY DAMAGE THE LED MARKER LIGHTS!
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
The ALL LED AGLX020WH/27 operates at 350mA constant current and requires a compatible external LED driver. The driver is sold separately and is not included with the fitting.
- Connect multiple LED marker lights in series, following the manufacturer’s wiring instructions.
- Never connect the fittings in parallel.
- Never connect the LED fittings directly to a 230V mains supply.
- Use a compatible 350mA constant current LED driver with the appropriate output voltage and power range.
- Ensure the total number of connected fittings is within the driver’s specified operating limits.
- Switch off the power supply before installing or modifying any connections.
- All connections must be completed correctly before the driver is energised.
IMPORTANT: Always check the manufacturer’s installation instructions before connecting or powering the fittings. Incorrect wiring or the use of an unsuitable driver may cause permanent LED damage.
Compatible ALL LED 350mA Drivers
The Britannia 1W LED Ground Light 2700K can be used with suitable ALL LED 350mA constant current drivers. Select the correct driver based on the number of connected fittings, their total electrical load and the required dimming method.
- ADRCC350/1-11 – Non-dimmable 350mA driver, supporting 1–11 x 1W LEDs.
- ADRCC350TD/1-4 – Dimmable 350mA driver, supporting 1–4 x 1W LEDs.
- ADRCC350ANOTD/2-4 – Compact dimmable driver, supporting 2–4 x 1W LEDs.
- ADRCC350TD/4-9 – Dimmable 350mA driver, supporting 4–9 x 1W LEDs.
- ADRCC350TD/9-18 – Dimmable 350mA driver, supporting 9–18 x 1W LEDs.
- ADRCC350TD/12-25 – Dimmable 350mA driver, supporting 12–25 x 1W LEDs.
- ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming options.
- ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming options.
For adjustable-output drivers, the current must be set to 350mA. Always verify that the connected LED load falls within the driver’s minimum and maximum output voltage and power specifications.
