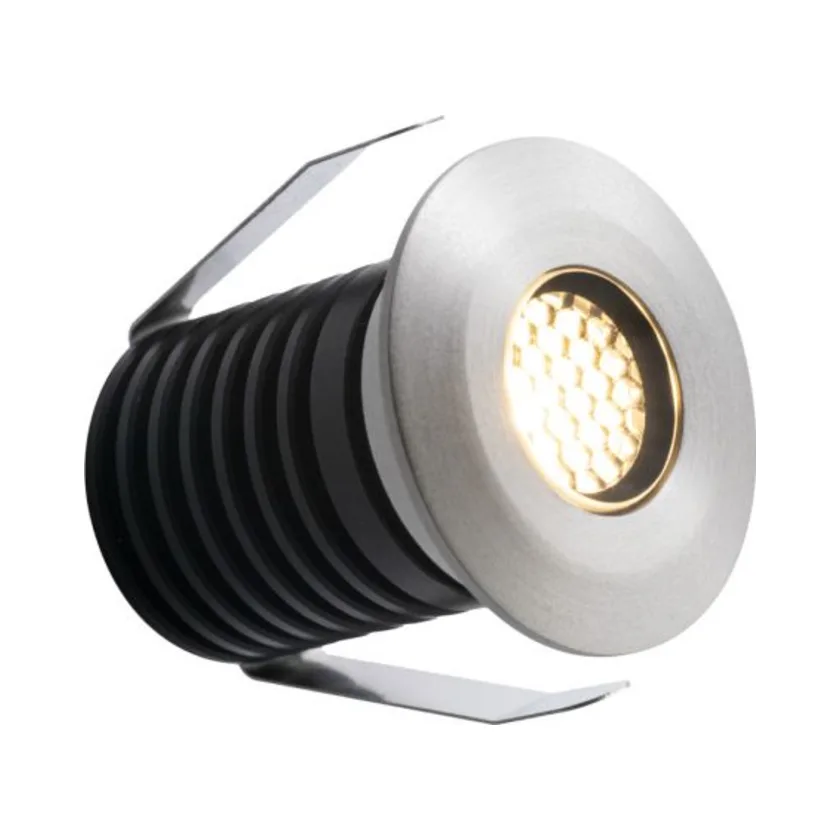

Britannia 1W LED Ground Light 3000K
ALL LED AGLX020SS/30 – IP67 Honeycomb Ground Light in 316L Stainless Steel
The Britannia 1W LED Ground Light 3000K from ALL LED is a compact recessed lighting solution designed for outdoor spaces requiring durability, precise illumination and a premium finish. Manufactured with a 316L stainless steel exterior and integrated honeycomb anti-glare baffle, this ground light provides comfortable warm white lighting for pathways, driveways, patios and architectural features.
Designed for ground-level installation, the AGLX020SS/30 combines an IP67-rated construction with toughened flush glass and a concentrated 15° beam angle. Its 3000K output delivers a welcoming warm white light while maintaining clear definition around outdoor features.
Key Features
- Brand: ALL LED
- Product Code: AGLX020SS/30
- Range: Britannia
- Light Source: Integrated 1W LED
- Colour Temperature: 3000K Warm White
- Finish: 316L Stainless Steel
- Protection Rating: IP67 – Dust-tight and protected against temporary immersion
- Operating Current: 350mA Constant Current
- Beam Angle: 15° for concentrated accent lighting
- Honeycomb Baffle: Helps reduce direct glare
- Drive-Over Rating: Up to 2 metric tonnes when correctly installed with the supplied mounting sleeve
- Glass: Toughened flush glass
- Cable Gland: Heavy-duty metal construction
- Pre-Wired Cable: 2m outdoor rubber cable
- Dimming: Compatible with suitable dimmable 350mA LED drivers
316L Stainless Steel Construction for Outdoor Environments
The Britannia 1W LED Ground Light 3000K features a premium 316L stainless steel finish, offering excellent corrosion resistance compared with standard stainless steel grades. This makes it particularly attractive for exposed outdoor installations where moisture and changing weather conditions are a consideration.
The flush-mounted construction helps the fitting integrate into paving, decking surrounds and landscaped surfaces. Its stainless steel appearance complements contemporary building exteriors while providing a hard-wearing exposed finish.
Anti-Glare Honeycomb Baffle and 3000K Illumination
The integrated honeycomb baffle controls direct glare, helping create a softer viewing experience without sacrificing the focused lighting effect. With its narrow 15° beam, the AGLX020SS/30 is suitable for highlighting walls, columns, steps and landscaped details.
Its 3000K warm white output provides a balanced atmosphere, sitting between the softer appearance of 2700K lighting and the cooler effect of 4000K alternatives. This makes it particularly useful in residential gardens, hospitality environments and decorative exterior lighting schemes.
IP67 Ground Light with Drive-Over Protection
Engineered for recessed installation, this Britannia ground light provides IP67 protection against dust and water ingress. The toughened flush glass and robust metal cable gland contribute to dependable performance in outdoor environments.
When correctly installed with the supplied mounting sleeve, the fitting can withstand drive-over loads up to 2 metric tonnes. This makes it suitable for appropriately designed driveway and pathway lighting installations.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS CAN PERMANENTLY DAMAGE THE LED MARKER LIGHTS!
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
The ALL LED AGLX020SS/30 operates at 350mA constant current and requires a compatible external LED driver. The driver is sold separately and is not included with the fitting.
- Connect multiple LED marker lights in series, following the manufacturer’s wiring instructions.
- Never connect the fittings in parallel.
- Never connect the LED fittings directly to a 230V mains supply.
- Use a compatible 350mA constant current LED driver with the appropriate output voltage and power range.
- Ensure the total number of connected fittings is within the driver’s specified operating limits.
- Switch off the power supply before installing or modifying any connections.
- All connections must be completed correctly before the driver is energised.
IMPORTANT: Always check the manufacturer’s installation instructions before connecting or powering the fittings. Incorrect wiring or the use of an unsuitable driver may cause permanent LED damage.
Compatible ALL LED 350mA Drivers
The Britannia 1W LED Ground Light 3000K requires a suitable 350mA constant current driver. The following ALL LED drivers offer options for installations with individual or multiple fittings, subject to their specified electrical operating limits.
- ADRCC350/1-11 – Non-dimmable 350mA driver, supporting 1–11 x 1W LEDs.
- ADRCC350TD/1-4 – Dimmable 350mA driver, supporting 1–4 x 1W LEDs.
- ADRCC350ANOTD/2-4 – Compact dimmable driver, supporting 2–4 x 1W LEDs.
- ADRCC350TD/4-9 – Dimmable 350mA driver, supporting 4–9 x 1W LEDs.
- ADRCC350TD/9-18 – Dimmable 350mA driver, supporting 9–18 x 1W LEDs.
- ADRCC350TD/12-25 – Dimmable 350mA driver, supporting 12–25 x 1W LEDs.
- ADRCC12D/100-440MA – Adjustable constant current driver with DALI and 1–10V dimming options.
- ADRCC30D/300-900MA – Adjustable constant current driver with DALI and 1–10V dimming options.
For adjustable-output drivers, set the operating current to 350mA. Driver suitability depends on the combined LED load, output voltage requirements and dimming system. Always confirm the manufacturer’s electrical specifications before installation.
