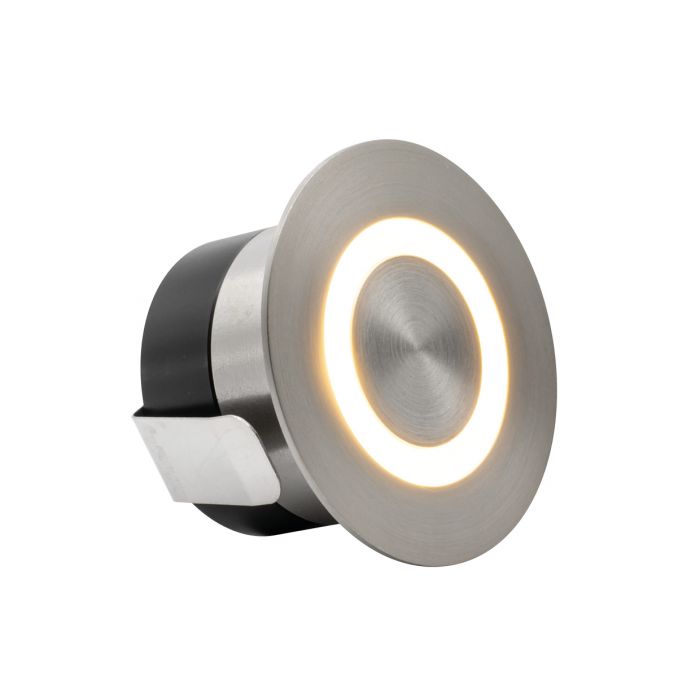

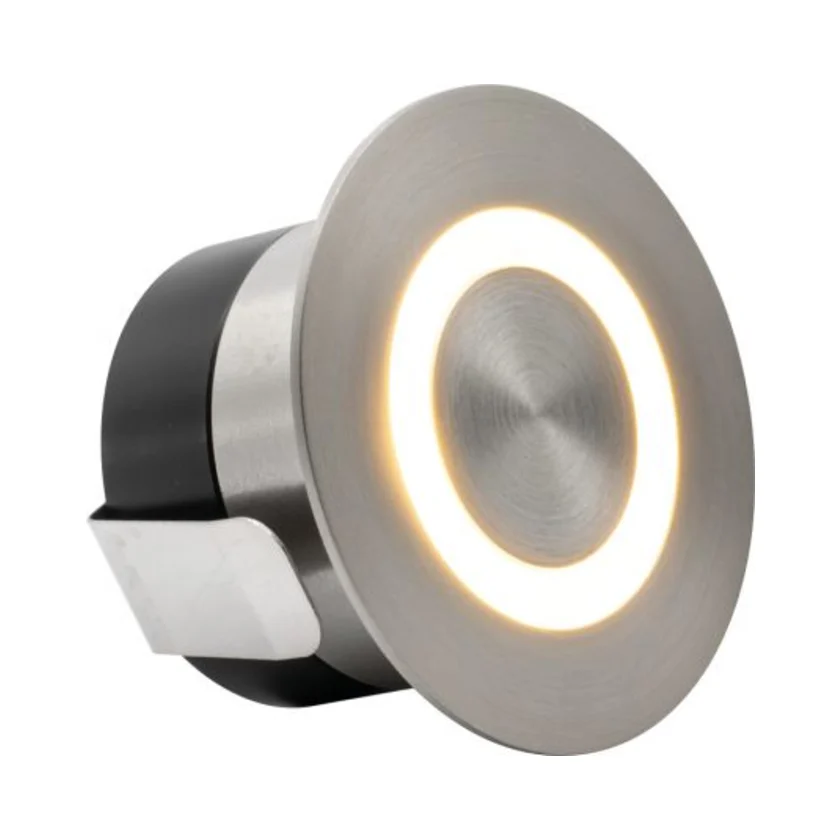

ALL LED AGLH035SS/40 Halo Marker Light
The ALL LED AGLH035SS/40 Halo Marker Light is a 1W recessed ground-level LED fitting combining 4000K cool white illumination with high-grade 316L stainless steel construction. Designed for discreet architectural and decorative outdoor lighting, this IP65-rated marker light provides a contemporary appearance for suitable gardens, building entrances and landscape installations.
Featuring toughened, flush anti-glare optics, the Halo delivers controlled low-level illumination while maintaining a neat, unobtrusive profile. The combination of cool white light and a stainless steel finish makes this fitting particularly attractive for contemporary exterior designs incorporating stone, concrete and metal architectural features.
Key Features – Halo Stainless Steel 4000K Marker Light
- 1W energy-efficient recessed LED marker light
- 4000K cool white illumination
- High-grade 316L stainless steel construction
- IP65 protection against dust and water jets
- Flush anti-glare optics for controlled illumination
- Toughened optical construction
- Designed for suitable recessed in-ground installations
- Suitable for decorative landscape and architectural lighting
- 350mA constant current operation
- Dimmable with a compatible dimmable LED driver
- Supplied with a 1-metre pre-wired cable
- Requires a separate 350mA constant current LED driver
- Multiple fittings must be connected in series
4000K Cool White Architectural Lighting
The Halo 4000K marker light produces a crisp, neutral-to-cool white lighting effect that complements modern architectural materials and contemporary landscaping.
Compared with the warmer 2700K and 3000K Halo versions, this model creates a cleaner white appearance, making it particularly suitable for decorative installations around pale stone, concrete, modern facades and metallic surfaces.
Its low-energy 1W output is designed for accent and marker lighting rather than providing general illumination across large exterior areas.
316L Stainless Steel Construction
The ALL LED AGLH035SS/40 Halo Marker Light features 316L stainless steel, a high-grade material offering good corrosion resistance and a contemporary metallic appearance.
This construction makes it attractive for exposed architectural fittings where a durable decorative finish is important.
Although 316L stainless steel provides improved corrosion resistance compared with many standard grades, installation suitability must still be assessed for coastal locations, chemically aggressive environments and permanently wet conditions.
Routine maintenance and appropriate cleaning may be necessary to preserve its appearance in demanding environments.
Flush Anti-Glare Optics
The Halo incorporates toughened, flush anti-glare optics designed to provide decorative low-level illumination without unnecessary visual discomfort.
Its recessed construction helps maintain a tidy appearance across suitable ground-level mounting surfaces.
When installed as part of a coordinated lighting arrangement, several Halo marker lights can produce repeated areas of cool white illumination around appropriate architectural and landscape features.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | AGLH035SS/40 |
| Product Range | Halo |
| Product Type | Recessed In-Ground LED Marker Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 4000K Cool White |
| Material | 316L Stainless Steel |
| Optics | Flush Anti-Glare |
| Ingress Protection | IP65 |
| Installation | Recessed In-Ground |
| Connection Cable | 1 Metre Pre-Wired |
| Dimmable | With Compatible Dimmable Driver |
| Driver Included | No – Sold Separately |
| Multiple Fitting Wiring | Series Only |
Recessed Ground Lighting for Modern Outdoor Spaces
This stainless steel Halo LED marker light can be incorporated into decorative outdoor lighting installations where compact fittings provide subtle architectural accents.
Potential applications include suitable garden landscaping, building entrance features, exterior decorative surfaces and selected pathway-edge locations.
Its IP65 rating protects against dust ingress and water jets, but does not establish suitability for continuous immersion, standing water or vehicle loading.
Before installation, confirm the manufacturer’s approved applications, drainage requirements, mounting conditions and local environmental exposure. Stainless steel construction alone does not establish suitability for vehicle-access areas.
Installation and 350mA Constant Current Requirements
The Halo marker light includes a 1-metre pre-wired cable to assist with routing connections towards a suitable LED driver.
Installers should confirm the required recess dimensions, mounting arrangements, drainage provisions, cable routes and driver accessibility before completing the installation.
This fitting requires a 350mA constant current LED driver and must never be connected directly to a 230V mains supply.
ALL LED 350mA Constant Current Driver Options
The ALL LED AGLH035SS/40 Halo Marker Light requires a compatible 350mA constant current LED driver, sold separately.
Driver selection depends on the number of connected LED fittings, their combined forward voltage, the driver’s permitted operating range and the required lighting controls.
Electrical4Less offers the following ALL LED driver options for consideration, subject to confirmation of electrical compatibility:
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA driver.
- ALL LED ADRCC12D/100-440MA – Adjustable 12W constant current driver with DALI and 1–10V control. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable 30W constant current driver with DALI and 1–10V control. Must be configured to 350mA.
Browse our ALL LED 350mA mains dimmable LED drivers for further options.
Important: Driver wattage alone does not guarantee compatibility. Always verify the driver’s minimum and maximum loads, permitted output voltage and the combined forward voltage of connected fittings before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED AGLH035SS/40 Halo Marker Light operates at 350mA CONSTANT CURRENT and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional fittings using the same series arrangement.
- Connect the negative (-) connection of the final fitting to the negative (-) output of the driver.
- Never connect these fittings directly to a 230V mains supply.
- Never connect or disconnect fittings while the driver is energised.
- Complete and inspect all electrical connections before energising the driver.
- Observe correct polarity throughout the circuit.
- Ensure connections are secure and suitably protected against environmental exposure.
- Check the driver’s output voltage range and minimum and maximum loads.
- Configure adjustable drivers to 350mA before switching on the power.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Always follow the manufacturer’s installation instructions and the wiring diagram supplied with the selected driver. Installation must be carried out by a competent person.
Dimming and Multiple Halo Marker Lights
Several Halo marker lights can be used together to create a coordinated decorative lighting arrangement, provided a suitable constant current driver is selected and the fittings are connected in series.
Where dimming is required, compatible constant current drivers may support mains dimming, DALI or 1–10V control, depending on the selected model.
For multi-fitting installations, the combined forward voltage of all connected LEDs must remain within the driver’s specified output voltage range.
Suitable Applications
- Recessed ground-level architectural lighting
- Contemporary garden and landscape features
- Building entrance accent lighting
- Suitable pathway-edge marker lighting
- Residential exterior lighting schemes
- Commercial architectural landscaping
- 4000K cool white decorative marker lighting
Why Choose the Halo Stainless Steel 4000K Marker Light?
The ALL LED AGLH035SS/40 Halo Marker Light combines a corrosion-resistant 316L stainless steel construction with crisp 4000K illumination and discreet flush anti-glare optics.
Its 1W power consumption, IP65 protection and 350mA constant current operation make it suitable for appropriately designed architectural installations using compatible drivers and approved mounting arrangements.
Order the Halo 4000K stainless steel LED marker light from Electrical4Less alongside suitable ALL LED drivers and professional installation accessories.
